Plan 62014V 3-Bed House Plan with Full-Length Windows on the Covered Porch

3-Bed House Plan with Full-Length Windows on the Covered Porch

Plan 62014V

  • 1,675

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Full-length windows and a covered porch supported by columns are striking elements of this one-story design. Another covered porch off the kitchen offers a great place for outdoor dining.
  • From the foyer, you enter the fireplaced great room, which flows back along the side to the dining room and then the kitchen. The island in the kitchen allows for both food preparation and casual meals.
  • The master suite, sited for privacy, offers a large walk-in closet and a two-compartment bath with twin sinks, garden tub and separate shower. Both of the other bedrooms contain walk-in closets and share the second bath.
  • The laundry is conveniently placed near the bedrooms.
  • Storage space includes two coat closets and a storage room off the side-entry garage.

Plan sets include the following:

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

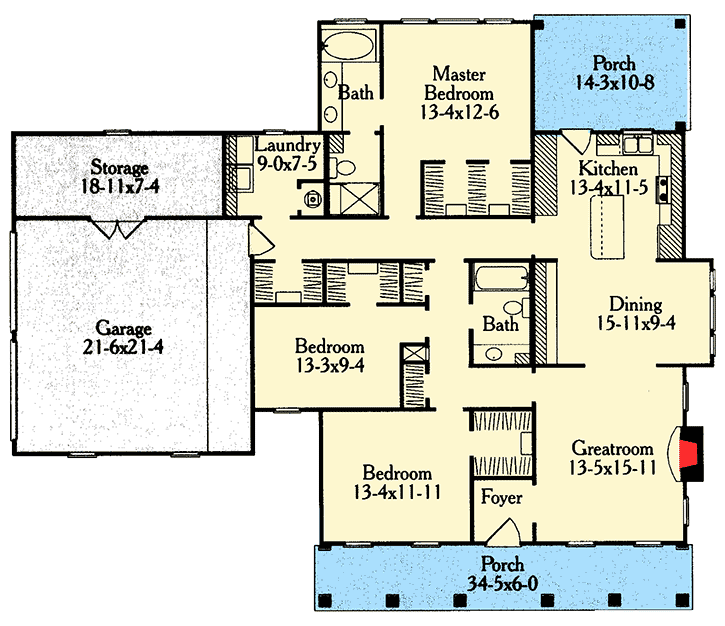

3-Bed House Plan with Full-Length Windows on the Covered Porch - 62014V floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

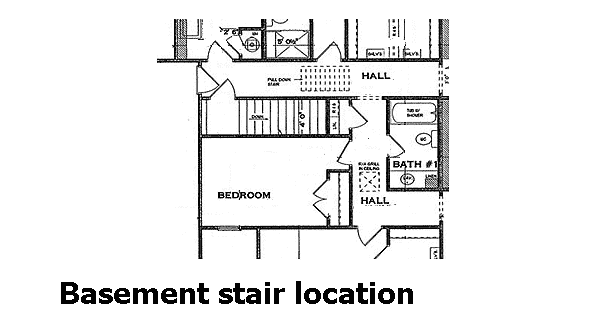

3-Bed House Plan with Full-Length Windows on the Covered Porch - 62014V floor plan - Optional

Plan details

Architectural Style

3-Bed House Plan with Full-Length Windows on the Covered Porch

  • 1,675

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,115
  • CAD - Single-Build $1,950
  • View all purchase option online

About This Plan

  • Full-length windows and a covered porch supported by columns are striking elements of this one-story design. Another covered porch off the kitchen offers a great place for outdoor dining.
  • From the foyer, you enter the fireplaced great room, which flows back along the side to the dining room and then the kitchen. The island in the kitchen allows for both food preparation and casual meals.
  • The master suite, sited for privacy, offers a large walk-in closet and a two-compartment bath with twin sinks, garden tub and separate shower. Both of the other bedrooms contain walk-in closets and share the second bath.
  • The laundry is conveniently placed near the bedrooms.
  • Storage space includes two coat closets and a storage room off the side-entry garage.

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,675 sq. ft.
  • 1st Floor: 1,675 sq. ft.
  • Porch, Combined: 359 sq. ft.
  • Porch, Rear: 153 sq. ft.
  • Porch, Front: 206 sq. ft.
  • Basement Unfinished: 1,675 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 11"
  • Depth: 54' 8"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 629 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
