Plan 70563MK 3-Bed House Plan with Open Floor Plan Design

3-Bed House Plan with Open Floor Plan Design

Plan 70563MK

  • 1,417

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This charming 3-bed house plan displays beautiful arched design over the garage, front door and
  • the window looking into the great room.
  • Step inside and you'll love the open floor plan design that allows the foyer, great room, kitchen and dining room to flow together.
  • Bedrooms 2 and 3 each have their own walk in closet and share the bath located in the hall.
  • Relax in the master suite where you can enjoy the elegant boxed ceiling, or take the
  • relaxation outside to enjoy some fresh air out on the grilling porch.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

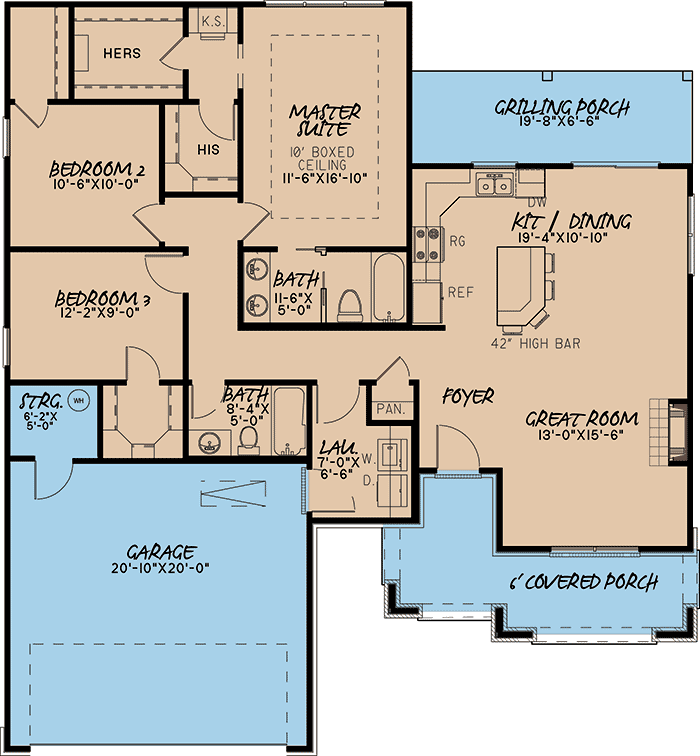

Floor Plan

Plan details

Architectural Style



3-Bed House Plan with Open Floor Plan Design

  • 1,417

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets $1,300
  • 5 Sets + PDF $1,550
  • CAD - Single-Build $2,400
  • View all purchase option online

About This Plan

  • This charming 3-bed house plan displays beautiful arched design over the garage, front door and
  • the window looking into the great room.
  • Step inside and you'll love the open floor plan design that allows the foyer, great room, kitchen and dining room to flow together.
  • Bedrooms 2 and 3 each have their own walk in closet and share the bath located in the hall.
  • Relax in the master suite where you can enjoy the elegant boxed ceiling, or take the
  • relaxation outside to enjoy some fresh air out on the grilling porch.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,417 sq. ft.
  • 1st Floor: 1,417 sq. ft.
  • Porch, Combined: 276 sq. ft.
  • Storage: 6 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 2"
  • Depth: 52' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 467 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
