Plan 39266ST

3 Bed House Plan with Optional Library

Heated S.F.

1,994

Beds

2-3

Baths

2

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

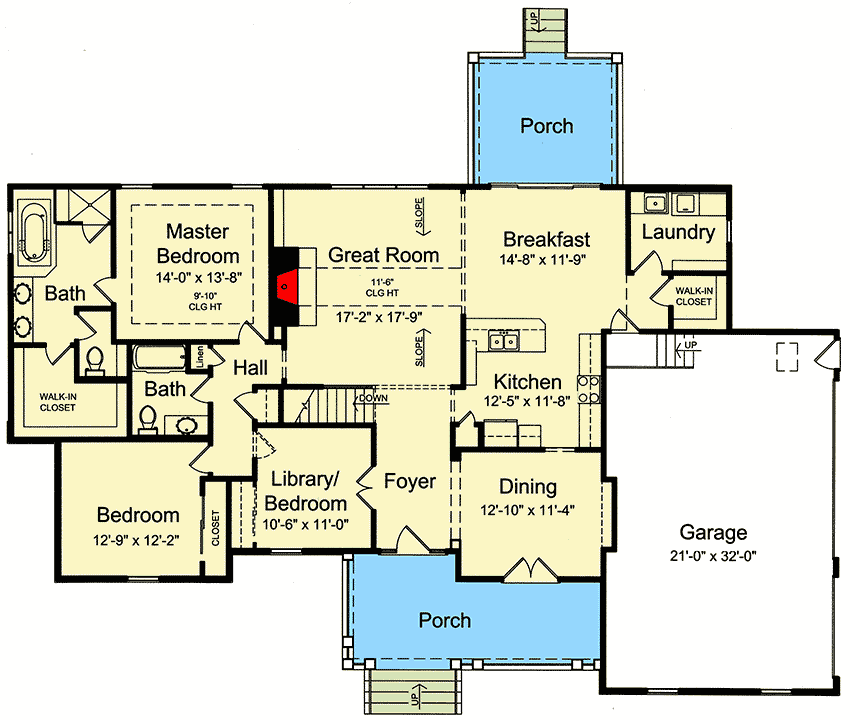

3 Bed House Plan with Optional Library - 39266ST floor plan - Main Level

Plan Details

The comfortable country exterior of this one level home creates a timeless appearance that will offer years of pleasure to its homeowner.
Three bedrooms, formal and informal dining and a great room with fireplace and rear view offer comfort and spaciousness to your family.
A covered rear porch and three car garage are convenient amenities.
The option of a library instead of a 3rd bedroom offers a great option for the emptynester.
A full basement access from the foyer offers additional room for expansion.

What's Included

General notes and specifications
Front, rear and side elevations at (1/4" scale)
Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,994 sq. ft.

1st Floor:

1,994 sq. ft.

Porch, Rear:

167 sq. ft.

Porch, Front:

213 sq. ft.

Basement Unfinished:

1,994 sq. ft.

Beds/Baths

Bedrooms:

2 or 3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

75' 6"

Depth:

57' 8"

Max Ridge Height:

28' 0"

Garage

Type:

Attached

Area:

670 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

Floor / Height:

First Floor / 9' 0"

Roof Details

Primary Pitch:

8 on 12

Secondary Pitch:

12 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor
