Plan 51780HZ

3-Bed House Plan with Room for Expansion - 2086 Sq Ft

Heated S.F.

2,086

Beds

3-4

Baths

2 - 3

Stories

1

Cars

2

Floor Plan

Main Level

2nd Floor

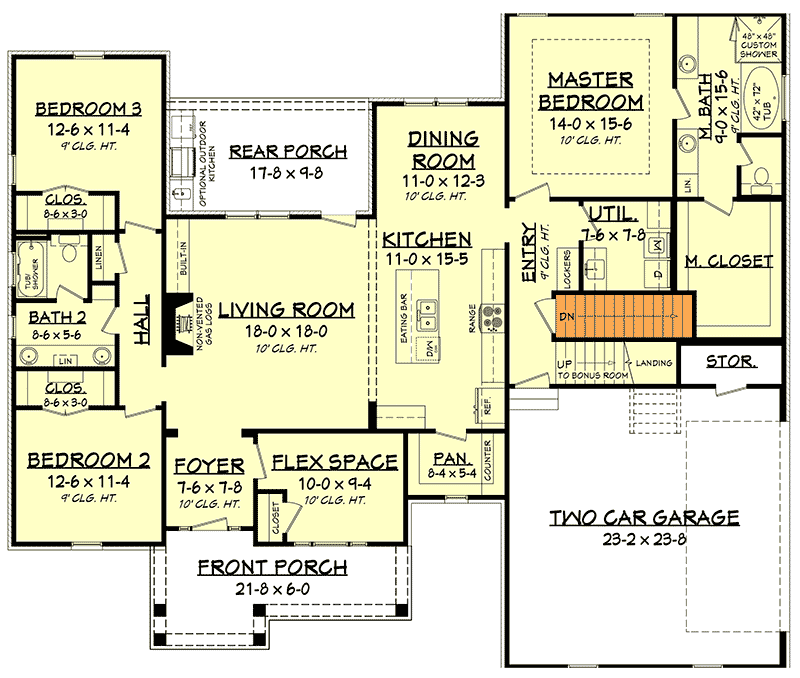

Basement Stairs

Plan Details

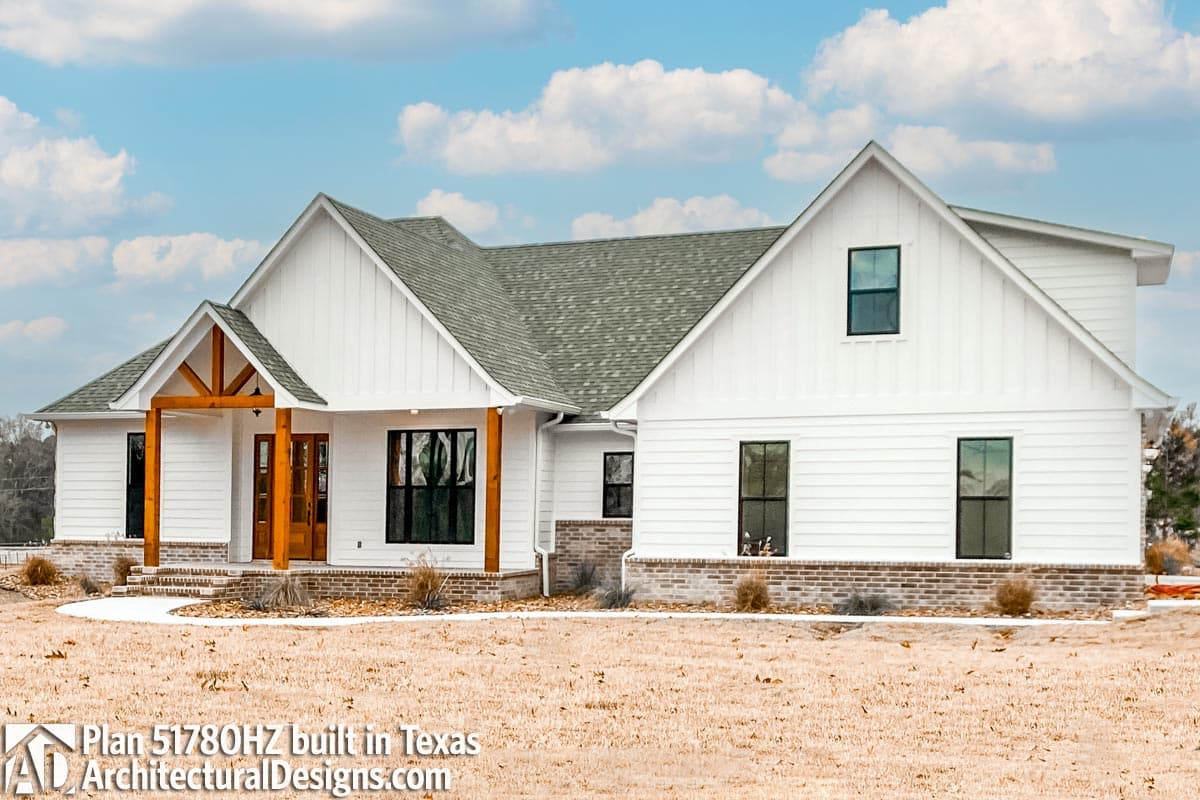

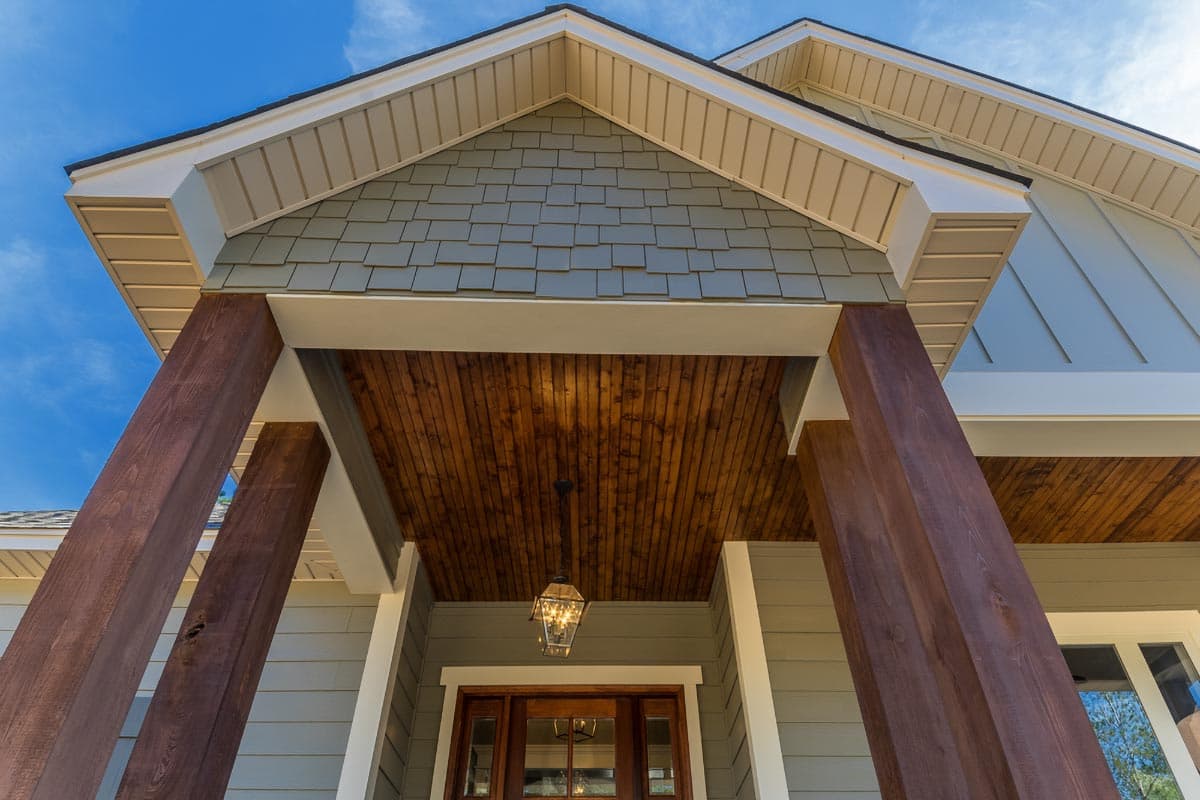

A wonderful exterior with a mixture of clapboard siding, board and batten, shingles and brick give this 3 bedroom, 2 bath house plan great curb appeal.

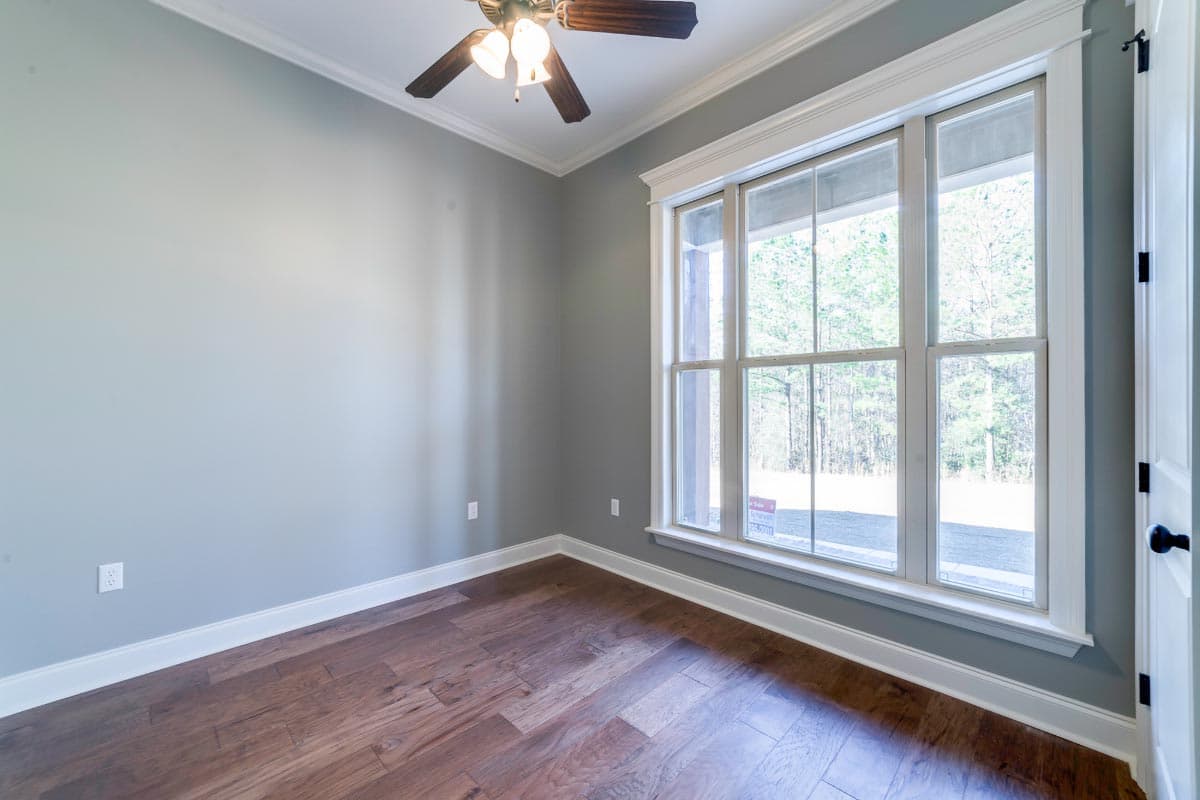

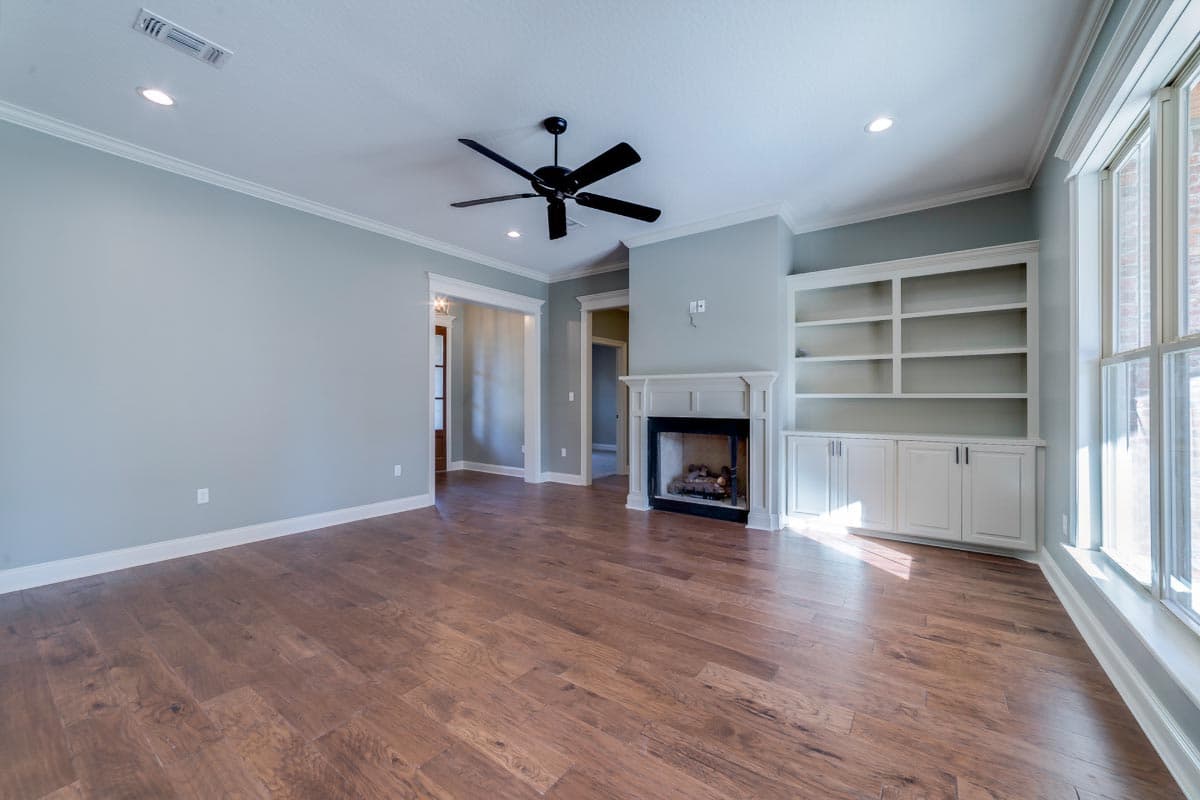

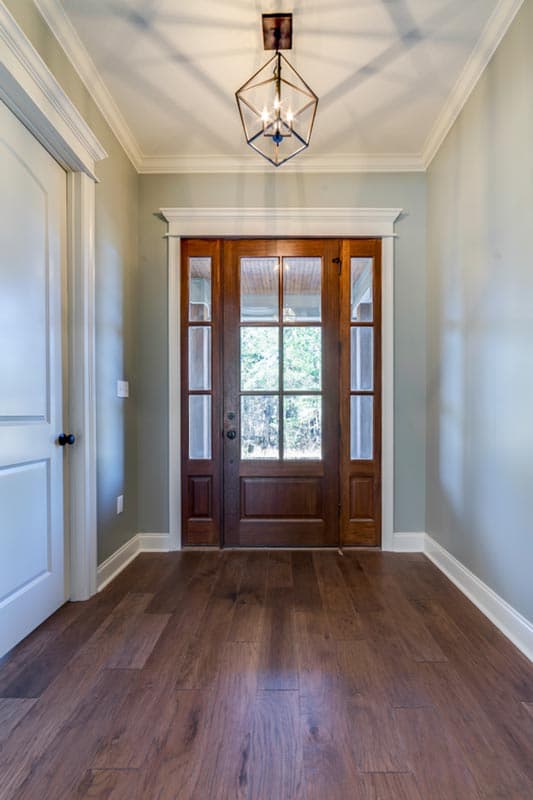

The foyer greets you with 10' ceilings and flows to an open concept living area. A flex room off to the right would make a great den or study.

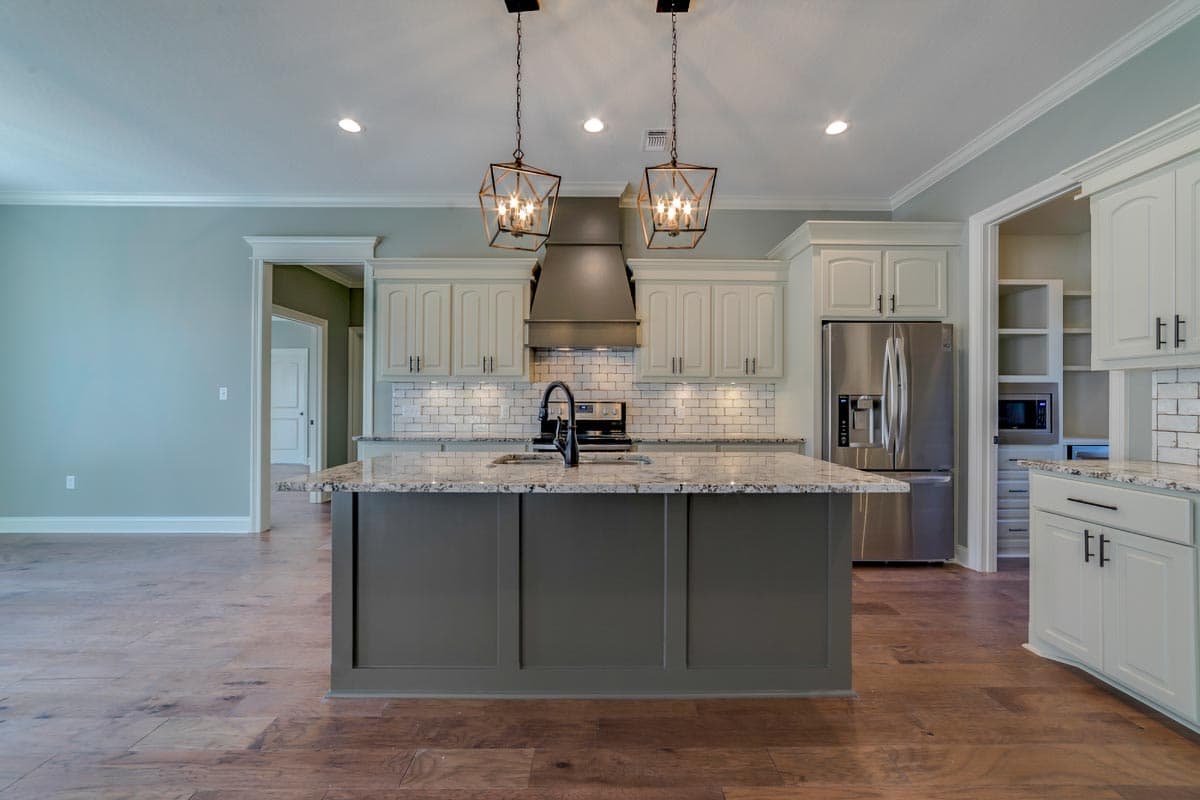

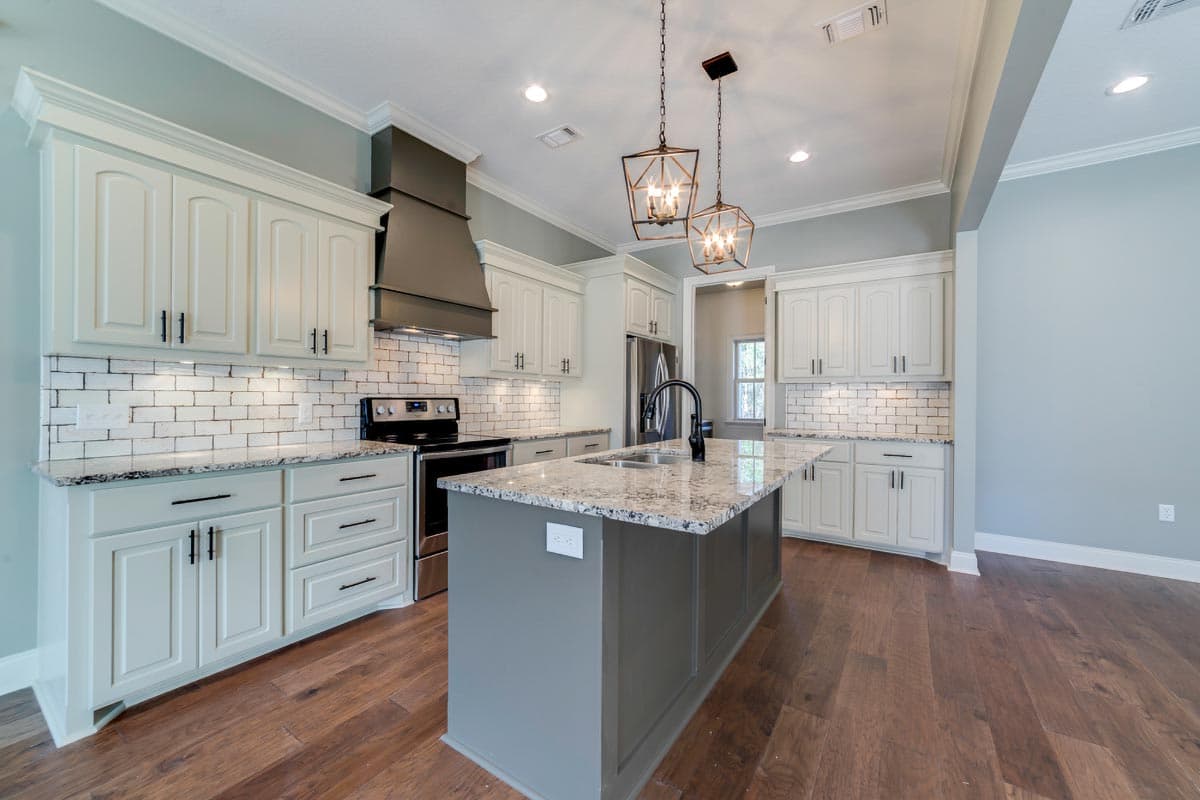

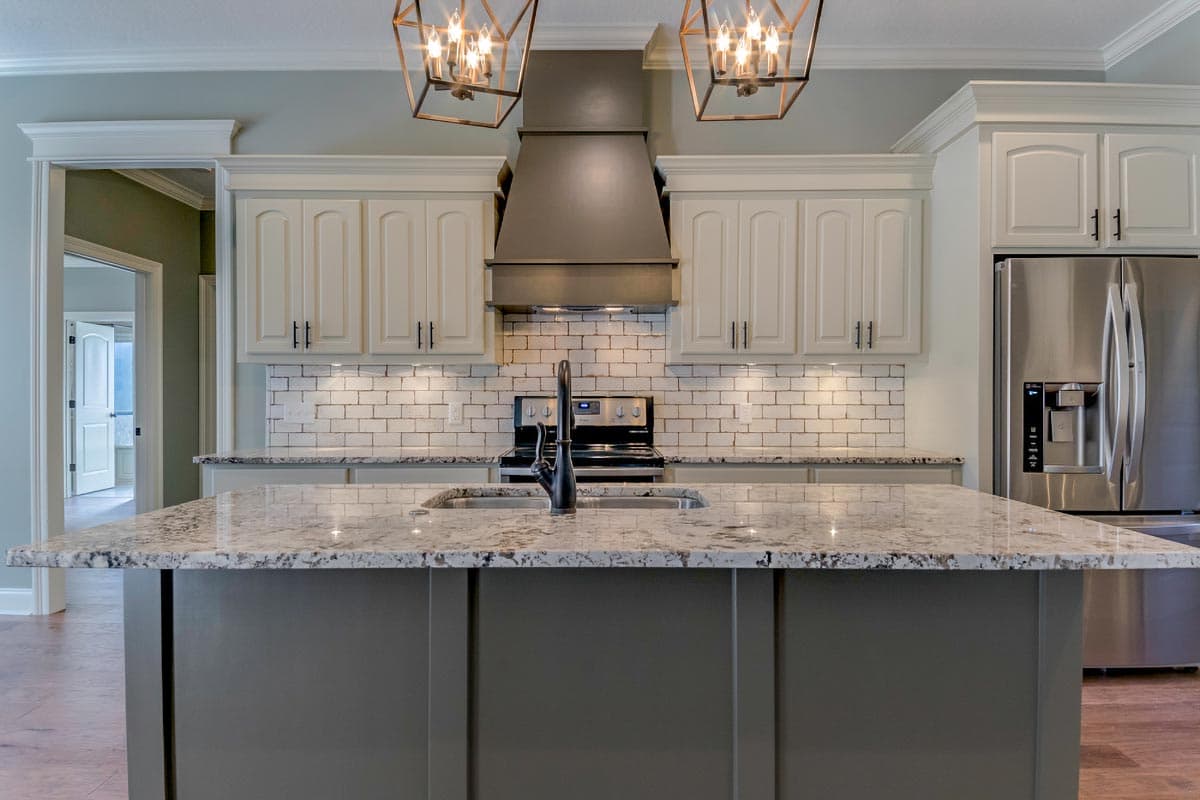

The kitchen has views across the living room to the fireplace as well as to the dining room. The island has great work space and casual seating. A walk-in pantry gives you great storage.
In back, the porch comes with an optional outdoor kitchen.

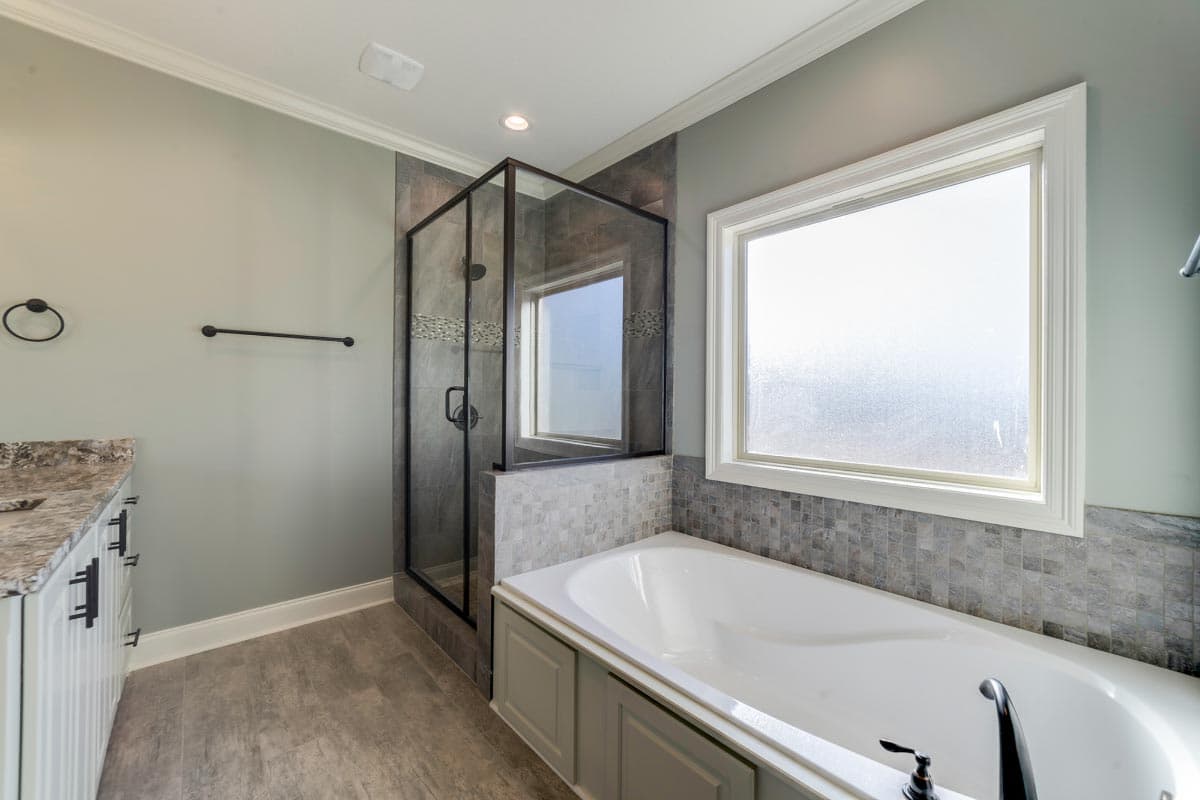

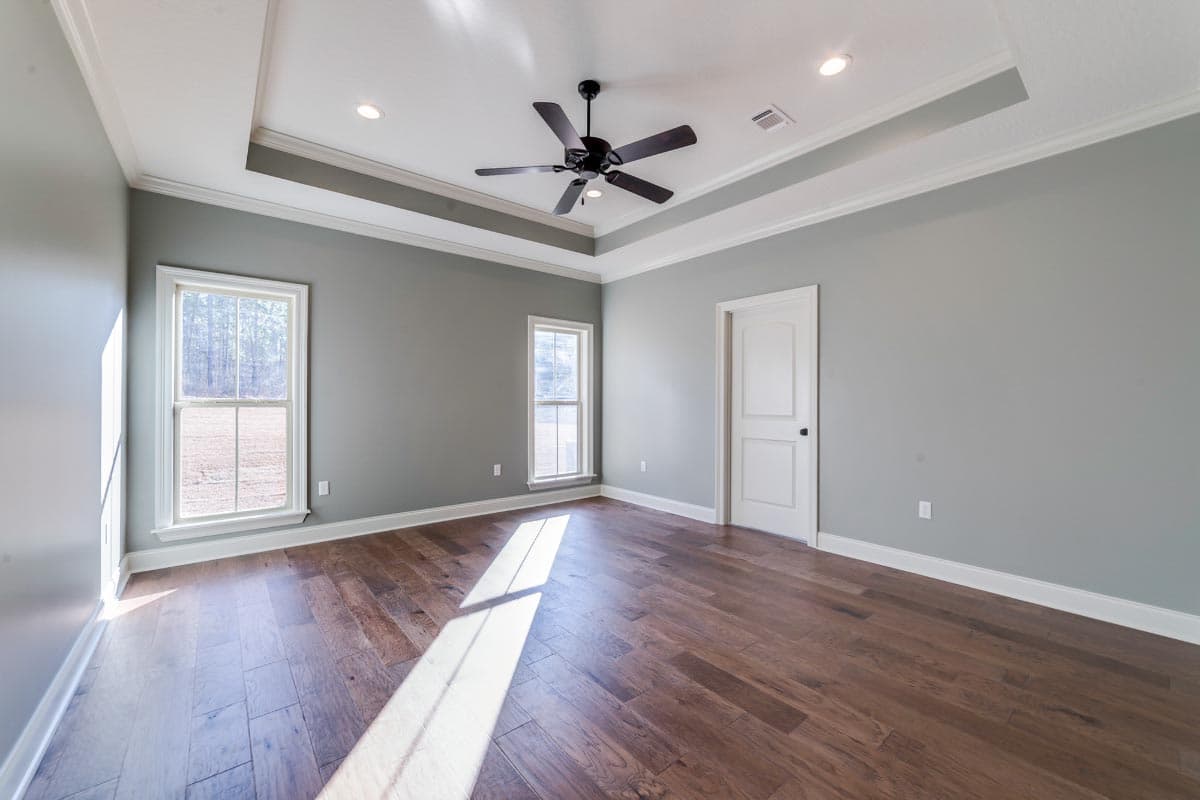

The bedrooms are in a split layout maximizing your privacy. The master suite has a walk-in closet and a 10' tray ceiling and across the home two more bedrooms share a bath.

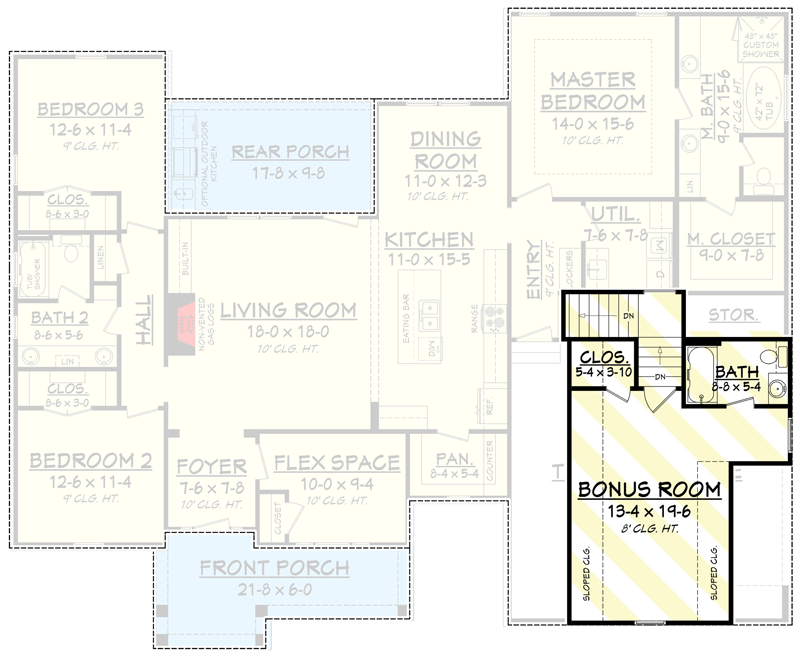

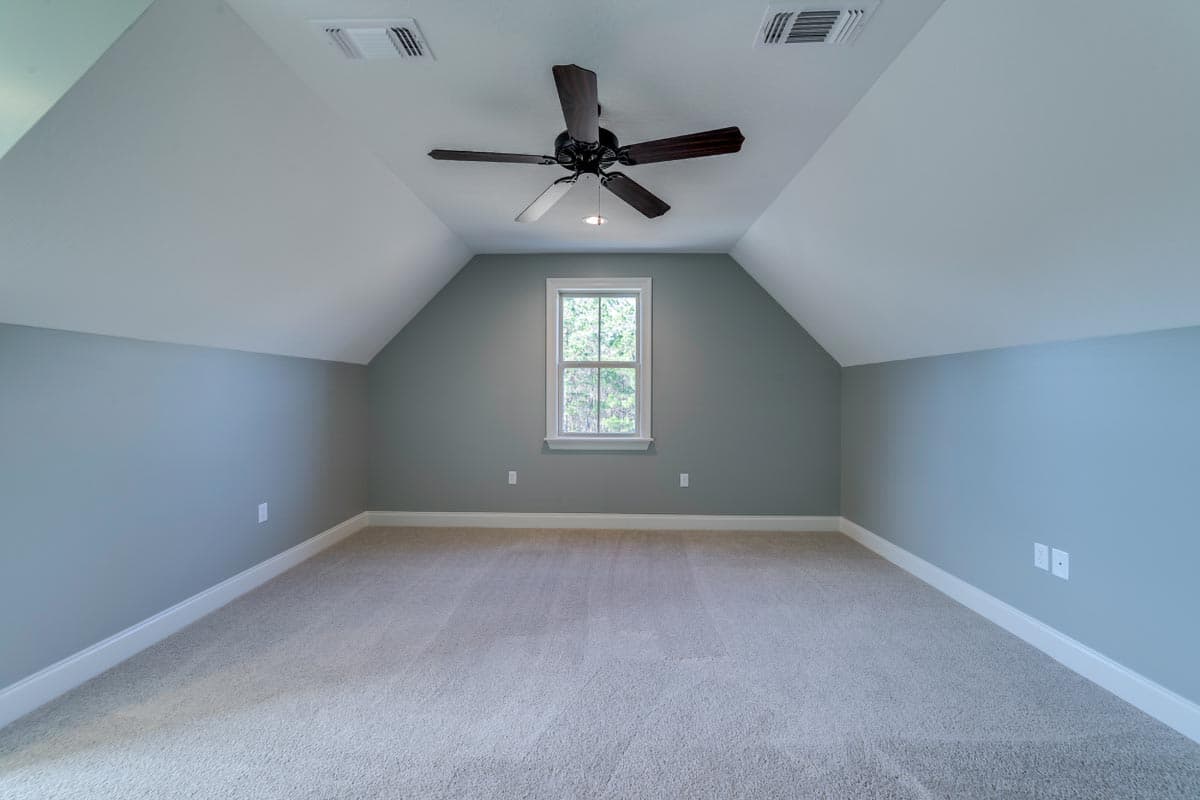

Stairs by the garage entrance go to the bonus room with bath giving you expansion possibilities.

What's Included

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details

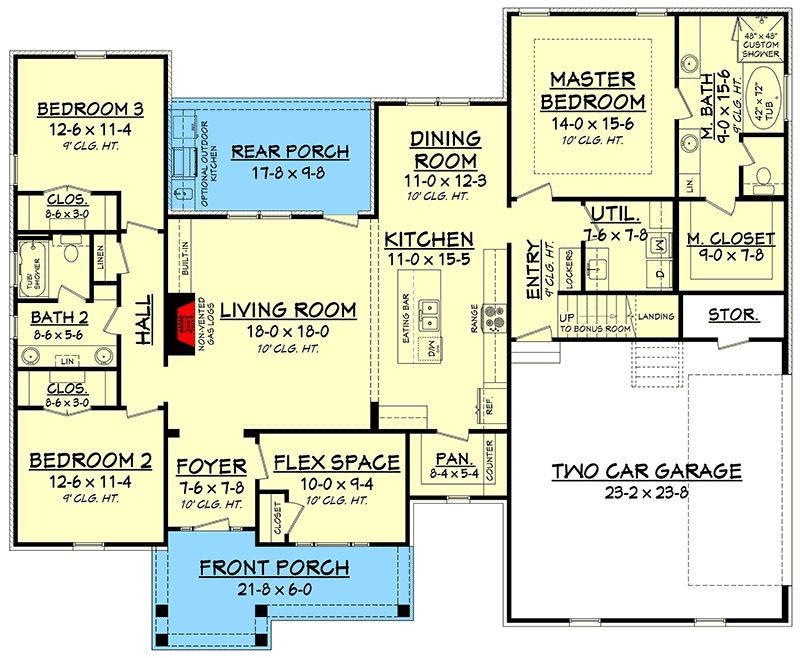

Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
