3-Bed House Plan with Two Cheery Dormers

Plan 710272BTZ

  • 1,863

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

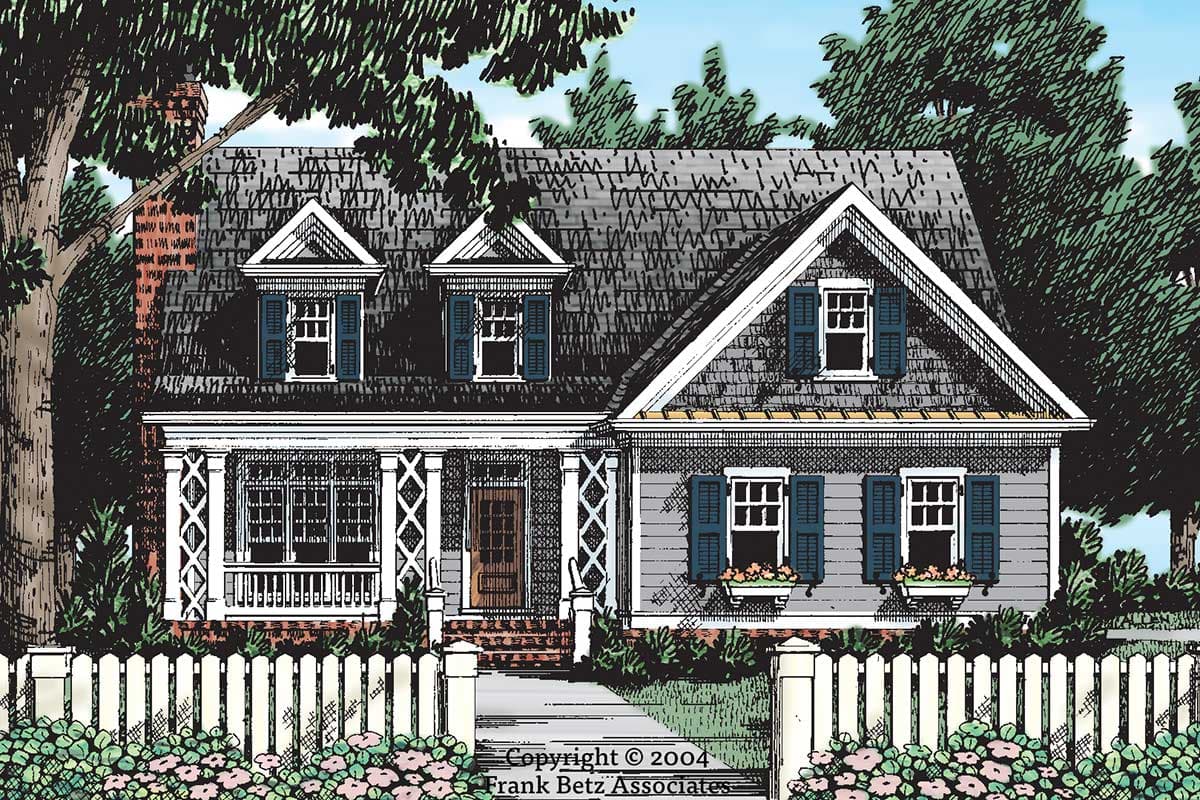

  • Lattice accents and transom windows make the exterior of this 3-bed house plan interesting and dimensional. Two cheery dormers and cedar shake accents add to its already friendly curb appeal.
  • Its bayed breakfast room makes the perfect sunny spot to enjoy that first cup of morning coffee. A pass-through from the kitchen to the family room will come in handy when entertaining.
  • Vaulted ceilings in the dining room add a spacious feel to the room, which conveniently connects to the kitchen and family room.
  • The master suite has a tray ceiling and dual vanities in the master bath.Upstairs, two bedrooms share a bath.
  • Optional bonus space upstairs gives homeowners plenty options for expansion. A playroom, media room or home office would all be generously accommodated by this space.

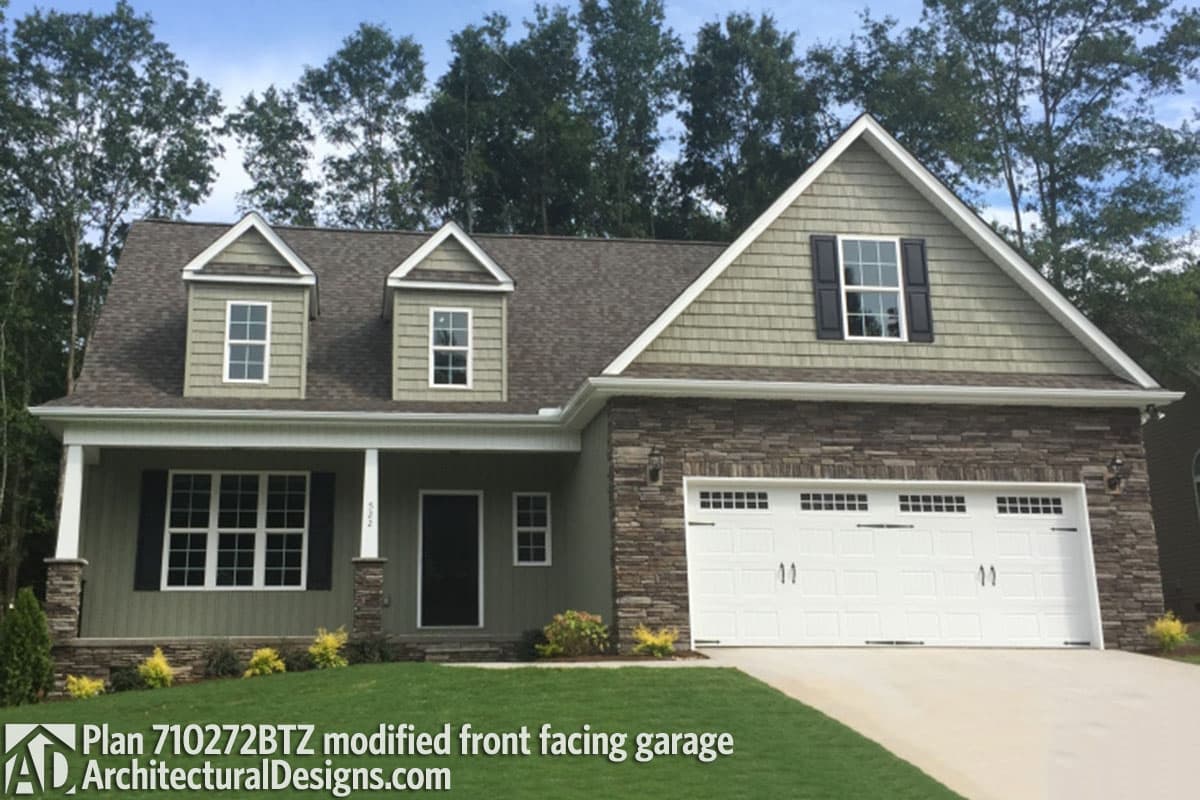

  • Related Plan: Get a front-facing garage with house plan 710284BTZ.

The plans include the following:

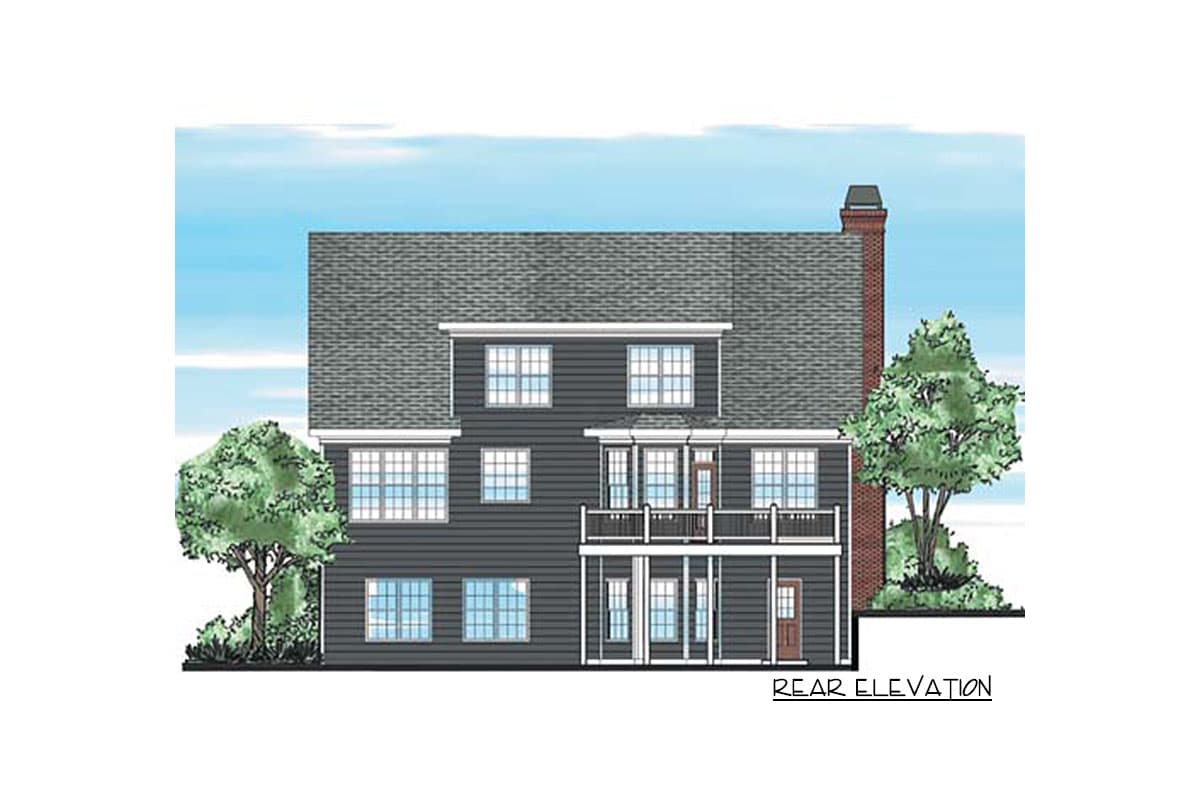

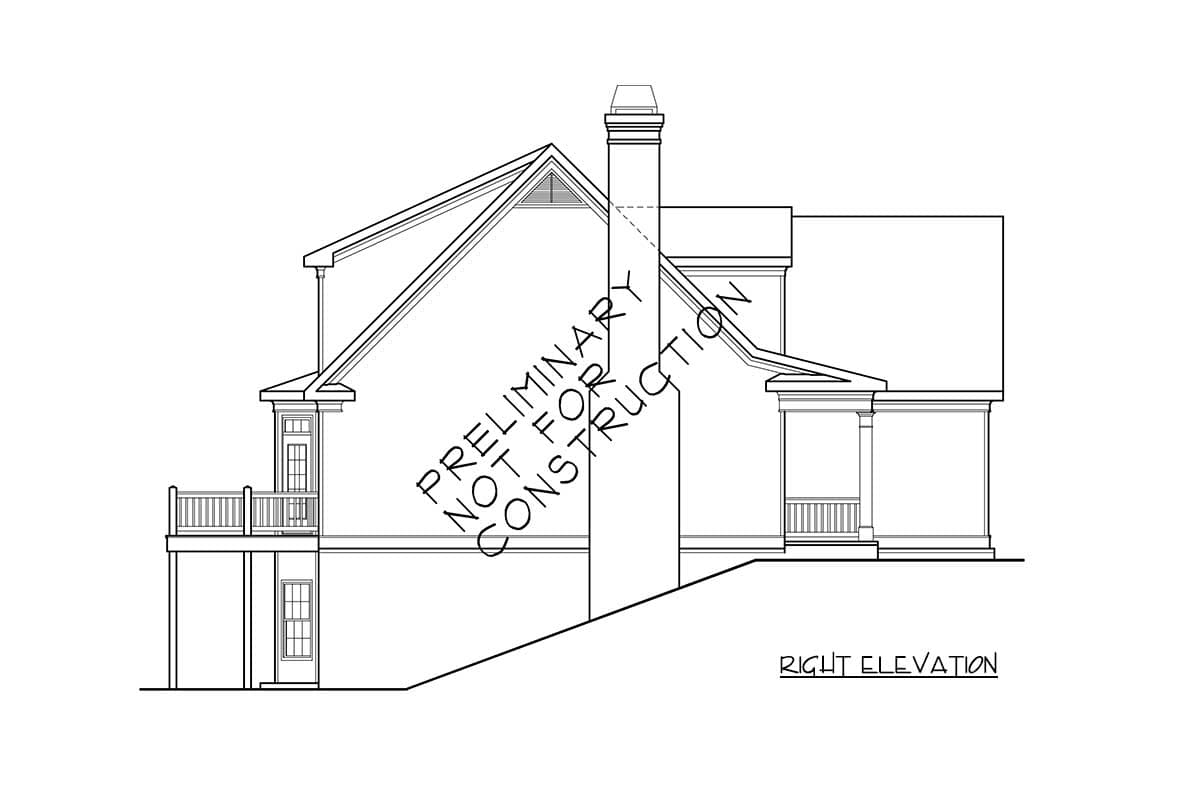

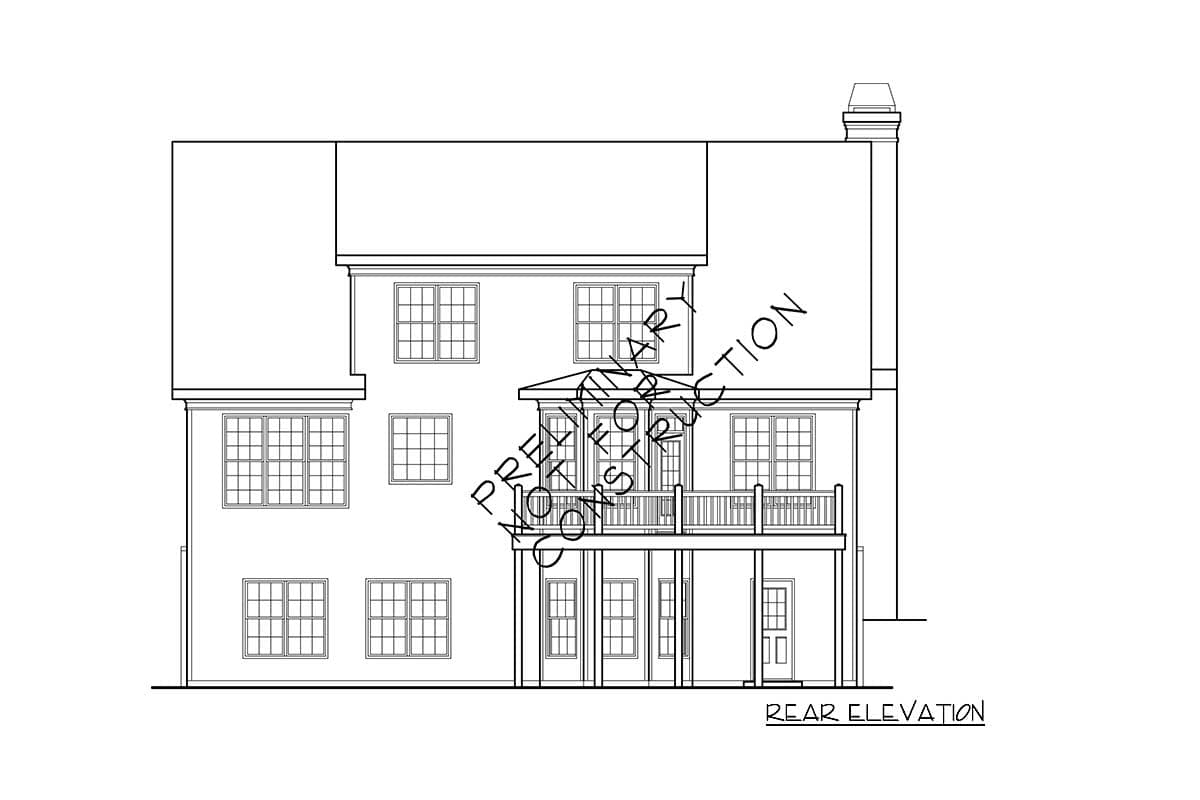

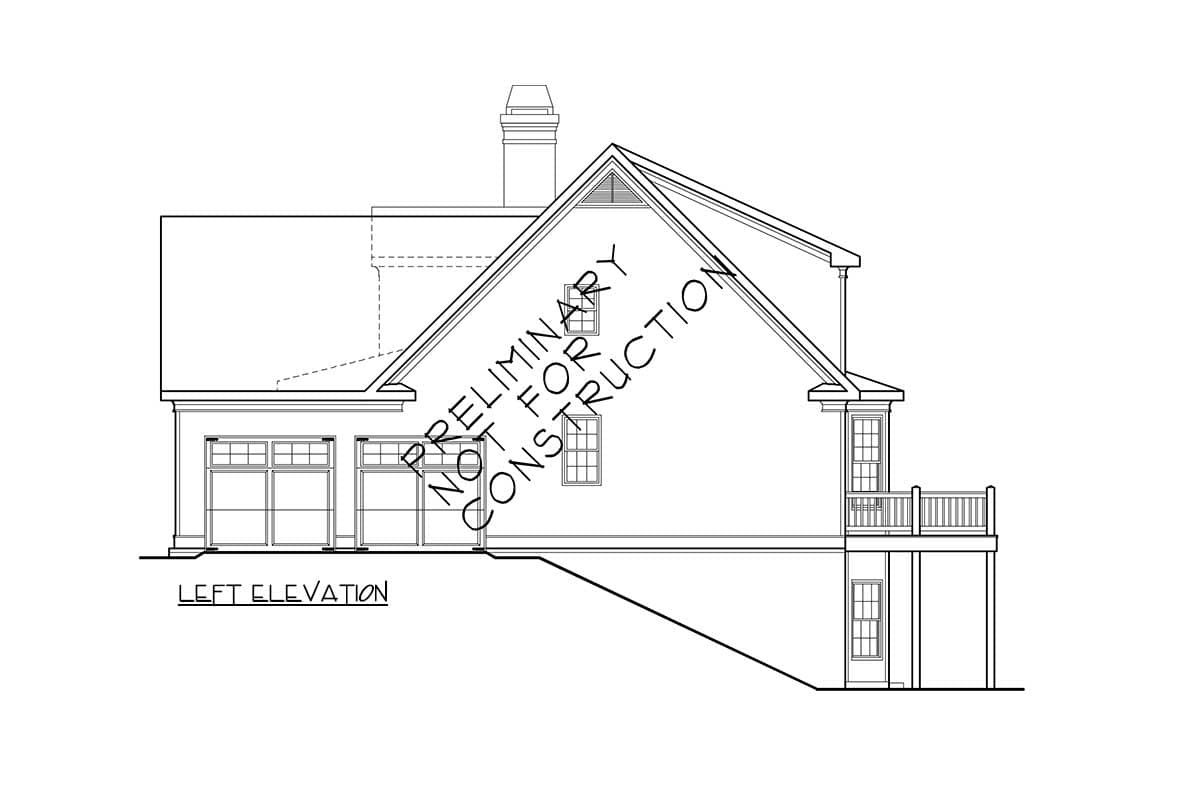

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

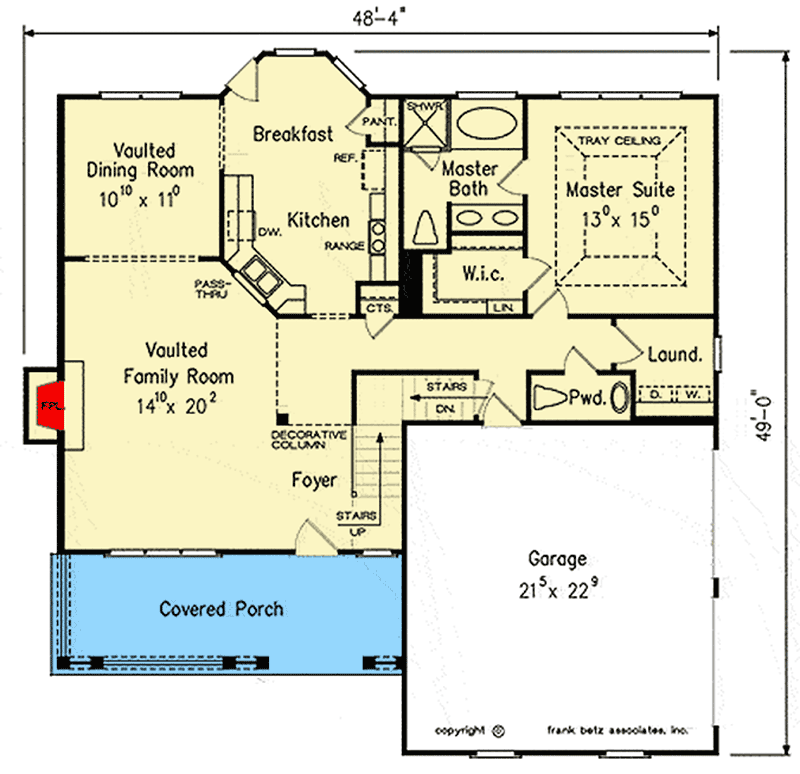

3-Bed House Plan with Two Cheery Dormers - 710272BTZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

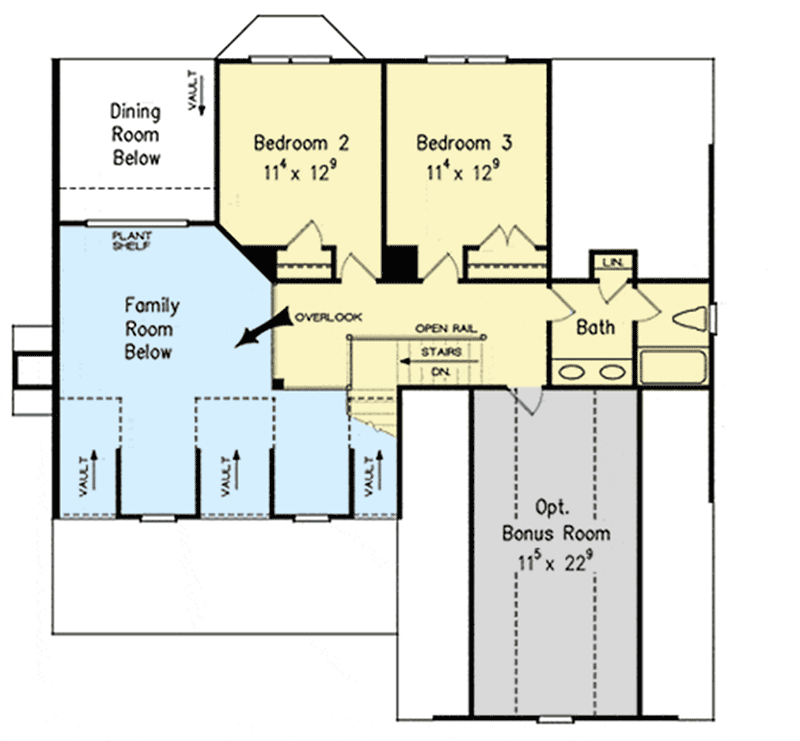

3-Bed House Plan with Two Cheery Dormers - 710272BTZ floor plan - 2nd Floor

3-Bed House Plan with Two Cheery Dormers

  • 1,863

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,863 sq. ft.
  • 1st Floor: 1,299 sq. ft.
  • 2nd Floor: 564 sq. ft.

Dimensions

  • Width: 48' 4"
  • Depth: 49' 0"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 503 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
