3-Bed House Plan with Vaulted Dining and Family Room with a Brick Exterior

Plan 58326SV

  • 2,063

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A brick exterior lends this 3-bed house plan a classic look. A shed dormer over the 2-car courtyard entry garage adds to the curb appeal.
  • Inside, the family and dining rooms have vaulted ceilings and are arranged in an open concept layout with the kitchen.
  • The master bedroom is the only one on the main floor and has a walk-in closet and a 5-fixture bath.
  • Upstairs, two bedrooms share a bath and a loft space gives you room to spread out in.

  •  Foundation Sheet
  • 1st Level Floor Plan
  • 2nd & 3rd Level Floor PLans
  • Framing Section
  • Roof Plan
  • Cabinet Details
  • Stair Detail

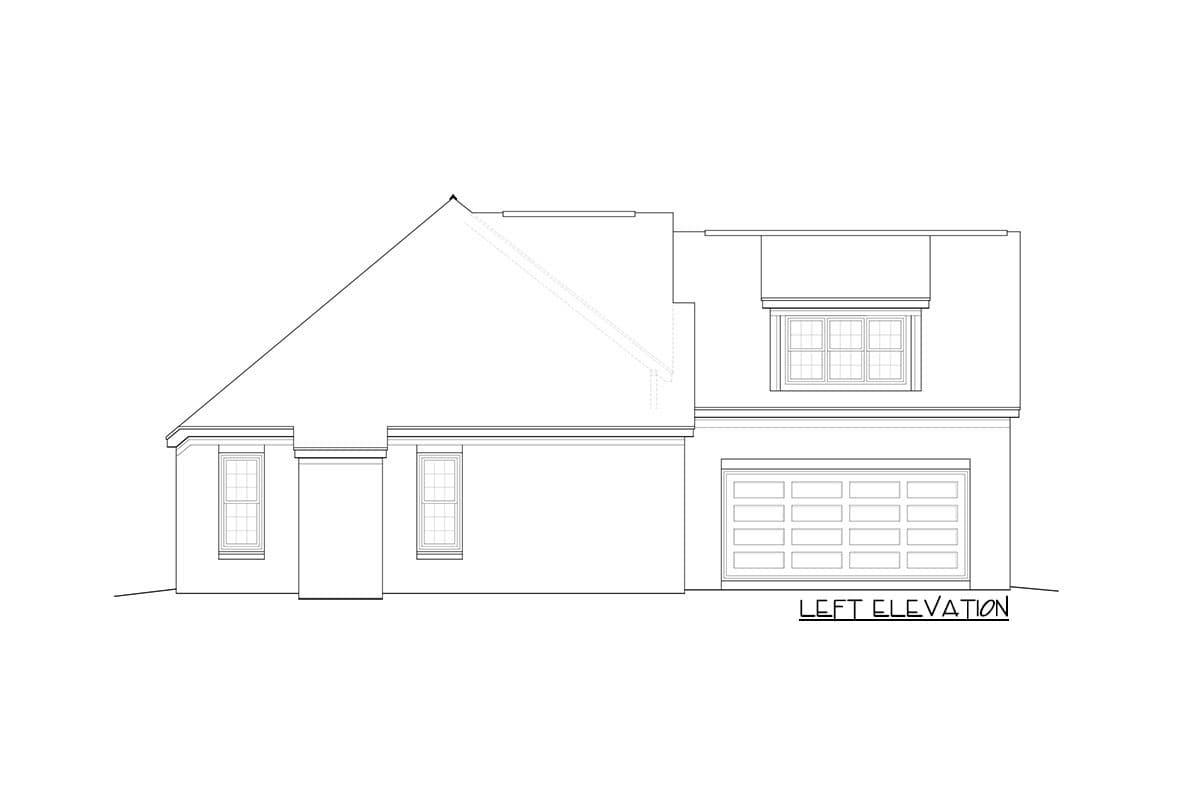

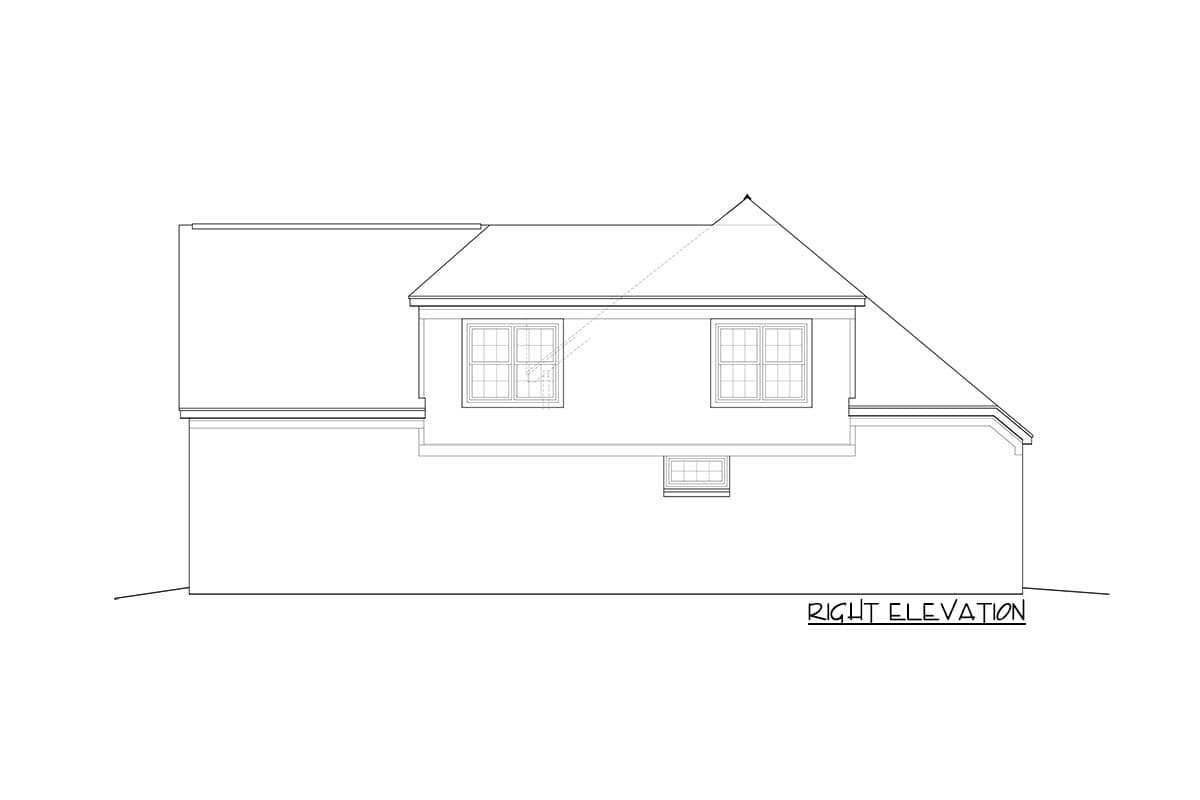

  • Front and Side Elevation

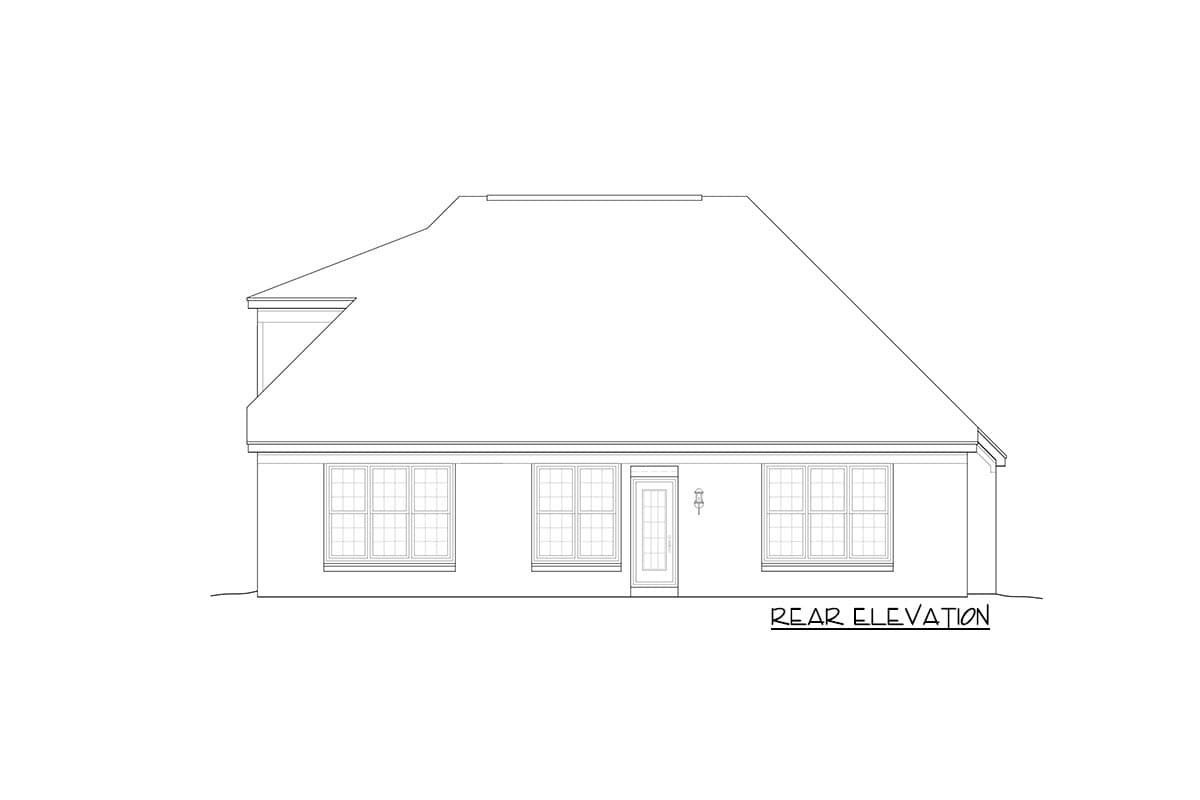

  • Rear and Side Elevations
May not apply to carports, garages, pool houses, storage bldgs, barns, ETC

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

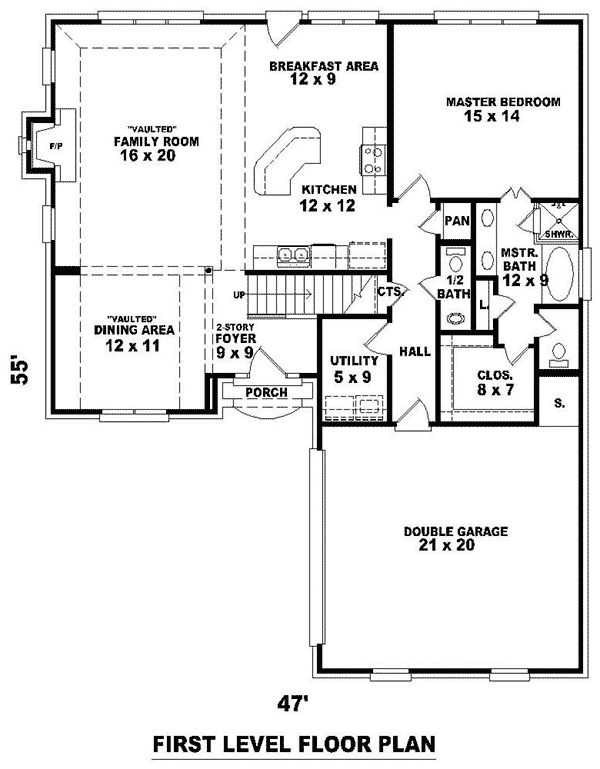

3-Bed House Plan with Vaulted Dining and Family Room with a Brick Exterior - 58326SV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

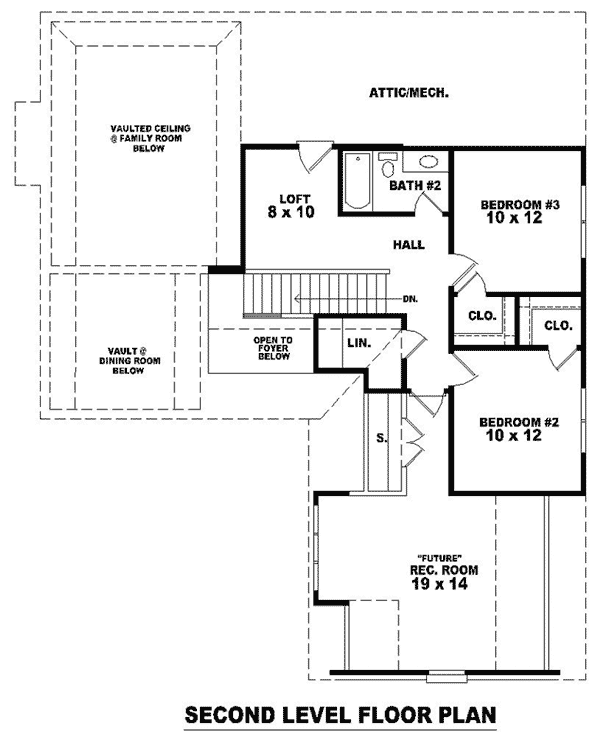

3-Bed House Plan with Vaulted Dining and Family Room with a Brick Exterior - 58326SV floor plan - 2nd Floor

Architectural Style

3-Bed House Plan with Vaulted Dining and Family Room with a Brick Exterior

  • 2,063

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,063 sq. ft.
  • 1st Floor: 1,482 sq. ft.
  • 2nd Floor: 581 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 490 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
