3-Bed House Plan With Vaulted Family Room

Pageloader

3-Bed House Plan With Vaulted Family Room

Plan 42513DB

  • 1,750

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • An exterior with a combination of clapboard and shingles with a stone trim greet you to this 3-bed house plan.
  • The main family living area is in back where the open layout lets you see from the vaulted family room with fireplace all the way through to the kitchen with an island and walk-in pantry.
  • Sliding glass doors in the dining area take you out to the back yard.
  • Owners will enjoy their master suite with tray ceiling and large walk-in closet.
  • The other two bedrooms face front and share a large hall bathroom.
  • Related Plan: Get an alternate exterior and a 10'4" ceiling in the family room with house plan 42360DB (1,635 sq. ft.). And see these alternate versions as well

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

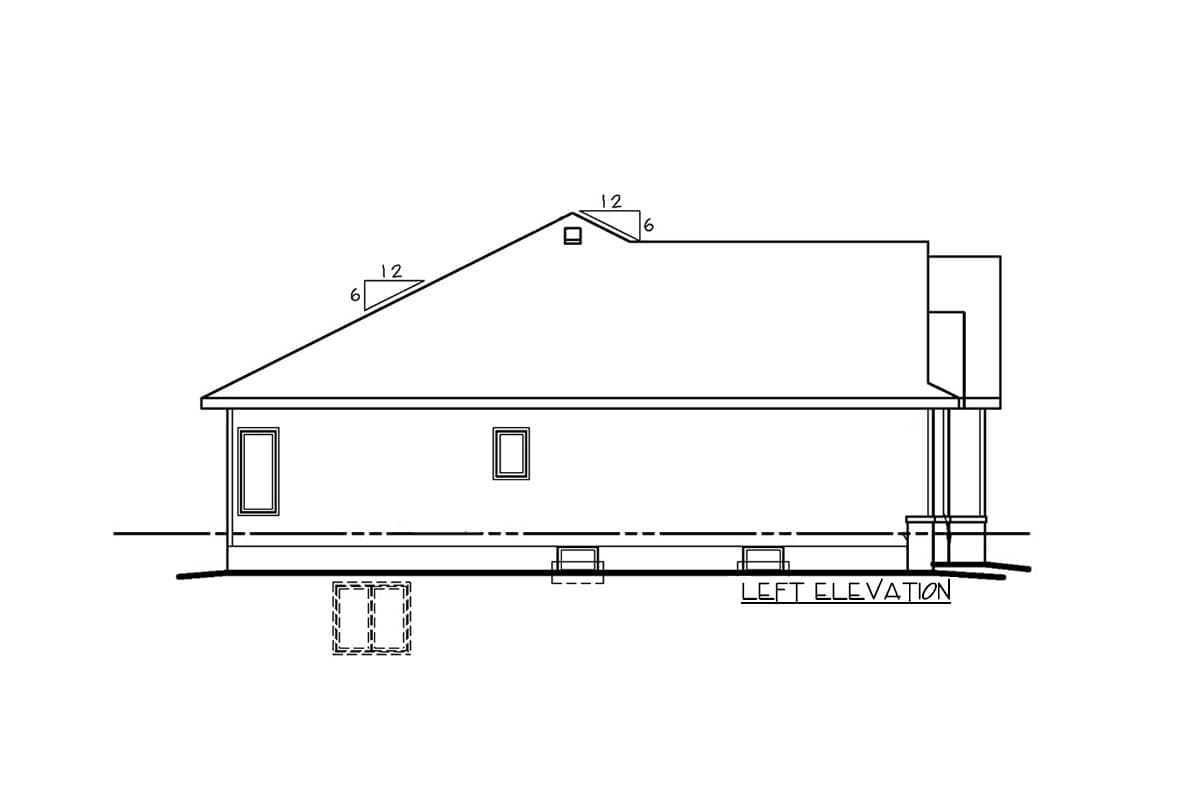

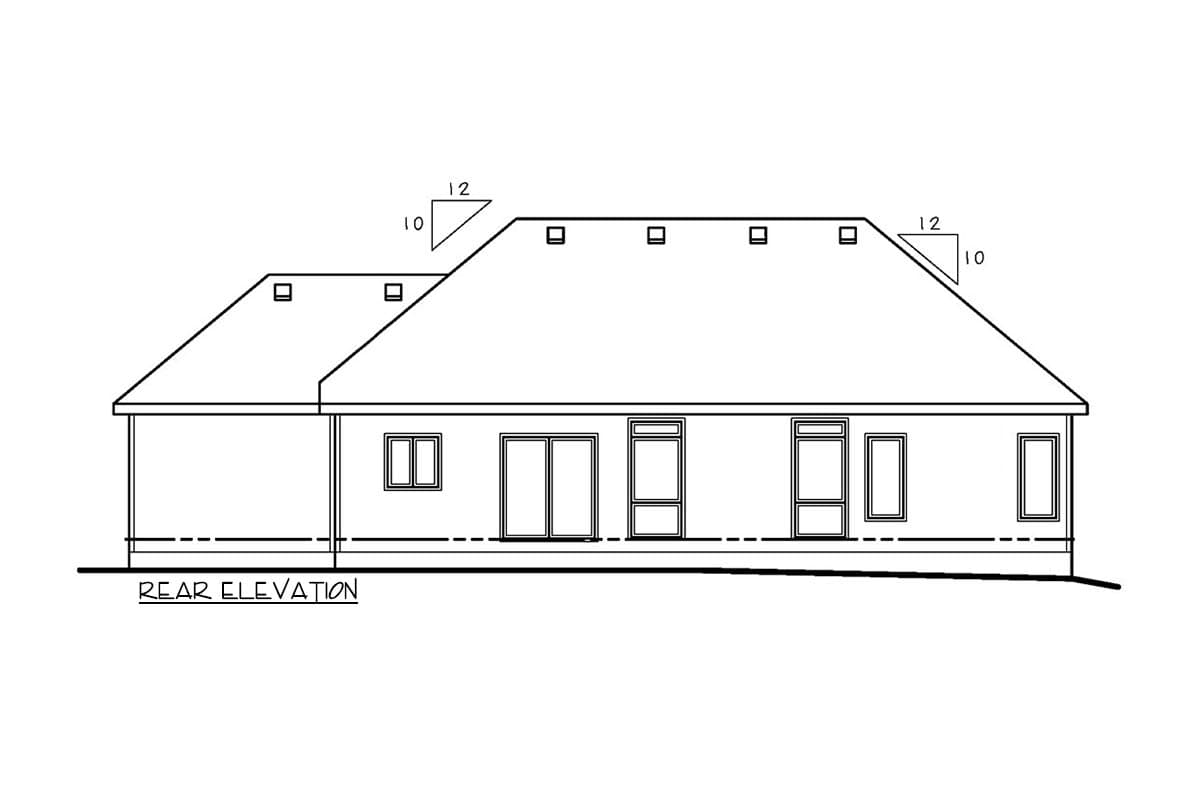

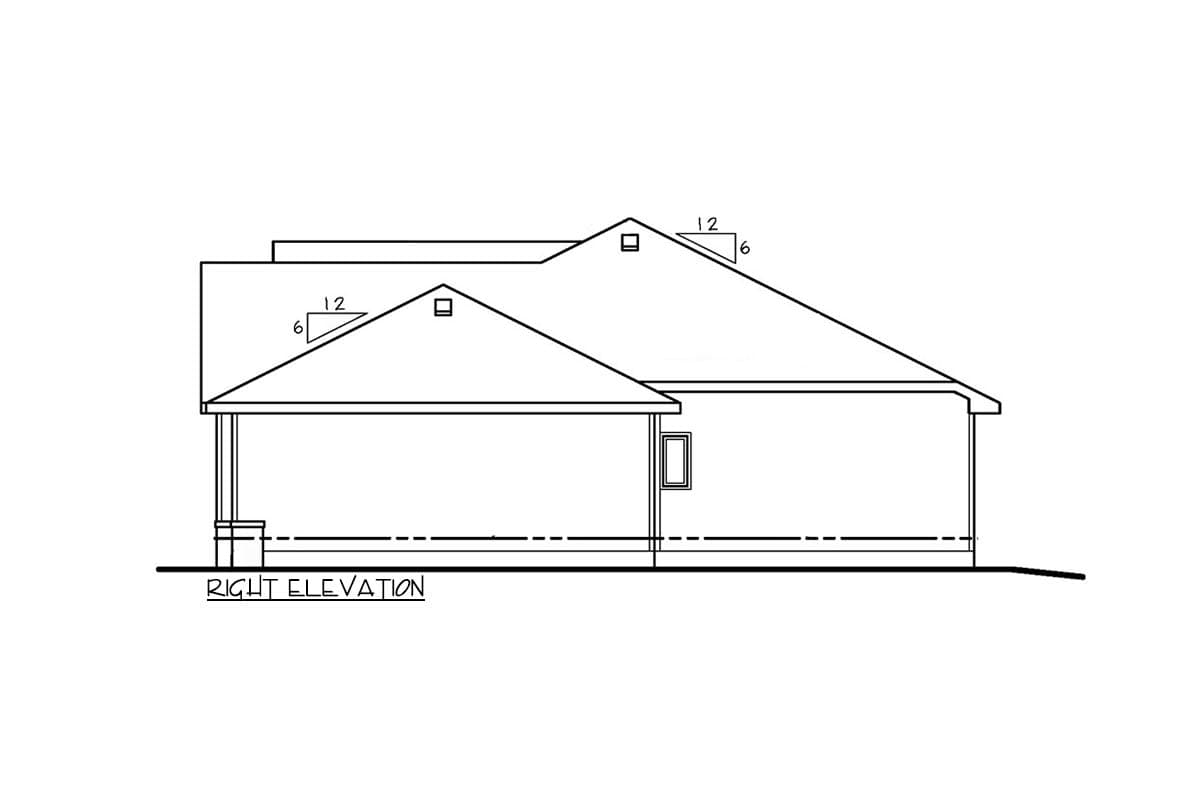

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

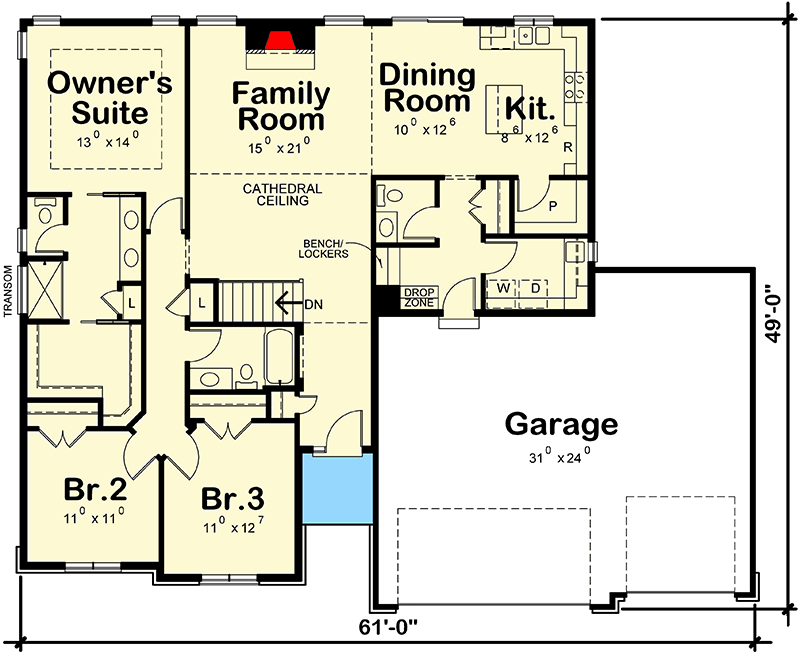

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



3-Bed House Plan With Vaulted Family Room

  • 1,750

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $630
  • PDF - single-use $955
  • 5 Sets $1,080
  • 5 Sets PLUS $1,125
  • 8 Sets $1,150
  • PDF - multi-use $1,455
  • CAD $1,671
  • CAD - multi-use $2,171
  • View all purchase option online

About This Plan

  • An exterior with a combination of clapboard and shingles with a stone trim greet you to this 3-bed house plan.
  • The main family living area is in back where the open layout lets you see from the vaulted family room with fireplace all the way through to the kitchen with an island and walk-in pantry.
  • Sliding glass doors in the dining area take you out to the back yard.
  • Owners will enjoy their master suite with tray ceiling and large walk-in closet.
  • The other two bedrooms face front and share a large hall bathroom.
  • Related Plan: Get an alternate exterior and a 10'4" ceiling in the family room with house plan 42360DB (1,635 sq. ft.). And see these alternate versions as well

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,750 sq. ft.
  • 1st Floor: 1,750 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 49' 0"
  • Max ridge height: 22' 9"

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
