Plan 280005JWD

3-Bed House Plan with Vaulted Family Room and Bonus Over Garage

Heated S.F.
2,174
Beds
3
Baths
2
Stories
1-2
Cars
2

Floor Plan

Plan 280005JWD

Main Level
Main Level
Bonus
Bonus

Plan 280005JWD

M-F 9am-5pm EST |

1-203-761-8500

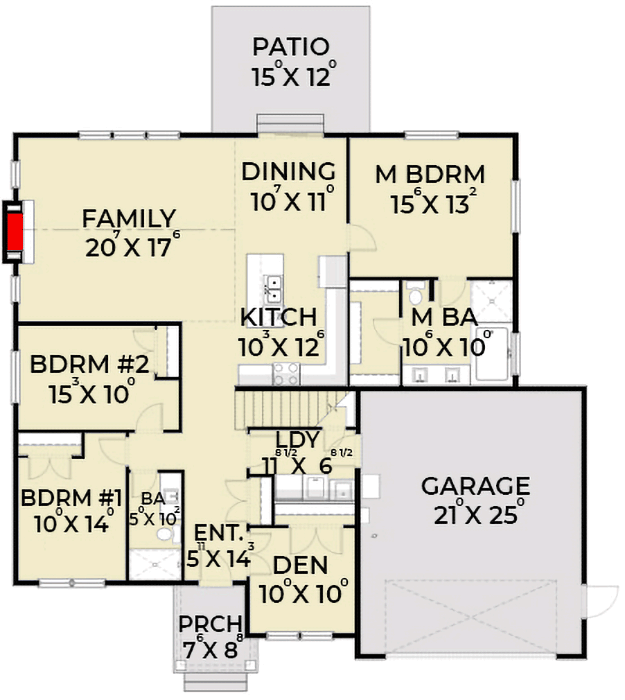

Main Level

Plan 280005JWD: 3-Bed House Plan with Vaulted Family Room and Bonus Over Garage - Floor Plan - Main Level - Cottage, Country, Craftsman, Traditional

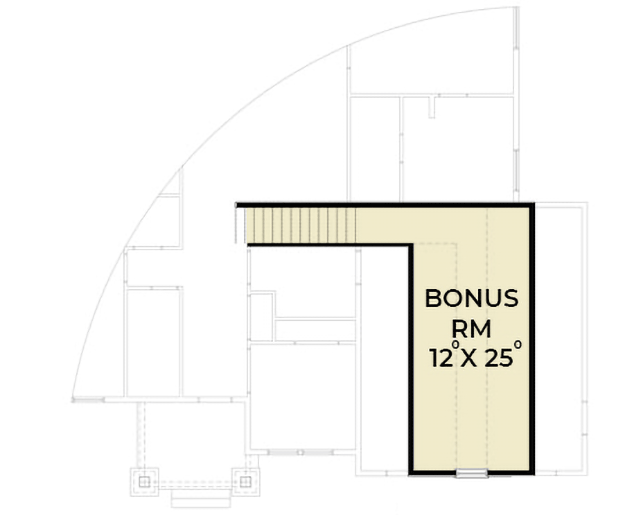

Bonus

Plan 280005JWD: 3-Bed House Plan with Vaulted Family Room and Bonus Over Garage - Floor Plan - Bonus - Cottage, Country, Craftsman, Traditional

Plan Details

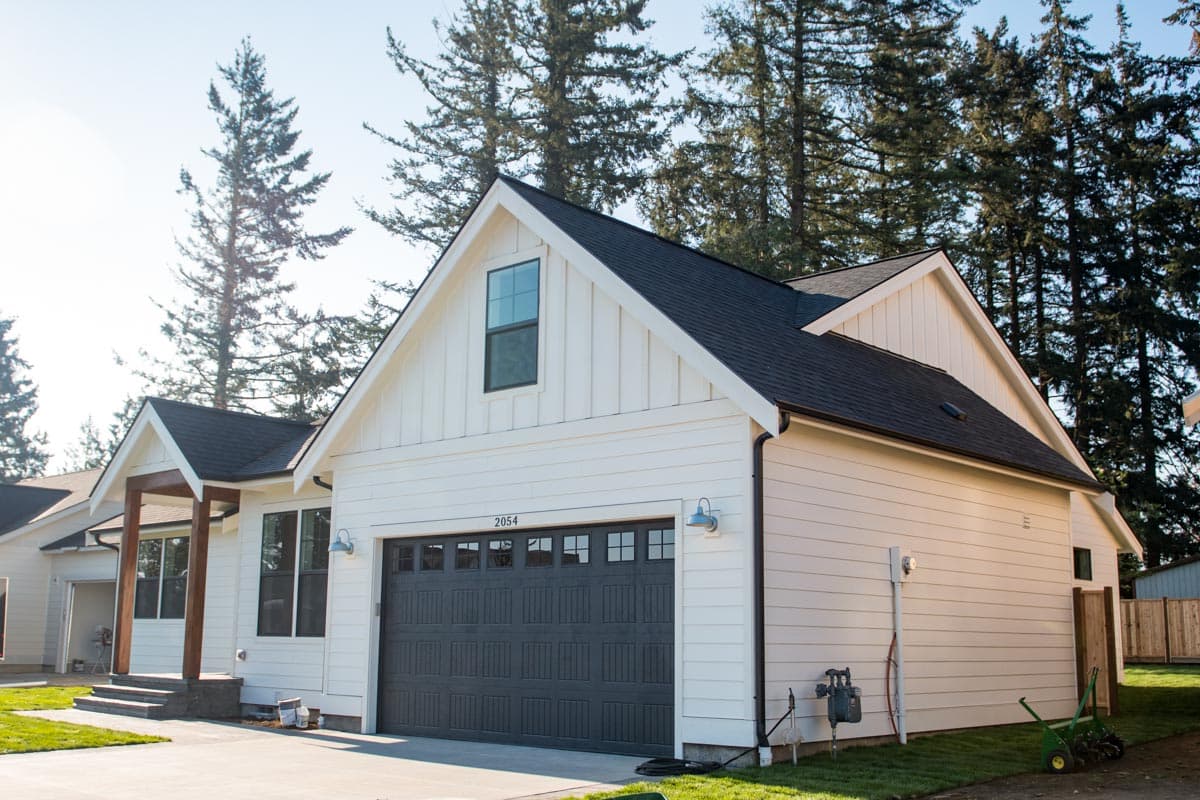

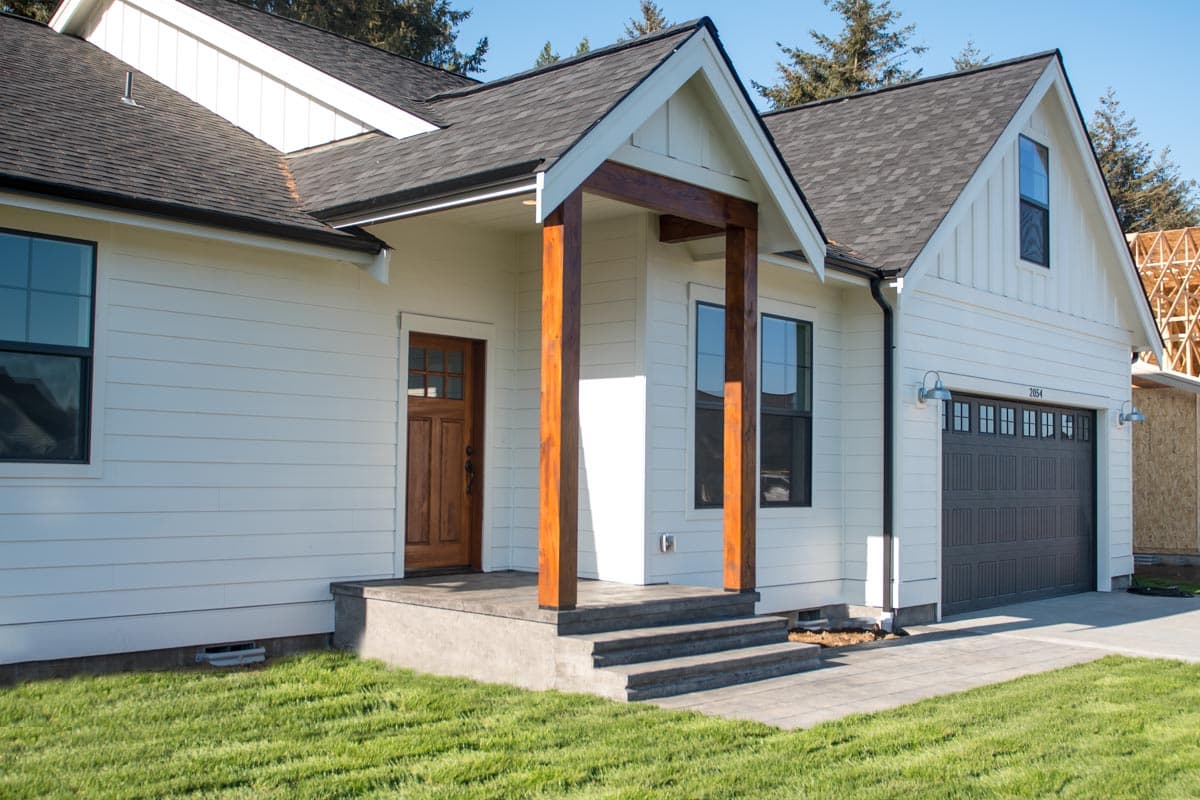

  • A combination of clapboard and board and batten siding give this 3-bed house plan great curb appeal. Timbers support the covered entry and provides a nice accent to the exterior.
  • The entry gives you views straight to the back of the home. French doors to your right open to the den which could be put to use as an extra bedroom should the need arise.

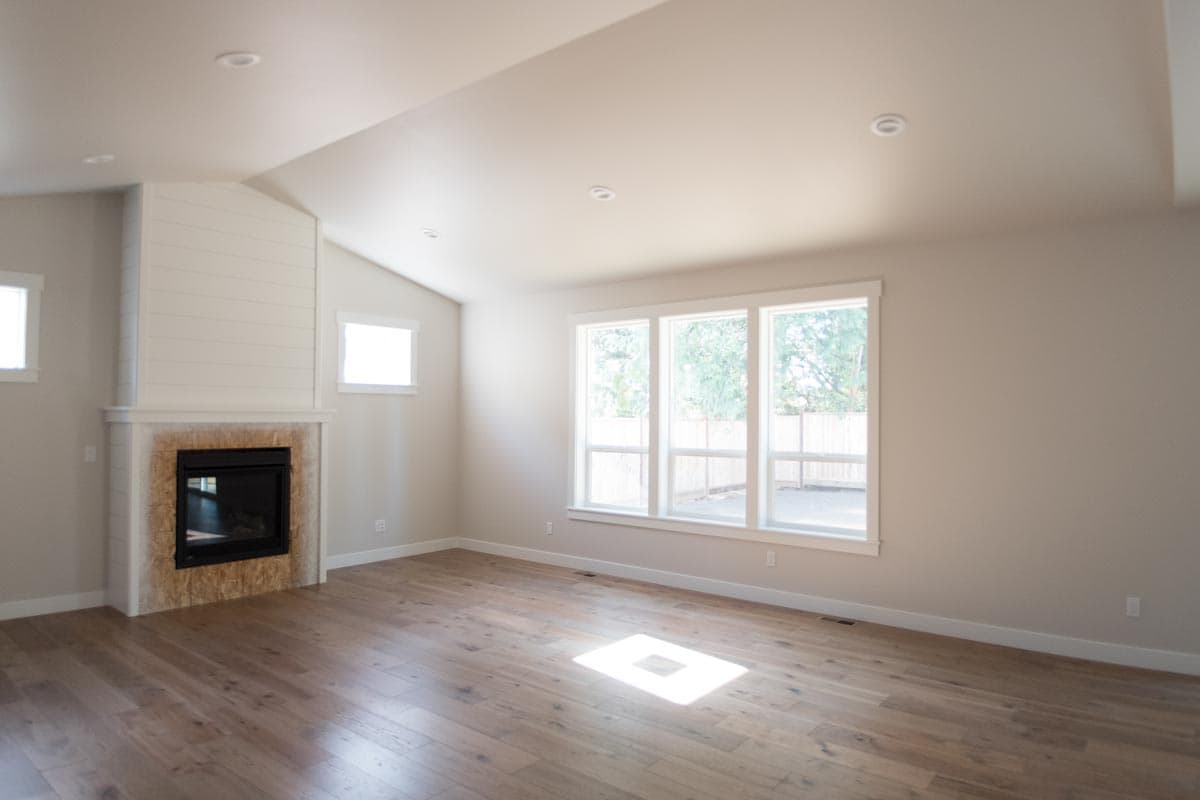

  • The family room has a vaulted ceiling and a fireplace and opens to the combined kitchen and dining space.

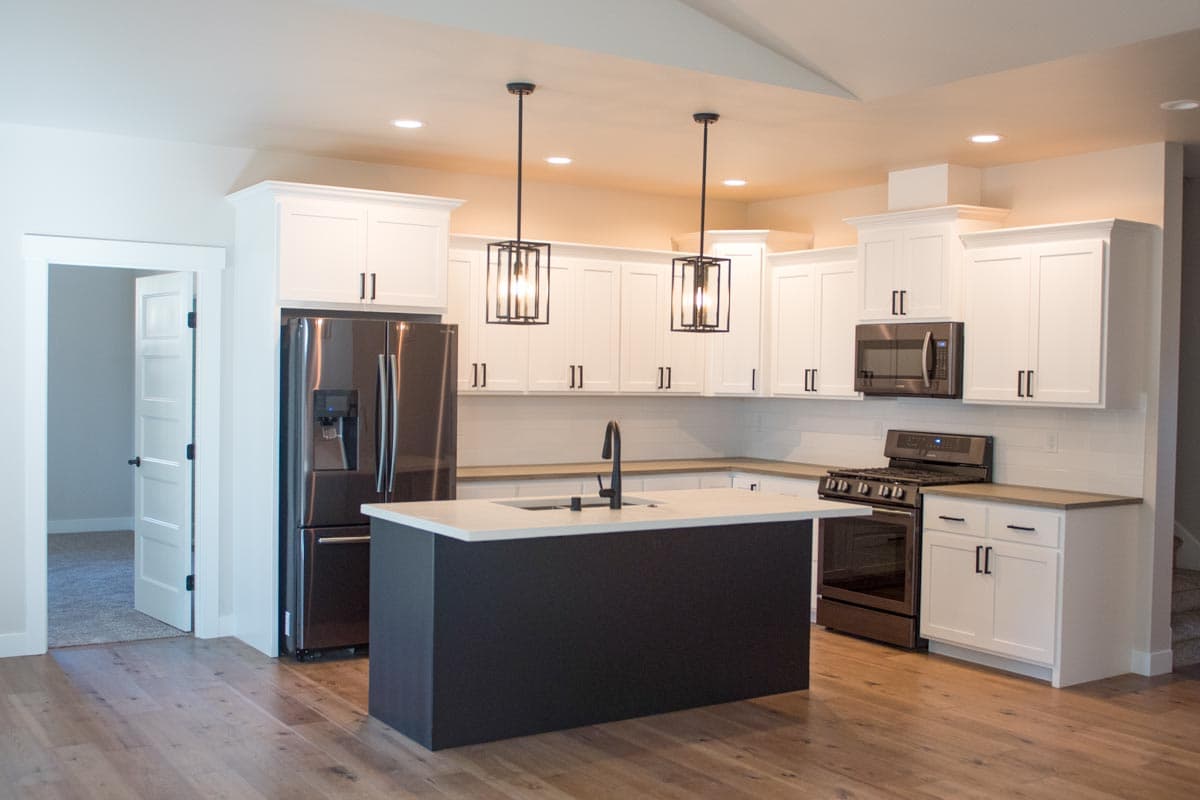

  • The kitchen island has a double-sink and dishwasher on the working side and casual seating on the family side.

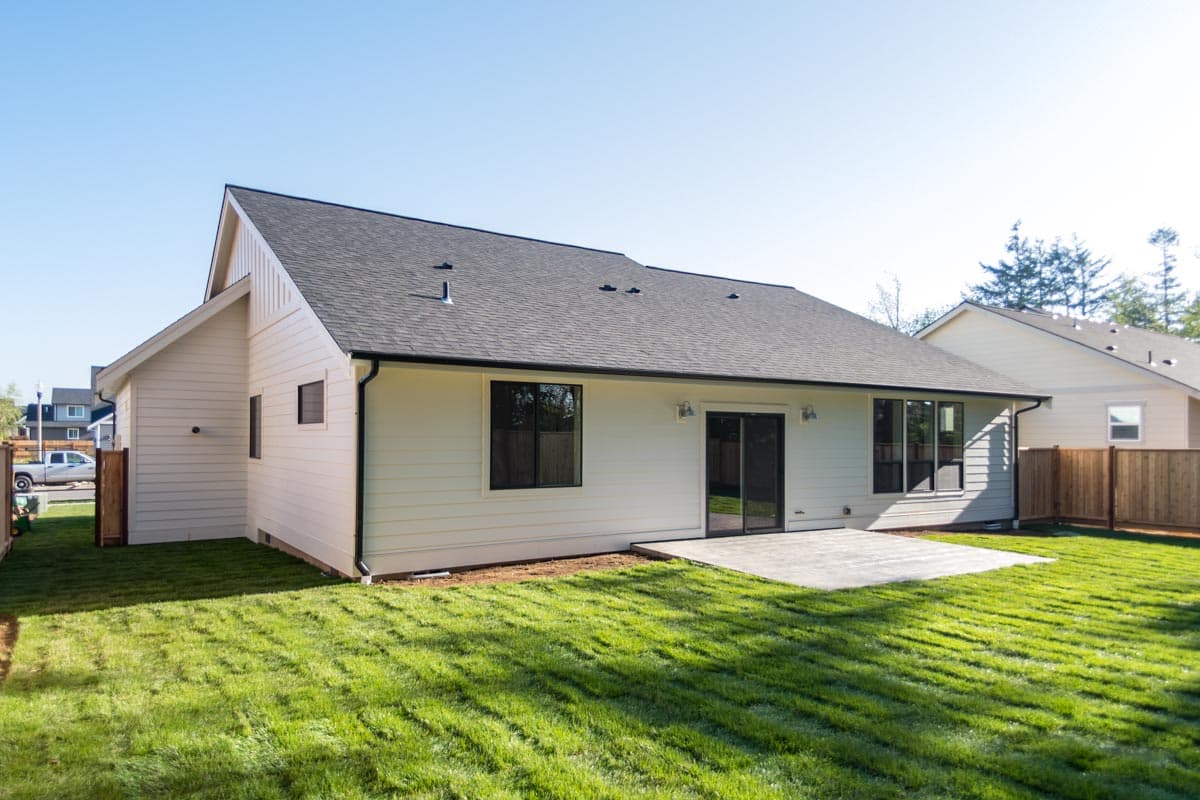

  • Sliding doors in the dining room give you an outdoor space to enjoy on your patio.
  • The master bedroom is located by itself and has a walk-in closet and a bath with dual vanities as well as a bath and a shower. Two beds across the home have linear closets and share a bath.
  • Stairs lead to the bonus room over the 2-car garage giving you expansion space.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,174 sq. ft.

1st Floor

1,841 sq. ft.

Bonus

333 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 6"

Depth

51' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,174 sq. ft.

1st Floor

1,841 sq. ft.

Bonus

333 sq. ft.

Porch, Front

56 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 6"

Depth

51' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery
