Plan 710127BTZ

3-Bed House Plan with Vaulted Grand Room with Overlook

2,884 3 3.5 2 2
Print
Compare
...

3-Bed House Plan with Vaulted Grand Room with Overlook

Plan 710127BTZ

  • 2,884

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

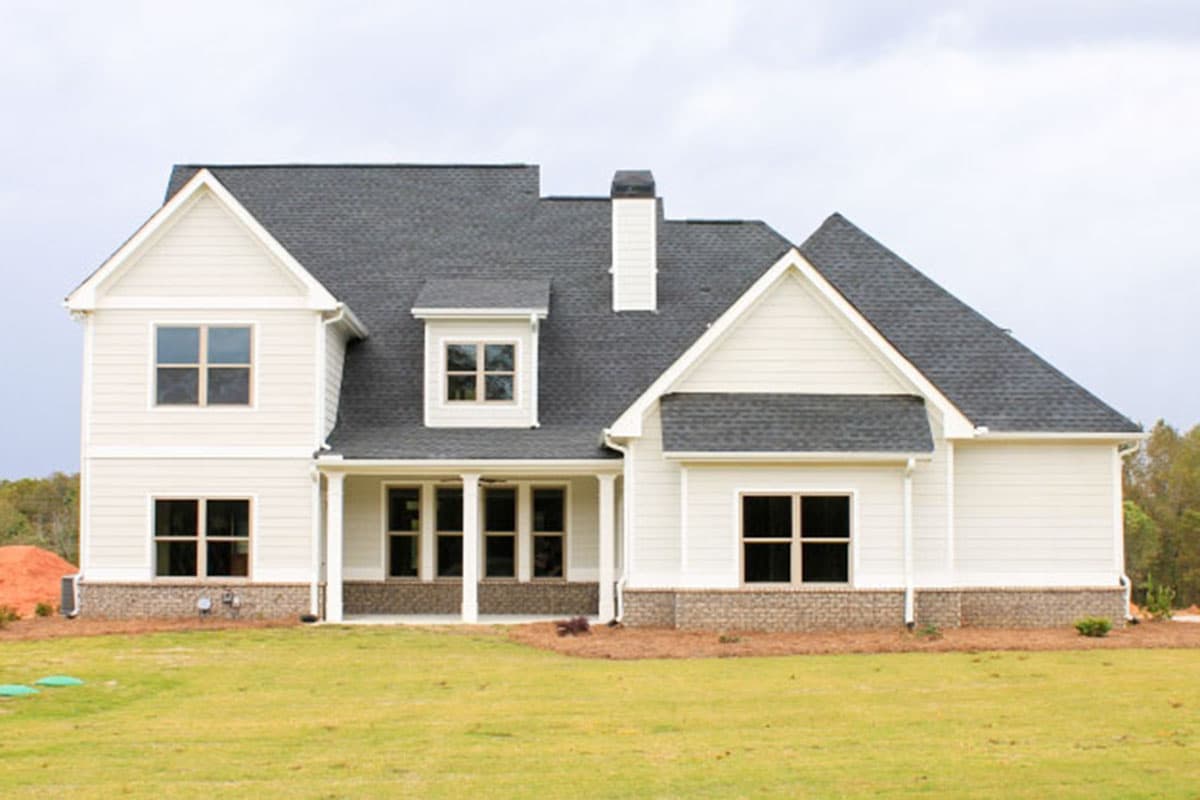

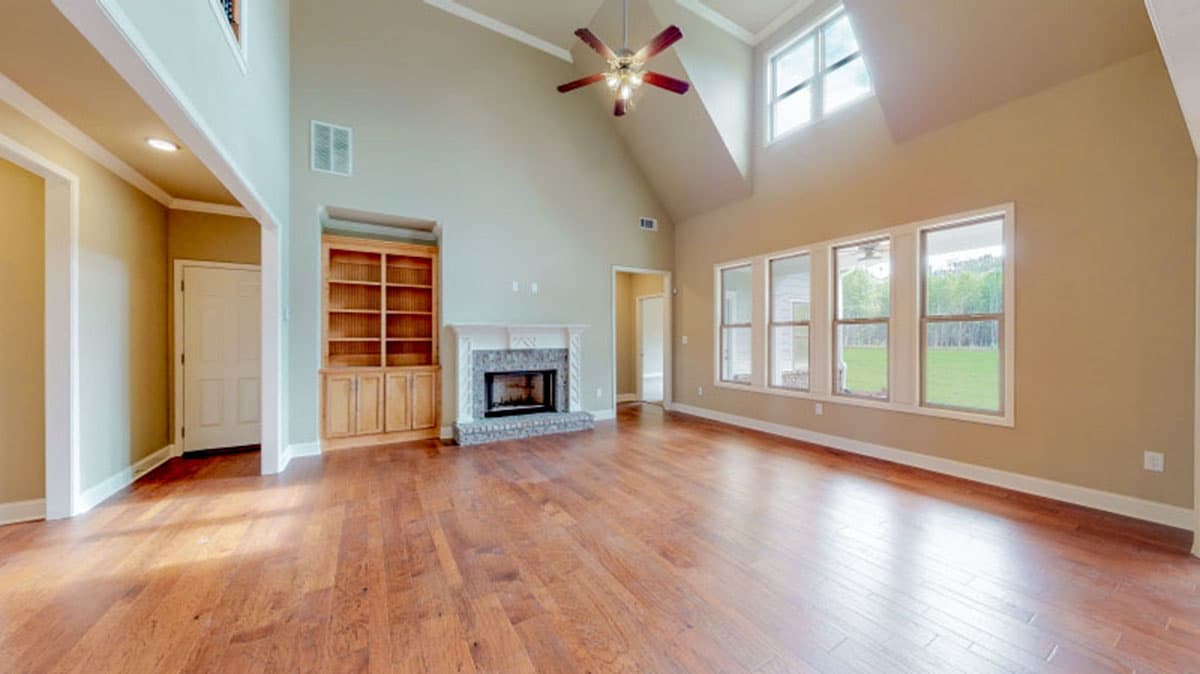

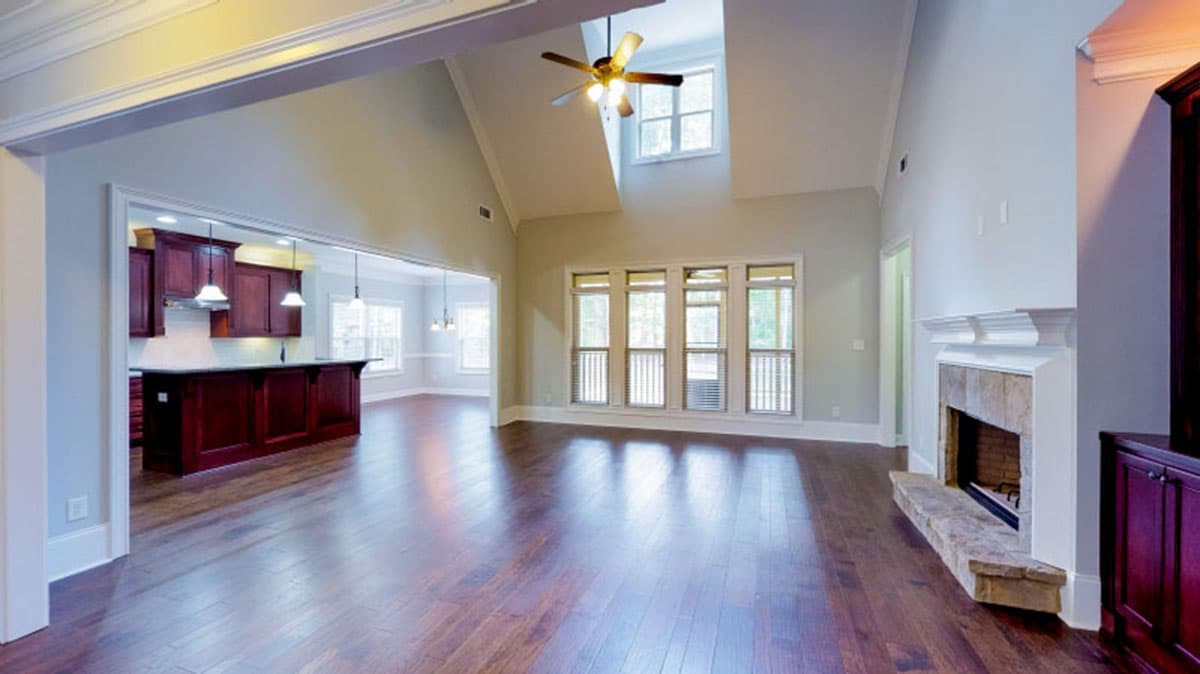

  • The main floor focal point of this 4-bed house plan is the vaulted grand room with its warming fireplace and built-in cabinetry.

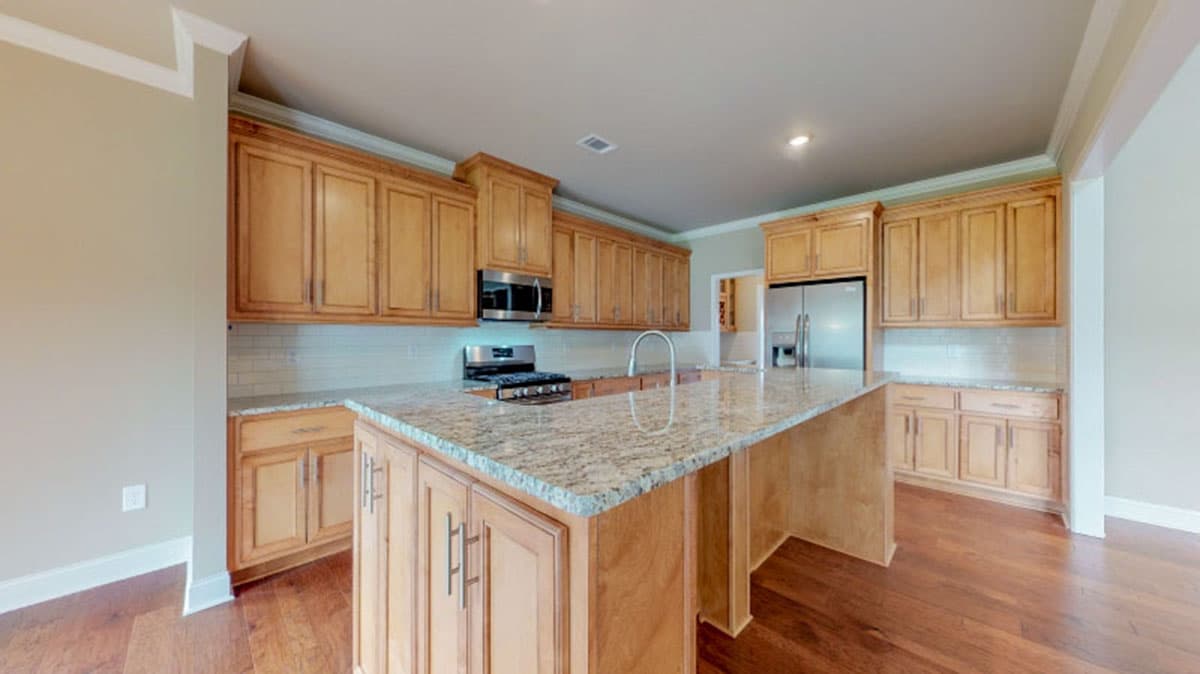

  • Enjoy views of the grand room and breakfast space from the chef's kitchen with large island.

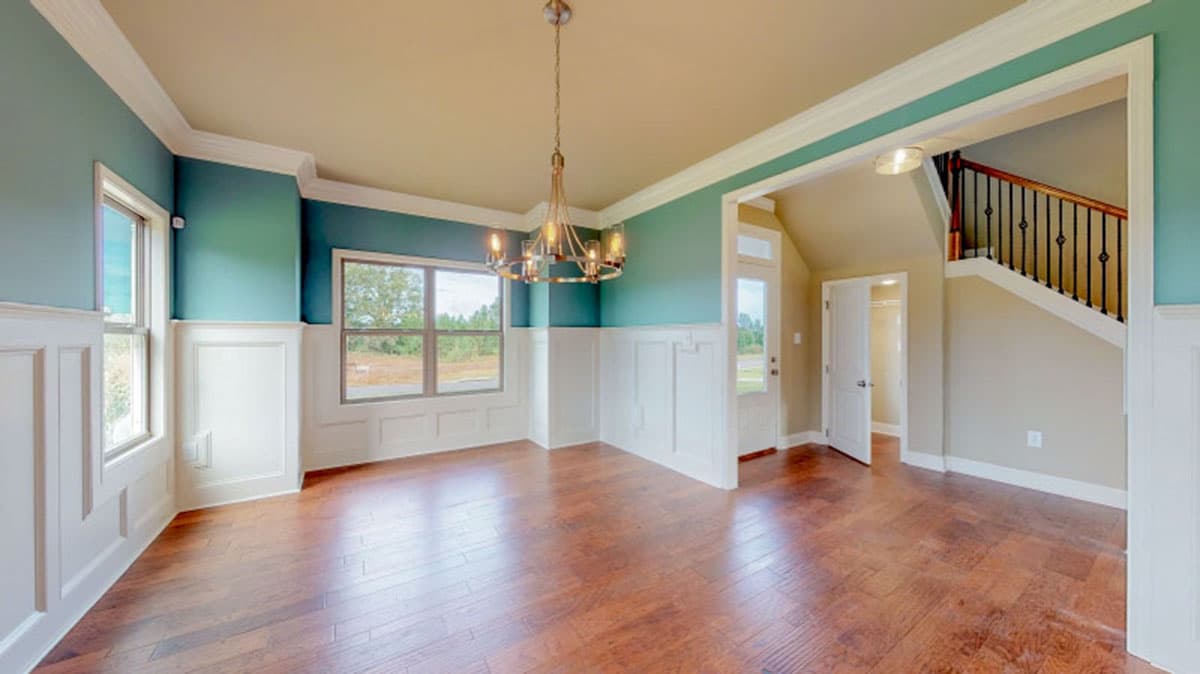

  • Enjoy forma meals in the dining room adjacent to the foyer, informal meals in the breakfast area (with windows on two sides) and outdoors on the covered back porch.

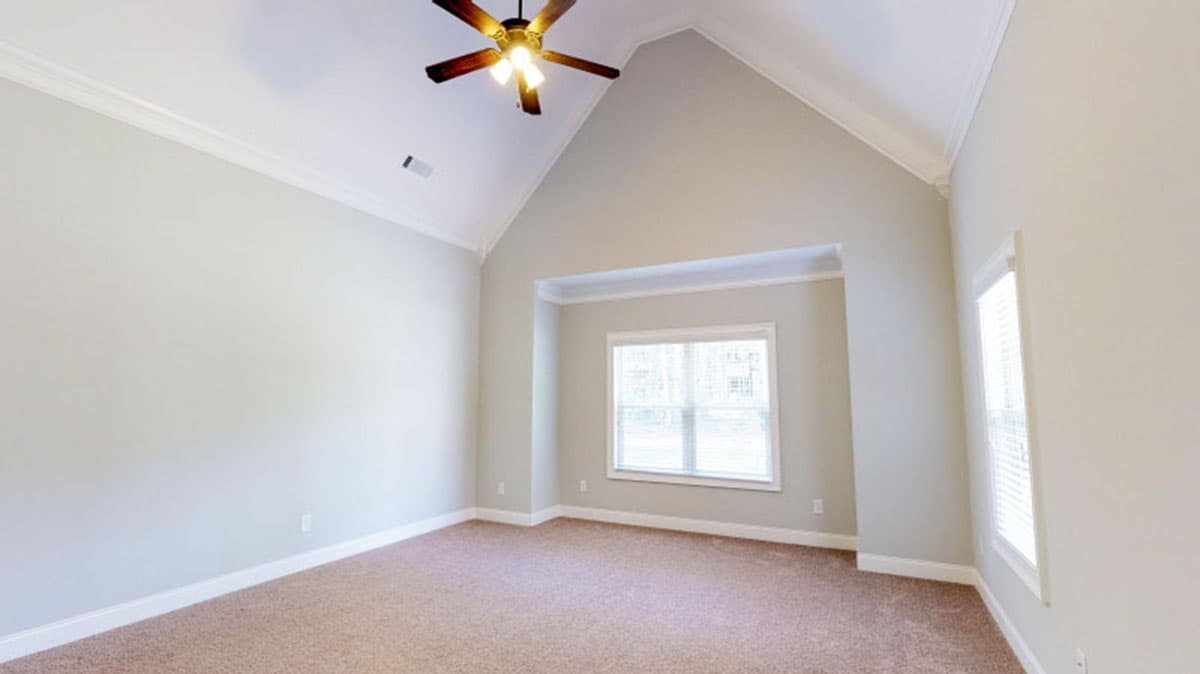

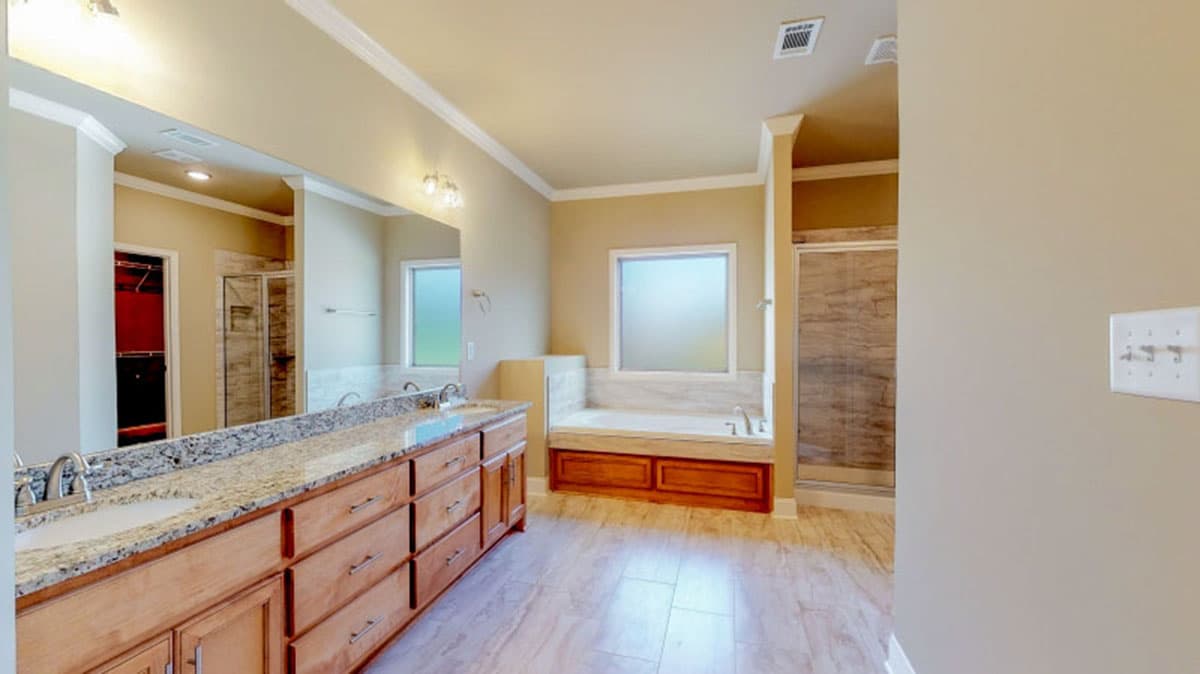

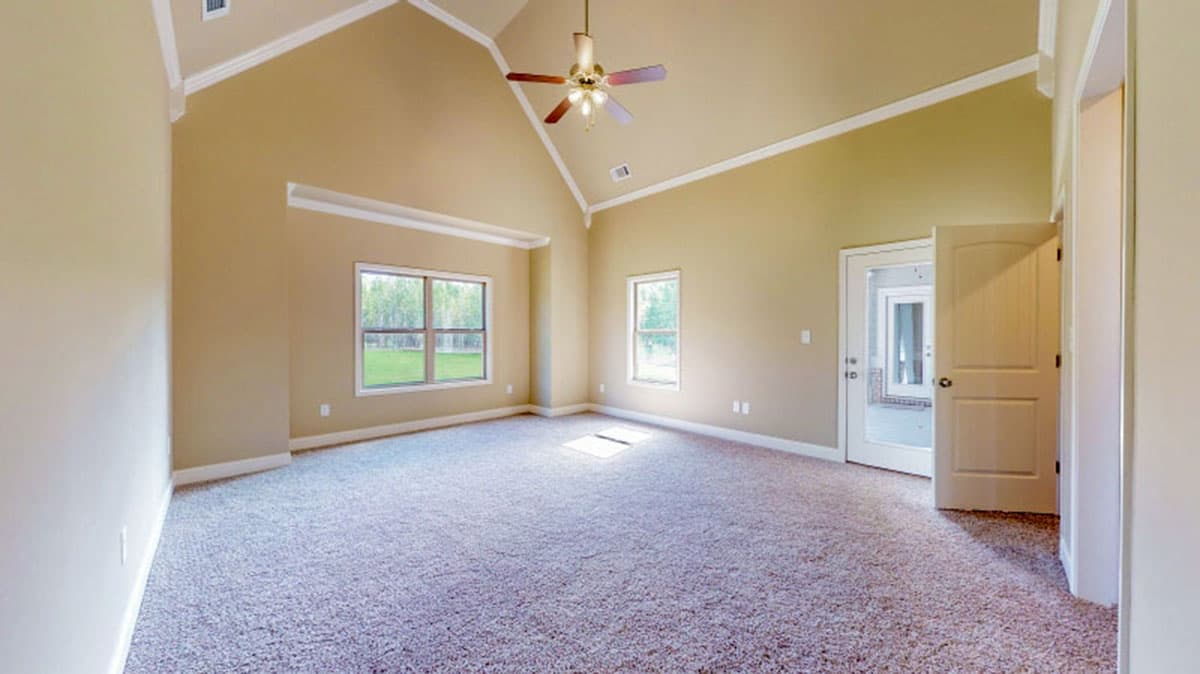

  • The master suite is on the main floor and features a beamed ceiling and boxed window. The master bath has a double vanity and separate tub and shower. The master walk-in closet is separated into his-and-her areas.

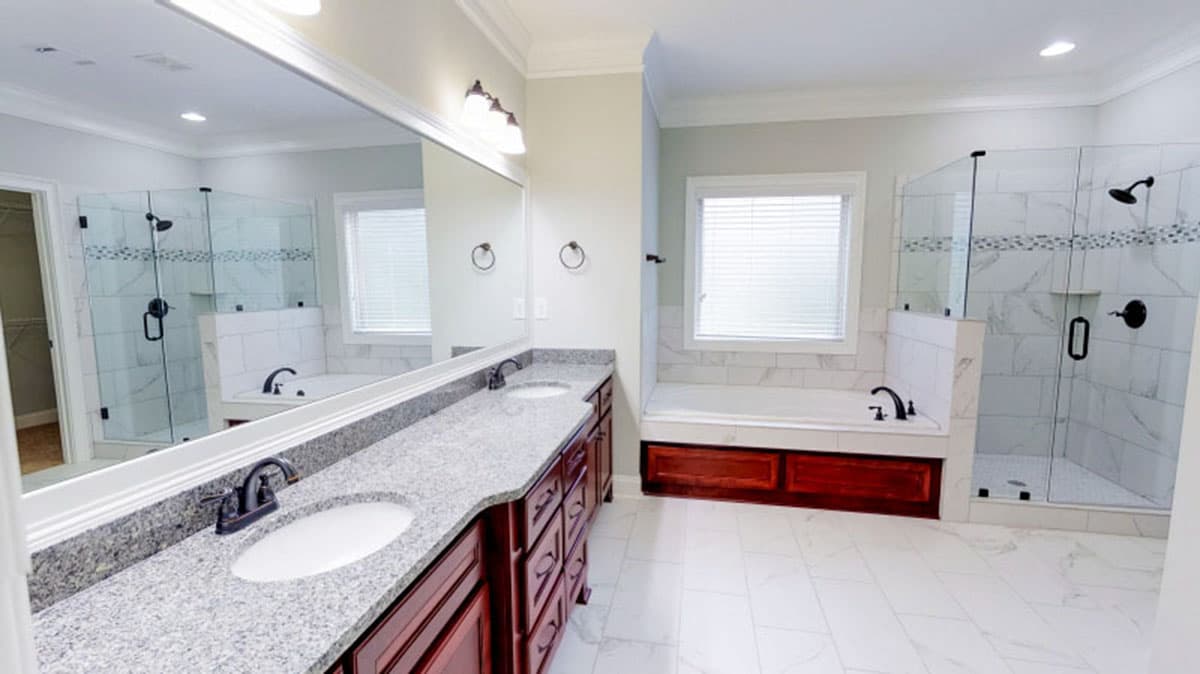

  • The upper level has overlooks from the staircase and balcony. The upstairs bedrooms have private baths and walk-in closets.
  • The bonus room features built-in cabinets and would be just right for a teen suite, or media center.

The plans include the following:

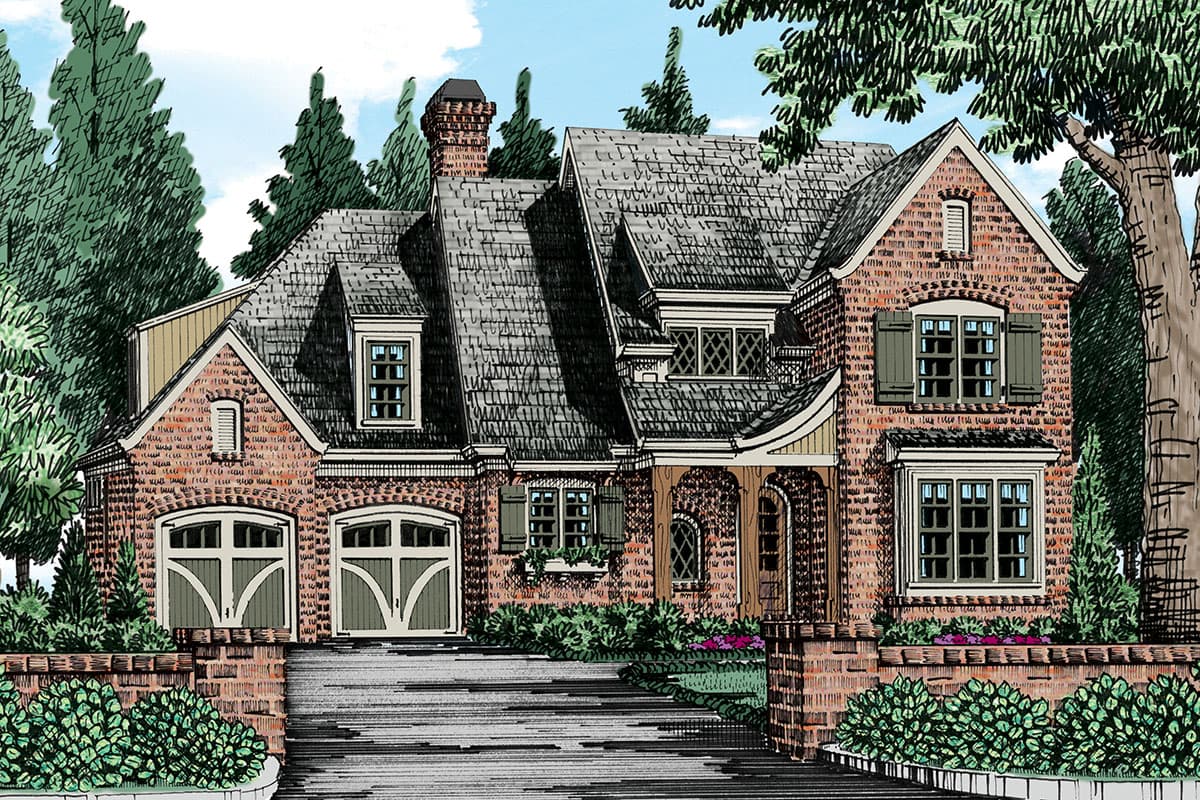

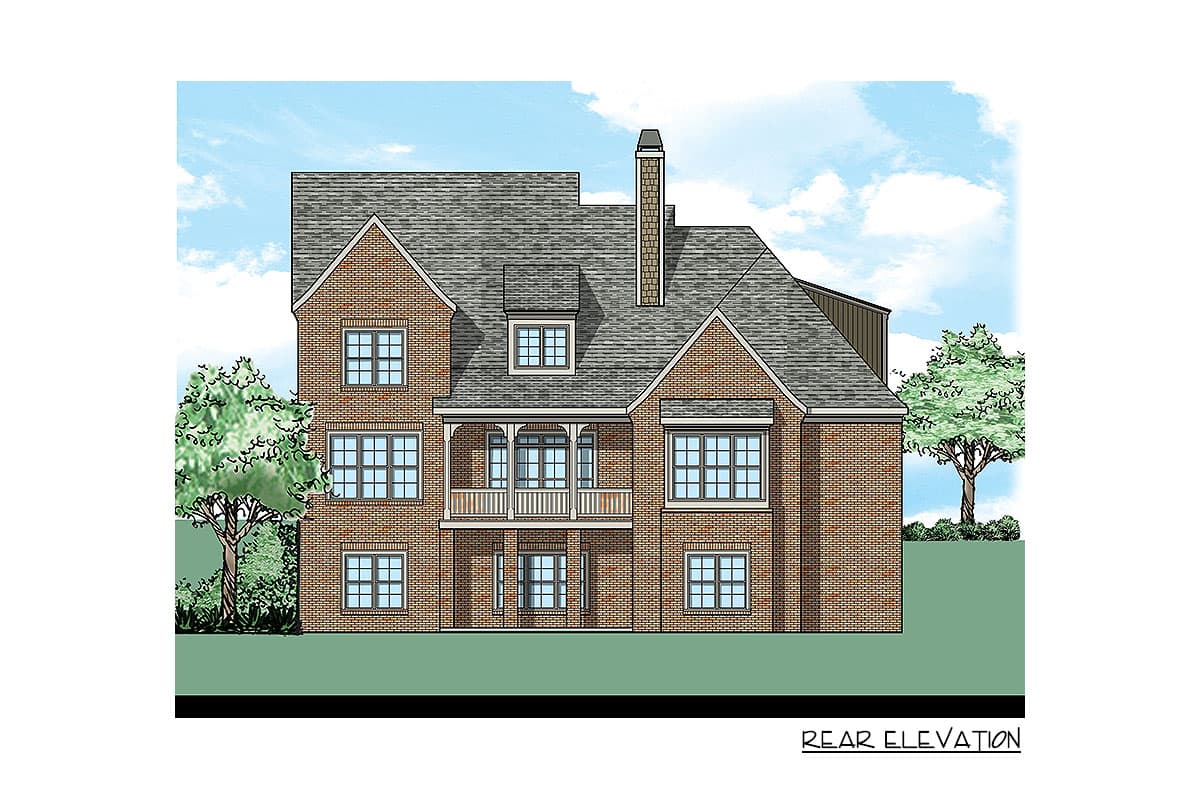

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

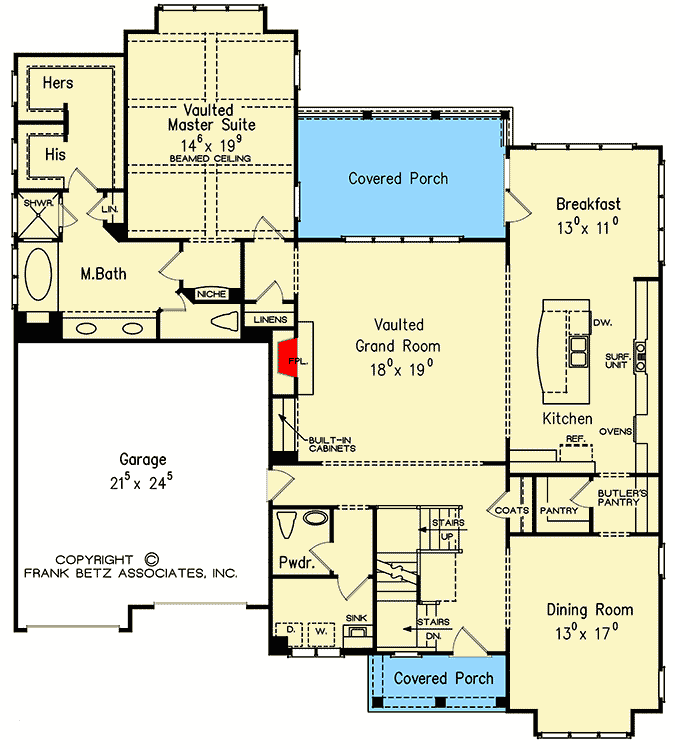

Main Level

Reverse Floor Plan
3-Bed House Plan with Vaulted Grand Room with Overlook - 710127BTZ floor plan - Main Level

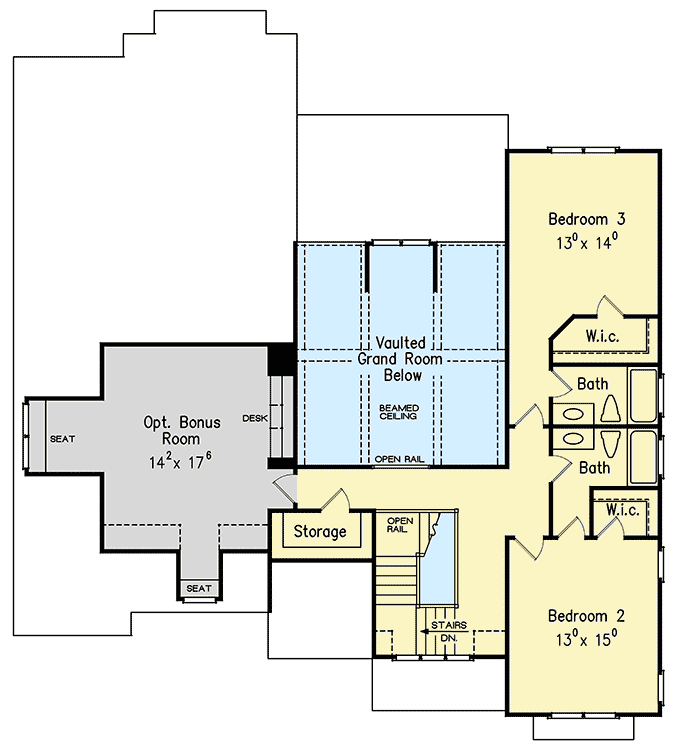

2nd Floor

Reverse Floor Plan
3-Bed House Plan with Vaulted Grand Room with Overlook - 710127BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,884 sq. ft.
  • 1st Floor: 2,056 sq. ft.
  • 2nd Floor: 828 sq. ft.
  • Bonus: 353 sq. ft.
  • Basement Unfinished: 2,056 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 0"
  • Depth: 63' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 526 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



3-Bed House Plan with Vaulted Grand Room with Overlook

  • 2,884

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • The main floor focal point of this 4-bed house plan is the vaulted grand room with its warming fireplace and built-in cabinetry.
  • Enjoy views of the grand room and breakfast space from the chef's kitchen with large island.
  • Enjoy forma meals in the dining room adjacent to the foyer, informal meals in the breakfast area (with windows on two sides) and outdoors on the covered back porch.
  • The master suite is on the main floor and features a beamed ceiling and boxed window. The master bath has a double vanity and separate tub and shower. The master walk-in closet is separated into his-and-her areas.
  • The upper level has overlooks from the staircase and balcony. The upstairs bedrooms have private baths and walk-in closets.
  • The bonus room features built-in cabinets and would be just right for a teen suite, or media center.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,884 sq. ft.
  • 1st Floor: 2,056 sq. ft.
  • 2nd Floor: 828 sq. ft.
  • Bonus: 353 sq. ft.
  • Basement Unfinished: 2,056 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 0"
  • Depth: 63' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 526 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
