3-Bed House Plan with Vaulted Great Room and Master Bedroom - 1497 Sq Ft

Heated S.F.
1,497
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 280203JWD

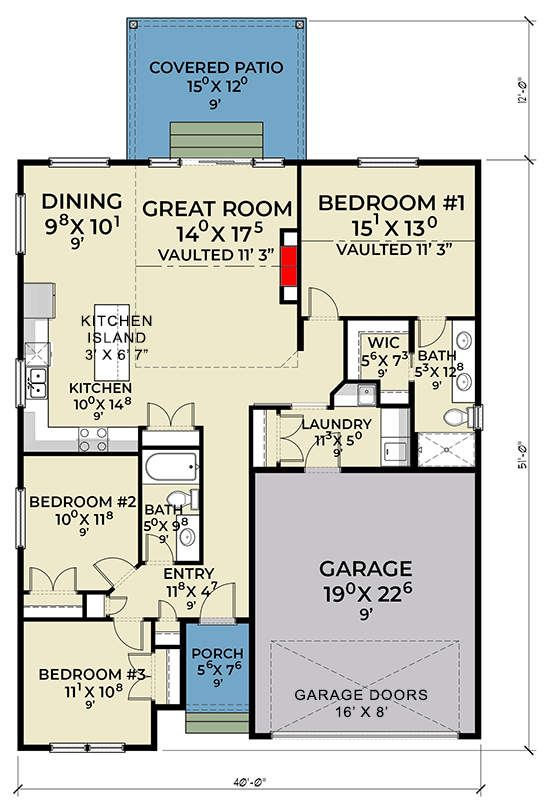

Main Level
Main Level

Plan 280203JWD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 280203JWD: 3-Bed House Plan with Vaulted Great Room and Master Bedroom - 1497 Sq Ft - Floor Plan - Main Level - Cottage, New American

Plan Details

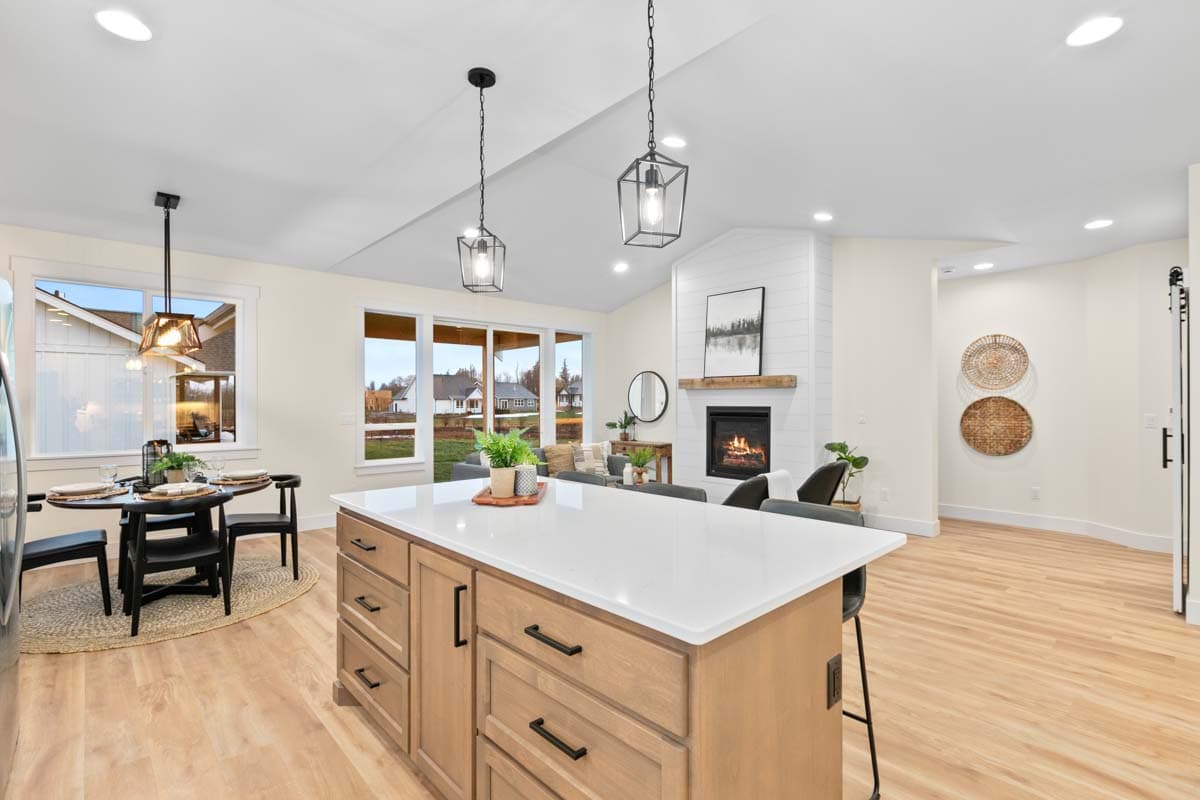

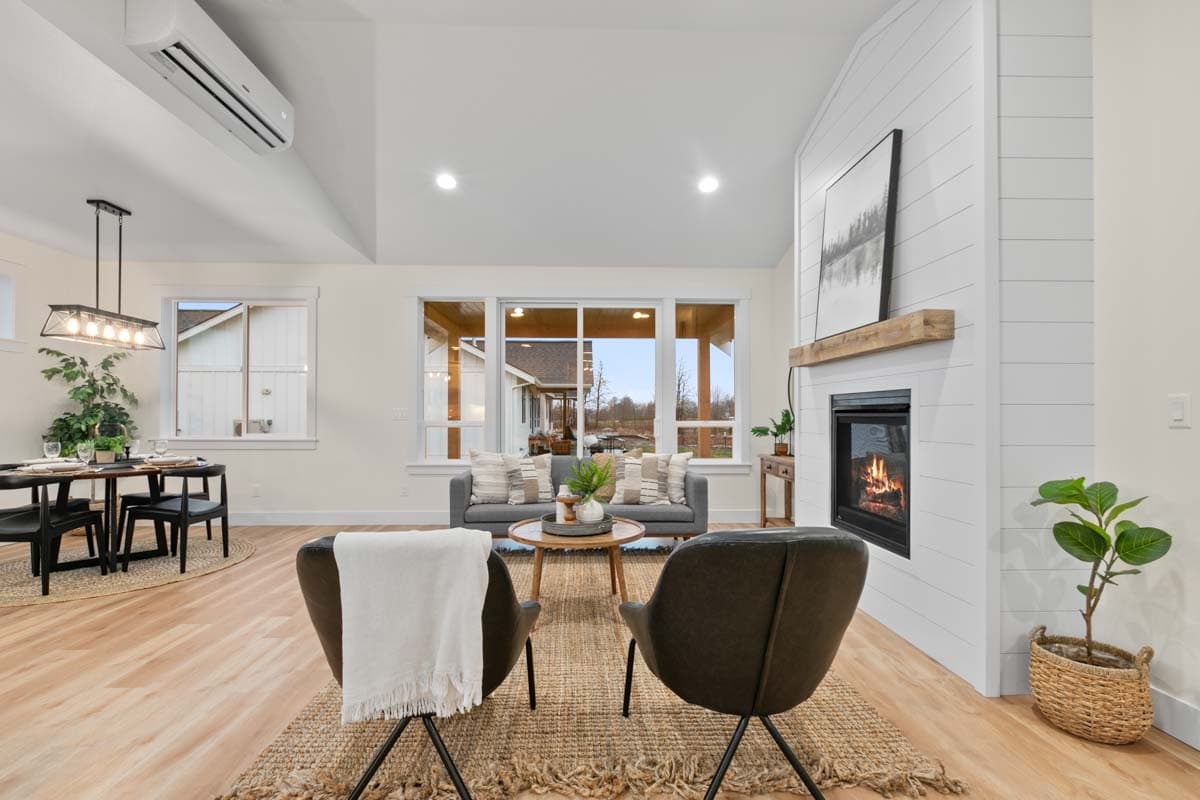

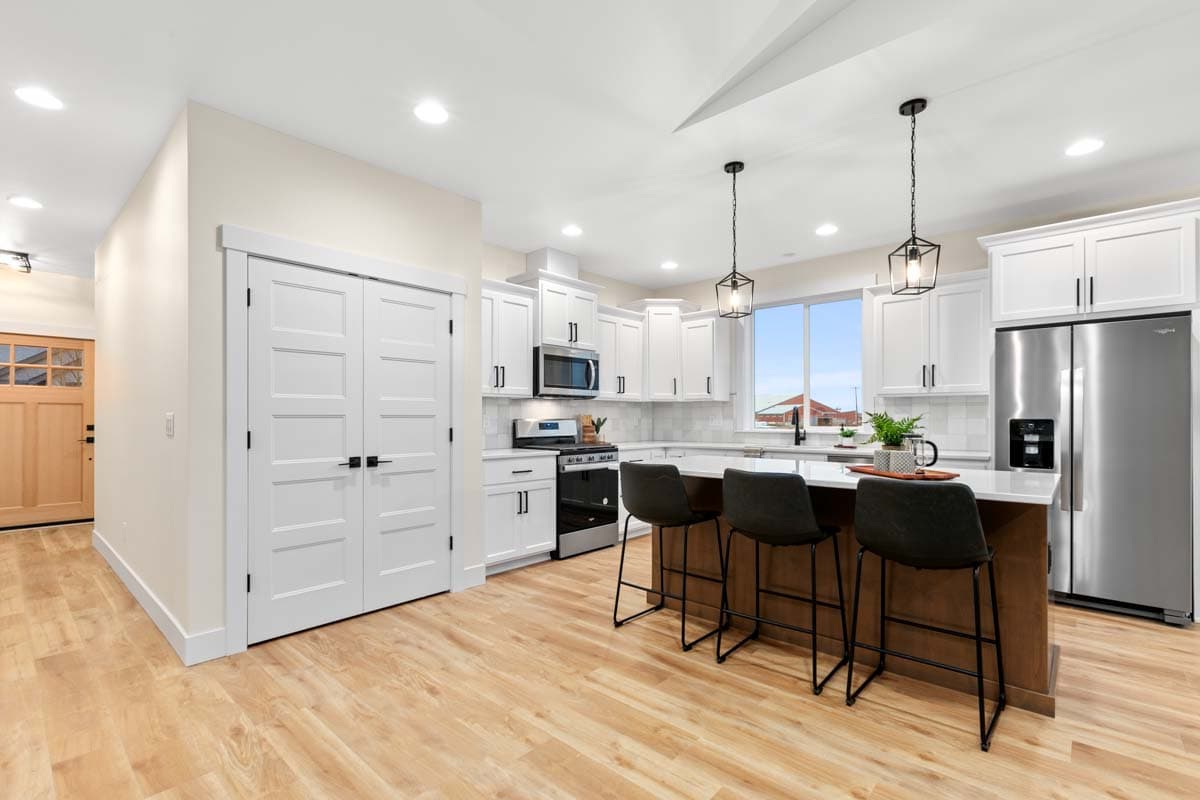

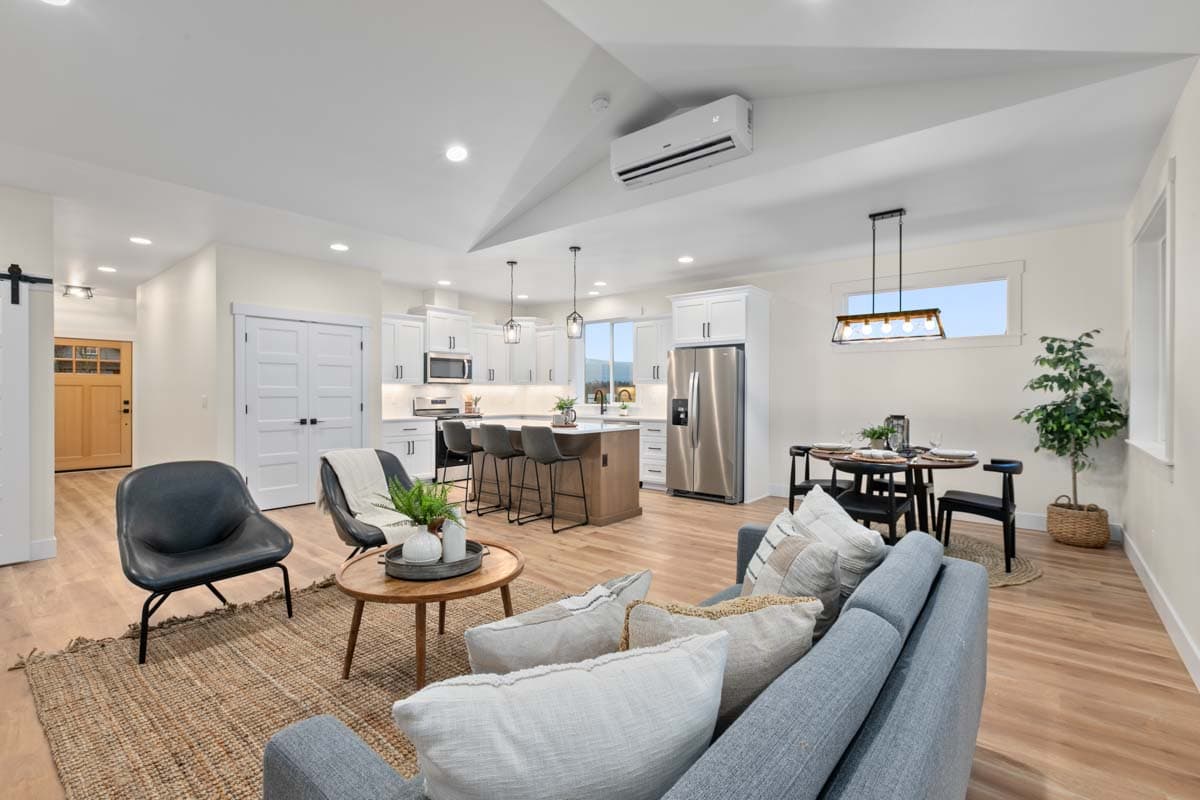

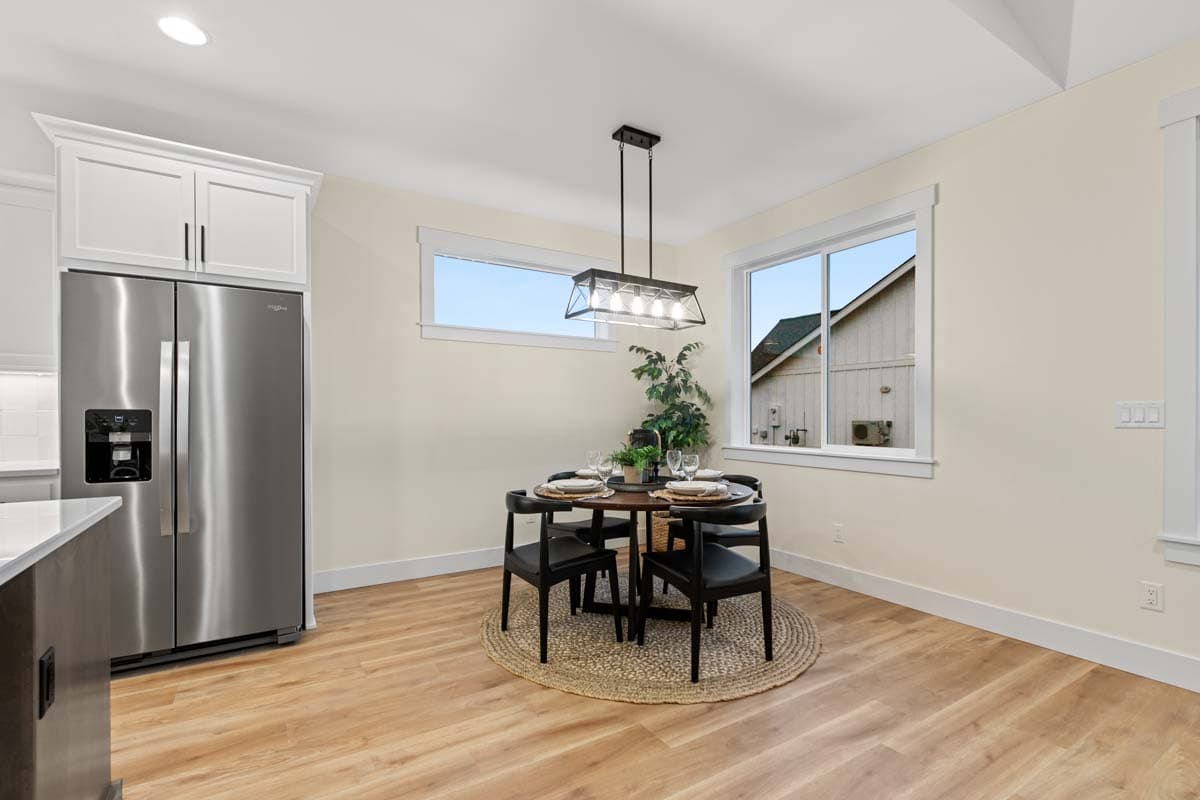

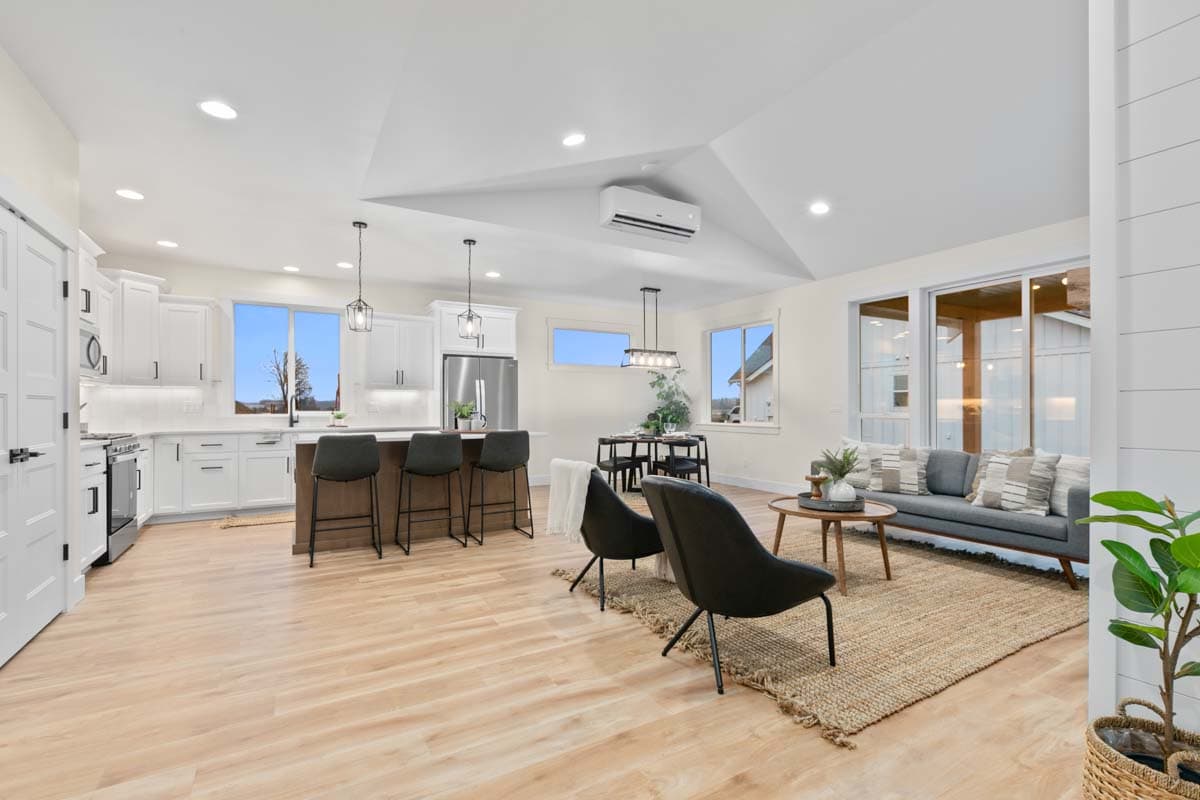

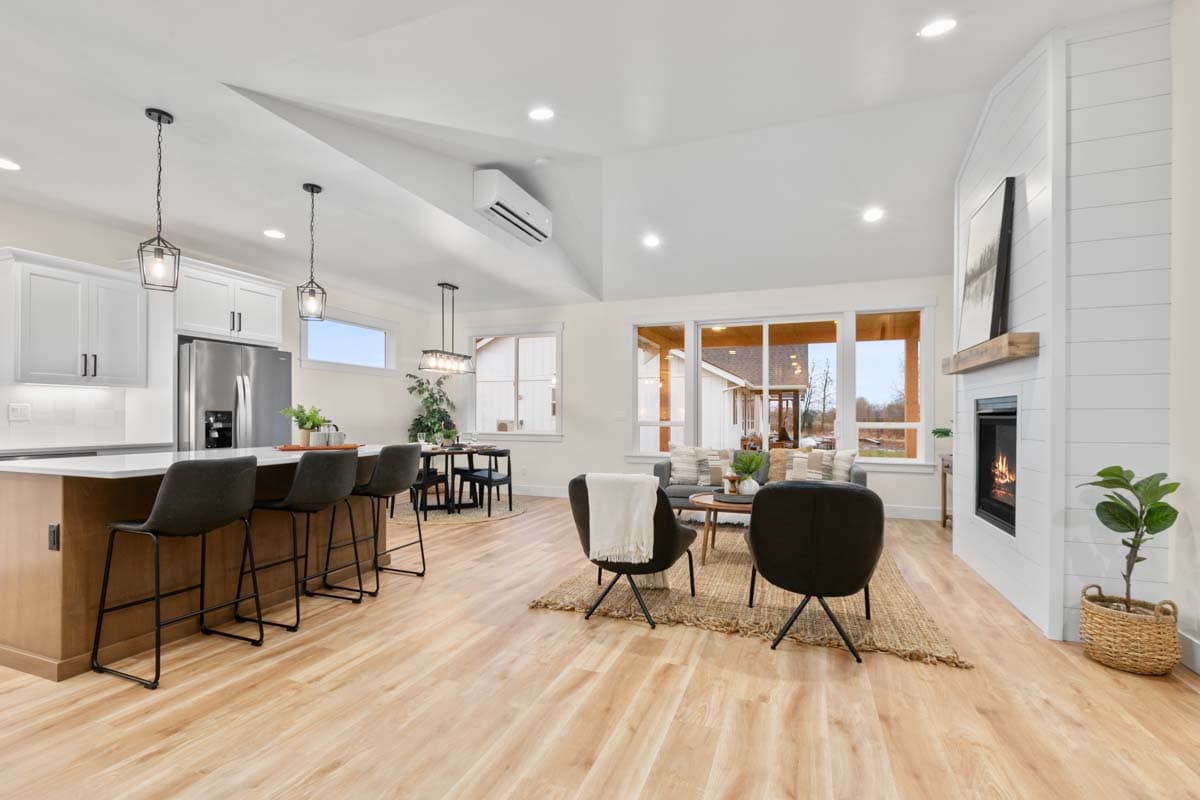

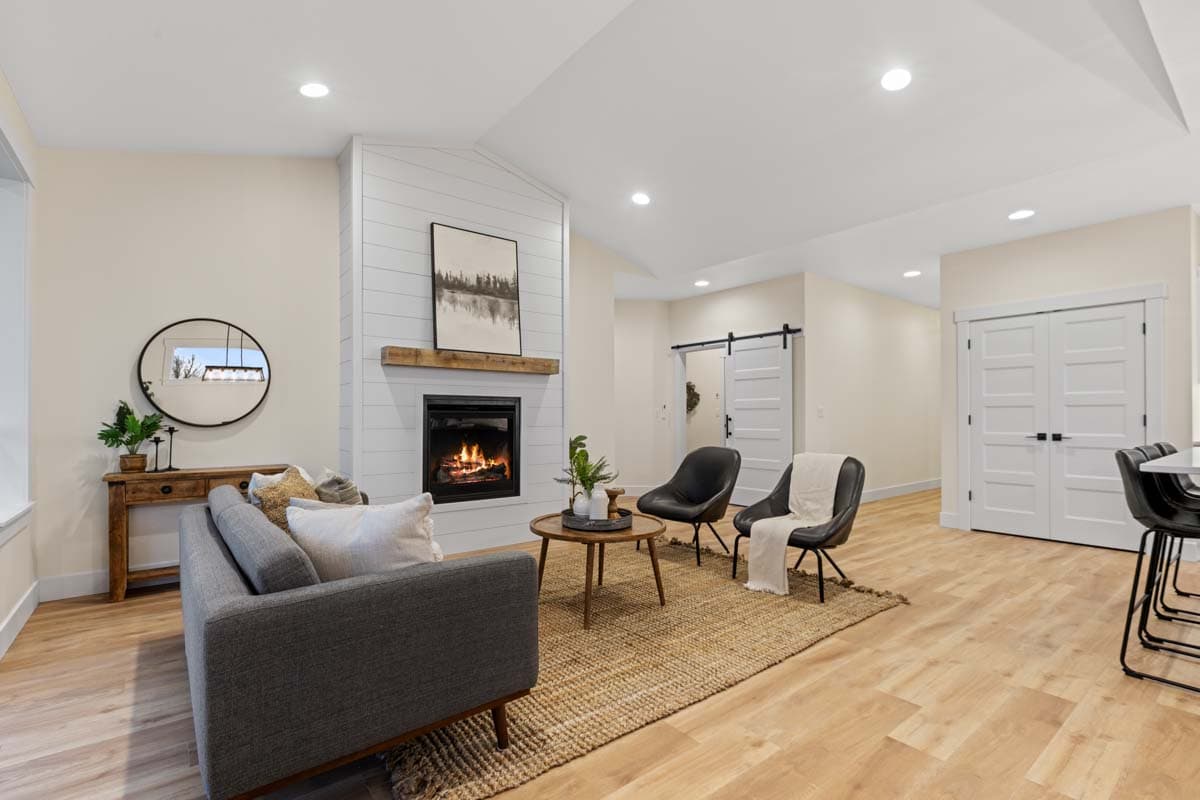

  • This 3 bed, 2 bath house plan gives you 1,497 square feet of heated living and has a vaulted (11'3") great room that is open to both the dining room and island kitchen.

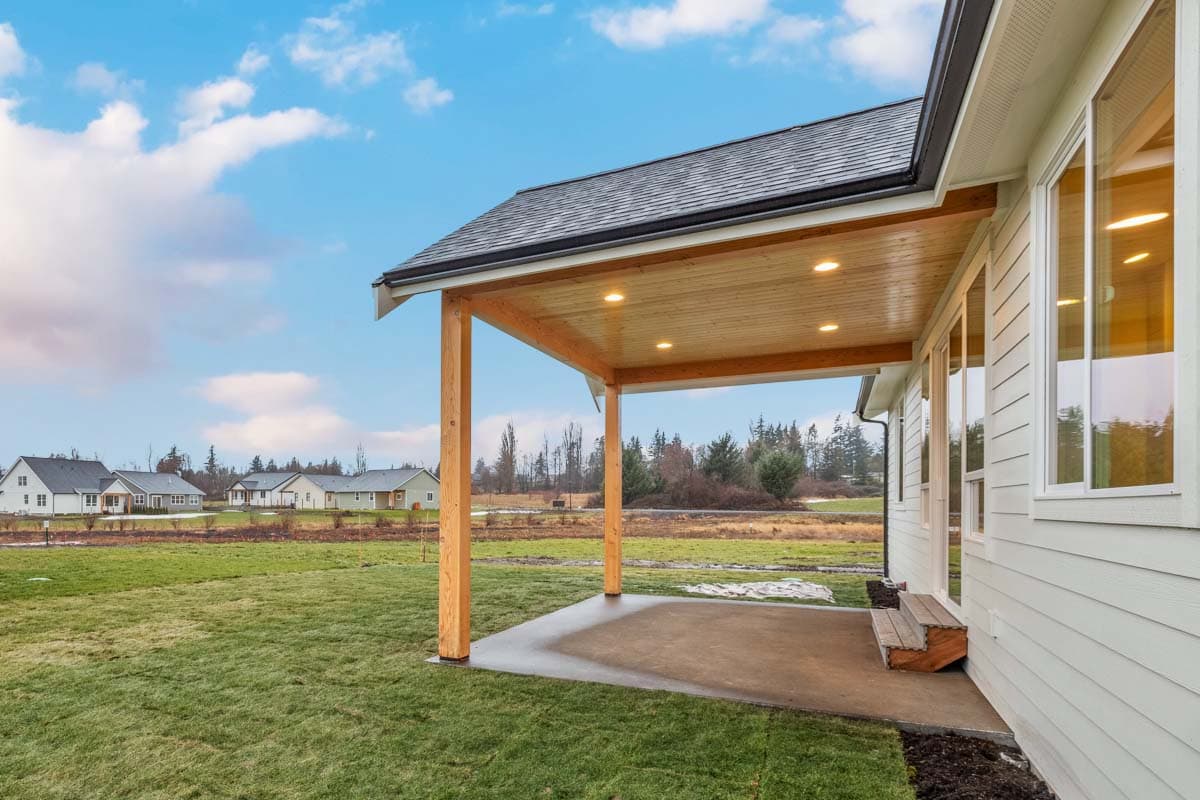

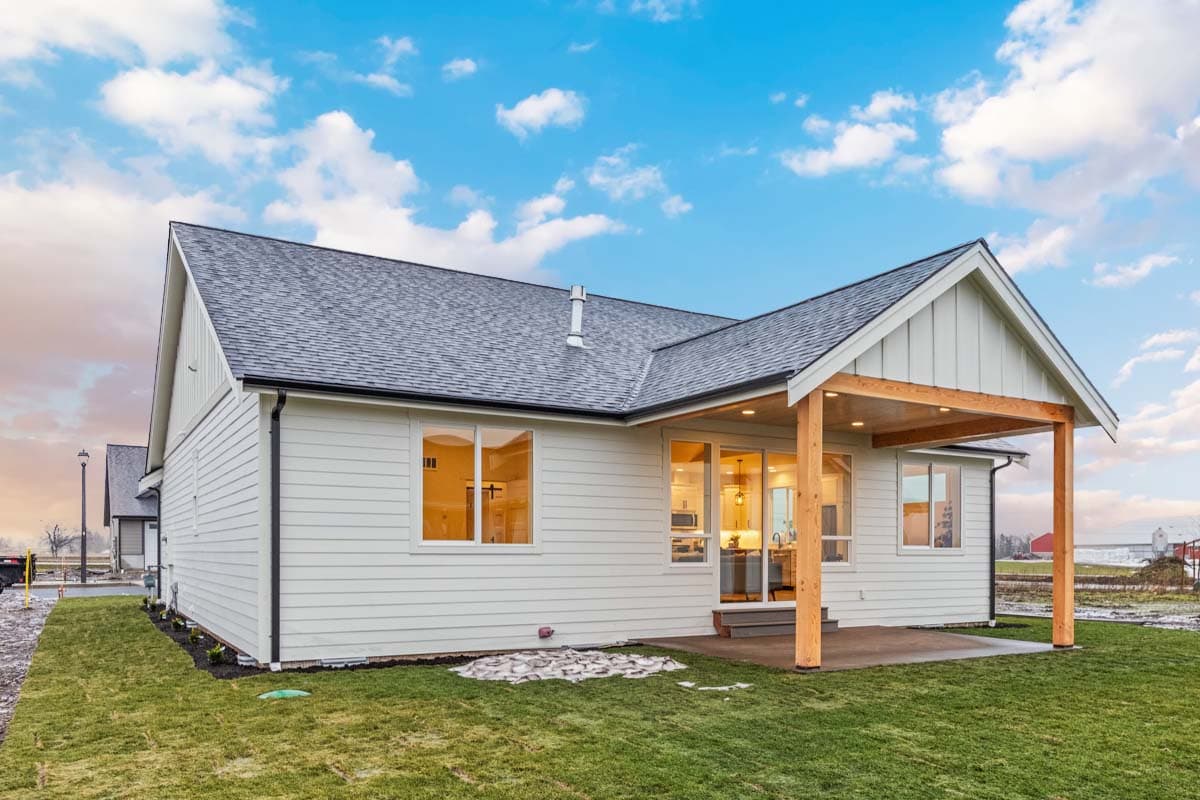

  • Sliding doors on the back wall take you to a 180 square foot covered patio extending your livability to the outdoors.

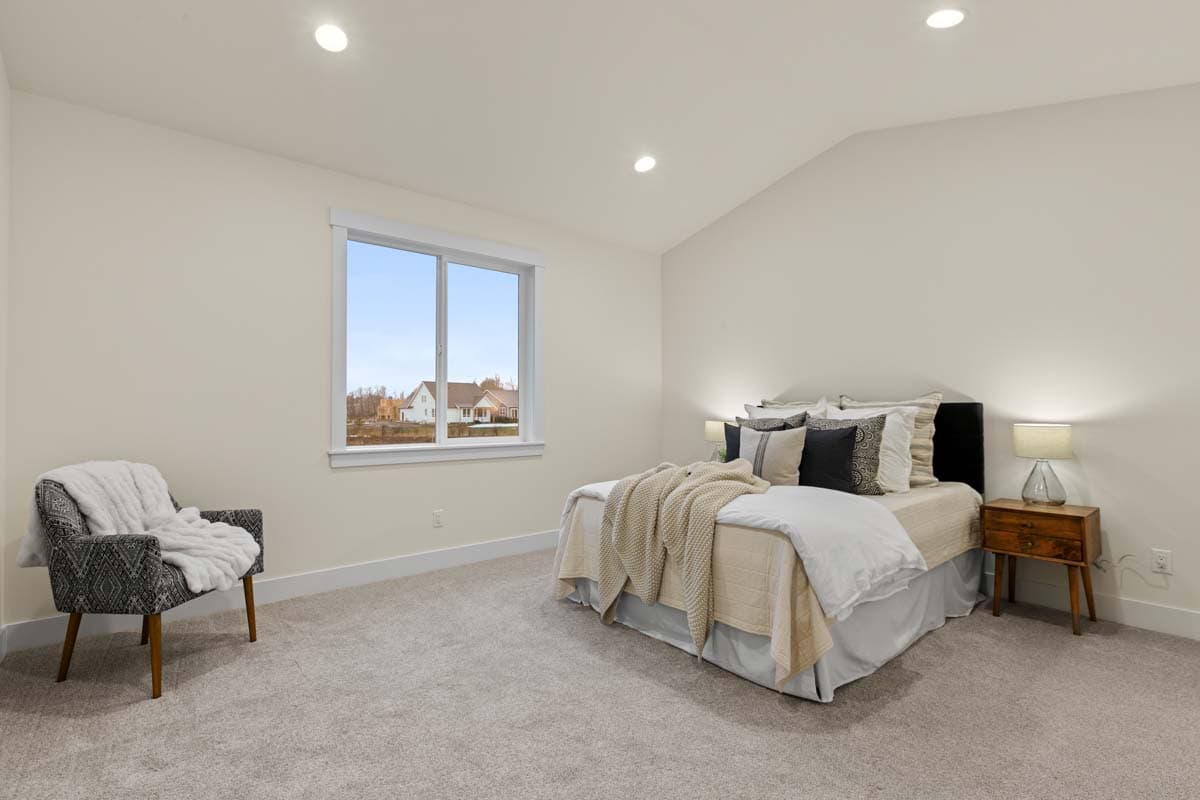

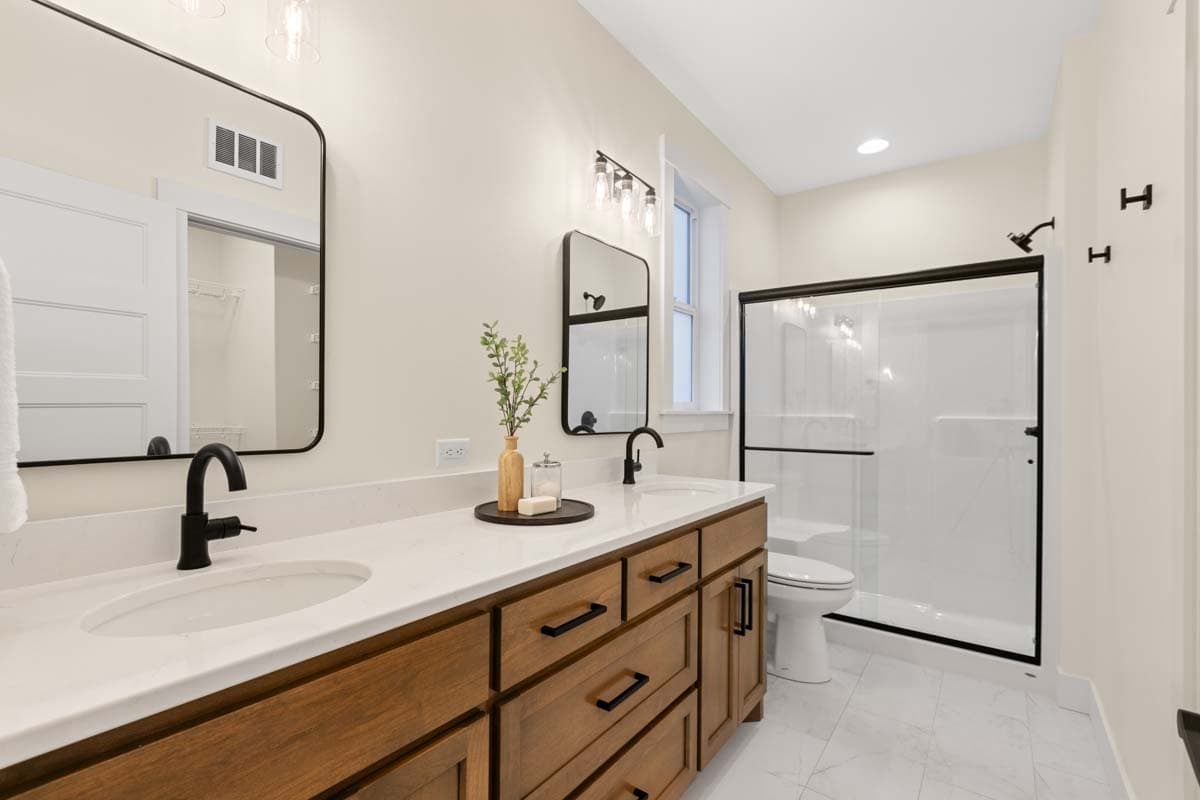

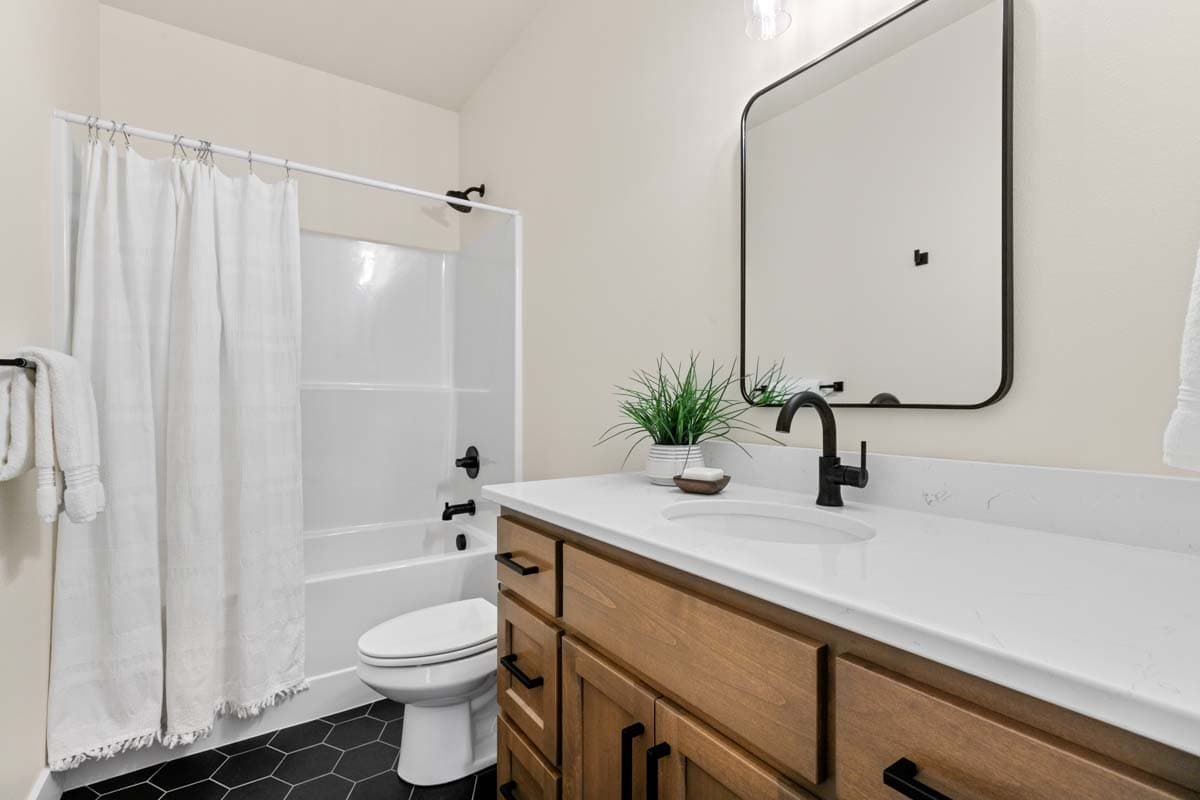

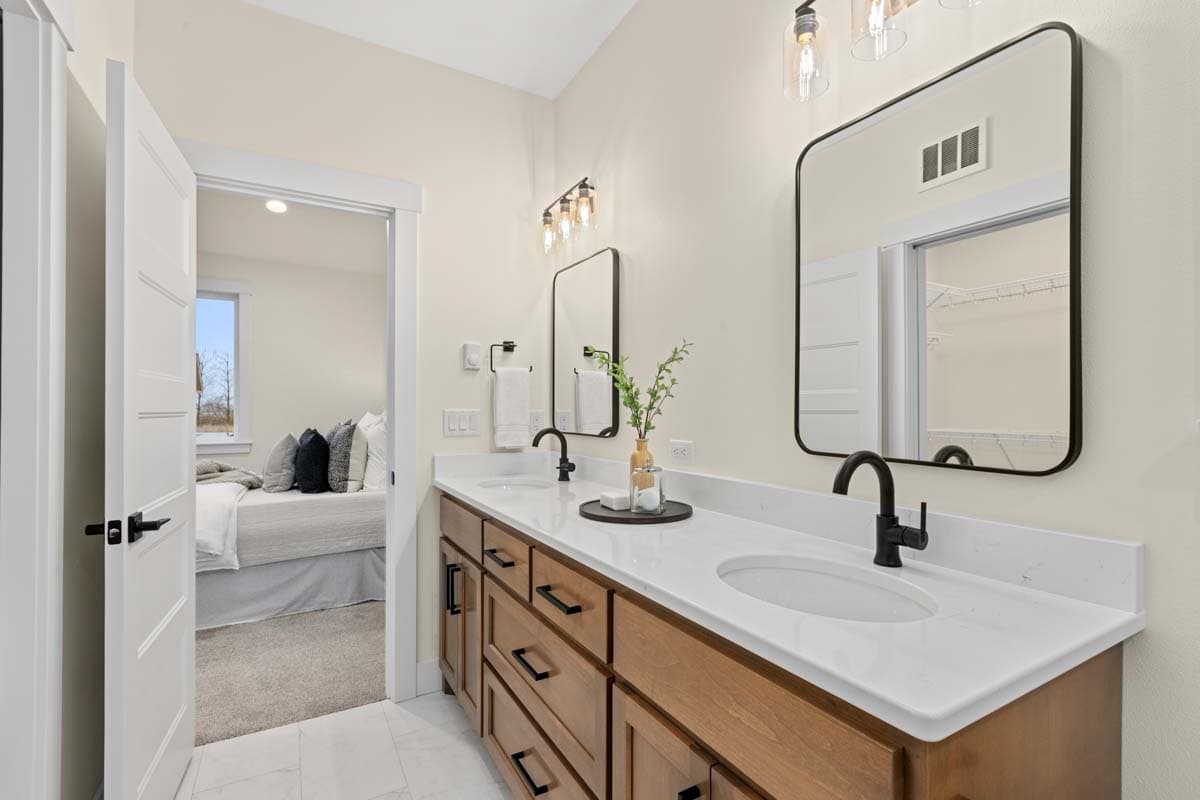

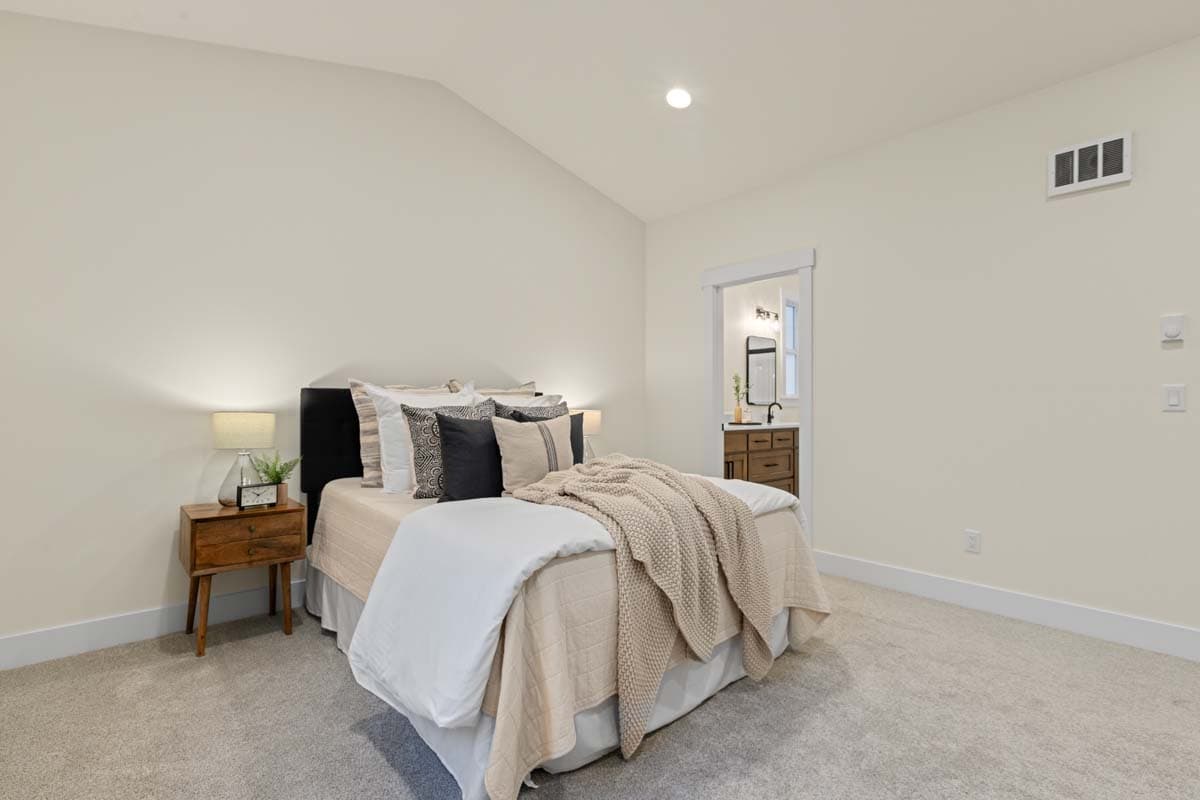

  • The master suite suite has a 11'3" vaulted ceiling and two vanities and a walk-in shower in the bathroom. Across the home, Beds 2 and 3 share a hall bath.

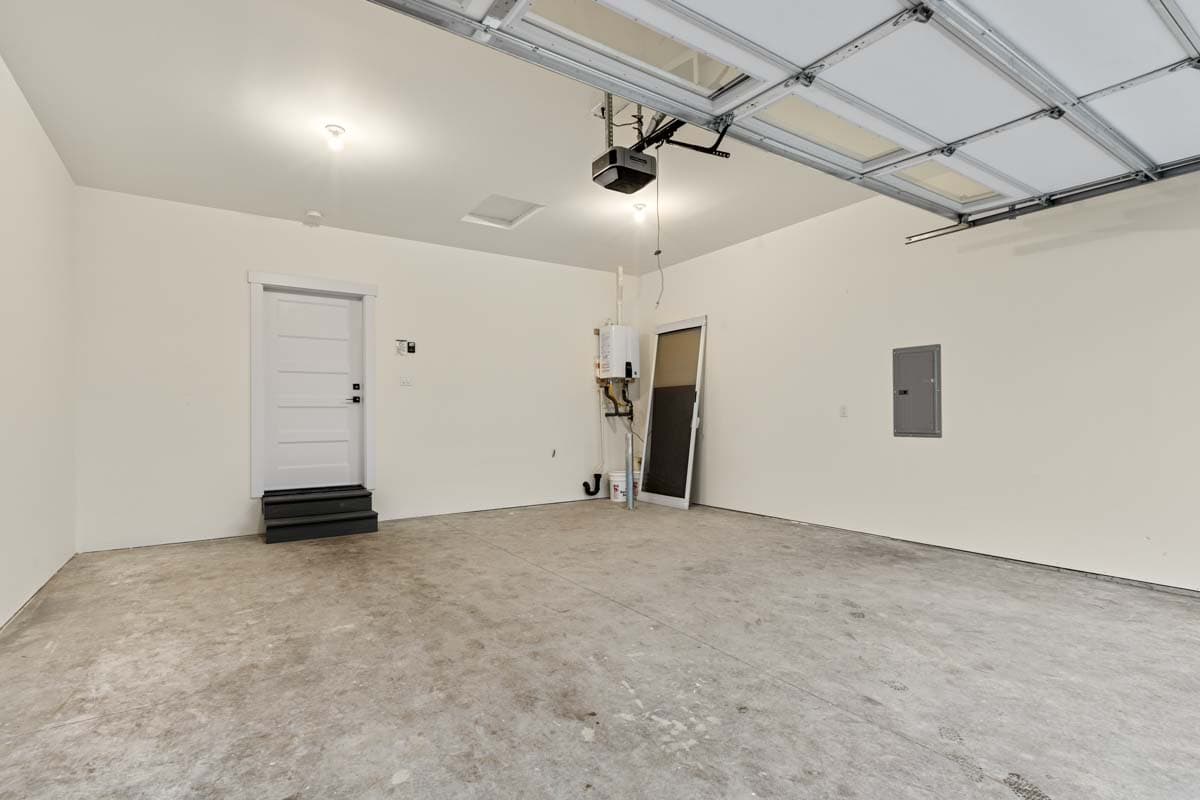

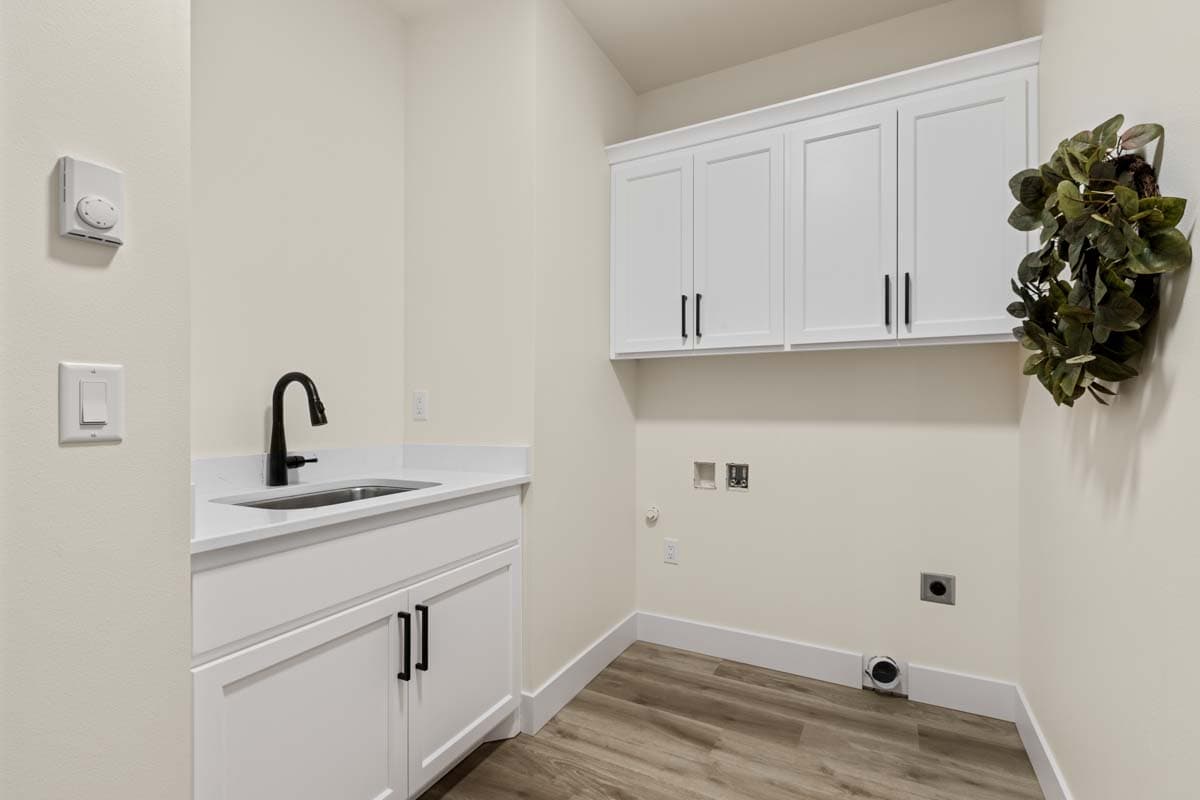

  • Laundry is in the mud room transition zone between the garage and the public spaces in the home.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,497 sq. ft.

1st Floor

1,497 sq. ft.

Porch, Front

41 sq. ft.

Covered Patio

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

63' 0"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,497 sq. ft.

1st Floor

1,497 sq. ft.

Porch, Front

41 sq. ft.

Covered Patio

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

63' 0"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
