3-Bed House Plan with Vaulted Sun Room

Pageloader

3-Bed House Plan with Vaulted Sun Room

Plan 72915DA

  • 2,864

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A brick and stone graces the exterior of this 3-bed house plan. The interior has an elegant feel with high, vaulted ceilings and arched openings.
  • Just in from the vaulted entry is a study with built-in bookcase and window seat.
  • Through the entry hall and arched opening leads to the vaulted great room with a cozy fireplace and a screened porch at the rear.
  • An eating bar separates the great room and the kitchen. The large, well-appointed kitchen has an island and step-in pantry. Just off the kitchen is a bright, vaulted sun room and a formal dining room.
  • On the opposite side of the house, through another arched opening, is the entrance to the owners' suite. The owners' suite is its very own private retreat with high vaulted ceilings, private access to a deck, and a cozy sitting room. The owners' bath has a luxurious walk-in shower, private water closet, large walk-in closet, and a relaxing bathtub.
  • The home also has a large, convenient utility room and a side-entry three car garage suitable for a corner lot.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

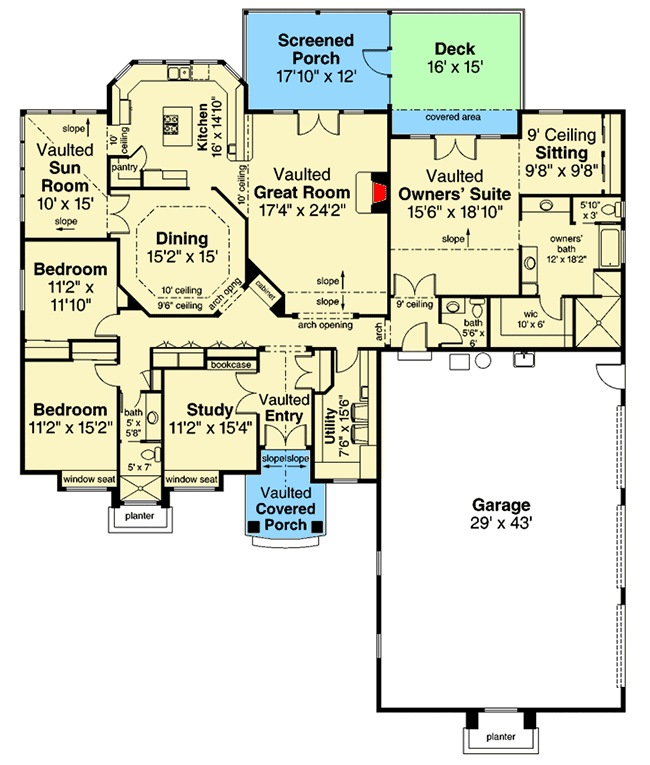

Floor Plan

Plan details



3-Bed House Plan with Vaulted Sun Room

  • 2,864

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • A brick and stone graces the exterior of this 3-bed house plan. The interior has an elegant feel with high, vaulted ceilings and arched openings.
  • Just in from the vaulted entry is a study with built-in bookcase and window seat.
  • Through the entry hall and arched opening leads to the vaulted great room with a cozy fireplace and a screened porch at the rear.
  • An eating bar separates the great room and the kitchen. The large, well-appointed kitchen has an island and step-in pantry. Just off the kitchen is a bright, vaulted sun room and a formal dining room.
  • On the opposite side of the house, through another arched opening, is the entrance to the owners' suite. The owners' suite is its very own private retreat with high vaulted ceilings, private access to a deck, and a cozy sitting room. The owners' bath has a luxurious walk-in shower, private water closet, large walk-in closet, and a relaxing bathtub.
  • The home also has a large, convenient utility room and a side-entry three car garage suitable for a corner lot.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,864 sq. ft.
  • 1st Floor: 2,864 sq. ft.
  • Deck: 240 sq. ft.
  • Screened Porch: 215 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 0"
  • Depth: 86' 8"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 1297 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
