3-Bed Modern Cottage Under 2200 Square Feet
Heated S.F.
2,181
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • This 3-bed modern cottage house plan has a clapboard and shingle exterior and gives you 2,181 square feet of heated living space plus a large deck that wraps around the back of the home.
  • Inside, a 2-story great room has outside access through doors on either side of the fireplace.
  • The kitchen is open to a space with room for a dining table and has the sink centered over windows looking out the side and an island with room for 3 stools.
  • The master suite is the only bedroom on the main floor and has rear deck access. Upstairs, two bedrooms share a bathroom.

What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Cottage Under 2200 Square Feet

  • 2,181

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

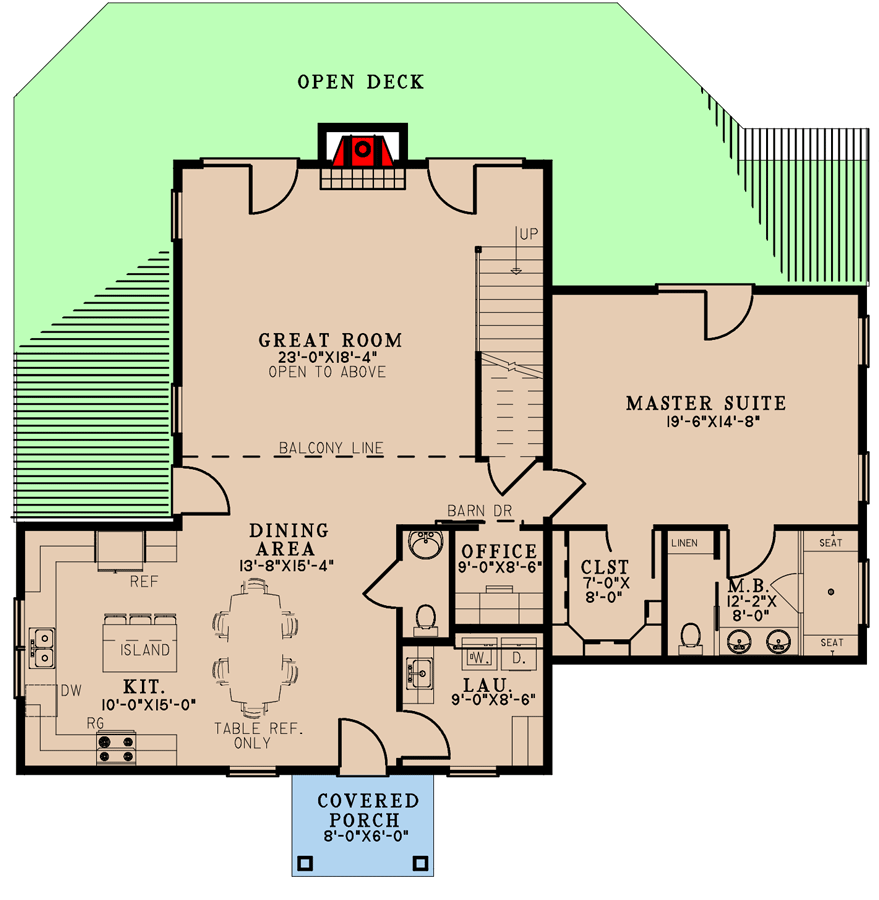

  • Main Level

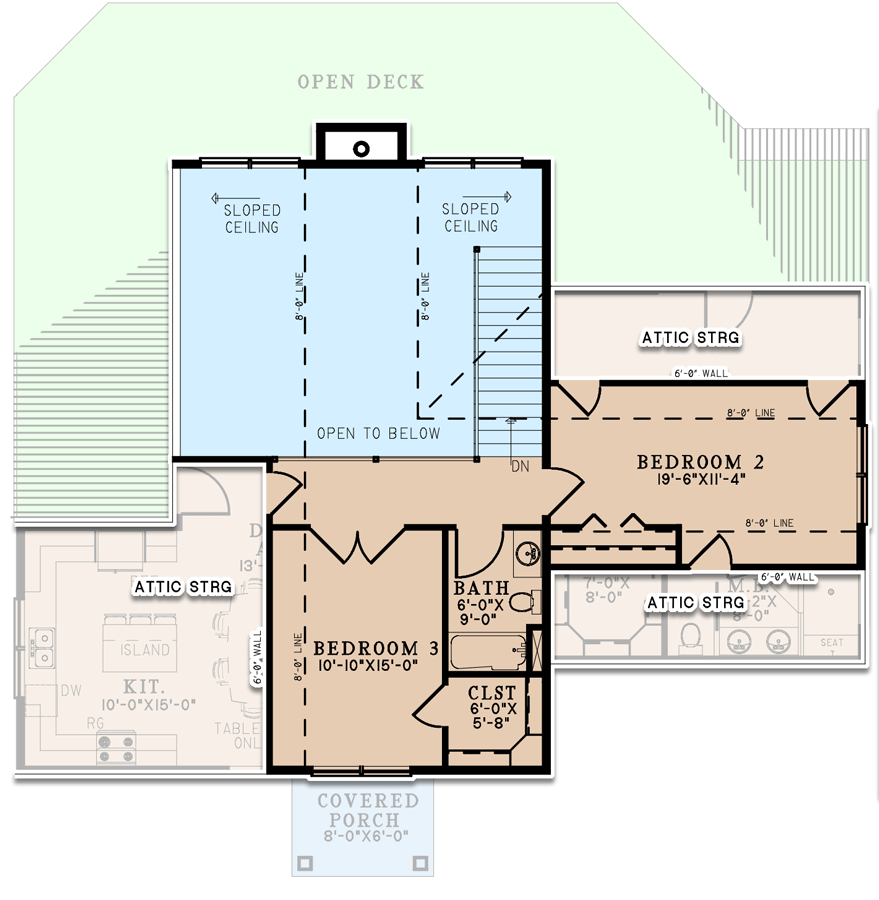

  • 2nd Floor
