3-Bed Modern Craftsman Cottage with Vaulted Interior

Plan 24383TW

This plan plants 3 trees

2,741
Heated s.f.
3
Beds
3.5
Baths
1
Stories
2
Cars

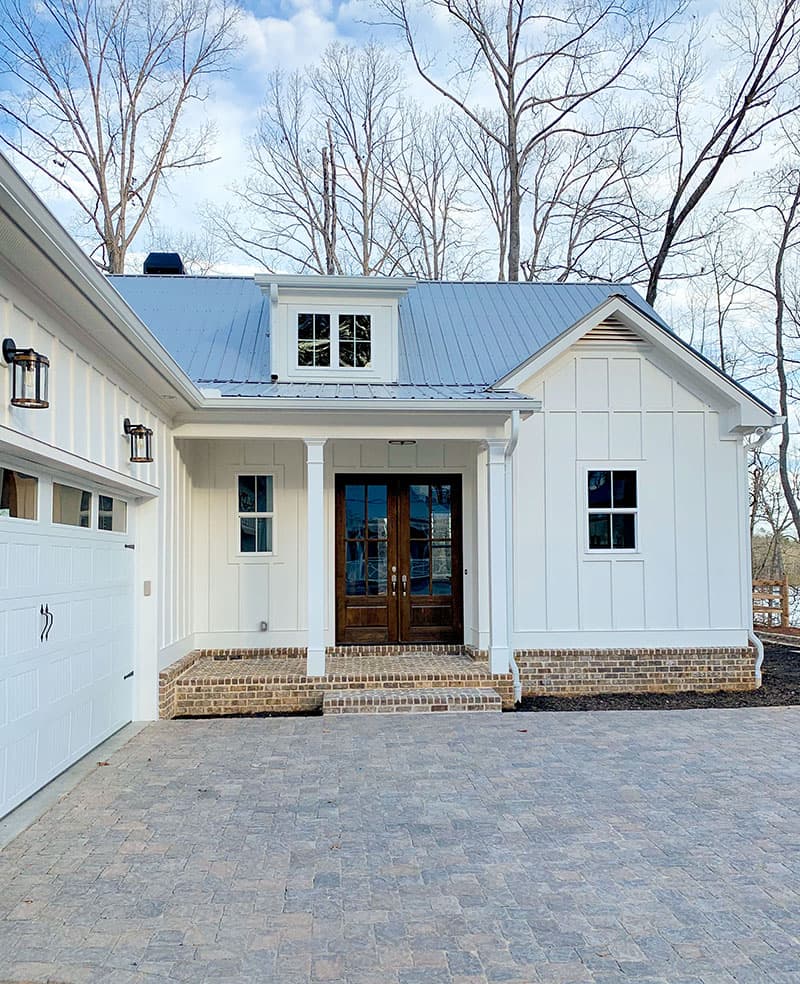

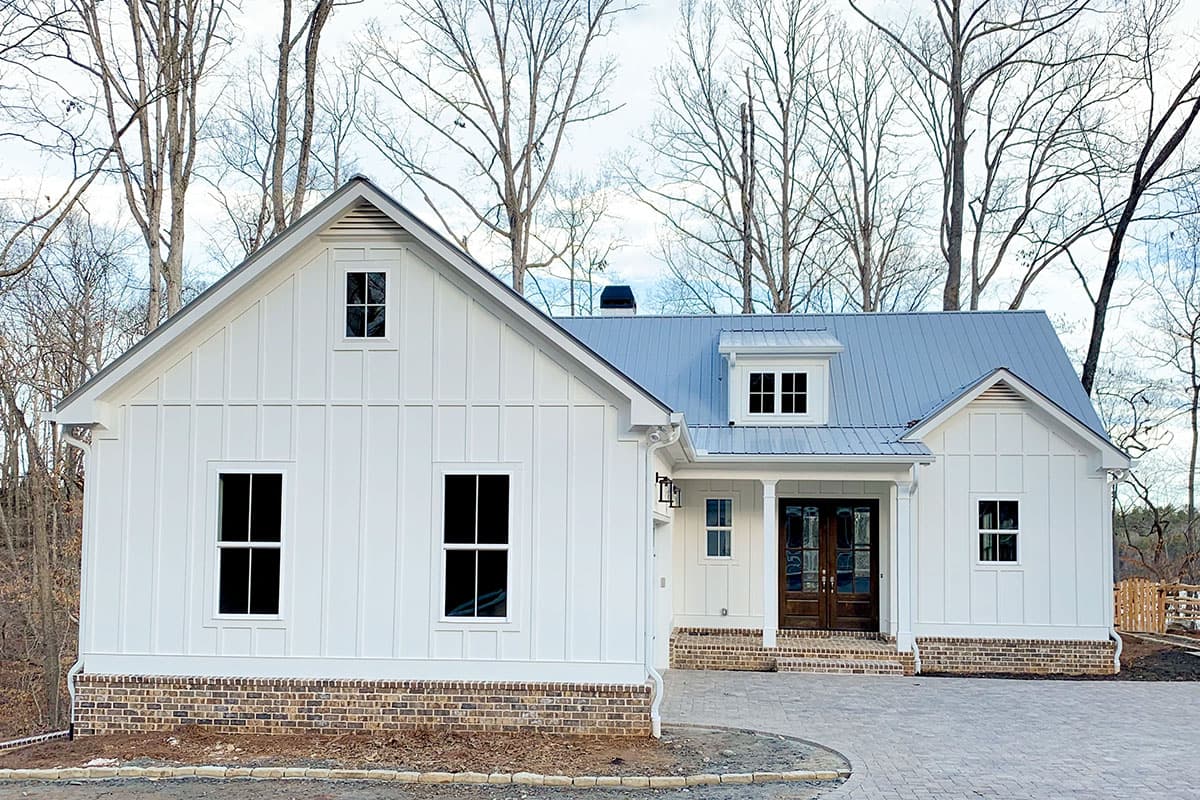

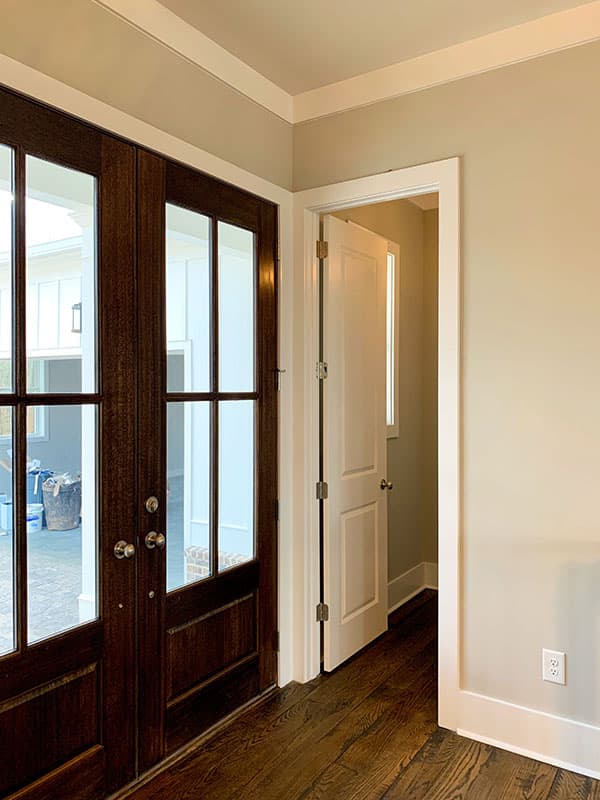

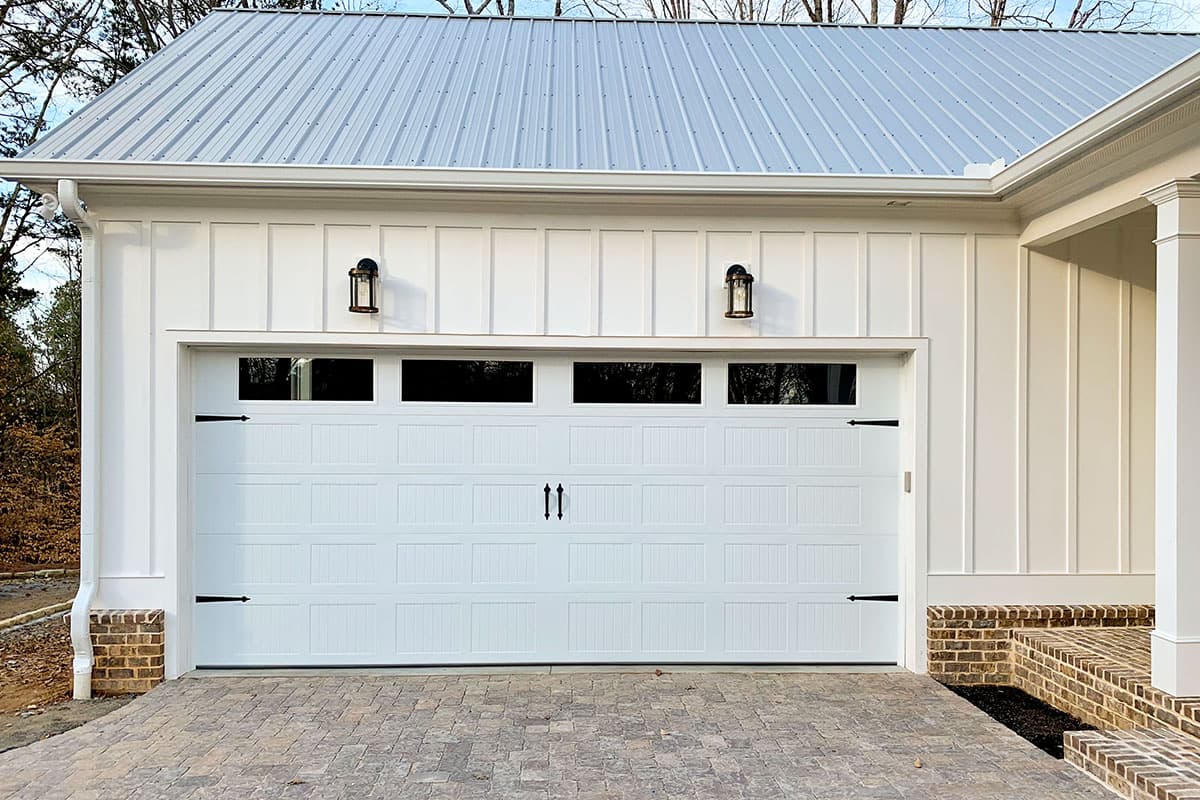

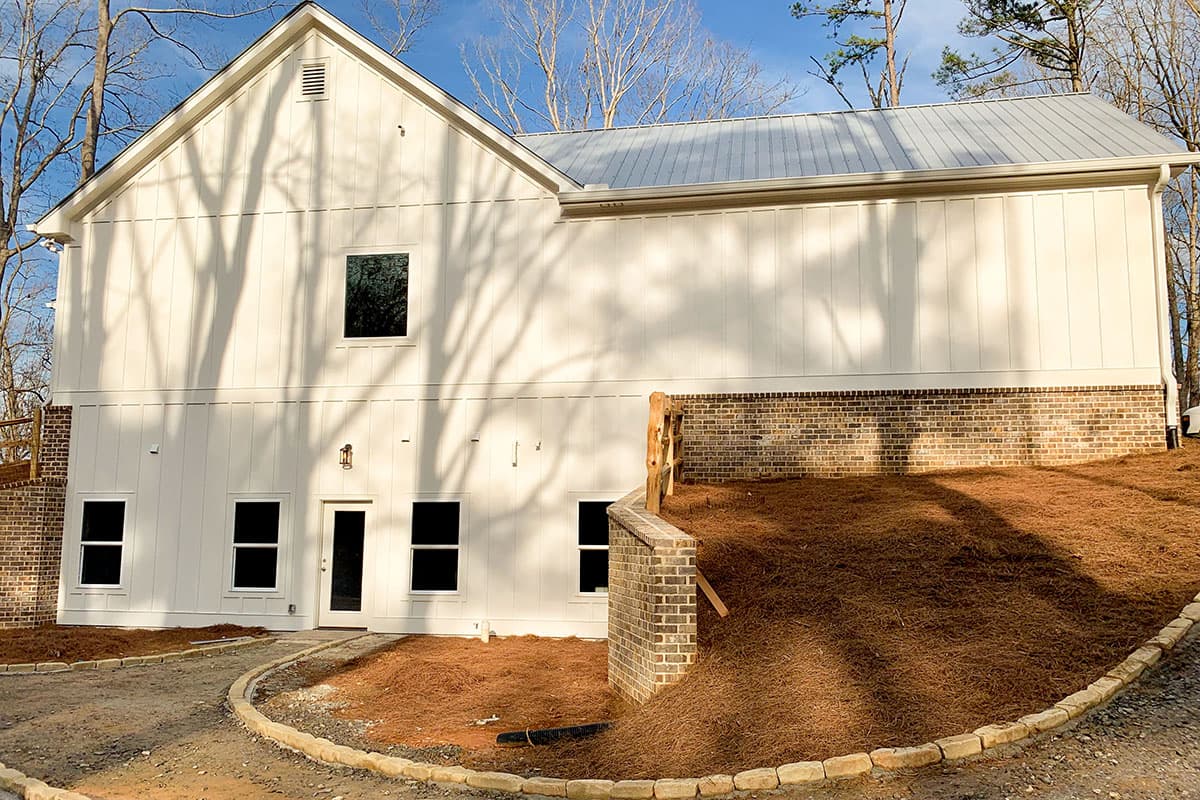

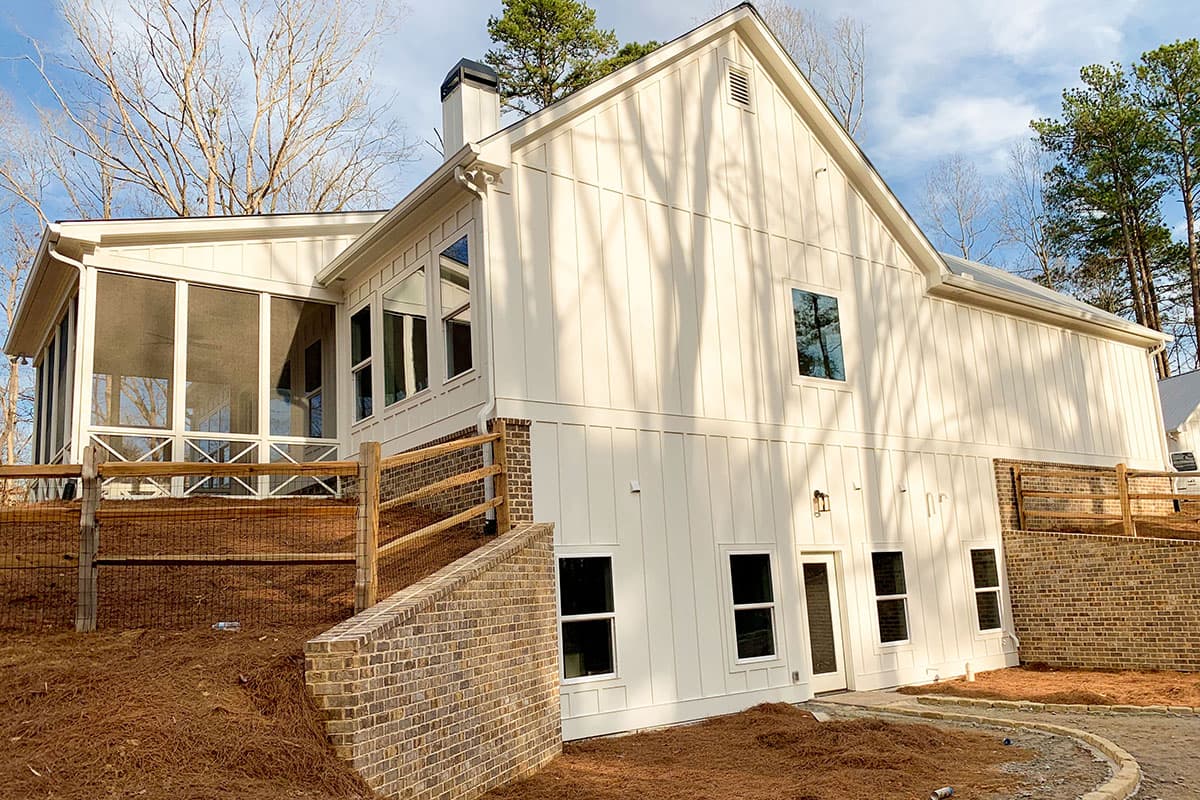

Board and batten siding with a brick trim give this 3-bed house plan a modern Craftsman feel. A shed dormer over the entry porch covering the French door entry completes the pretty picture.

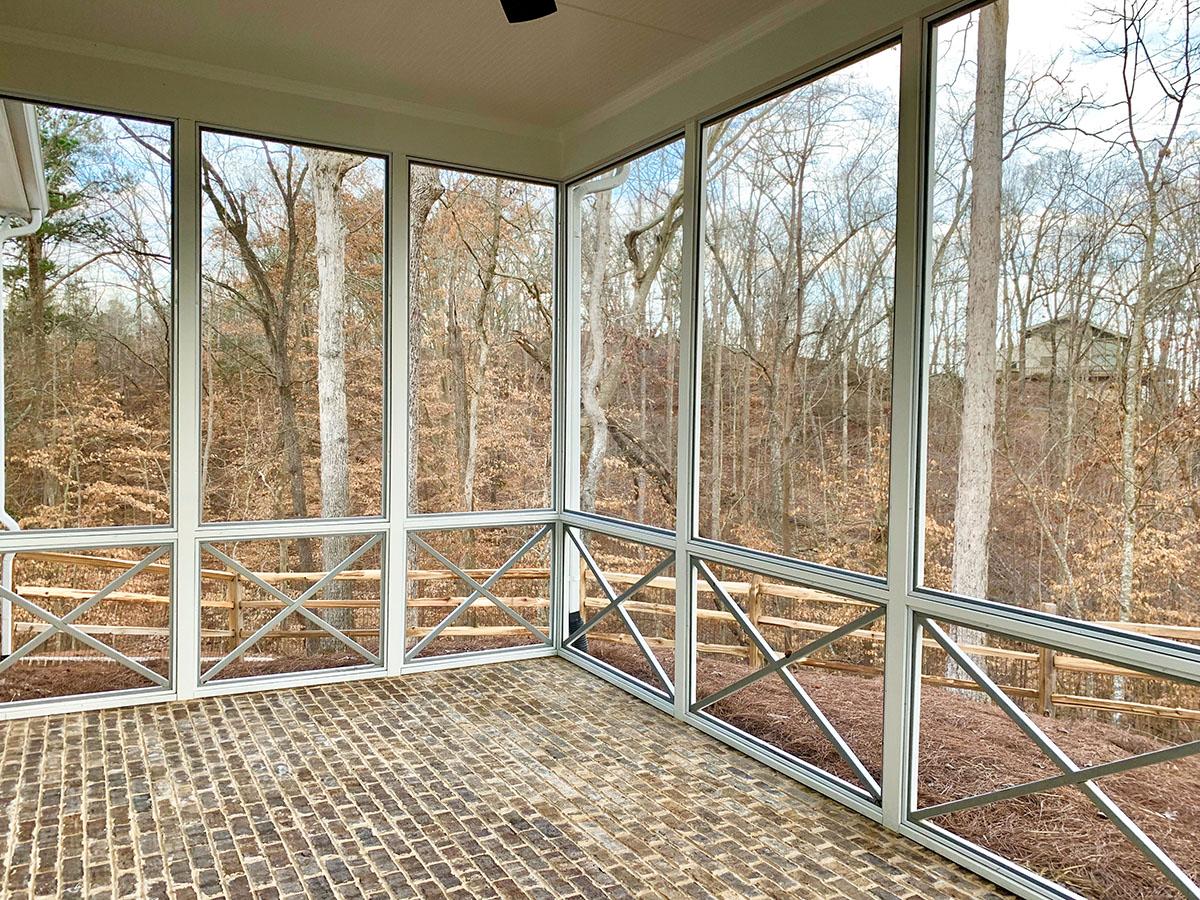

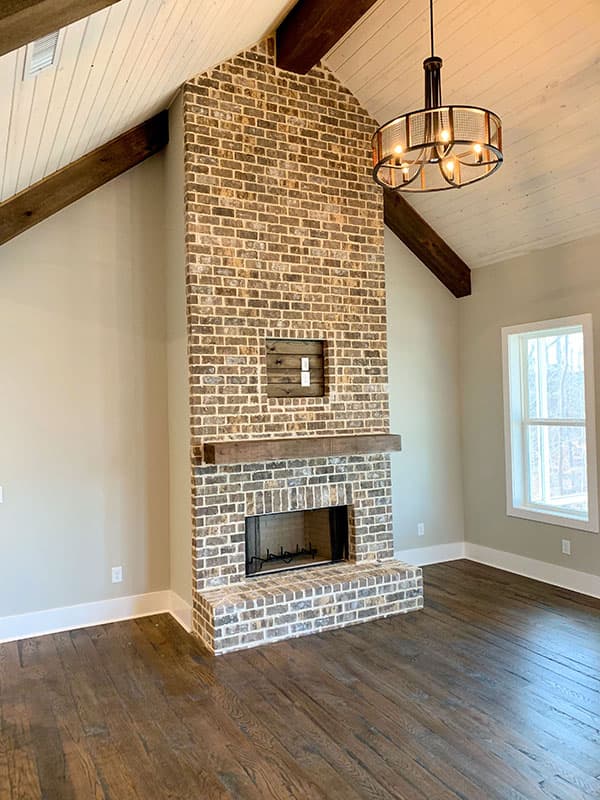

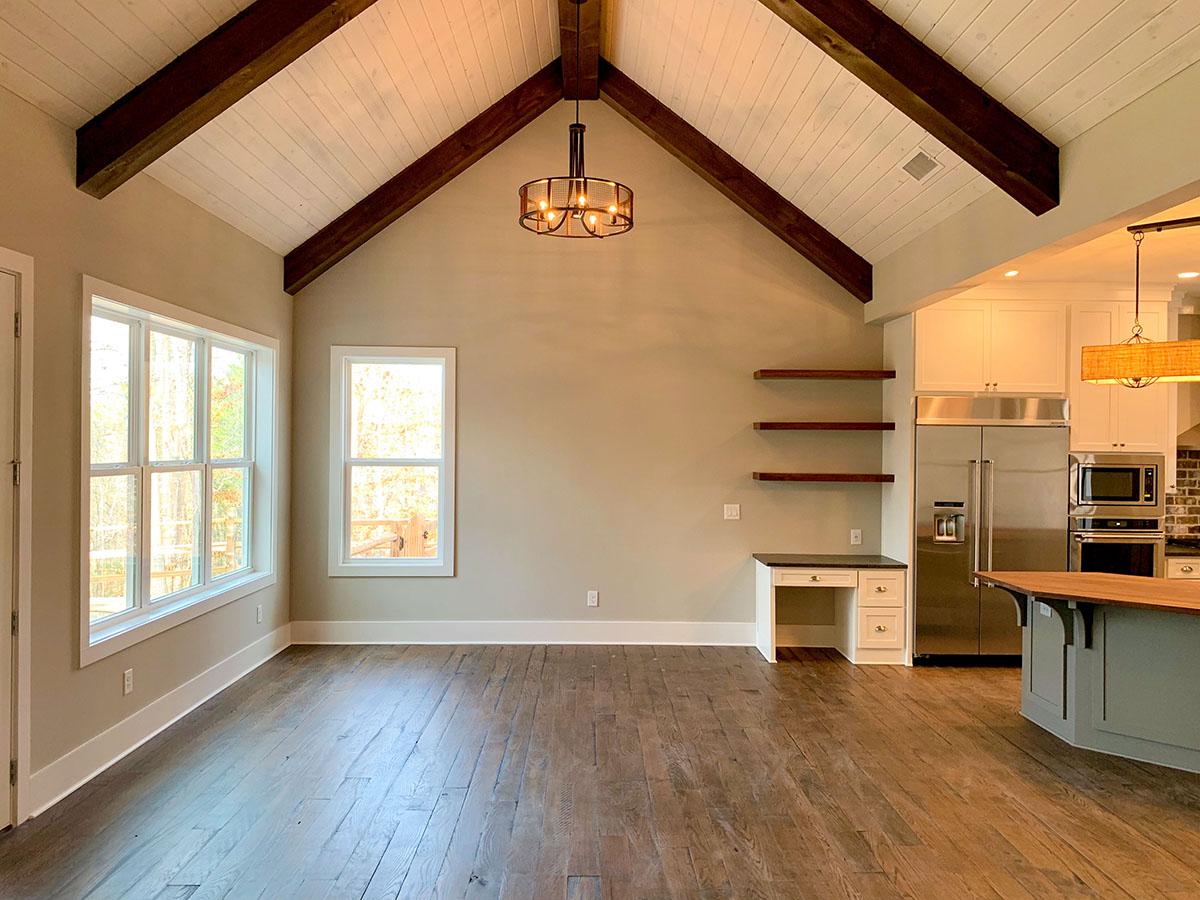

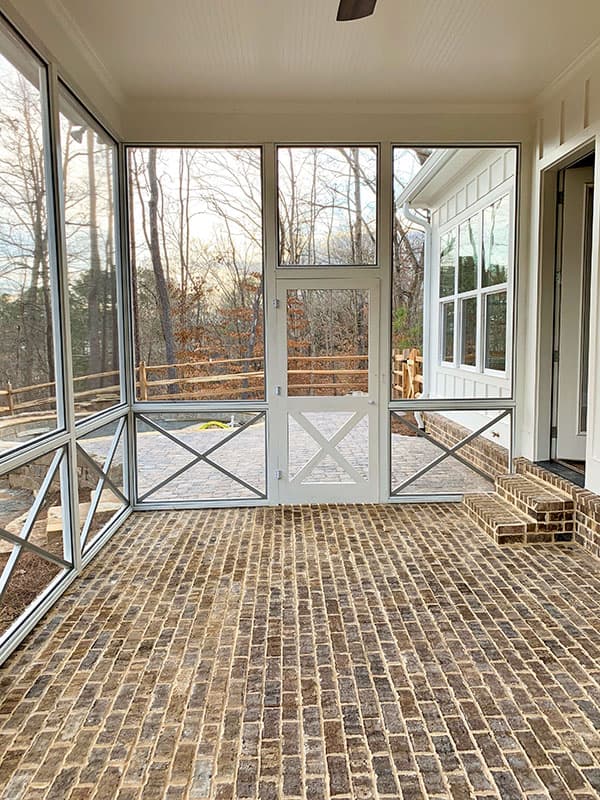

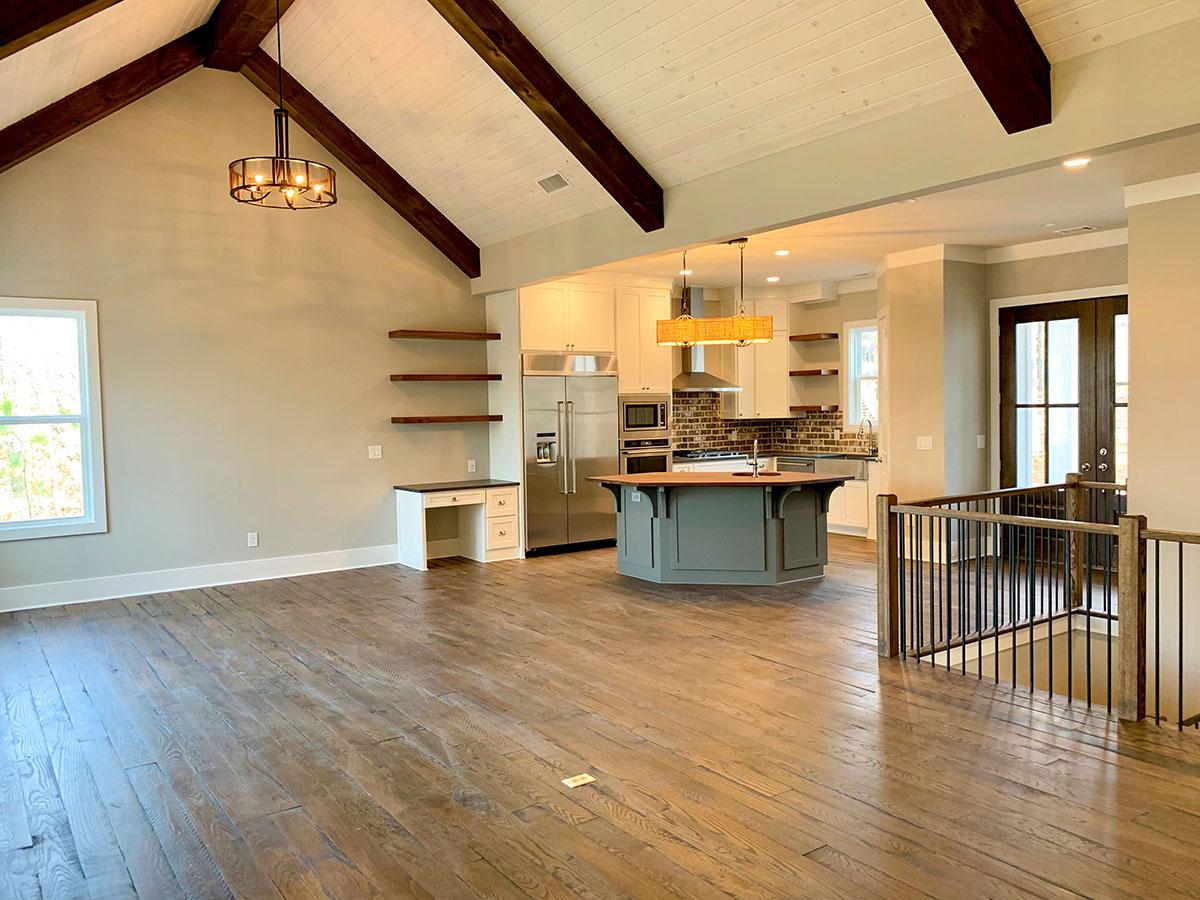

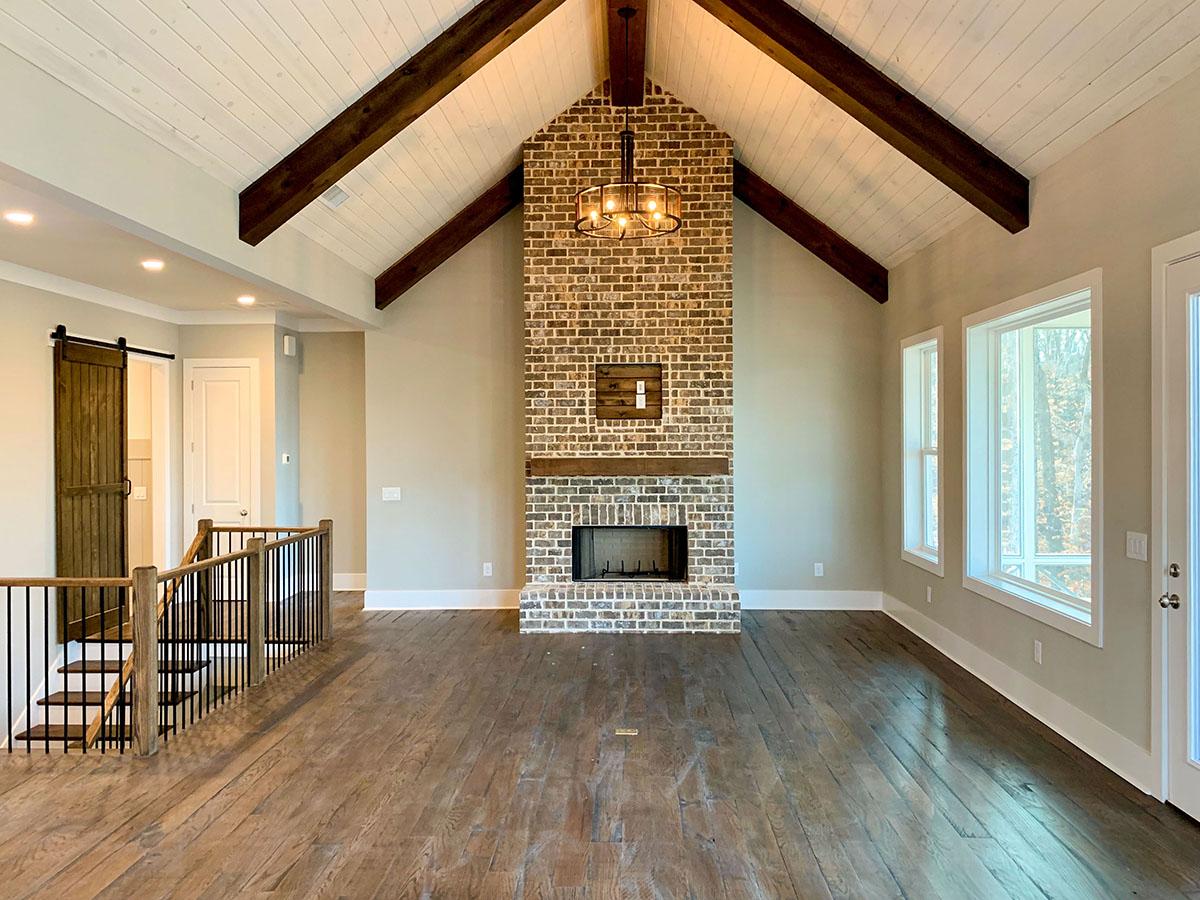

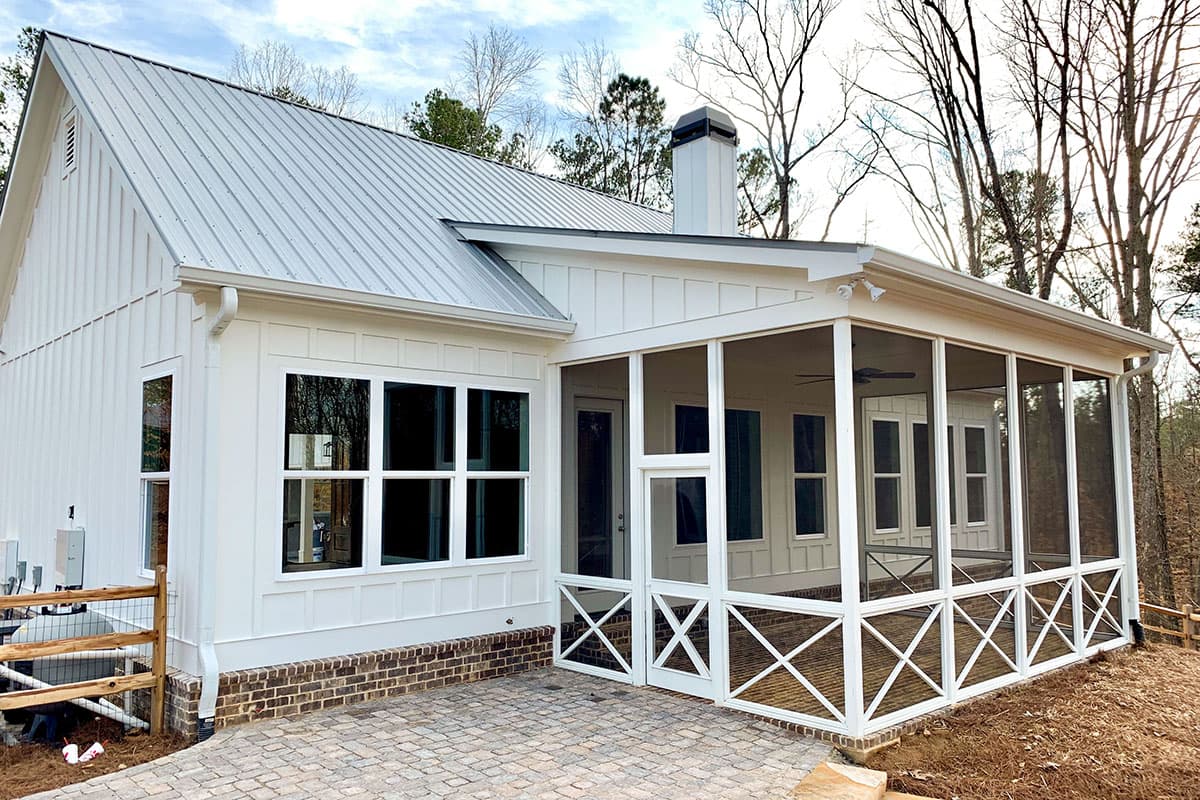

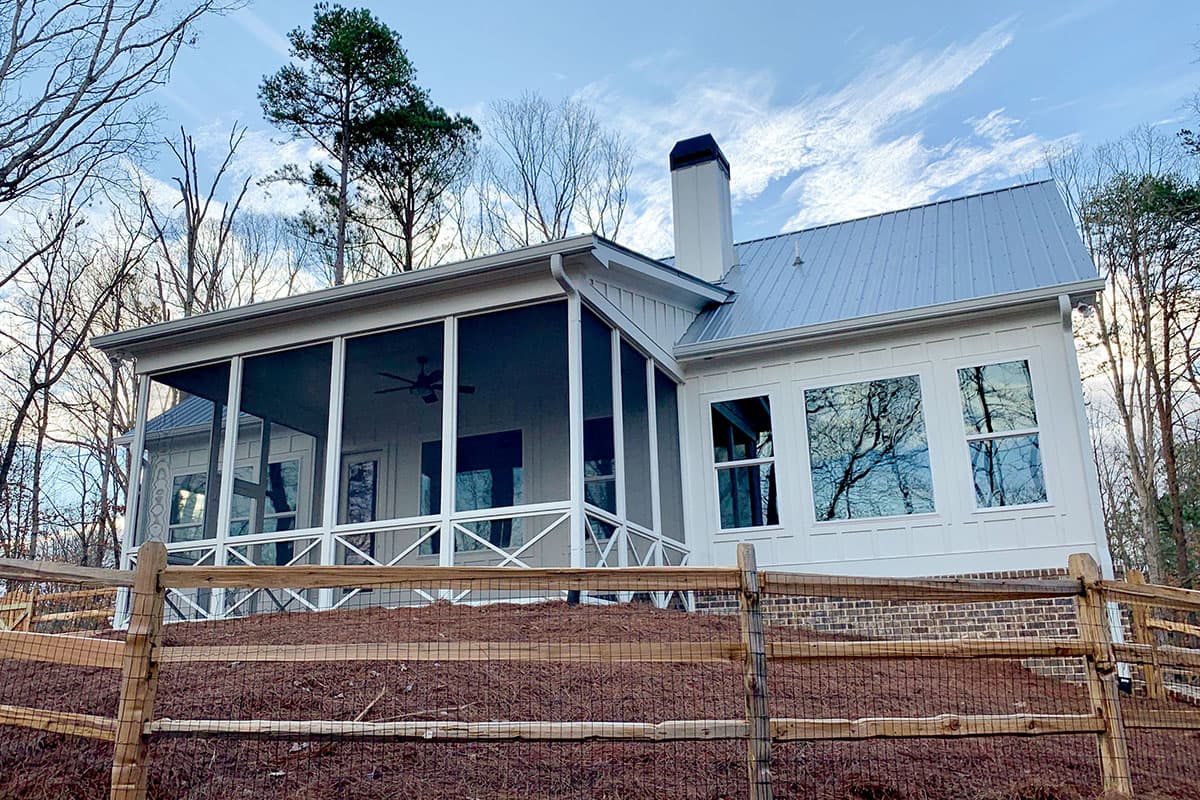

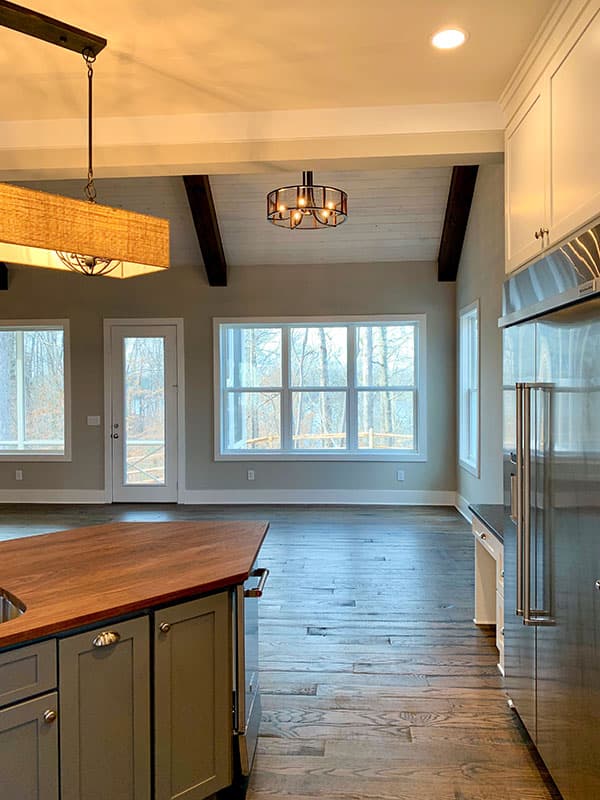

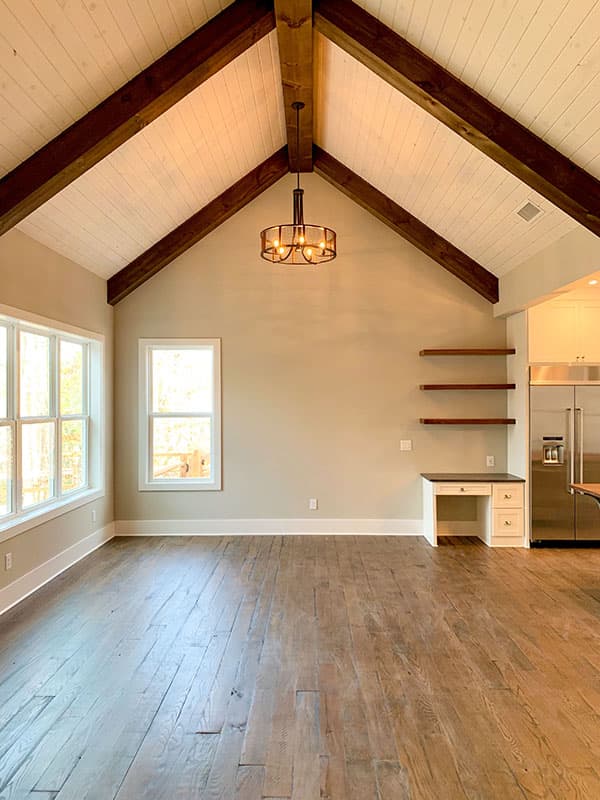

The kitchen has views to the vaulted great room and dining rooms making this home great for entertaining. Extend the fun outdoors to the large rear covered porch.

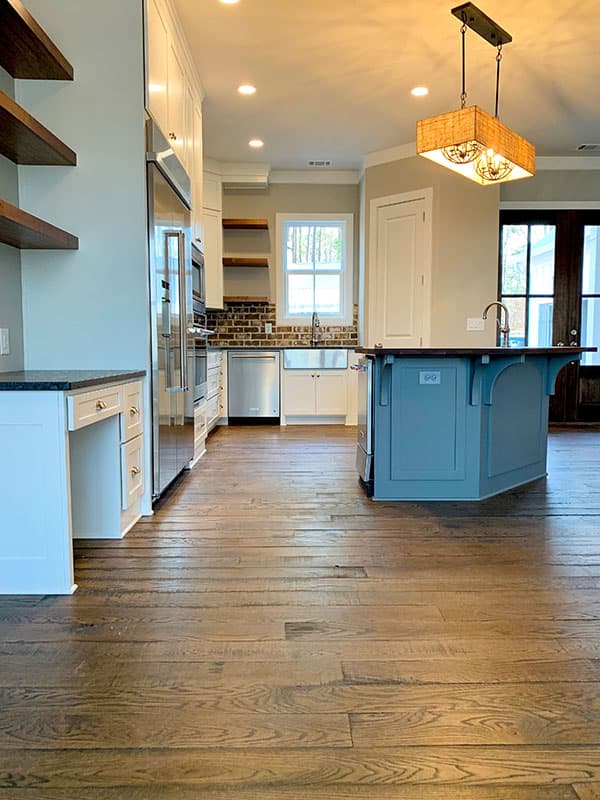

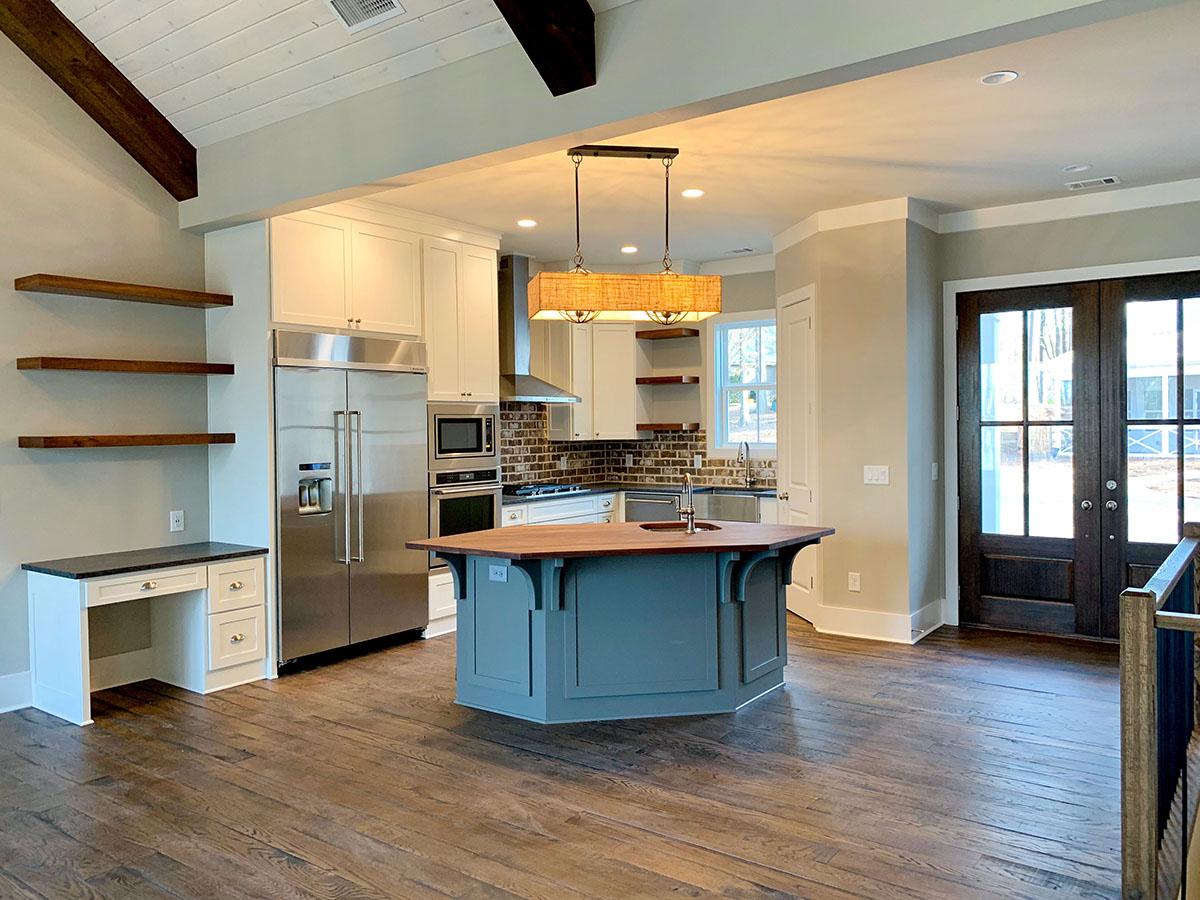

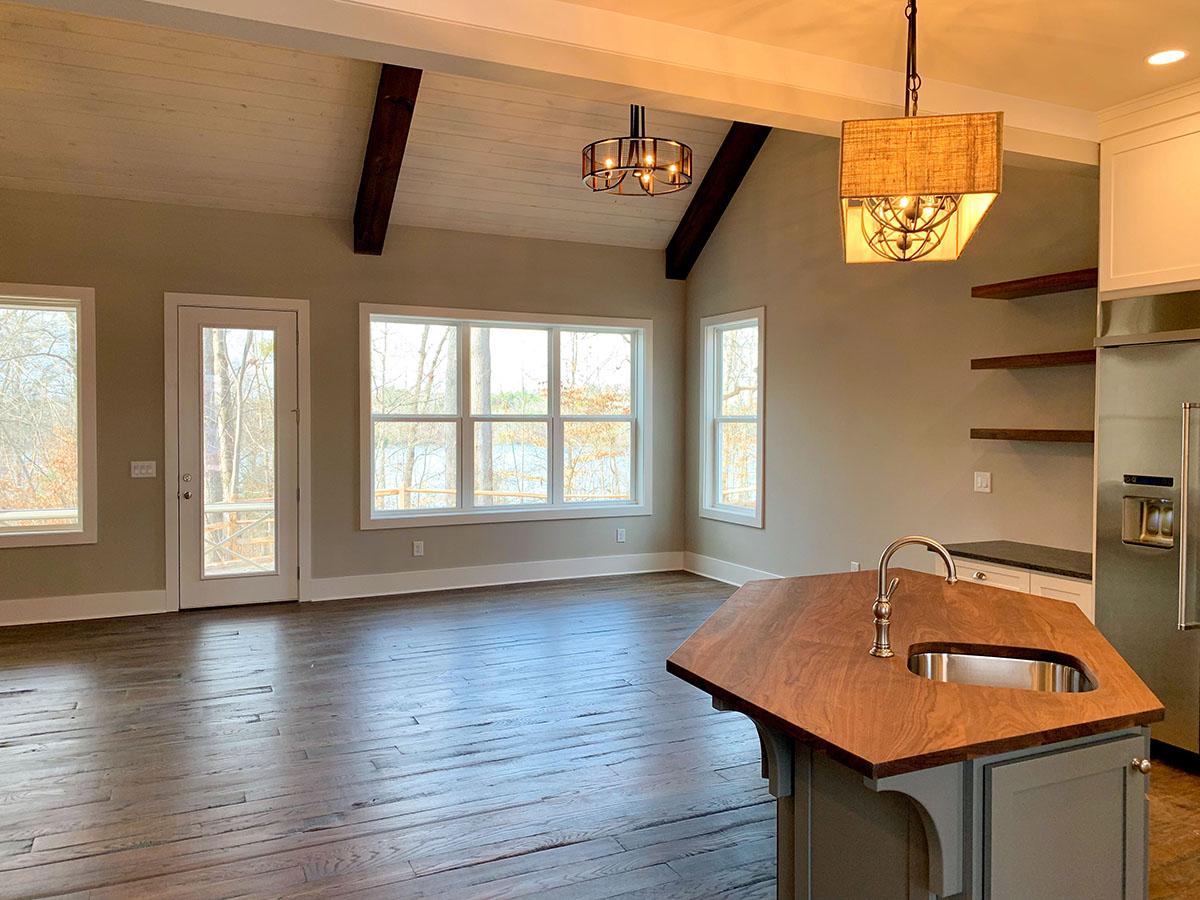

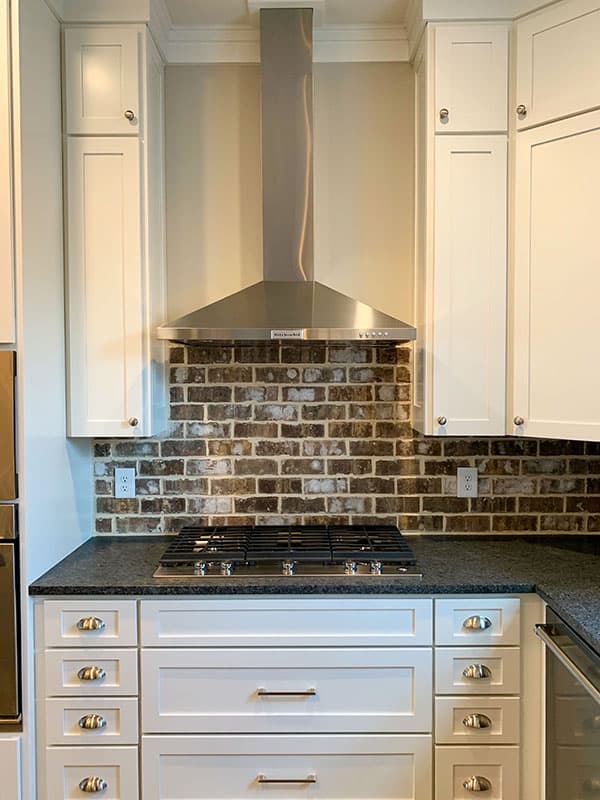

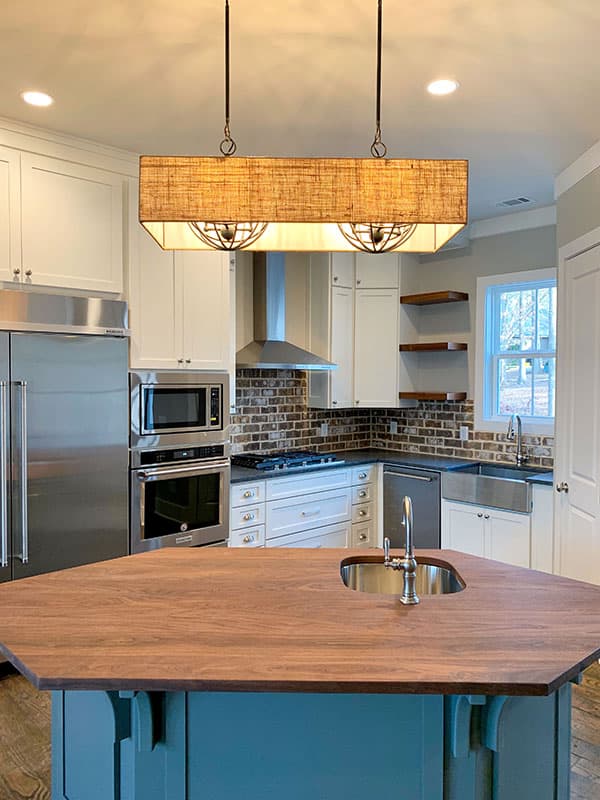

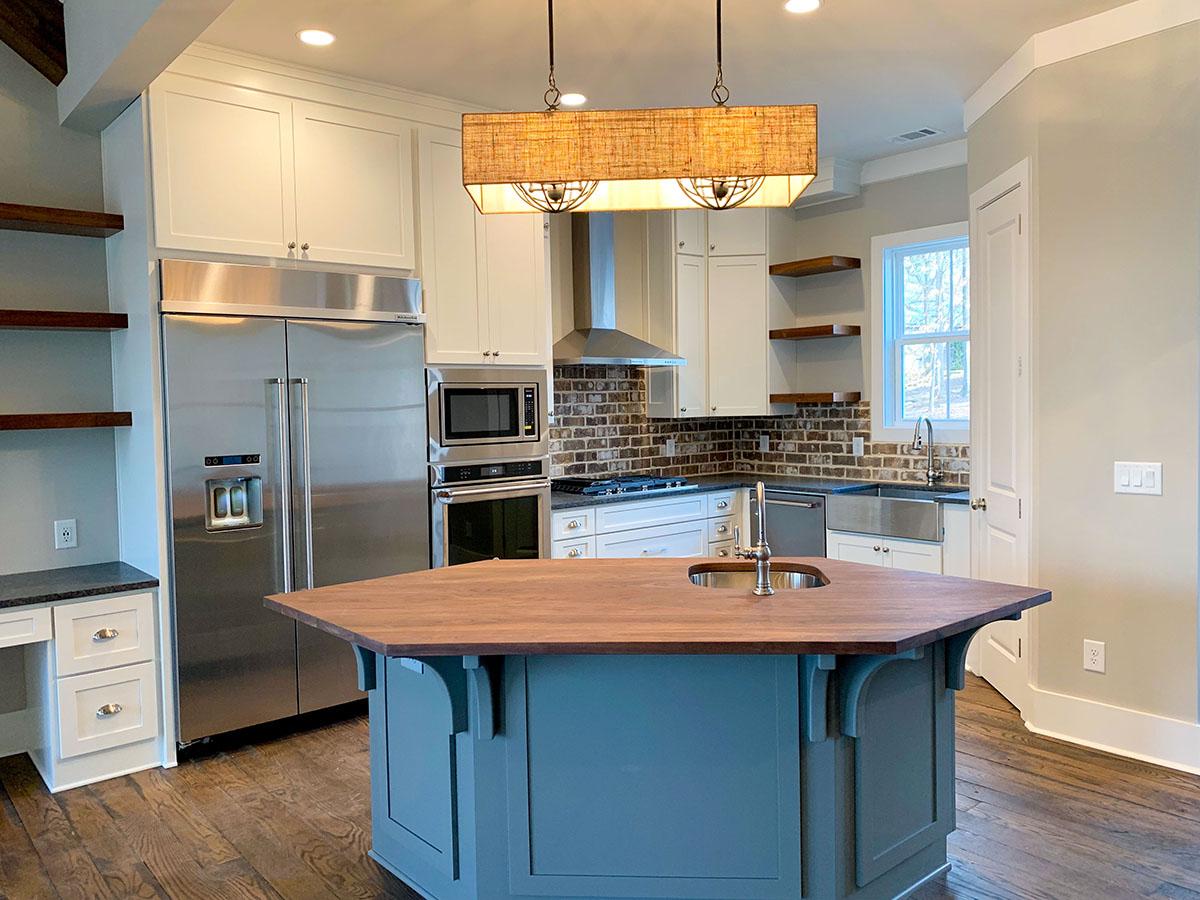

The kitchen island is angled towards the great room giving you great work space and counter seating while being able to enjoy the views. A built-in desk tucked by the refrigerator helps you manage the clutter of keeping a modern home.

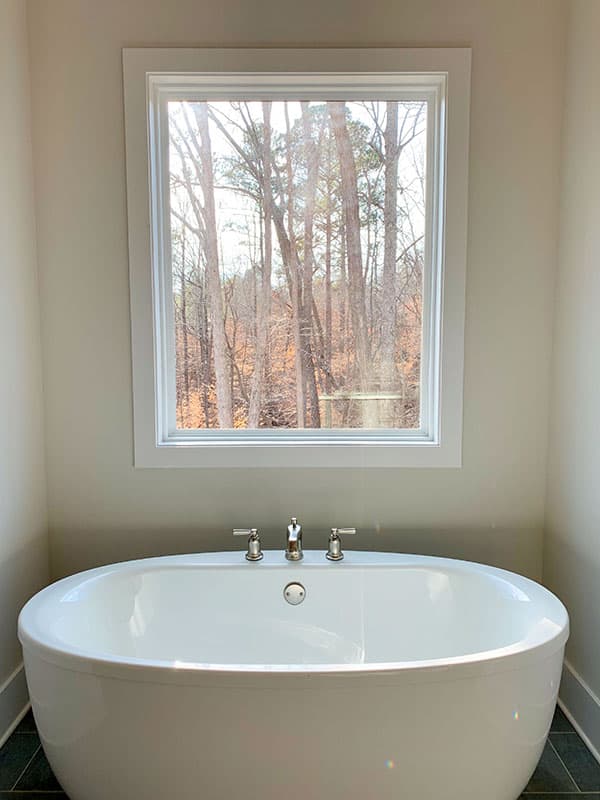

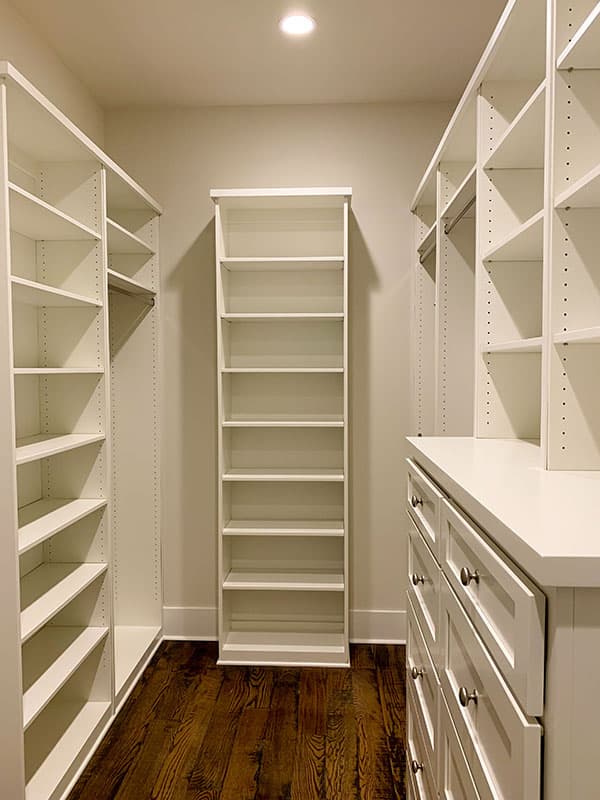

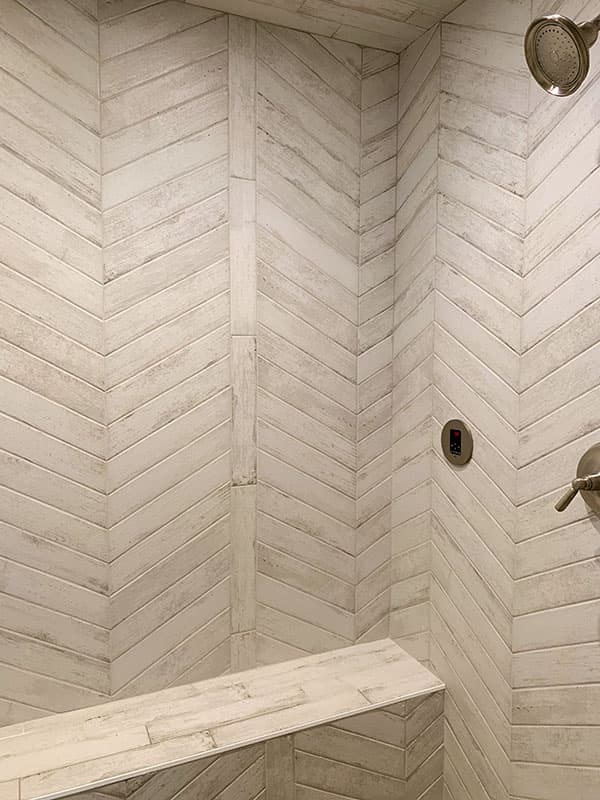

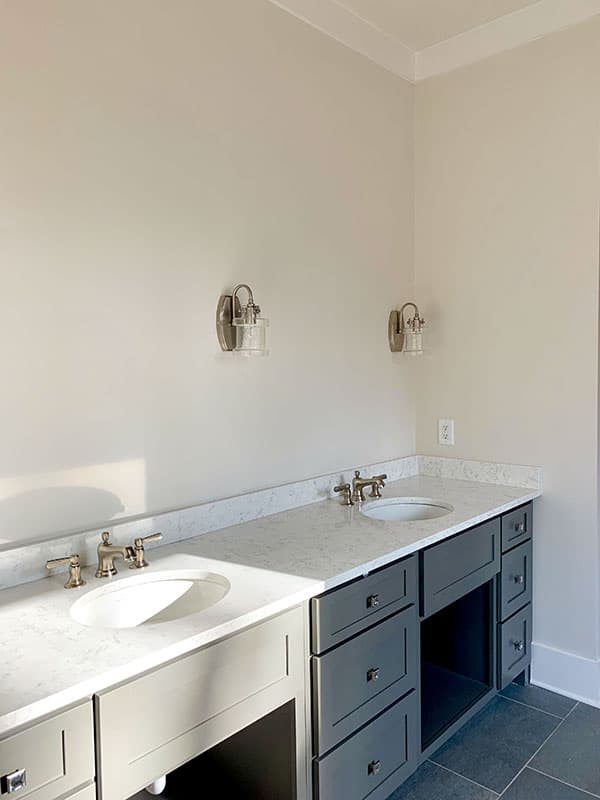

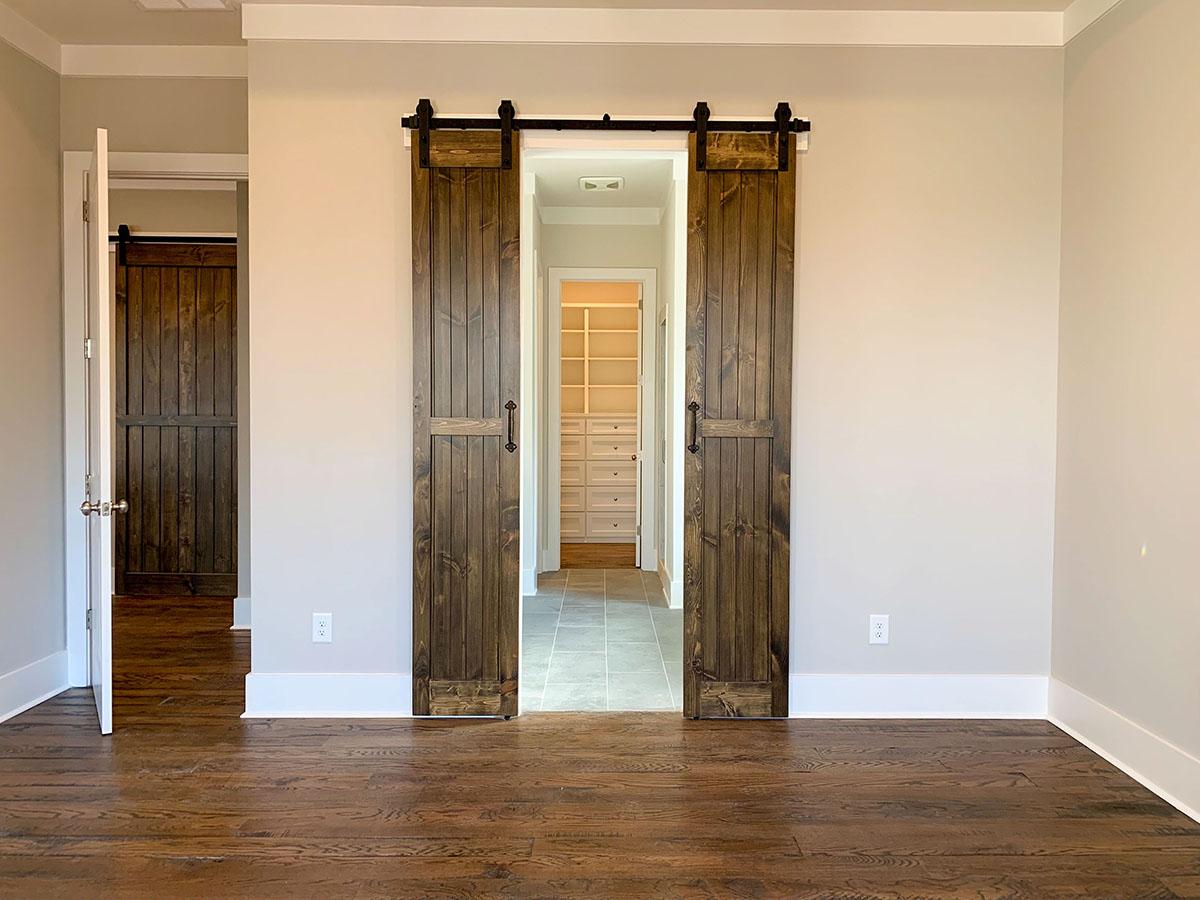

The master suite is on the main floor and has a spa tub, shower, and a large walk-in closet.

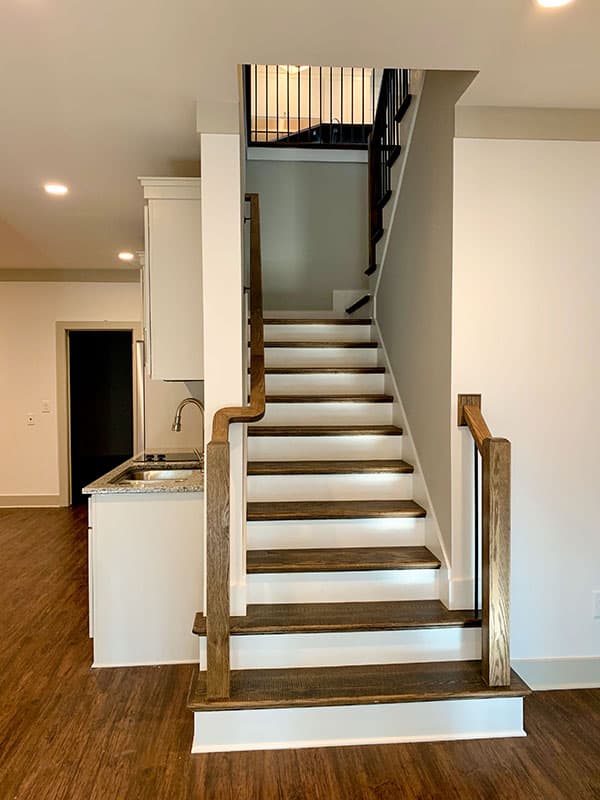

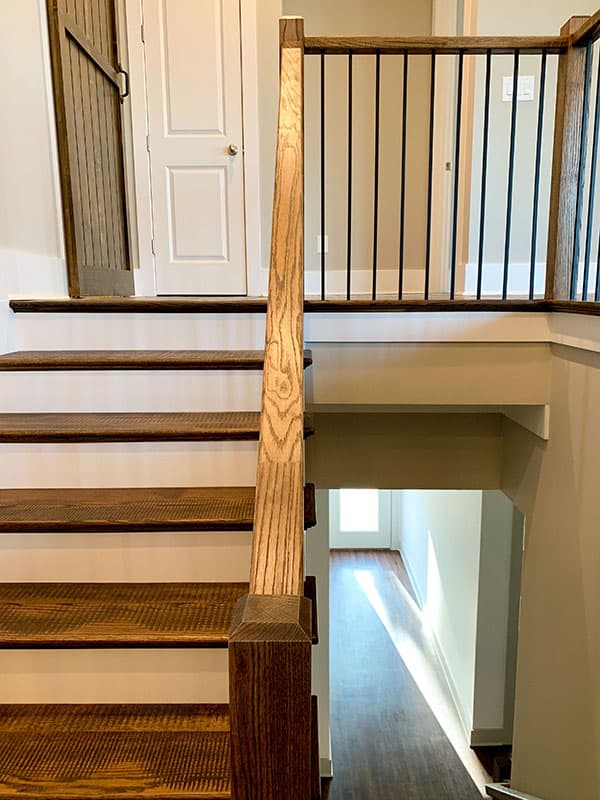

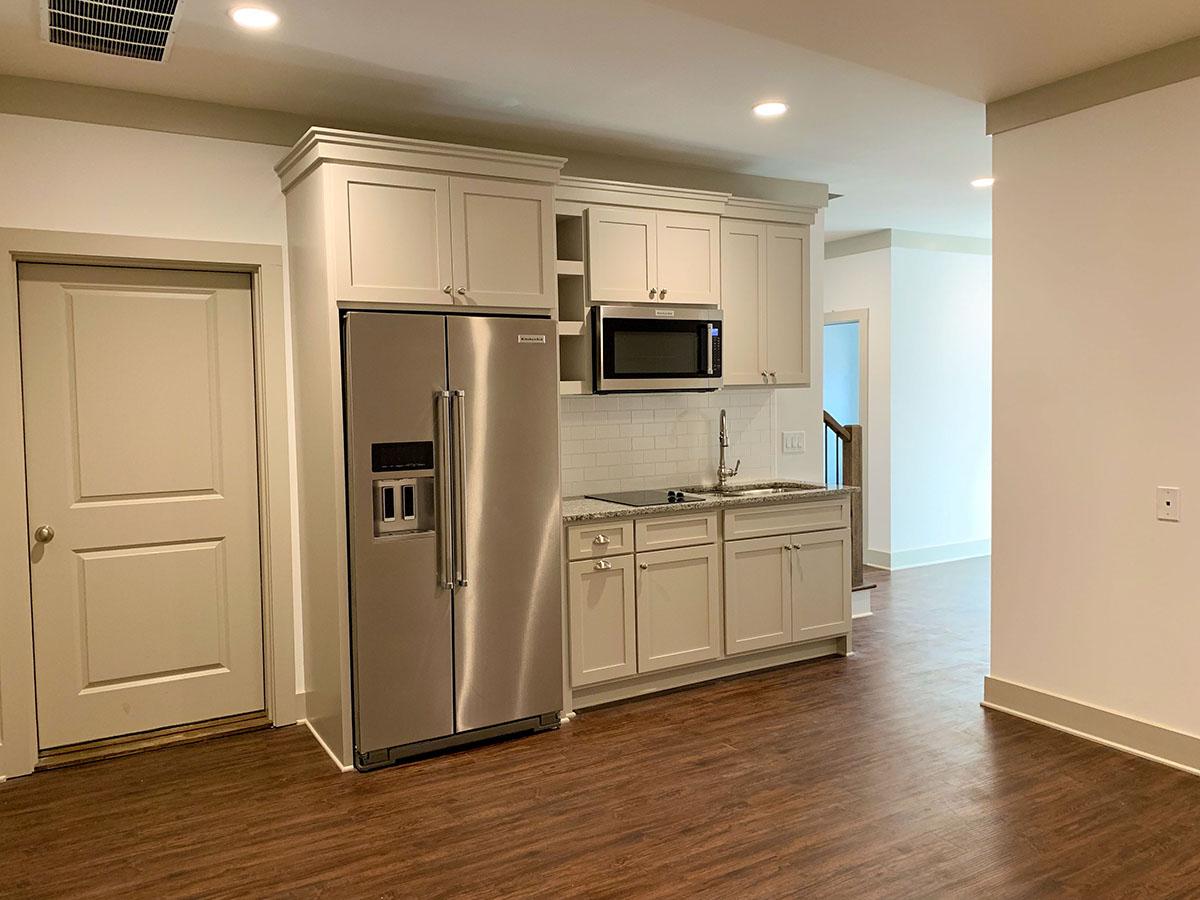

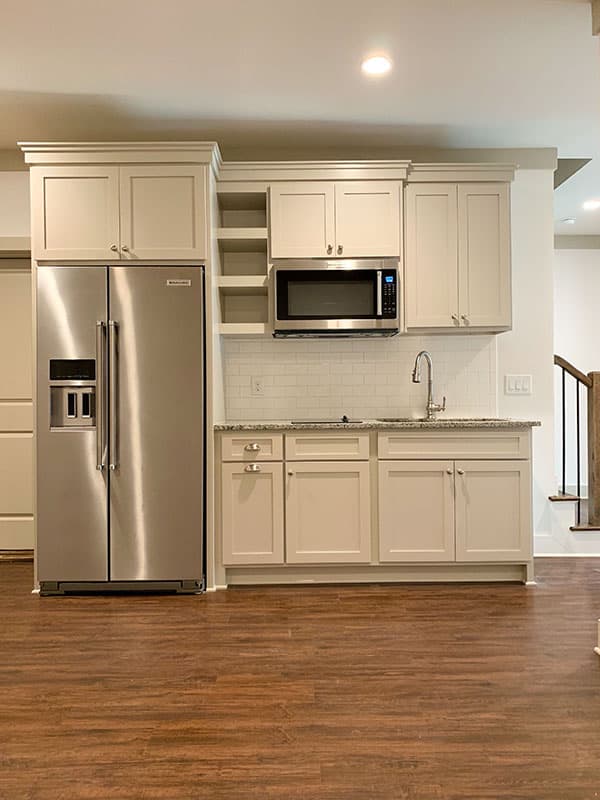

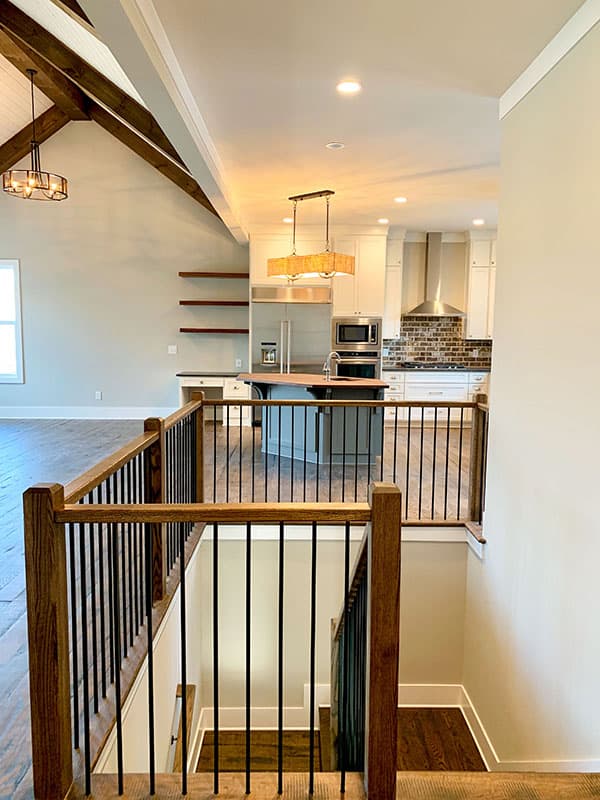

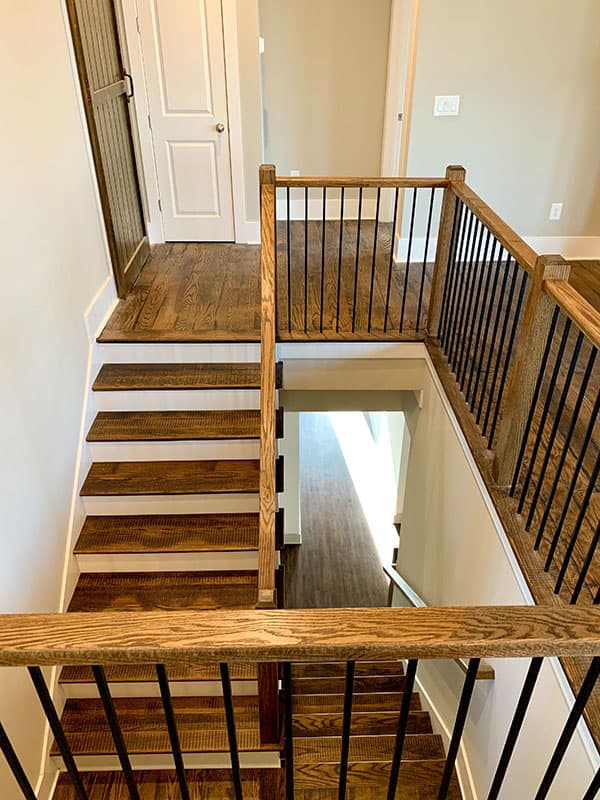

Stairs go down to the finished lower level giving you more bedrooms and space to enjoy.

The plans include the following:

Four elevations (front, rear, right & left) with finish details
Fully dimensioned floor plans which include window and door sizes
Foundation plan with footing details
Roof plan with cornice details
General framing details
Floor joists layout
Electrical layout

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

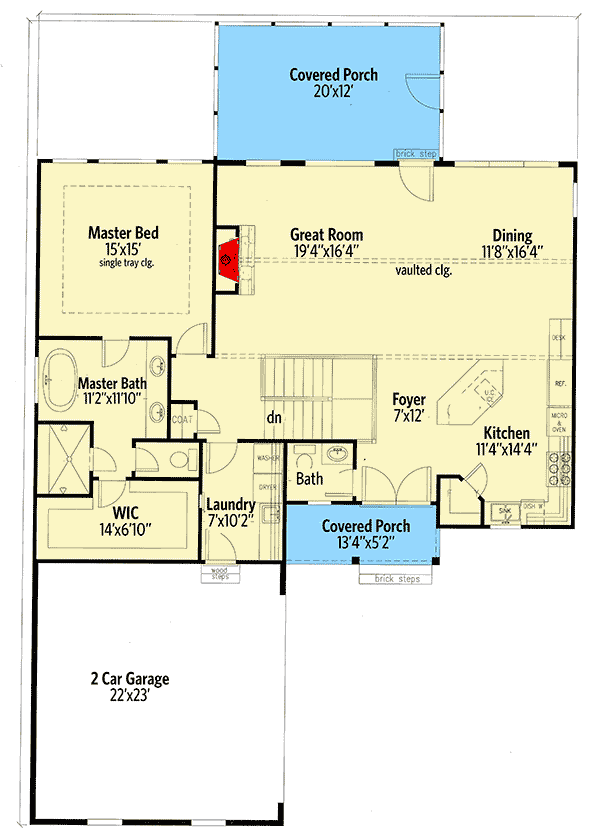

3-Bed Modern Craftsman Cottage with Vaulted Interior - 24383TW floor plan - Main Level

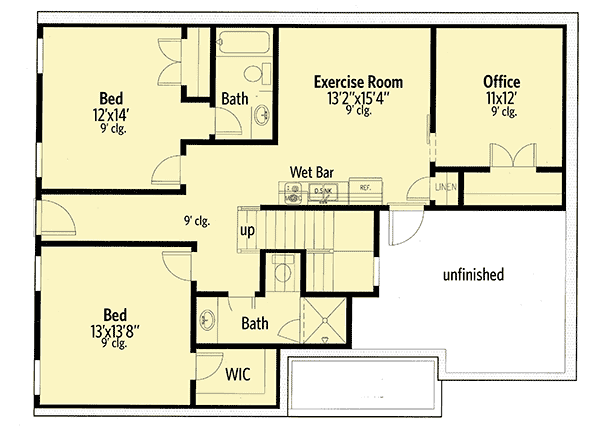

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

3-Bed Modern Craftsman Cottage with Vaulted Interior - 24383TW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,741 sq. ft.
Lower Level: 1,201 sq. ft.
1st Floor: 1,540 sq. ft.

Basement Unfinished: 399 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 47' 0"
Depth: 69' 8"
Max ridge height: 21' 10"

Garage

Type: Attached
Area: 499 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 3 on 12

Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections
