Plan 51934HZ
3-Bed Modern Farmhouse Cottage Under 1600 Square Feet
Heated S.F.
1,596
Beds
3
Baths
2.5
Stories
1
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

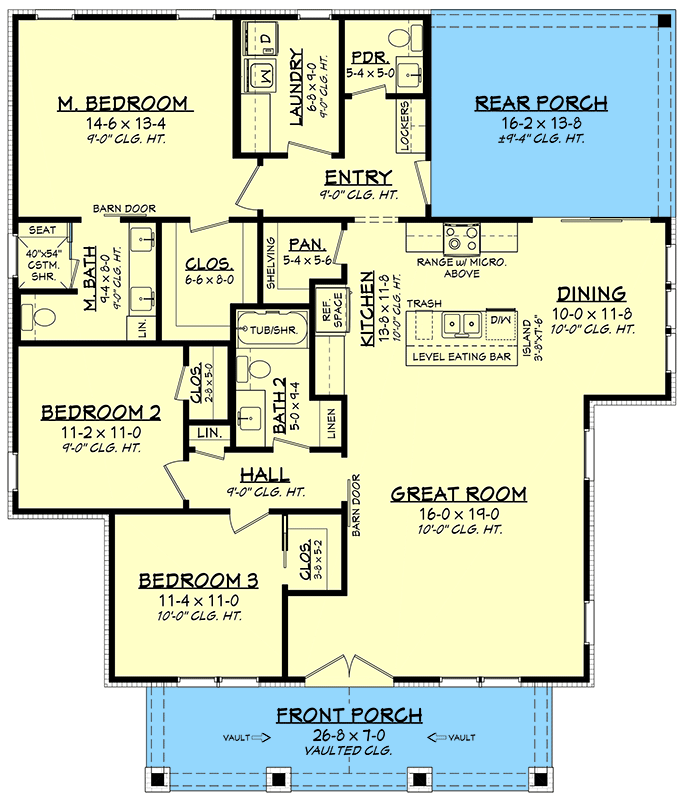

3-Bed Modern Farmhouse Cottage Under 1600 Square Feet - 51934HZ floor plan - Main Level
Main Floor - Basement Stairs Location
Reverse Floor Plan

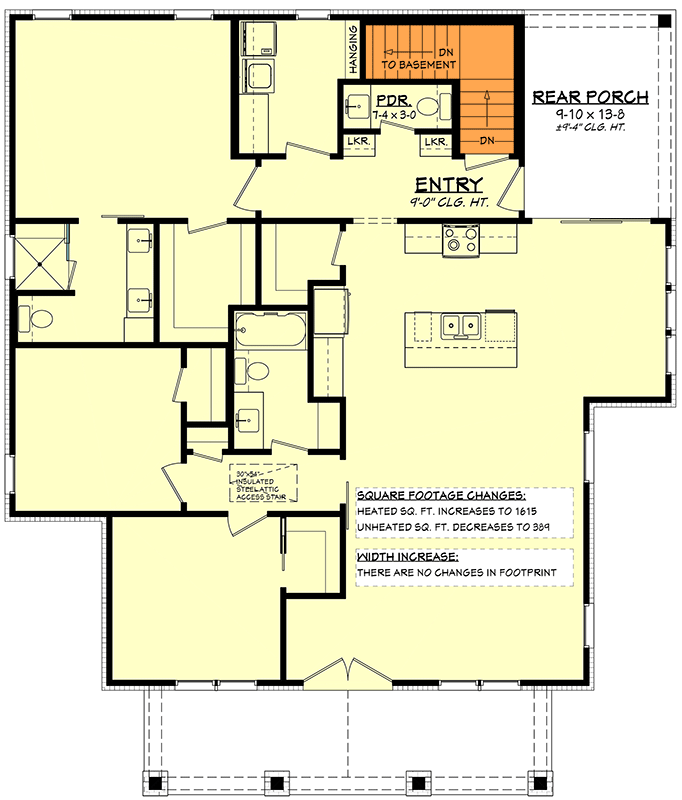

3-Bed Modern Farmhouse Cottage Under 1600 Square Feet - 51934HZ floor plan - Main Floor - Basement Stairs Location
Plan Details
  • This modern farmhouse cottage has a small footprint - just 44' by 52' - and gives you 1,596 square feet of heated living with 3 beds and 2.5 baths inside. This works equally well as permanent or vacation home as well as one in the country or the suburbs.
  • Expand your livability to the outdoors on your 7'-deep front porch and the 16'2" by 13'8" rear porch accessible from the dining room and by the master suite.
  • The open floor plan is great for entertaining, especially in a kitchen equipped with an eat-at bar and walk-in-pantry.
What's Included
What Is Included in the Plans:

  • Page 1  Cover Sheet with abbreviations, rendering, sheet index
  • Page 2  Foundation plan and details
  • Page 3  Detailed floor plan and electrical (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Page 4  Exterior views with additional notes and details
  • Page 5  Cross Section & kitchen cabinet views
  • Page 6  Roof plan and span charts with additional notes
  • Page N1 Code Information
  • Page N2 Code Information
  • Page N3 Code Information
  • Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Farmhouse Cottage Under 1600 Square Feet

  • 1,596

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Main Floor - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,596 sq. ft.
  • 1st Floor: 1,596 sq. ft.

Dimensions

  • Width: 44' 4"
  • Depth: 52' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
