Plan 911040JVD
3-Bed Modern Farmhouse Plan with Home Office and Barndominium Wtyle Garage - 2796 Sq Ft
Heated S.F.
2,769
Beds
3
Baths
2.5
Stories
2
Cars
3- 8

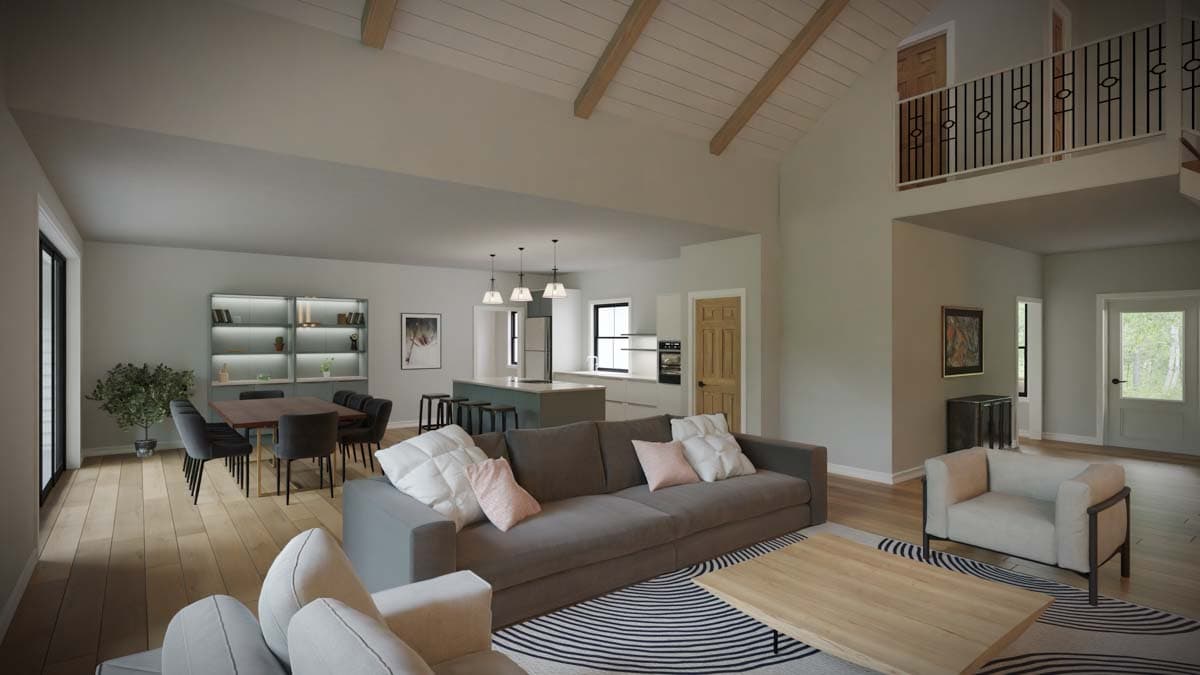

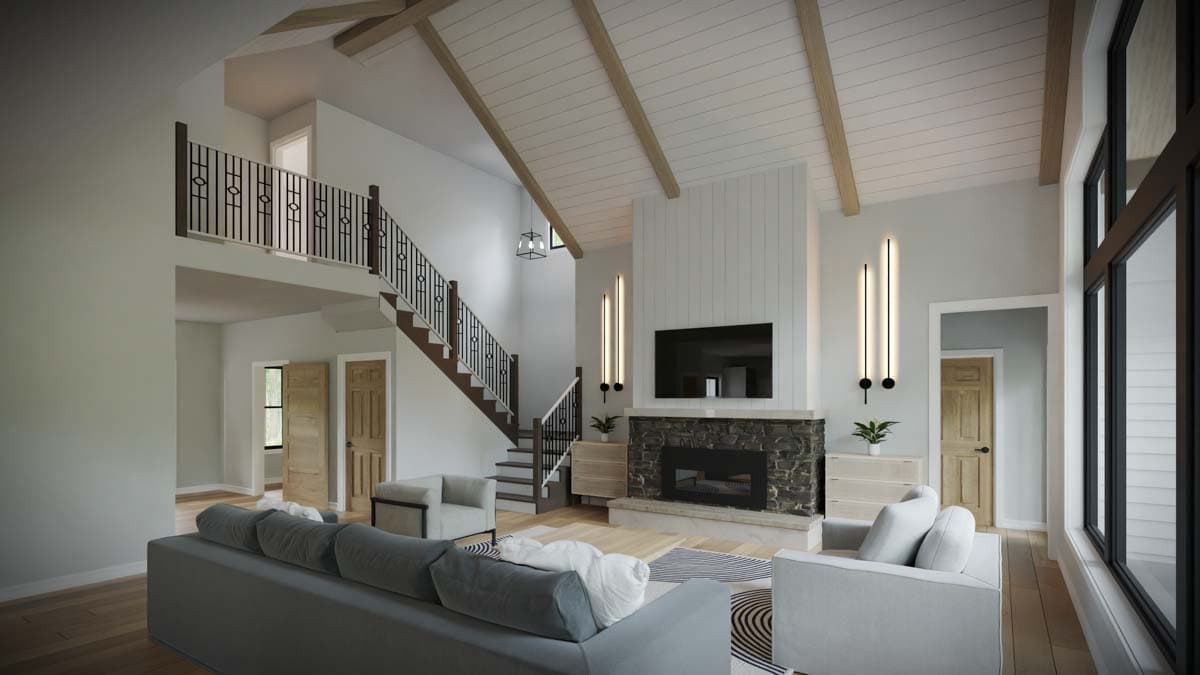

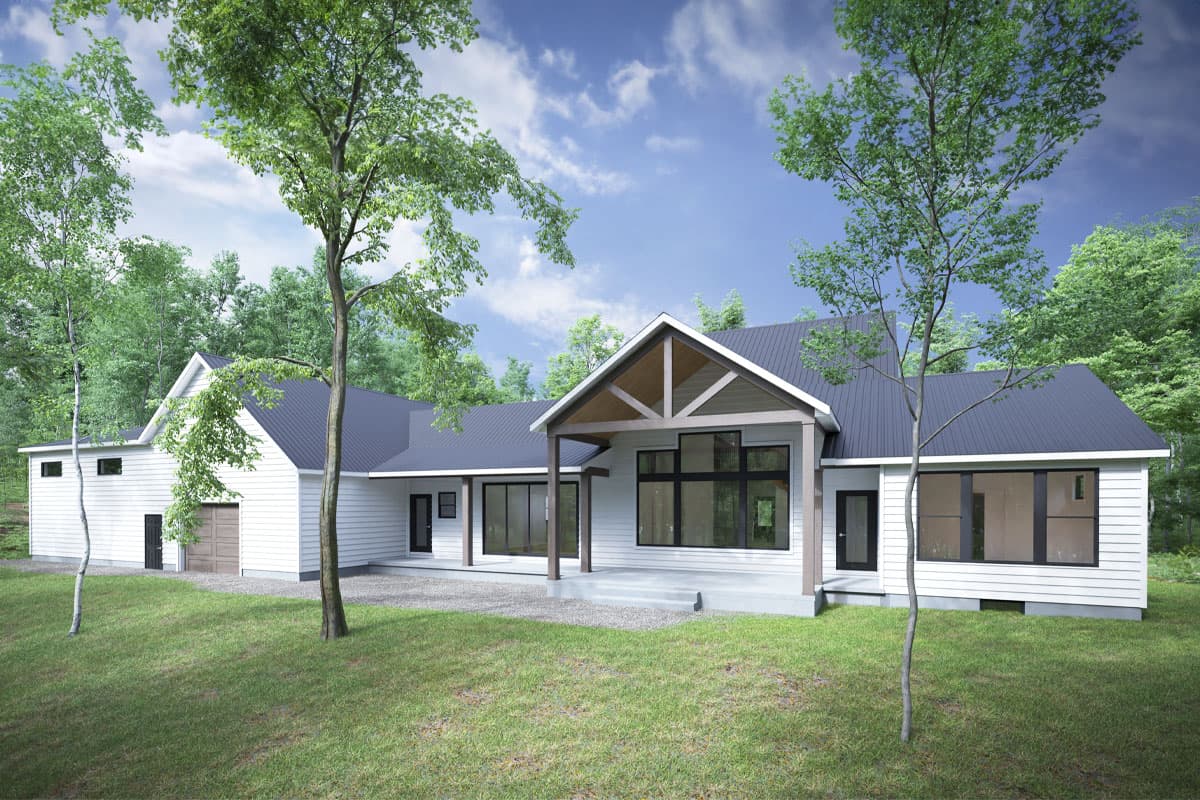

Tour
Floor Plan

Plan 911040JVD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 911040JVD

1-800-854-7852

1-262-521-4596

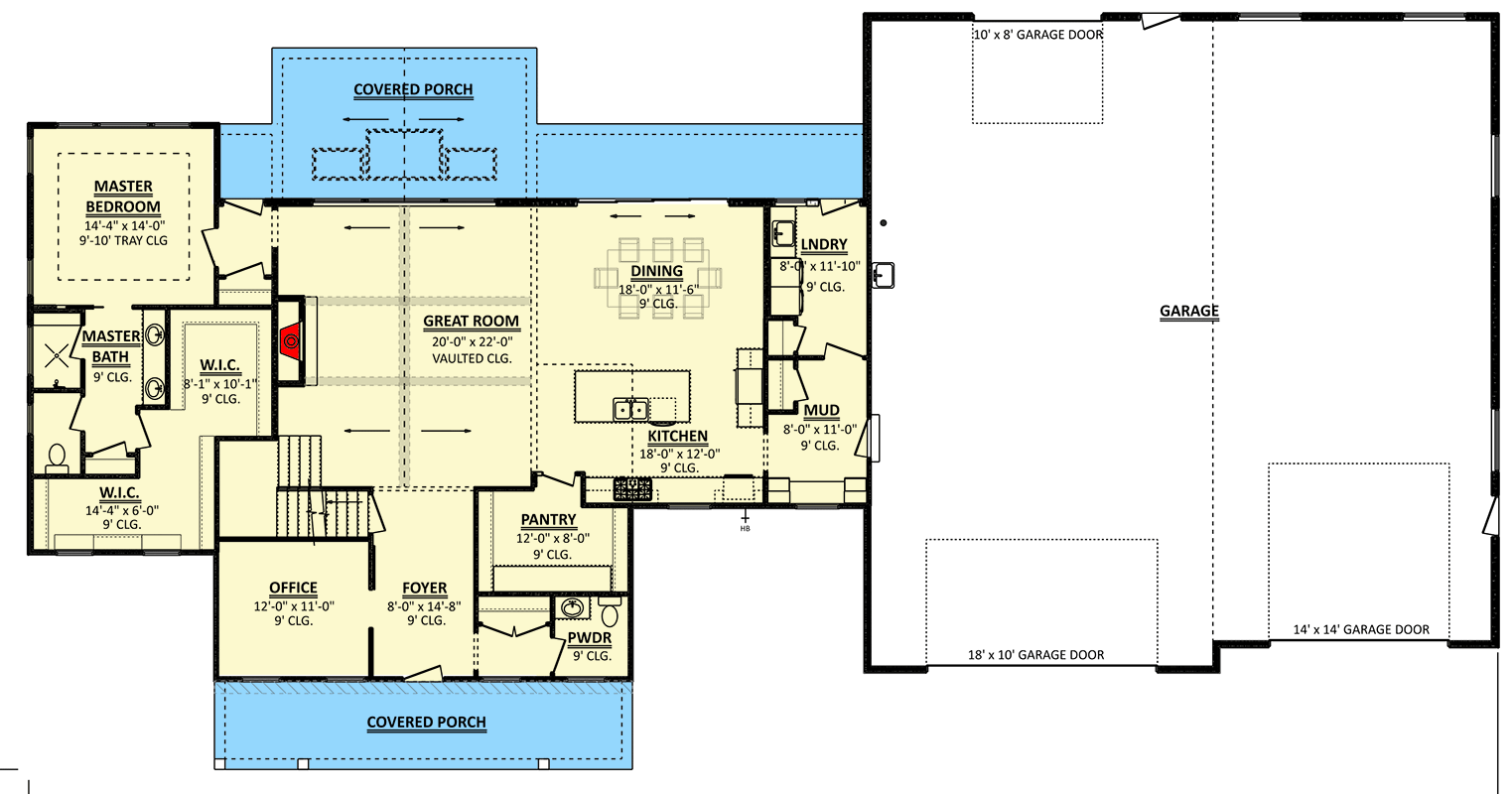

Main Level
floor plan image Main Level

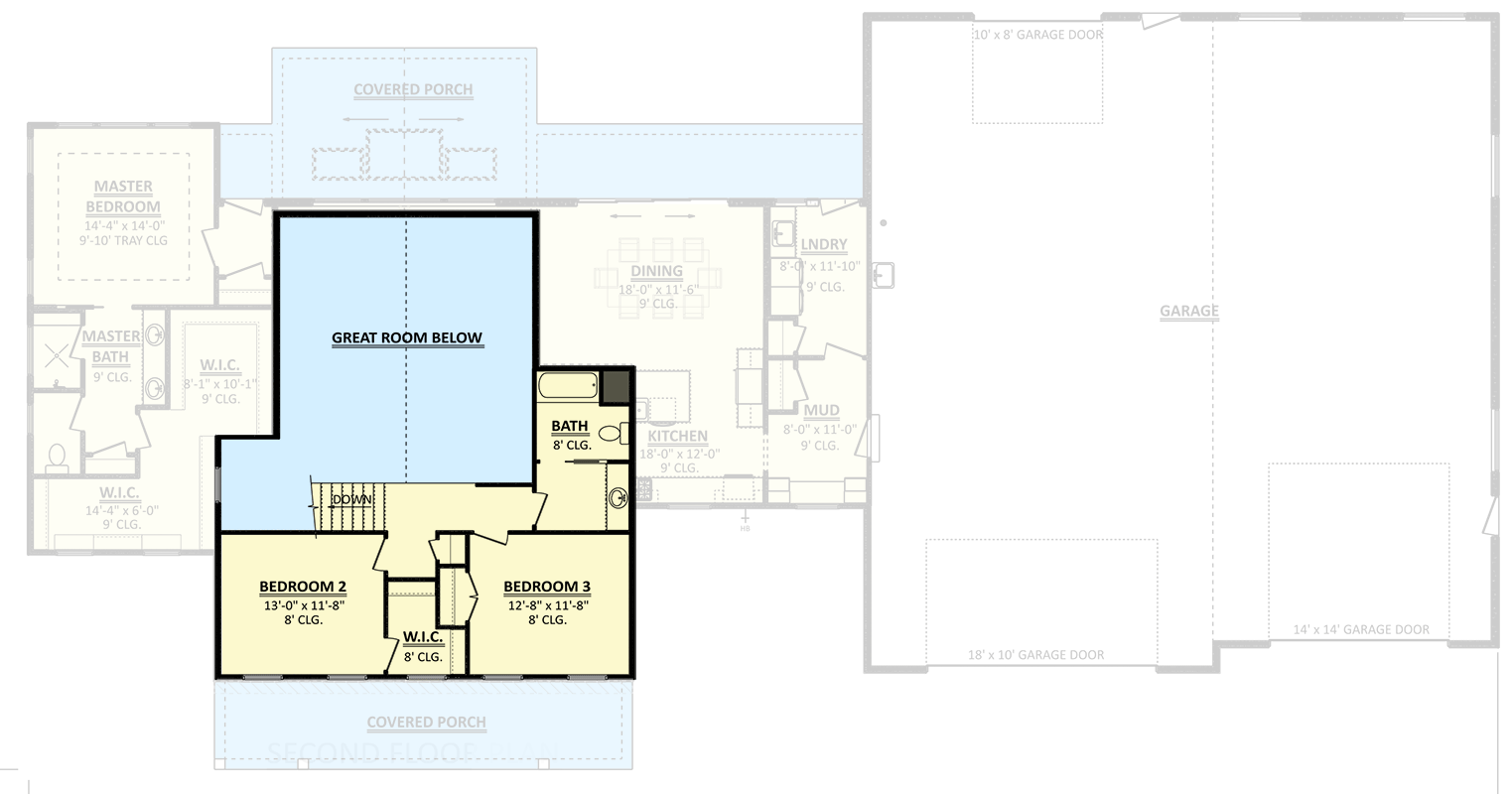

2nd Floor
floor plan image 2nd Floor
Plan Details

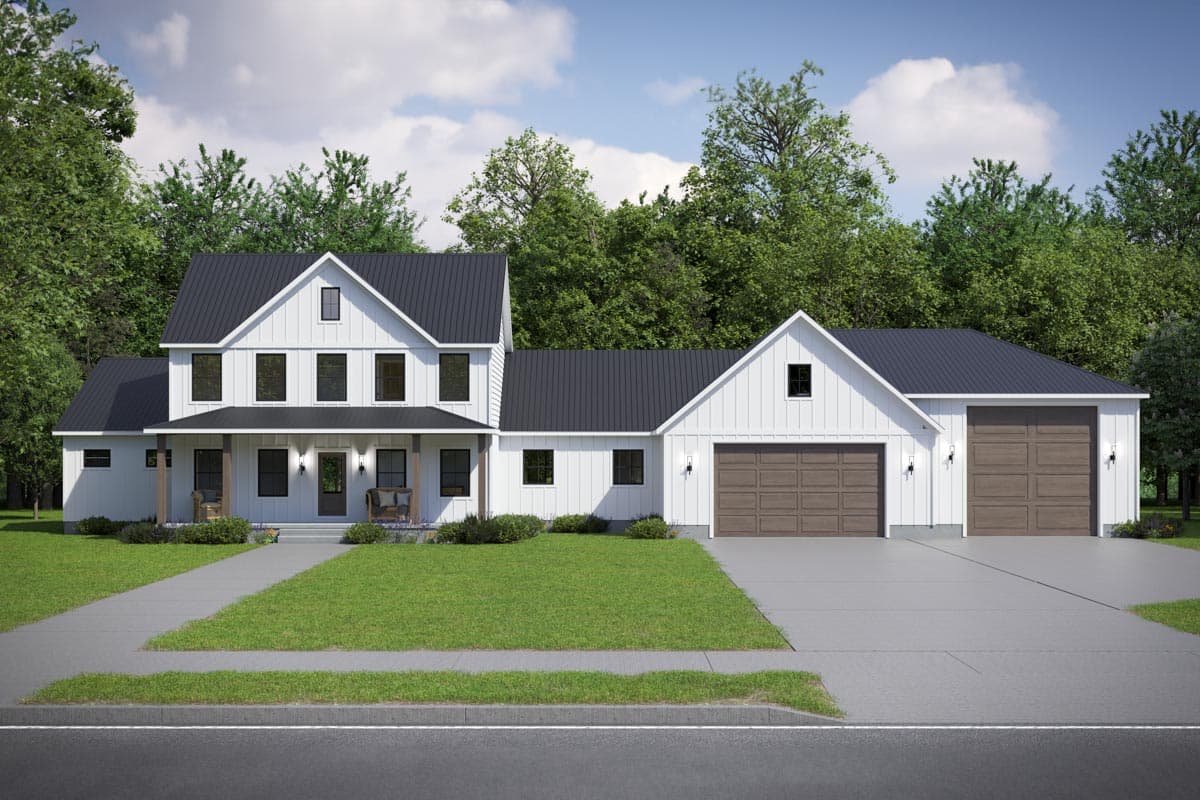

  • This center gable farmhouse plan gives you 3 beds, 2.5 baths and 2,796 square feet of heated living area. An oversized garage with RV bay is designed to function as a workshop, 2,560 square feet of parking.
  • The garage has three bay doors, two front entry and a third out the rear. An 18' x 10' double bay door for standard vehicles had a convenient 10' x 8' door for convenient access to lawn equipment or providing extra airflow. The second front-entry bay is the RV garage equipped with a large 14' x 14' overhead door, allowing access for most RVs, trailers, work-trucks and more.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,769 sq. ft.

1st Floor

2,206 sq. ft.

2nd Floor

563 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

231 sq. ft.

Porch, Rear

465 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 0"

Depth

60' 0"

Max Ridge Height

30' 8"

Garage

Type

Attached, RV Garage

Area

2560 sq. ft.

Count

3, 4, 5, 6, 7, or 8 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Barndominium

Square Footage Breakdown

Total Heated Area

2,769 sq. ft.

1st Floor

2,206 sq. ft.

2nd Floor

563 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

231 sq. ft.

Porch, Rear

465 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 0"

Depth

60' 0"

Max Ridge Height

30' 8"

Garage

Type

Attached, RV Garage

Area

2560 sq. ft.

Count

3, 4, 5, 6, 7, or 8 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

9 on 12

Framing Type

Truss
