Plan 51858HZ 3-Bed Modern Farmhouse Plan with Large Optionally Finished Bonus Room Upstairs

3-Bed Modern Farmhouse Plan with Large Optionally Finished Bonus Room Upstairs

Plan 51858HZ

  • 2,668

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • If you're looking for the perfect Southern Style Modern Farmhouse, look no further. This plan has 3 spacious bedrooms and 2.5 baths and curb appeal that will make you take a second look.
  • The foyer draws you into a large great room that's open to the kitchen that is perfect for entertaining. It comes equipped with a butler's pantry and walk-in pantry.
  • In the primary suite you'll find a bath with separate vanities, stand alone tub, and custom walk-in shower, all connected to a grand closet.
  • The home also features a large optional space upstairs for that growing family or for additional storage.
  • Related Plan: Get a a similar floor plan but in reverse with 51860HZ (2,989 sq. ft.)

This plan has 14 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Detailed optional second floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 5  Exterior views with additional notes and details
Page 6  Exterior views with additional notes and details
Page 7  Misc. details
Page 8  Roof plan and span charts with additional details
Page 9  Cross Section & kitchen cabinet views
Page 10 Electrical plans
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

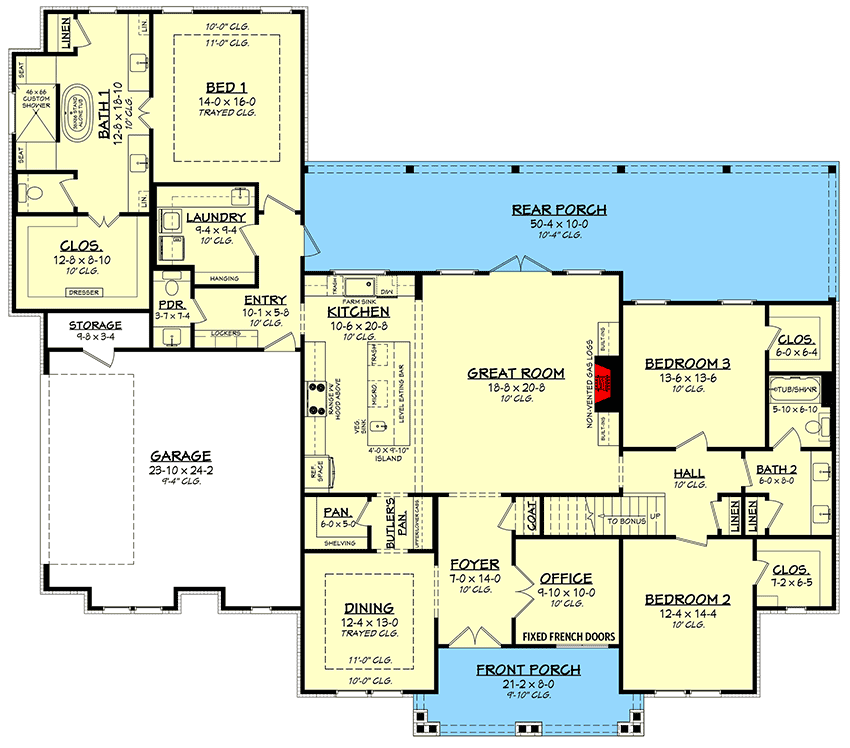

3-Bed Modern Farmhouse Plan with Large Optionally Finished Bonus Room Upstairs - 51858HZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

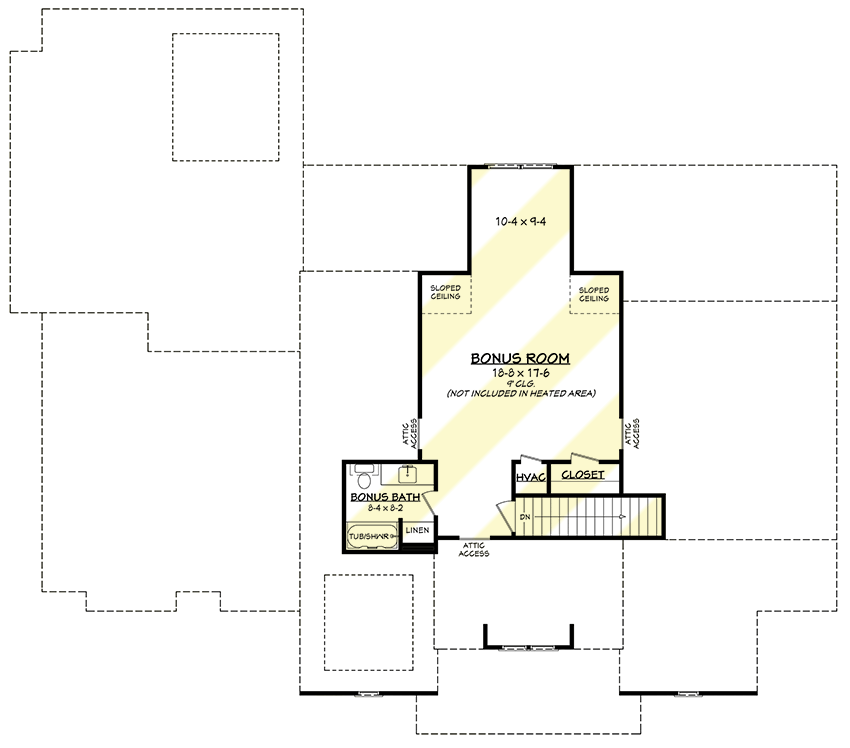

3-Bed Modern Farmhouse Plan with Large Optionally Finished Bonus Room Upstairs - 51858HZ floor plan - Bonus Level

Plan details

3-Bed Modern Farmhouse Plan with Large Optionally Finished Bonus Room Upstairs

  • 2,668

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,195
  • 5 Sets + PDF $1,445
  • PDF - Unlimited Build $1,895
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • If you're looking for the perfect Southern Style Modern Farmhouse, look no further. This plan has 3 spacious bedrooms and 2.5 baths and curb appeal that will make you take a second look.
  • The foyer draws you into a large great room that's open to the kitchen that is perfect for entertaining. It comes equipped with a butler's pantry and walk-in pantry.
  • In the primary suite you'll find a bath with separate vanities, stand alone tub, and custom walk-in shower, all connected to a grand closet.
  • The home also features a large optional space upstairs for that growing family or for additional storage.
  • Related Plan: Get a a similar floor plan but in reverse with 51860HZ (2,989 sq. ft.)

Floor Plans

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,668 sq. ft.
  • 1st Floor: 2,668 sq. ft.
  • Storage: 37 sq. ft.
  • Porch, Rear: 560 sq. ft.
  • Porch, Front: 152 sq. ft.
  • Bonus: 615 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 68' 5"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 571 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
