Plan 51842HZ
3-Bed Modern Farmhouse Plan with Vaulted Master Bedroom - 2249 Sq Ft
Heated S.F.
2,249
Beds
3-4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan
Basement Stairs Location
Reverse Floor Plan
3-Bed Modern Farmhouse Plan with Vaulted Master Bedroom - 2249 Sq Ft - 51842HZ floor plan - Basement Stairs Location
Plan Details
  • This 3 bed, 2.5 bath modern farmhouse plan has great curb appeal and an open floor plan.
  • A spacious great room is open to the kitchen and appointed with an eat at bar and large walk-in pantry.
  • All bedrooms are oversized and include large walk-in closets. The large, luxurious bedroom 1 includes a vaulted ceiling, large bath and huge closet.
  • The garage is large has additional space for much needed storage.

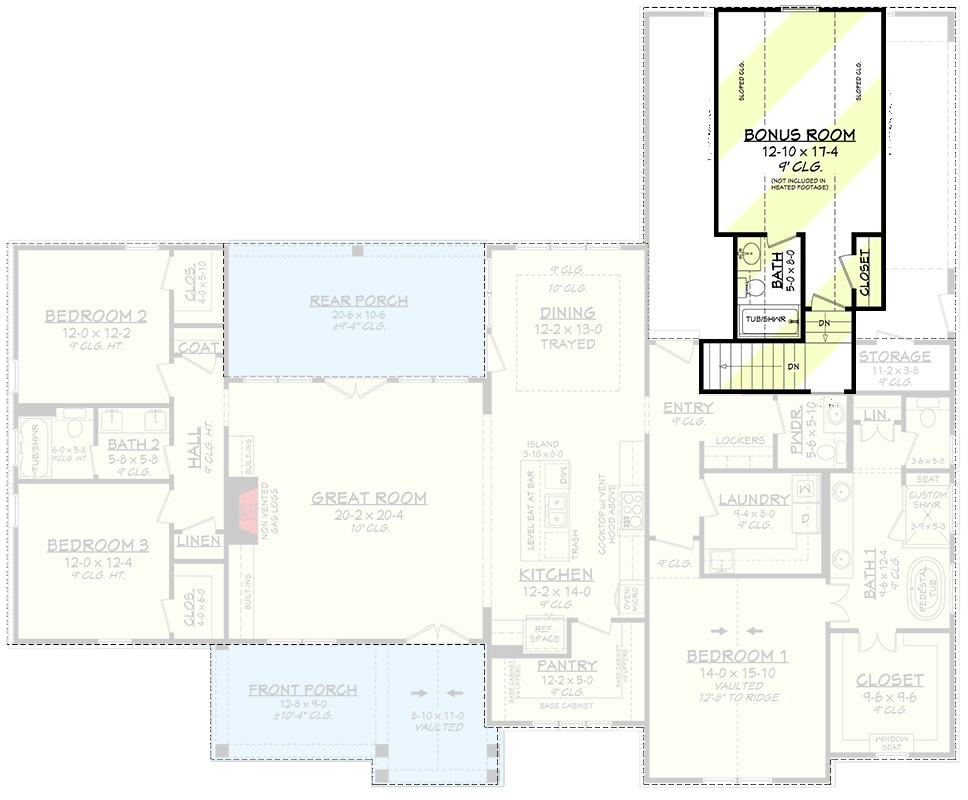

  • The design also offers a powder room and lockers with an option bonus room upstairs.
  • NOTE: The walkout version opens to the outside on the left side (it can't open to the rear because of the location of the garage).

What's Included
This house plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details

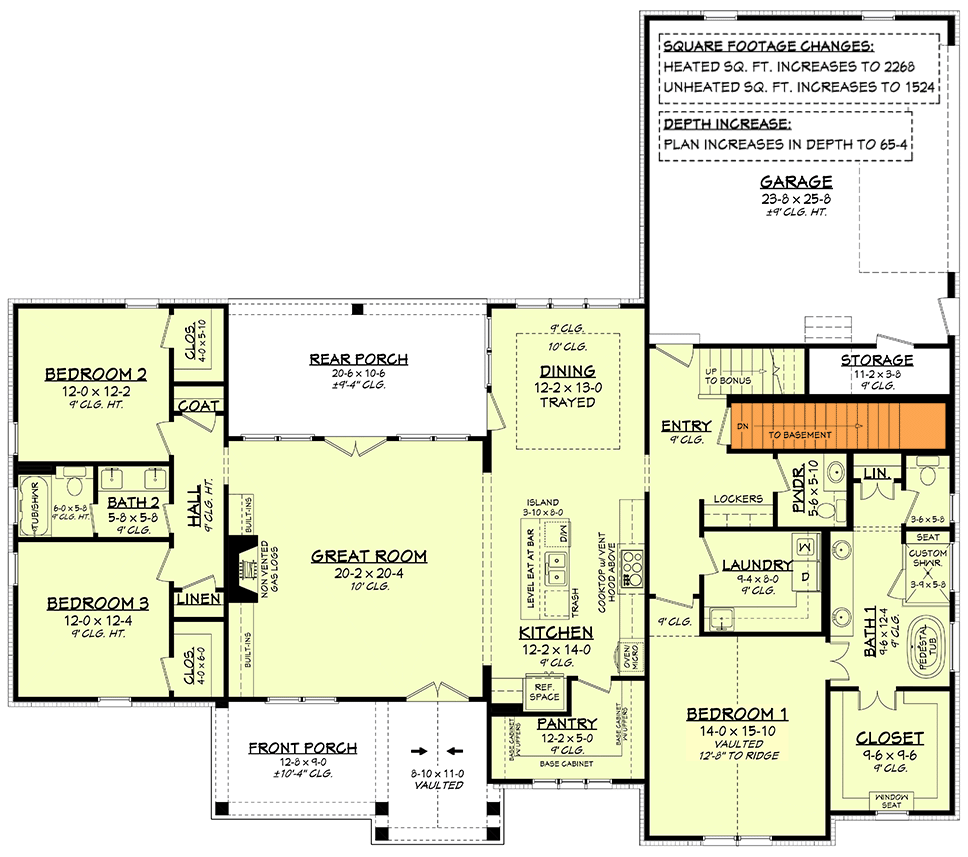

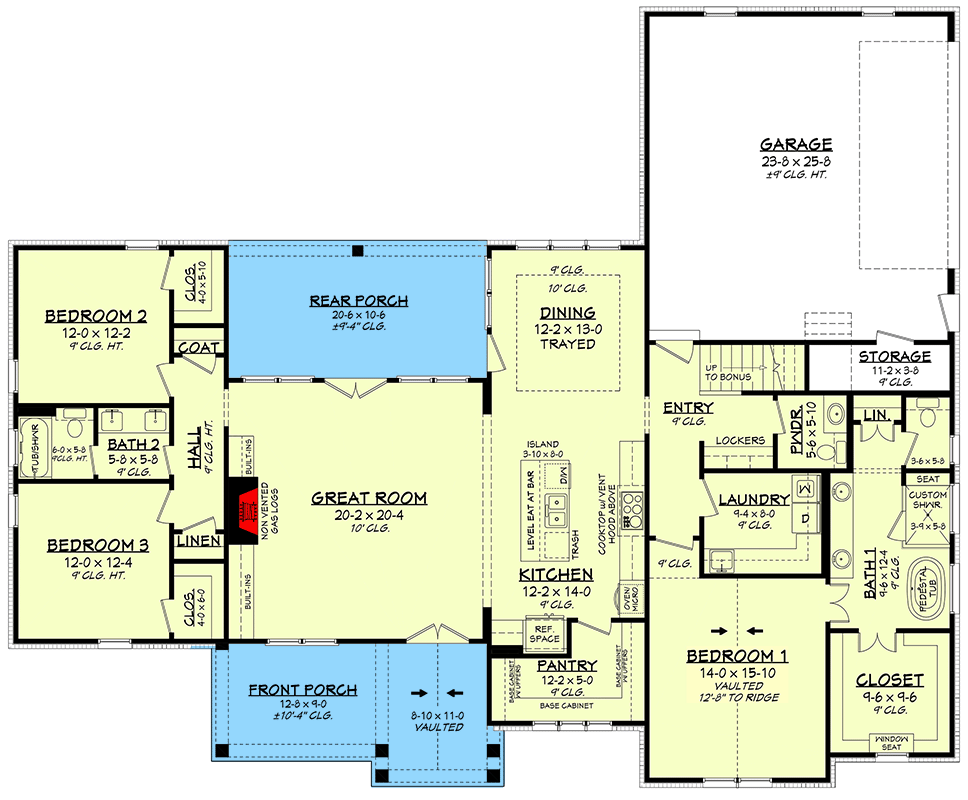

Page 3  Detailed floor plan with bonus room (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

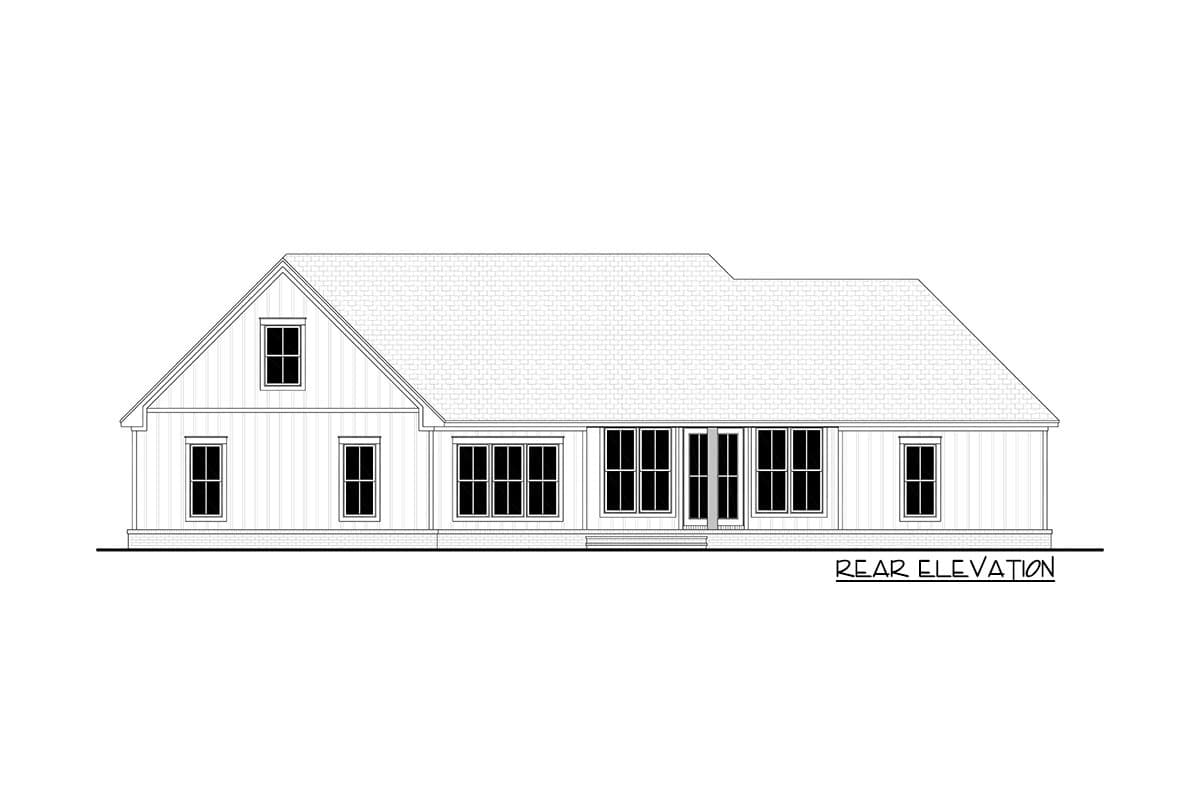

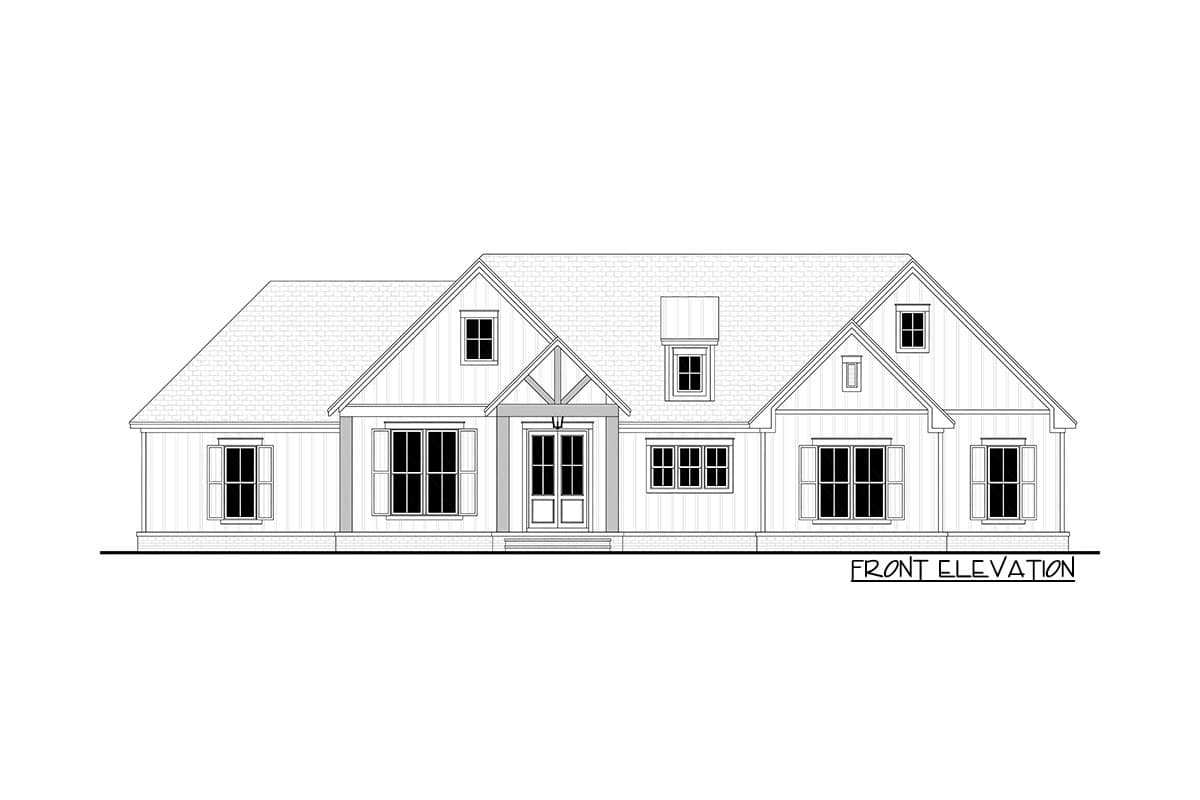

Page 4  Front and rear exterior views with additional details

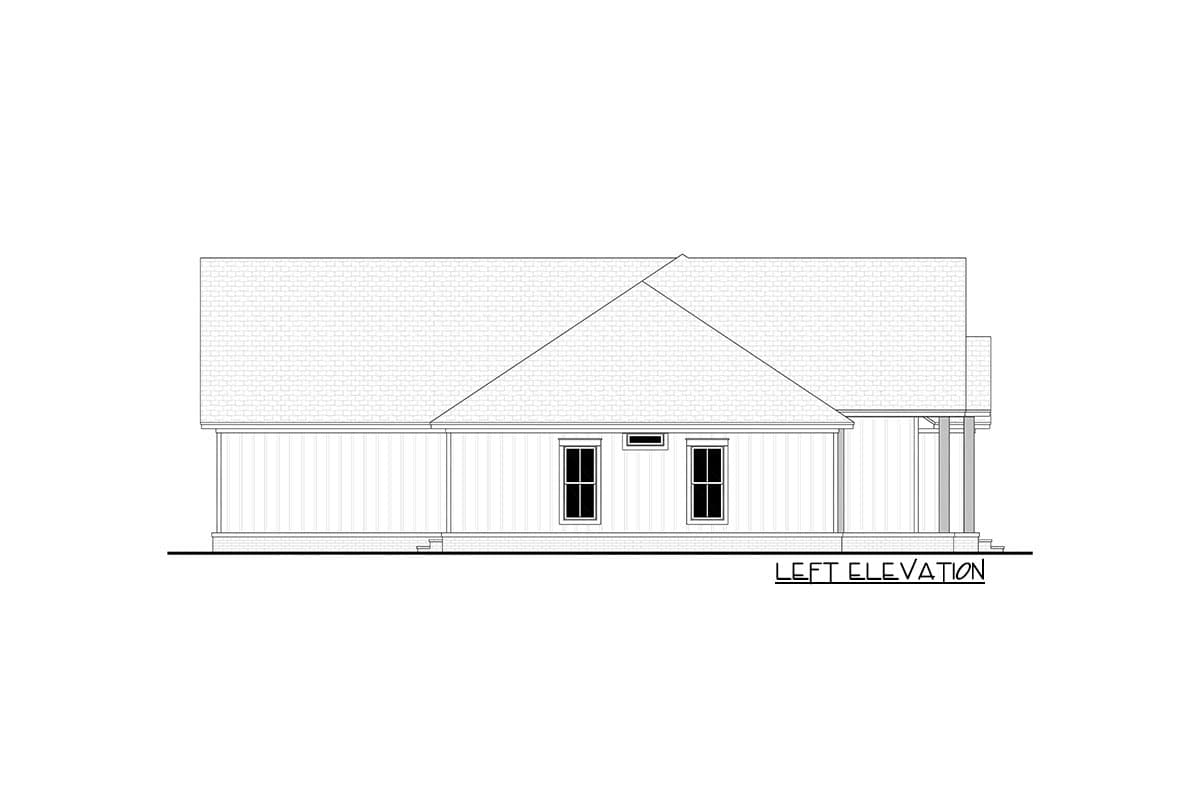

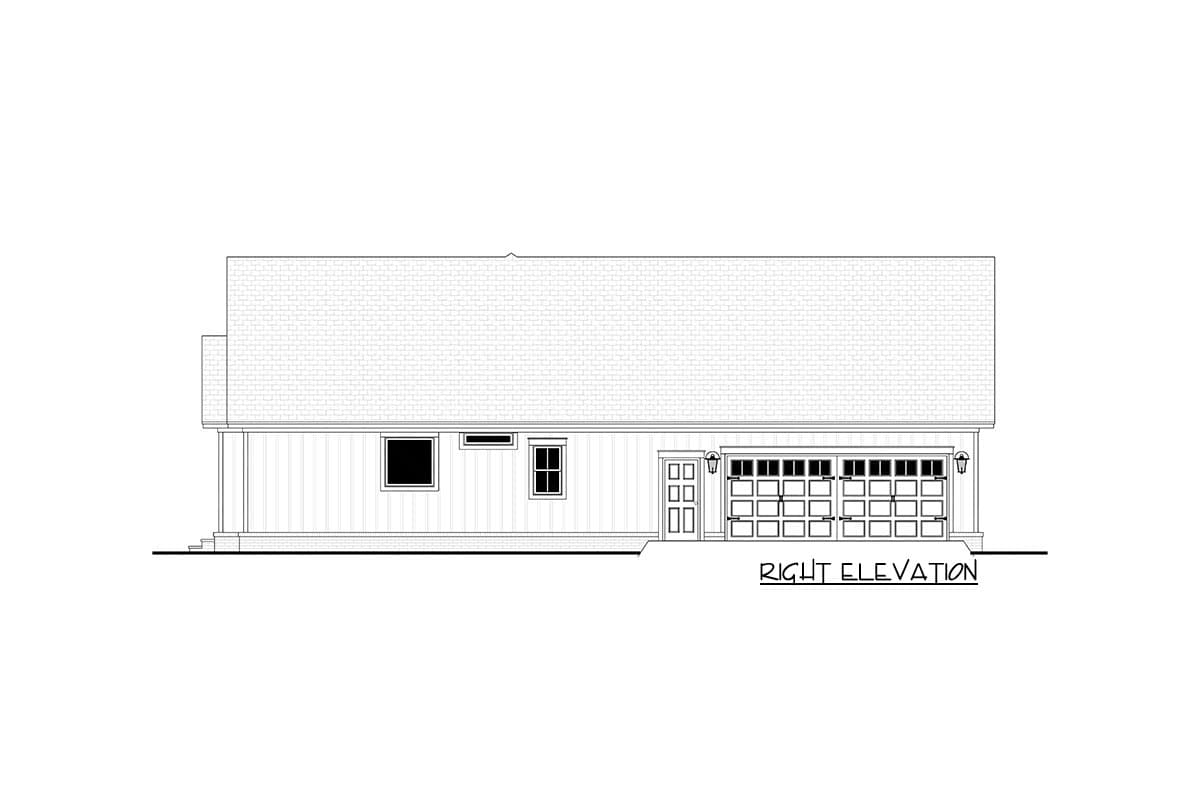

Page 5  Right and left exterior views with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan & notes/ legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Modern Farmhouse Plan with Vaulted Master Bedroom - 2249 Sq Ft

  • 2,249

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,249 sq. ft.
  • 1st Floor: 2,249 sq. ft.

Dimensions

  • Width: 74' 6"
  • Depth: 61' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 635 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Bonus 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
