Plan 444267GDN 3-Bed Mountain Craftsman Plan with Walkout Basement

3,610 3 4 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Mountain Craftsman Plan with Walkout Basement

Plan 444267GDN

  • 3,610

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

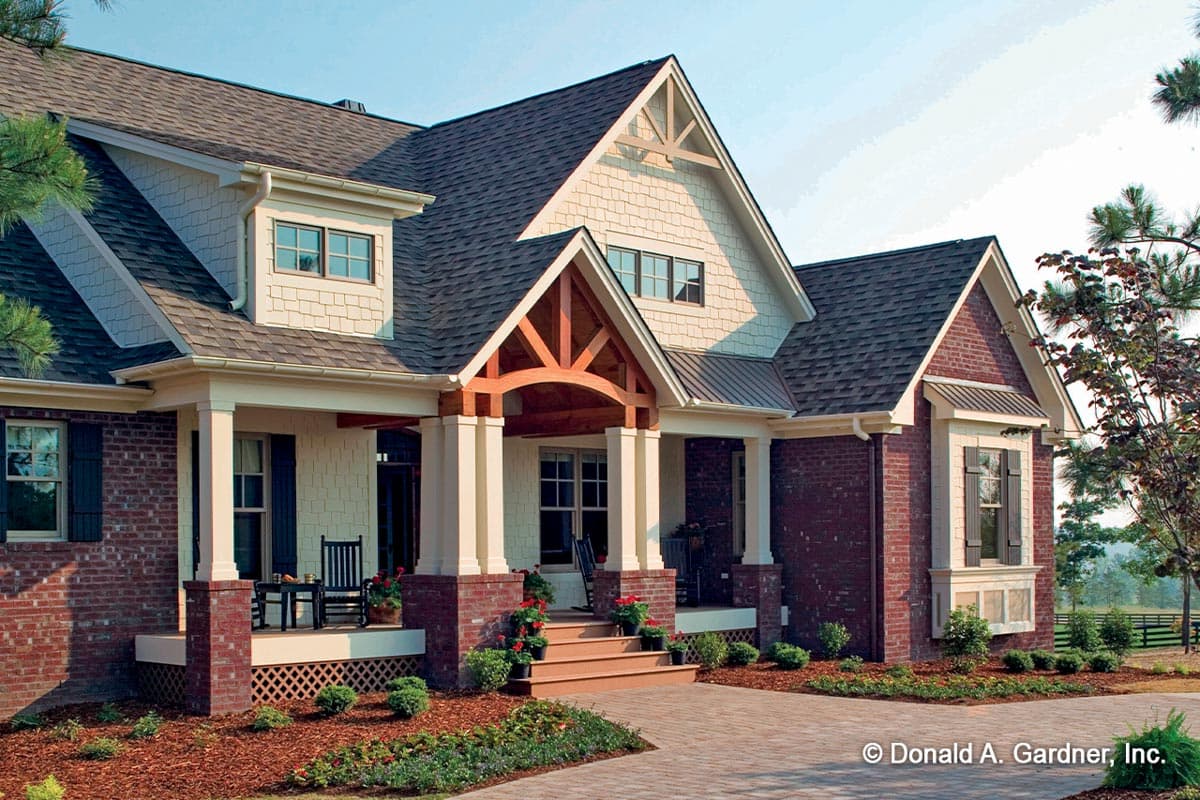

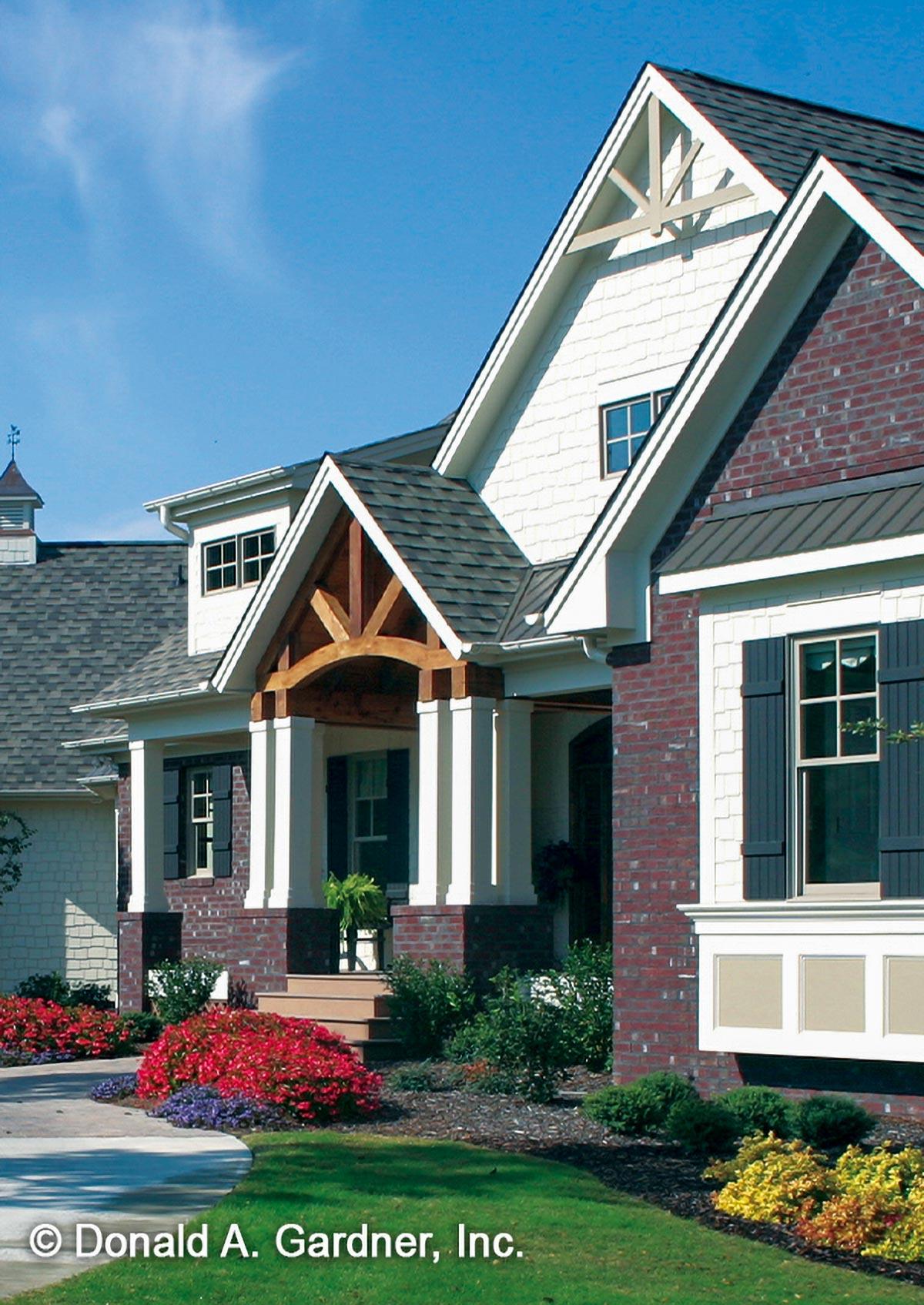

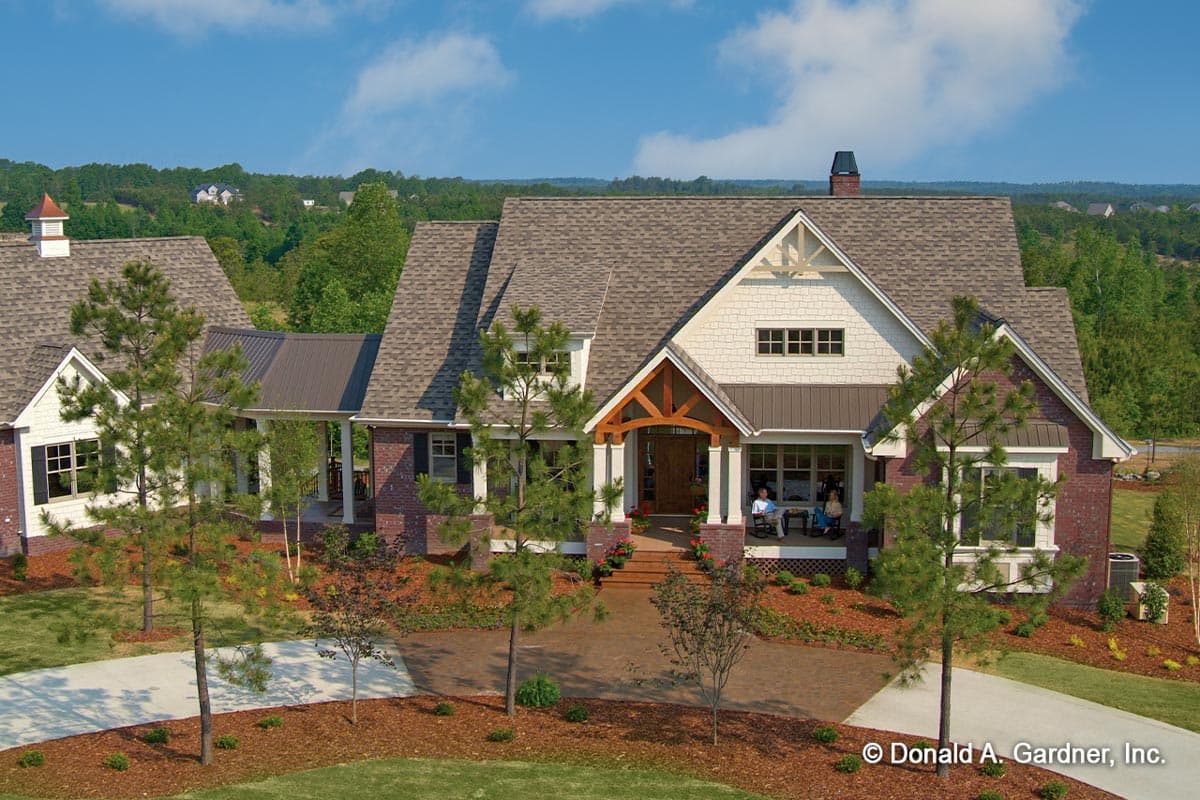

  • This 3-bedroom Mountain Craftsman home plan presents a covered breezeway that connects the main home to the 3-car garage. A staircase in the garage leads to a versatile bonus room overhead giving you 679 square feet of expansion space. A broad front porch - 31' wide and 6'8" deep - helps give this home plan great curb appeal.

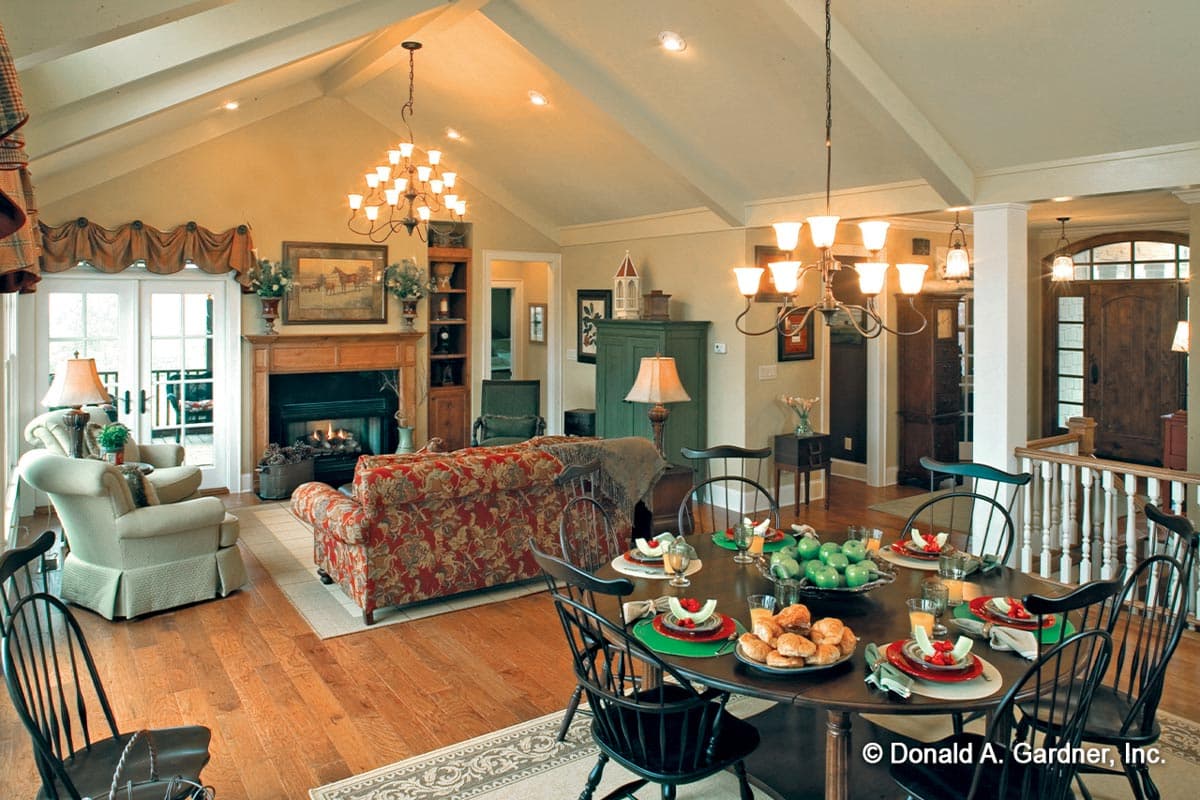

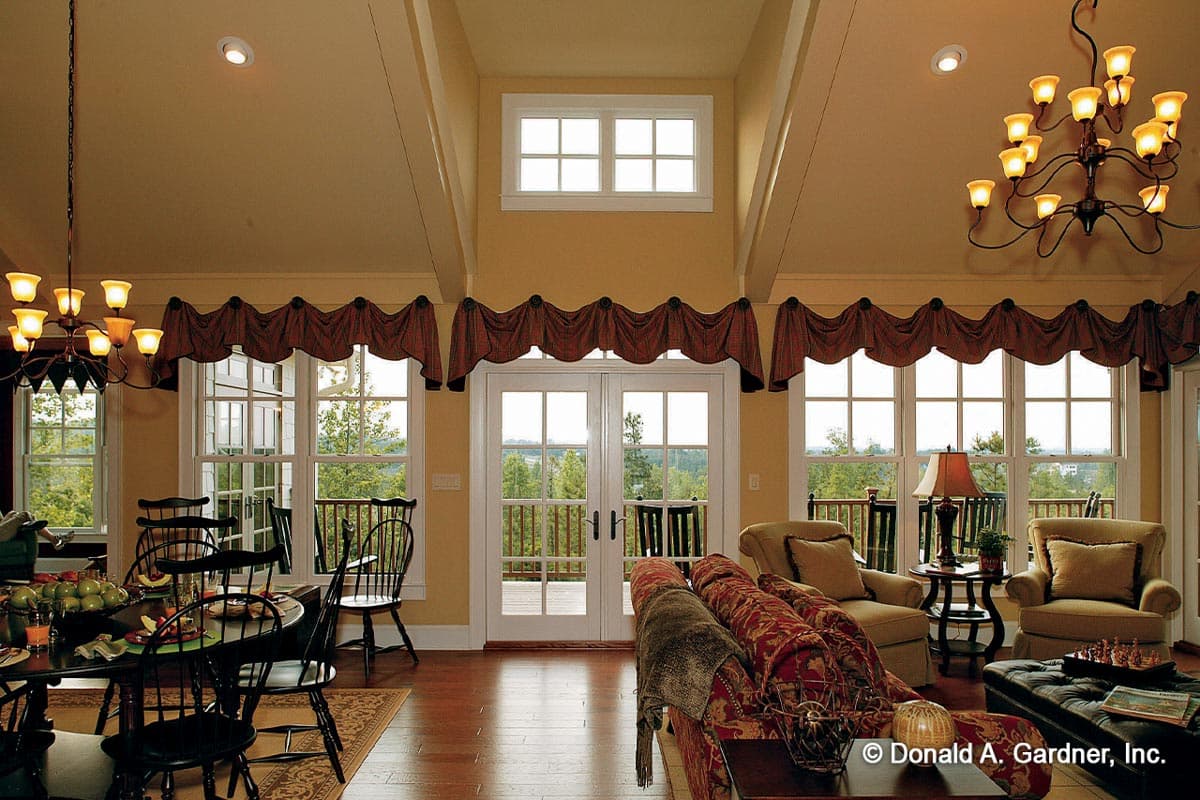

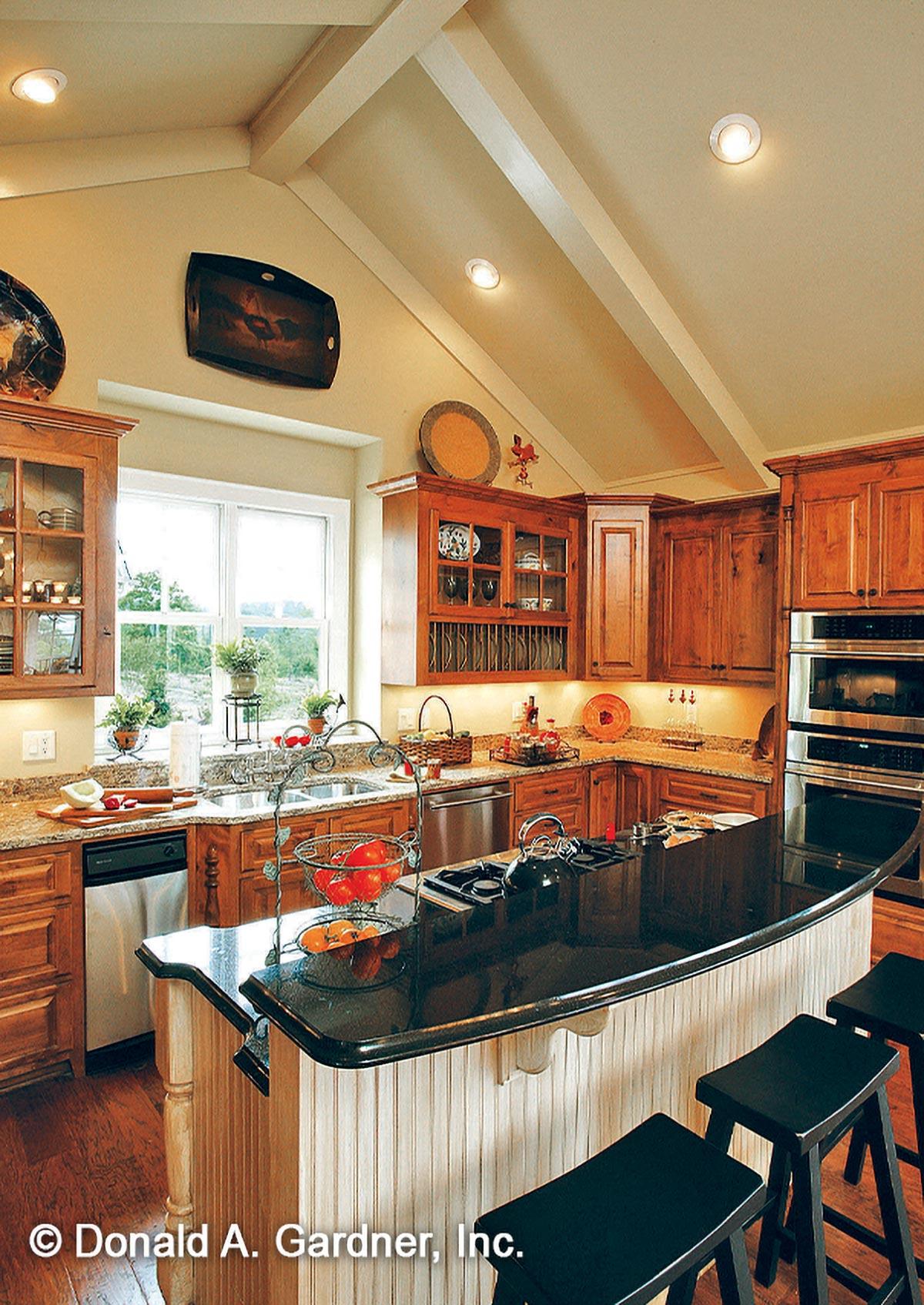

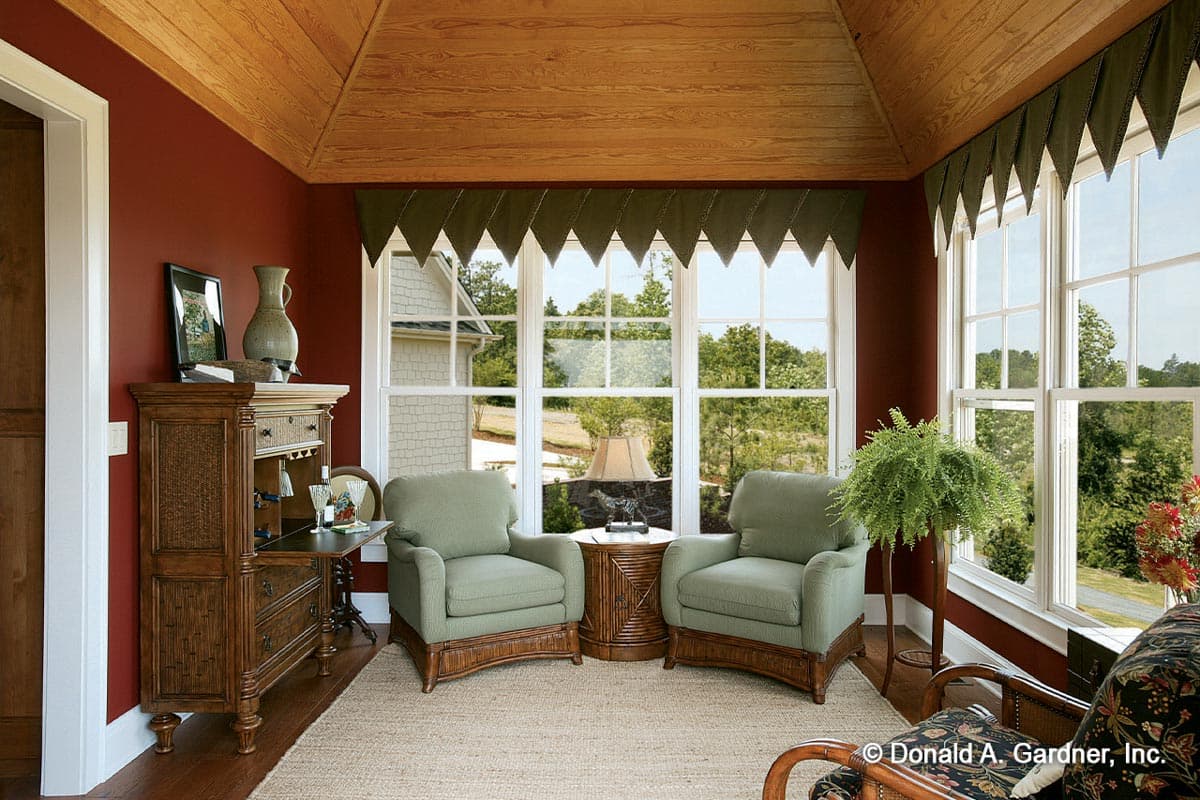

  • A 15'10" cathedral ceiling runs the length of the combined great room and kitchen lending a cohesive element to the open living space. The screened porch, lengthy deck, and sun room provide a variety of options for outdoor living.

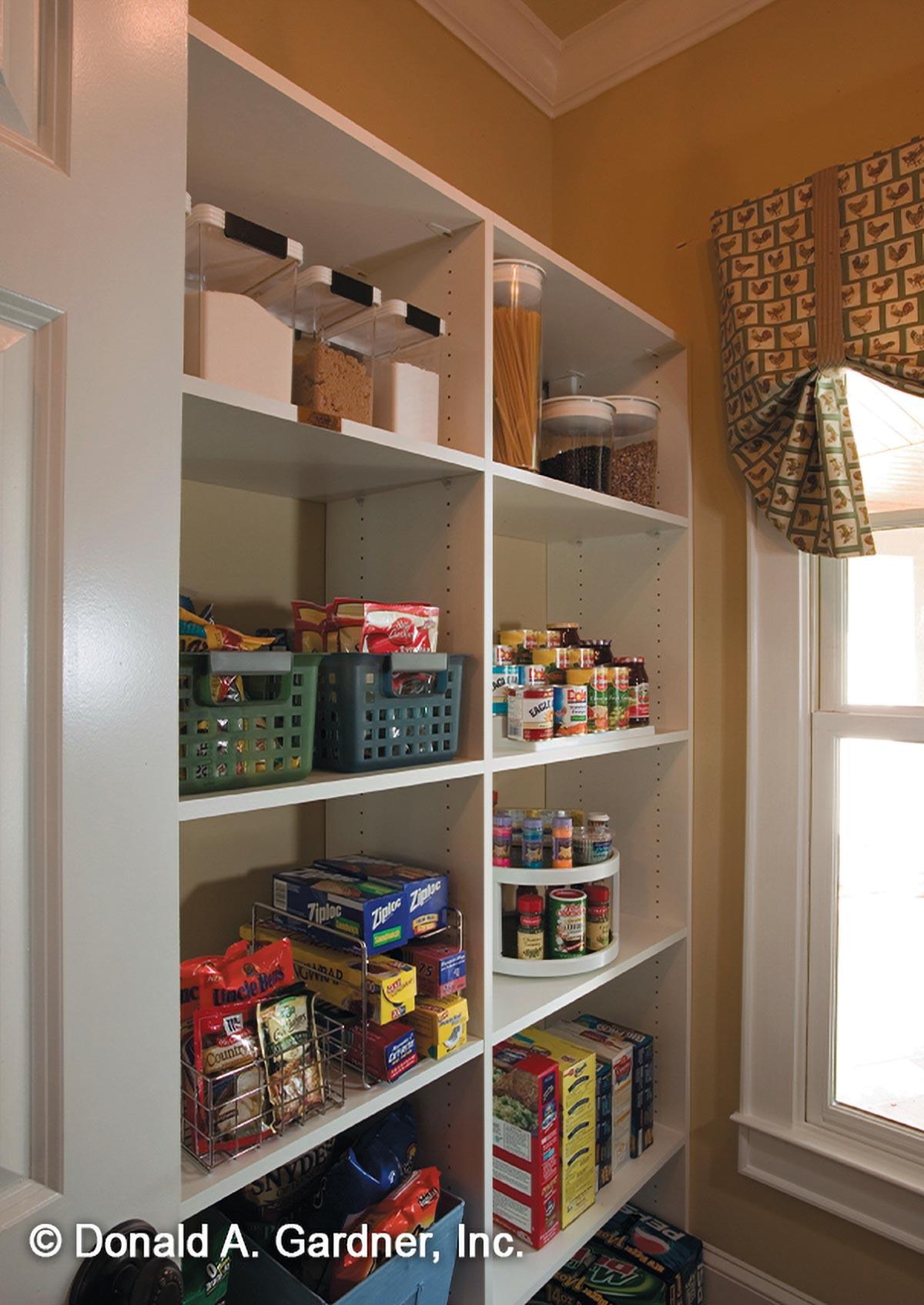

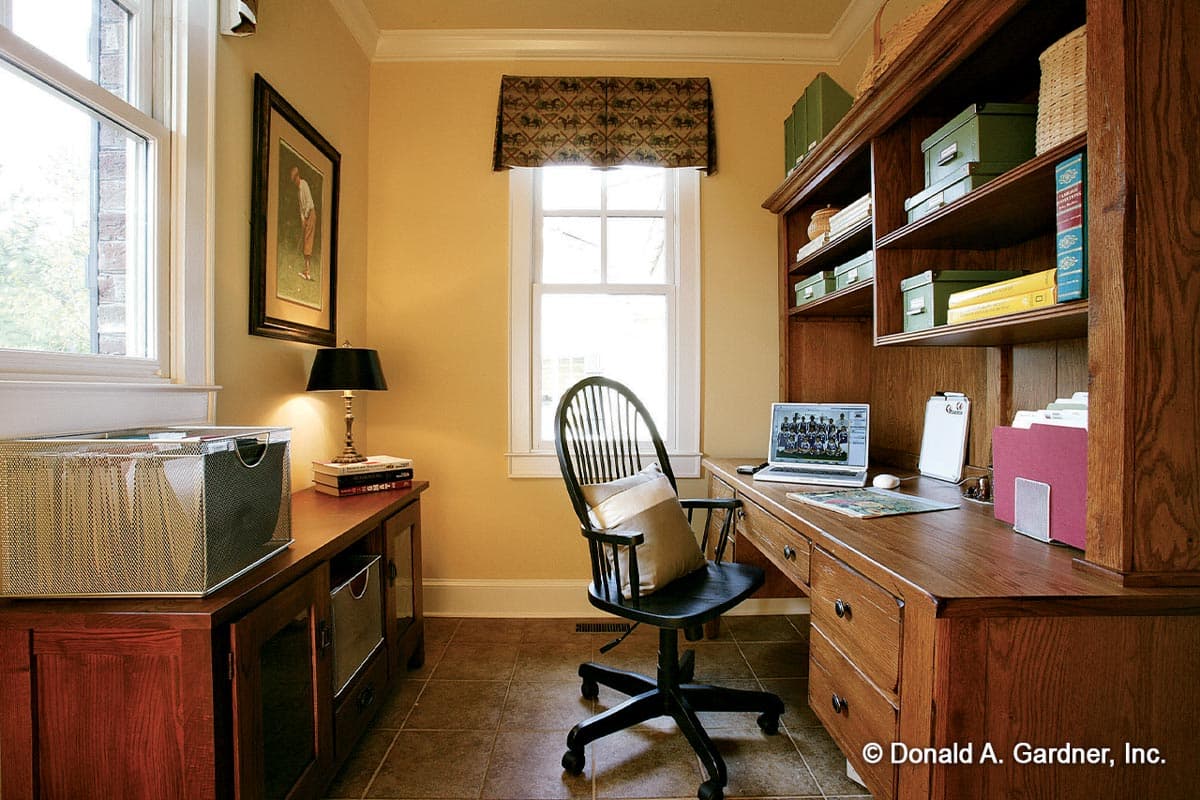

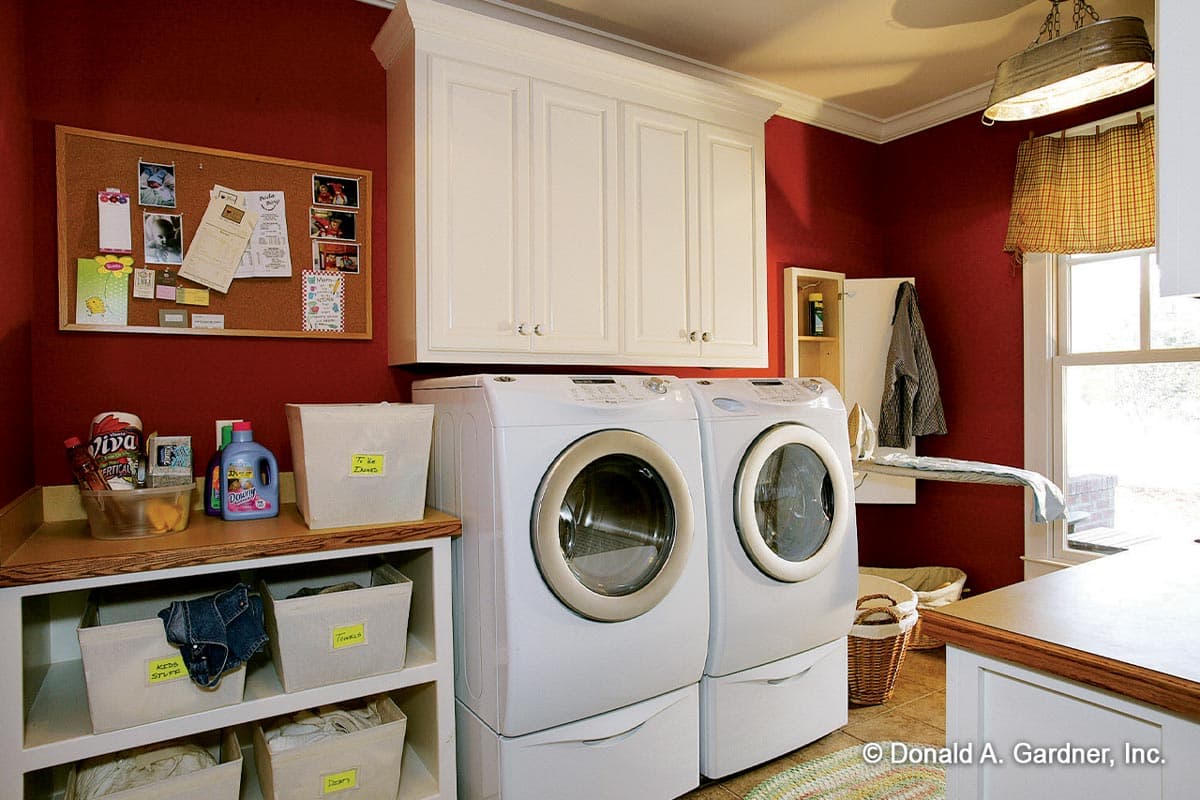

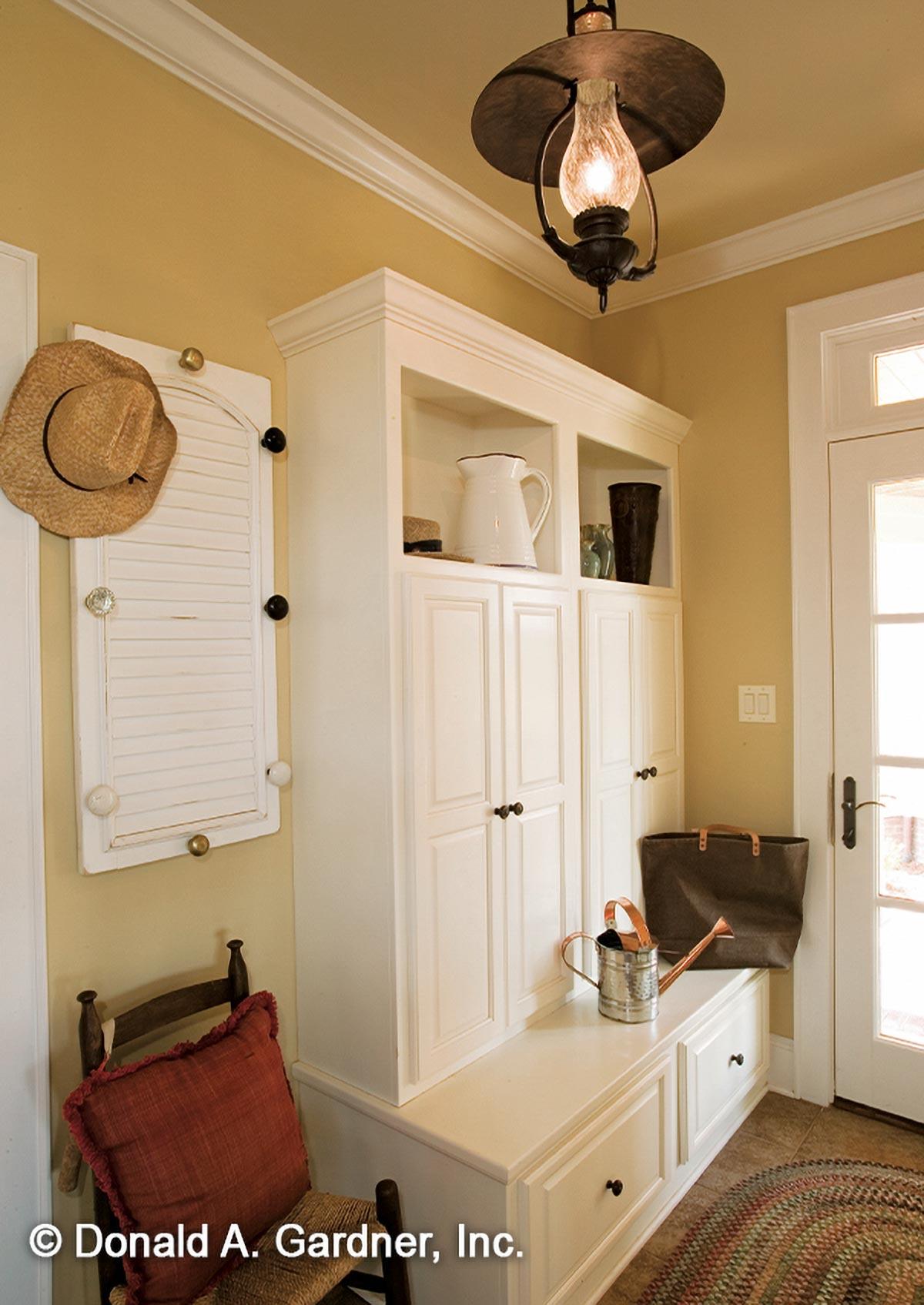

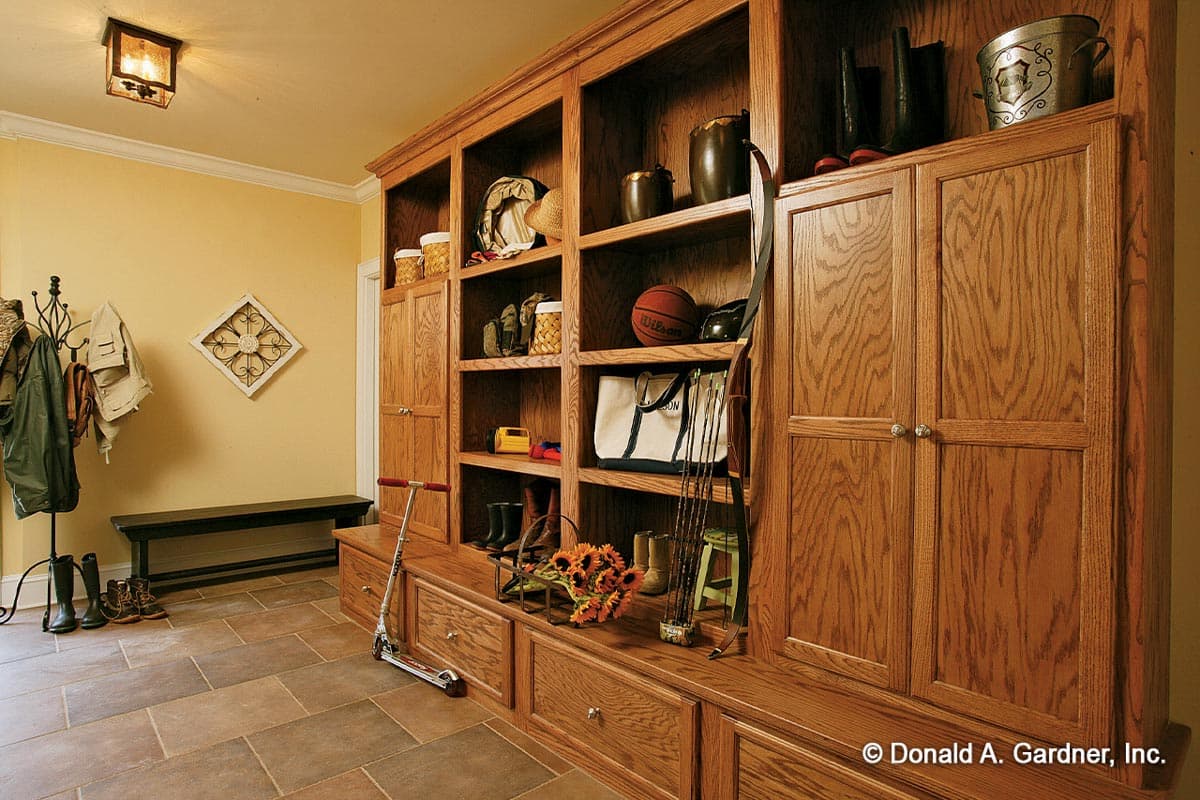

  • Large service areas including the walk-in pantry, utility room, and mudroom help manage even the most active families, and a nearby home office is perfect for the work-at-home resident.

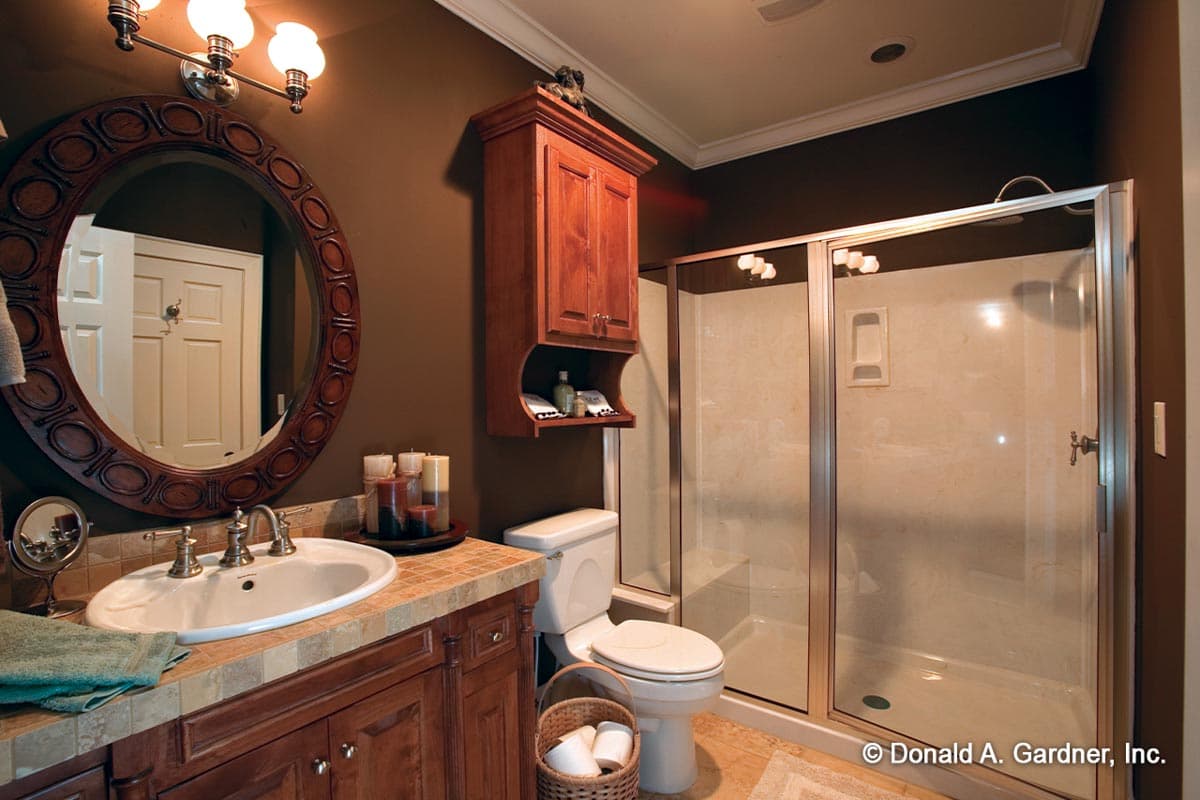

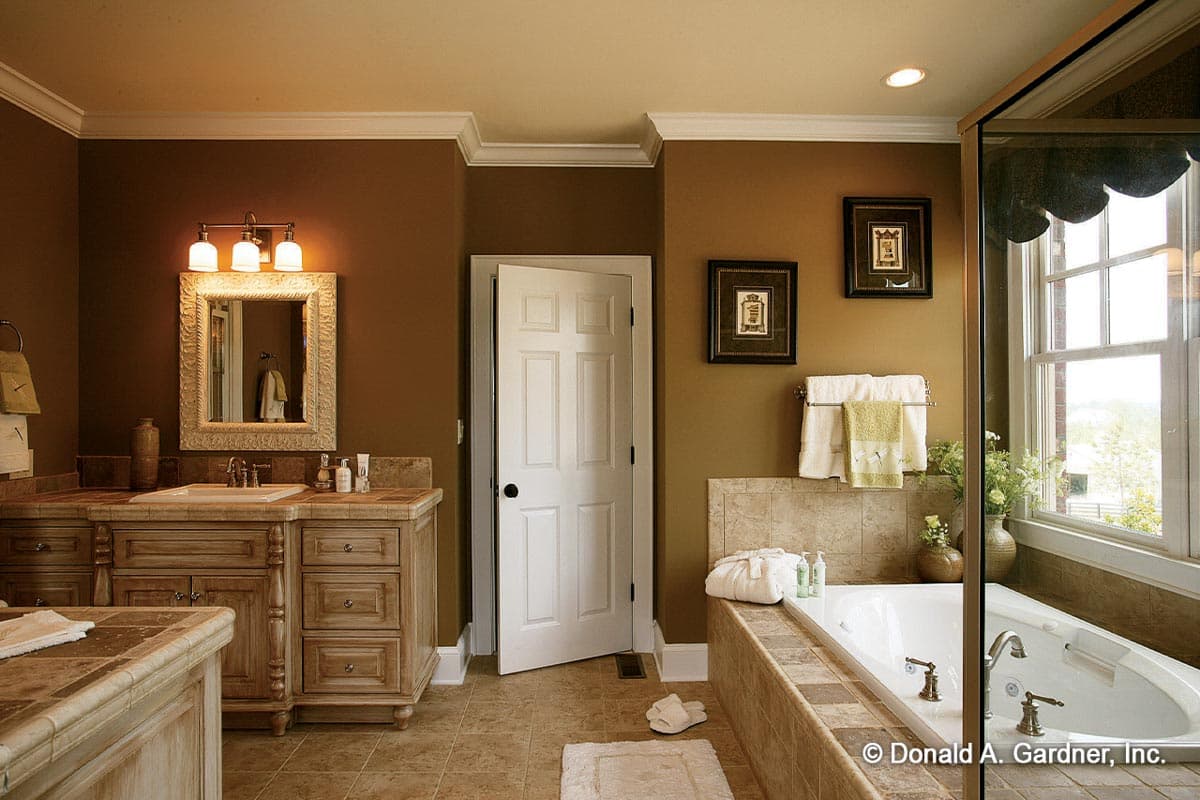

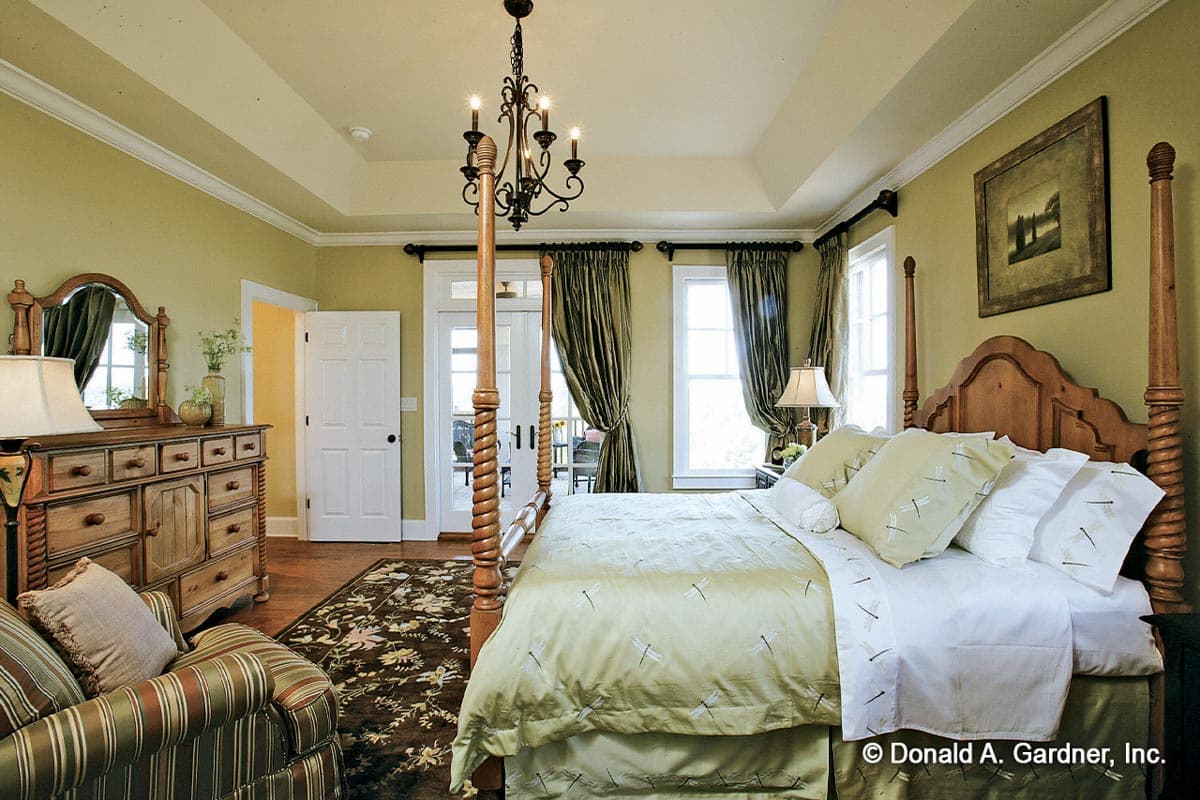

  • The master bedroom enjoys the privacy of being the only bedroom on this level, and features twin closets and a 5-fixture bathroom.

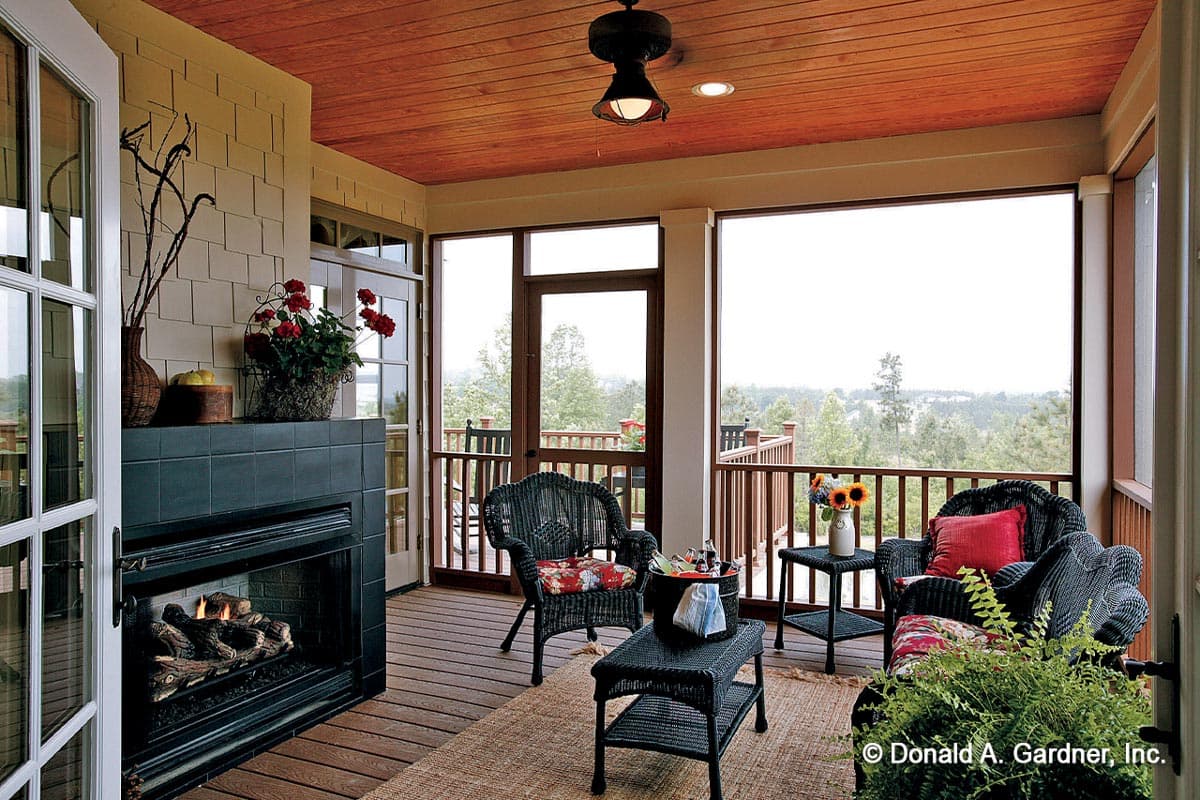

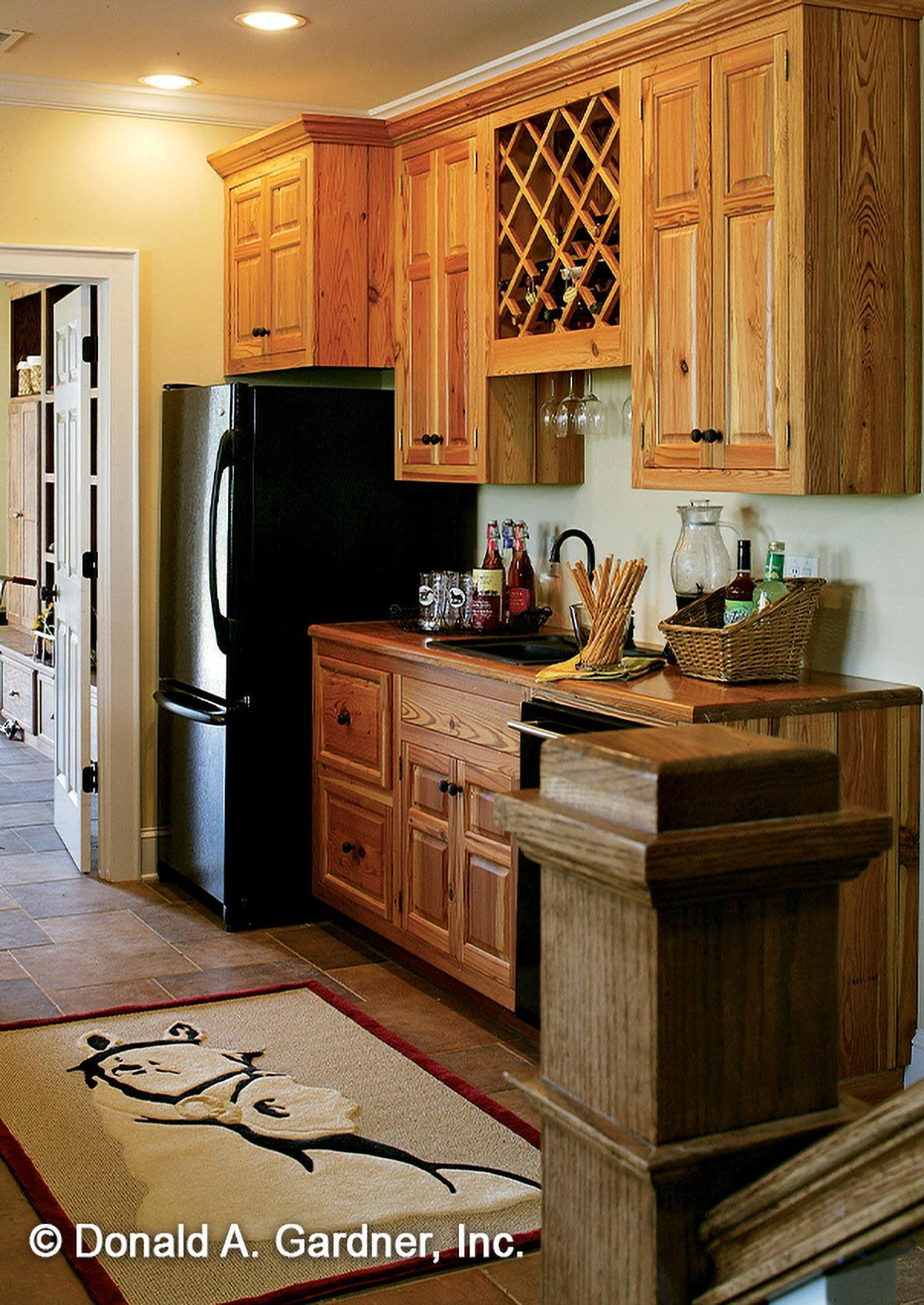

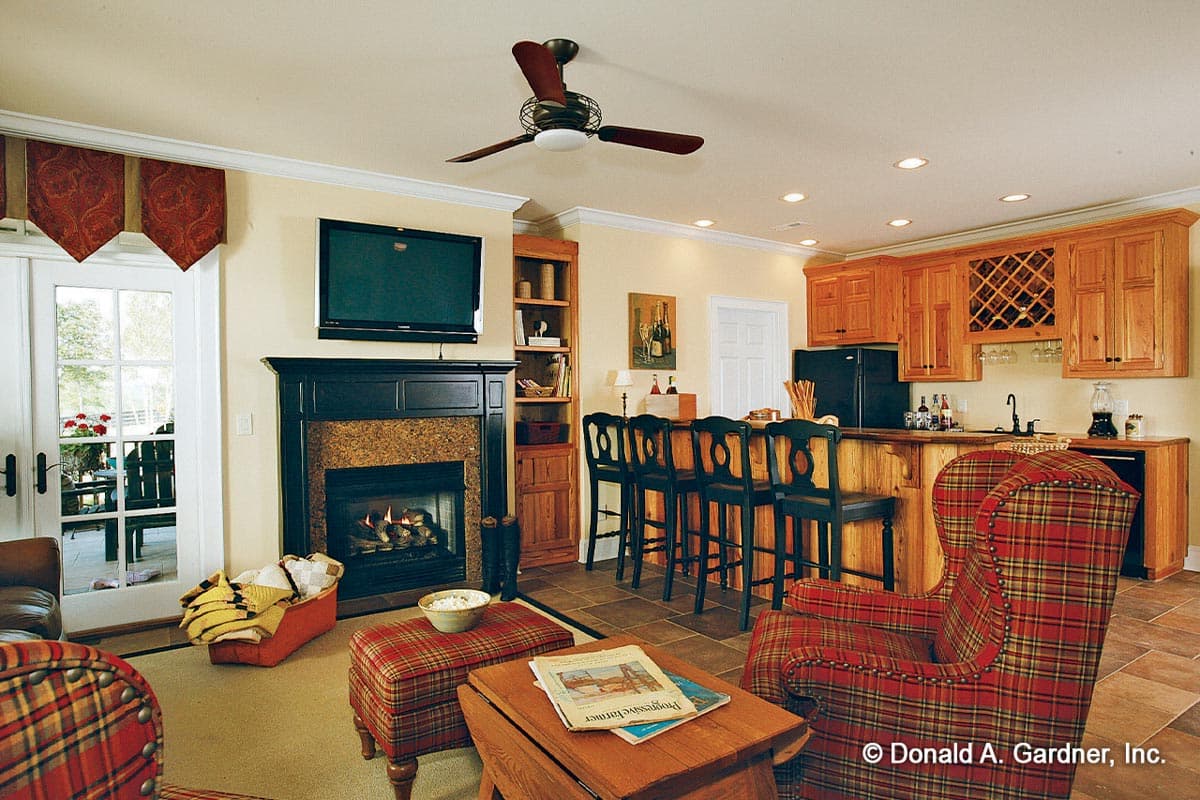

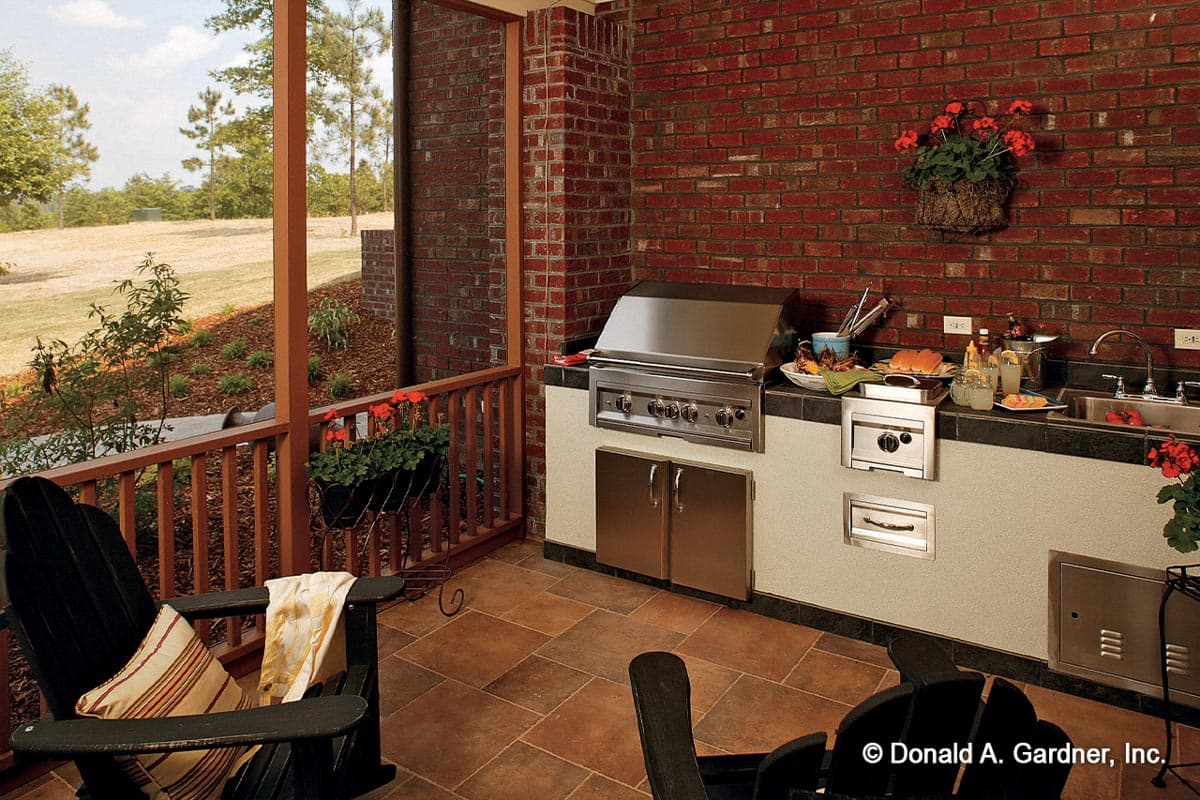

  • Downstairs, a generous entertainment room with a wet bar extends onto a partially-screened porch with a summer kitchen. Two bedrooms share a full bath and a large mudroom offers outdoor access.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

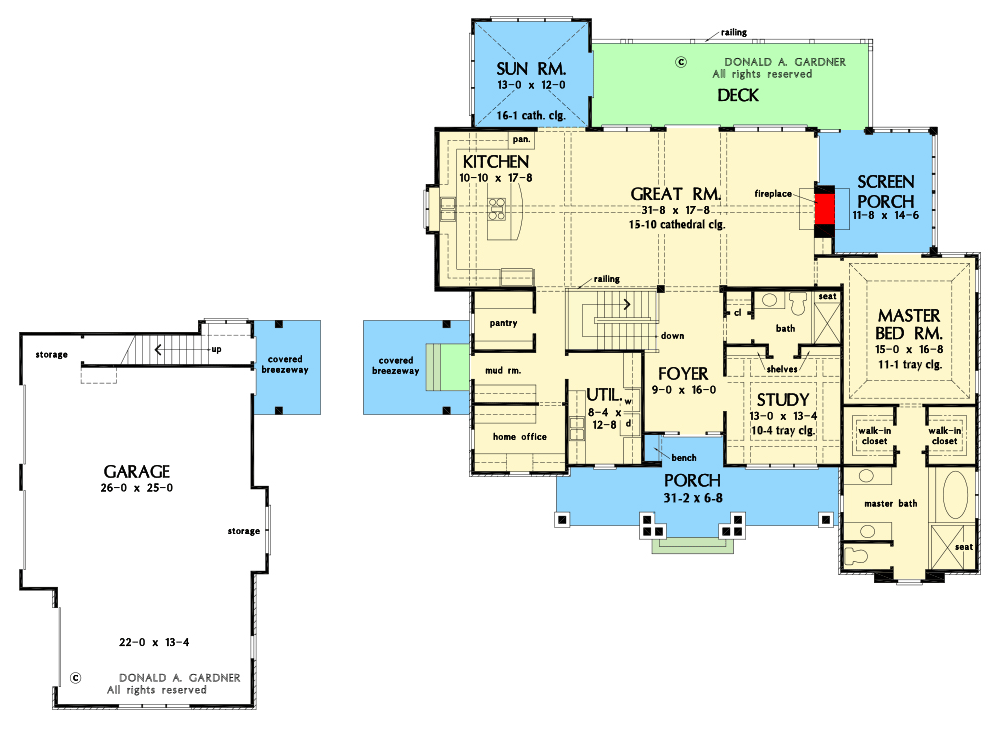

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mountain Craftsman Plan with Walkout Basement - 444267GDN floor plan - Main Level

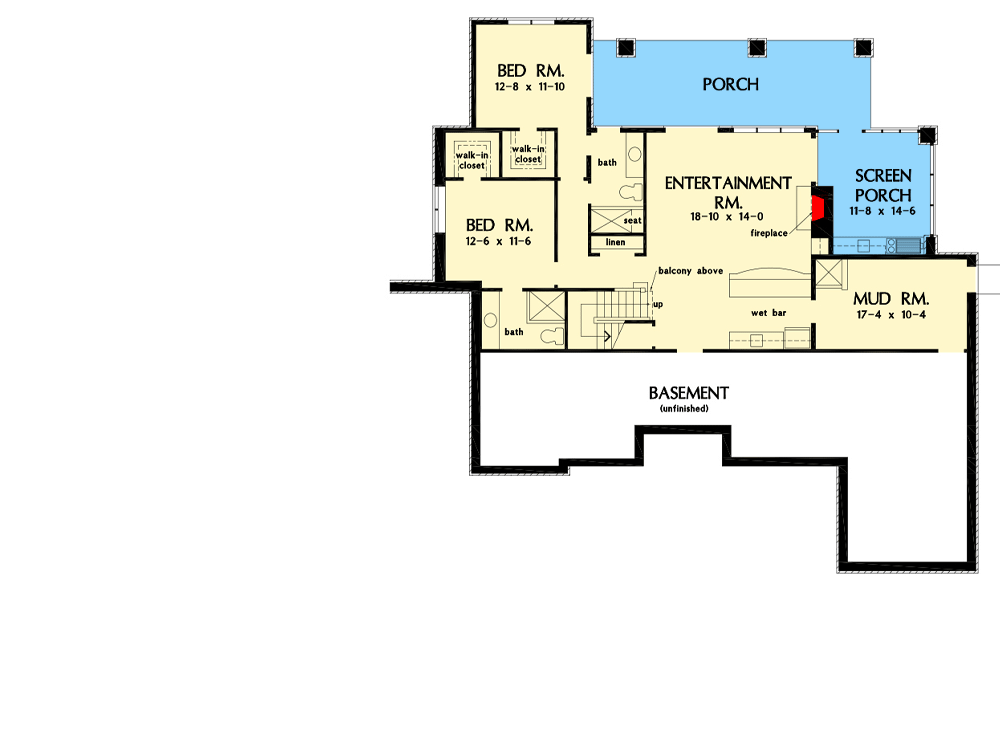

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mountain Craftsman Plan with Walkout Basement - 444267GDN floor plan - Basement

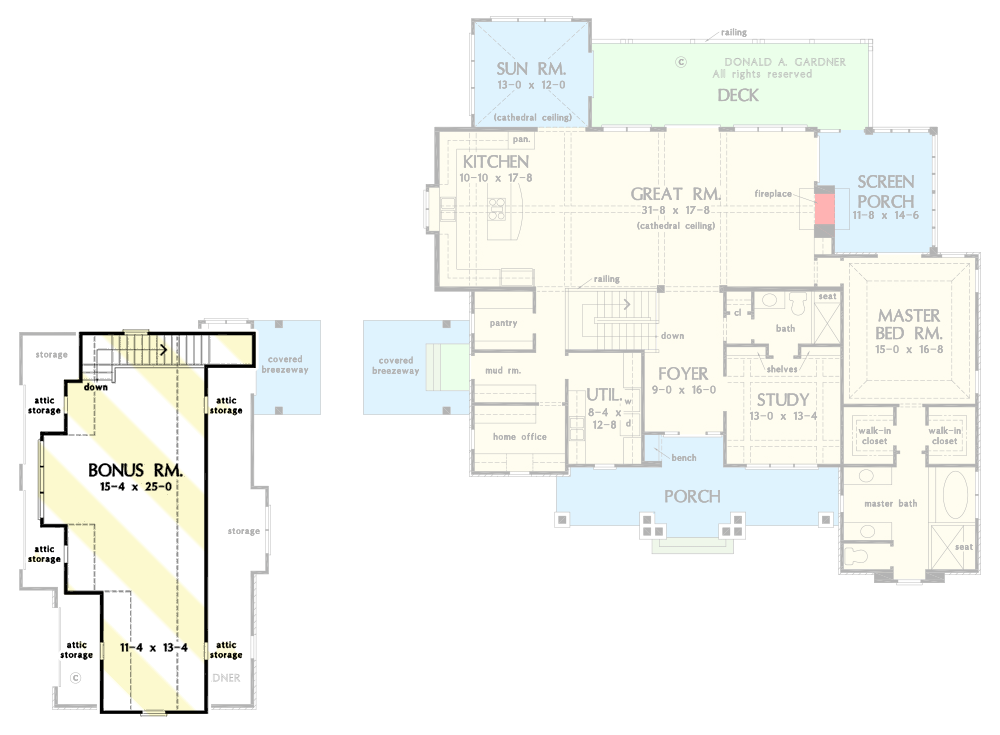

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mountain Craftsman Plan with Walkout Basement - 444267GDN floor plan - Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,610 sq. ft.
  • Lower Level: 1,273 sq. ft.
  • 1st Floor: 2,337 sq. ft.
  • Deck: 320 sq. ft.
  • Screened Porch: 364 sq. ft.
  • Porch, Combined: 583 sq. ft.
  • Bonus: 679 sq. ft.
  • Basement Unfinished: 914 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 8"
  • Depth: 64' 2"
  • Max ridge height: 38' 1"

Garage

  • Type: Detached
  • Area: 1044 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Cathedral 15' 10"
Kitchen Cathedral 15' 10"
Master Bedroom Tray 11' 0"
Sunroom Cathedral 16' 0"

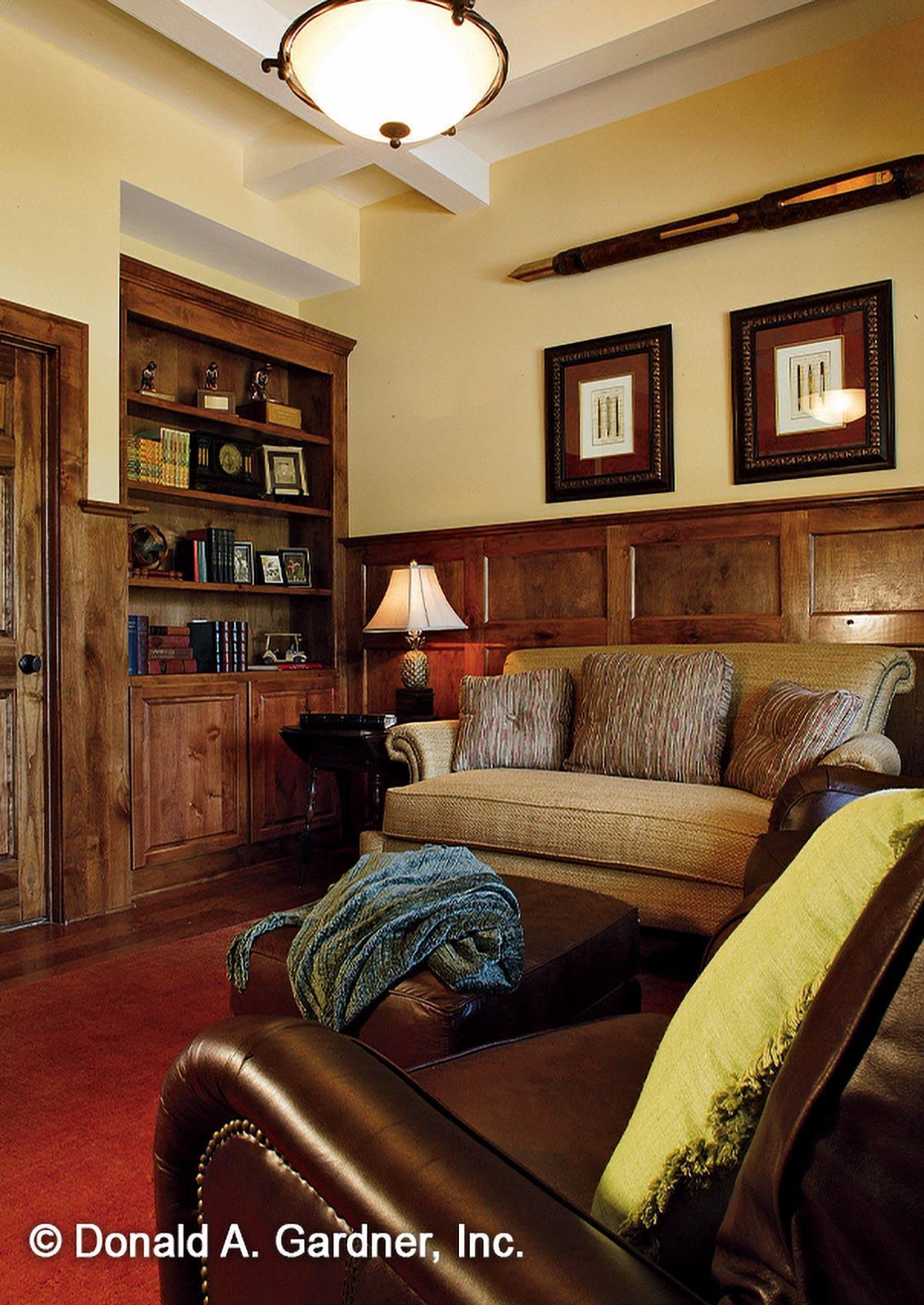

Study Coffered 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

3-Bed Mountain Craftsman Plan with Walkout Basement

  • 3,610

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,550
  • PDF - Single-Build $1,750
  • CAD Unlimited + PDF $3,075
  • View all purchase option online

About This Plan

  • This 3-bedroom Mountain Craftsman home plan presents a covered breezeway that connects the main home to the 3-car garage. A staircase in the garage leads to a versatile bonus room overhead giving you 679 square feet of expansion space. A broad front porch - 31' wide and 6'8" deep - helps give this home plan great curb appeal.
  • A 15'10" cathedral ceiling runs the length of the combined great room and kitchen lending a cohesive element to the open living space. The screened porch, lengthy deck, and sun room provide a variety of options for outdoor living.
  • Large service areas including the walk-in pantry, utility room, and mudroom help manage even the most active families, and a nearby home office is perfect for the work-at-home resident.
  • The master bedroom enjoys the privacy of being the only bedroom on this level, and features twin closets and a 5-fixture bathroom.
  • Downstairs, a generous entertainment room with a wet bar extends onto a partially-screened porch with a summer kitchen. Two bedrooms share a full bath and a large mudroom offers outdoor access.

Floor Plans

  • Main Level

  • Basement

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,610 sq. ft.
  • Lower Level: 1,273 sq. ft.
  • 1st Floor: 2,337 sq. ft.
  • Deck: 320 sq. ft.
  • Screened Porch: 364 sq. ft.
  • Porch, Combined: 583 sq. ft.
  • Bonus: 679 sq. ft.
  • Basement Unfinished: 914 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 8"
  • Depth: 64' 2"
  • Max ridge height: 38' 1"

Garage

  • Type: Detached
  • Area: 1044 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
Plan 444267GDN
