Plan: 72221DA

3 Bed Mountain Home Plan

6,309 3 4 2 3
Pageloader

3 Bed Mountain Home Plan

Plan 72221DA

  • 6,309

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This large, richly windowed, chalet-style home has an expansive interior with a multitude of gathering and private spaces. Natural wood posts and a two-high stack of gables accented by king posts and struts create a lofty entry. Windows accent the two front gables that flank the central foyer, all nicely set off against a backdrop of clean-lined metal roofing.
  • Inside, a large dining room is to the left of the vaulted foyer, and a spacious library with a gas fireplace is on the right. Ahead is a bright and spacious vaulted living room. Wide windows flank the stone-veneer fireplace centered at the rear. Double doors on both sides of the room open onto the large curved patio that spans the back of the home.
  • Squared, natural wood columns mark the passageway that leads past the butler's pantry to the generously-sized kitchen. Two work islands add to the abundant counter space. One has a wide cook top, while the one rimmed by a raised eating bar has a prep sink.
  • A wide hearth fronts the roomy wood-fired baking oven on one side, and another wall of ovens is on the left. A curved wall of windows wraps around the side nook, which also has a built-in buffet and hutch, and the kitchen opens into a media room with another fireplace in a hearth room alcove. A wine storage cellar and hobby room are further to the left.
  • Owners' suite luxuries include a fireplace, and both his and hers walk-in closets and bathrooms, the latter with an elegant claw-foot tub. An exercise room, and an exterior hot tub and shower, are nearby.

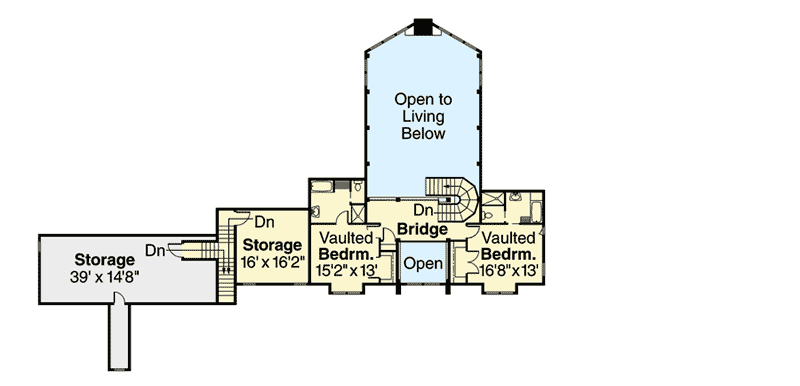

  • Two vaulted bedrooms with private baths are upstairs along with plenty of storage and a bridge overlooking the great room.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



3 Bed Mountain Home Plan

  • 6,309

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $1,325
  • PDF Light $1,655
  • 5 Sets $1,655
  • 8 Sets $1,880
  • CAD $3,075
  • PDF Plus $3,350
  • CAD - multi-use $4,045
  • View all purchase option online

About This Plan

  • This large, richly windowed, chalet-style home has an expansive interior with a multitude of gathering and private spaces. Natural wood posts and a two-high stack of gables accented by king posts and struts create a lofty entry. Windows accent the two front gables that flank the central foyer, all nicely set off against a backdrop of clean-lined metal roofing.
  • Inside, a large dining room is to the left of the vaulted foyer, and a spacious library with a gas fireplace is on the right. Ahead is a bright and spacious vaulted living room. Wide windows flank the stone-veneer fireplace centered at the rear. Double doors on both sides of the room open onto the large curved patio that spans the back of the home.
  • Squared, natural wood columns mark the passageway that leads past the butler's pantry to the generously-sized kitchen. Two work islands add to the abundant counter space. One has a wide cook top, while the one rimmed by a raised eating bar has a prep sink.
  • A wide hearth fronts the roomy wood-fired baking oven on one side, and another wall of ovens is on the left. A curved wall of windows wraps around the side nook, which also has a built-in buffet and hutch, and the kitchen opens into a media room with another fireplace in a hearth room alcove. A wine storage cellar and hobby room are further to the left.
  • Owners' suite luxuries include a fireplace, and both his and hers walk-in closets and bathrooms, the latter with an elegant claw-foot tub. An exercise room, and an exterior hot tub and shower, are nearby.
  • Two vaulted bedrooms with private baths are upstairs along with plenty of storage and a bridge overlooking the great room.

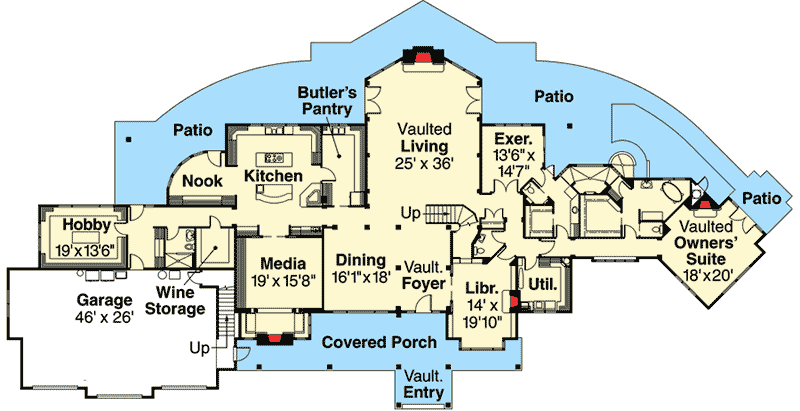

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,309 sq. ft.
  • 1st Floor: 5,315 sq. ft.
  • 2nd Floor: 994 sq. ft.
  • Bonus: 1,000 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 168' 10"
  • Depth: 80' 2"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 1335 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Mountain
  • Northwest
  • Vacation

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Media-Game-Home Theater
  • Multi Stairs to 2nd Floor
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
