3-Bed Mountain House Plan with 1-Car Drive-Under Garage - 2569 Sq Ft
Heated S.F.
2,569
Beds
3
Baths
3
Stories
1
Cars
1
What's Included
Plan Details
  • This 3 bed house plan - designed for a sloping lot - gives you 2,569 square feet of heated living with a drive-under garage and more in the lower level.
  • Inside, the home has a dramatic vaulted and beamed ceiling in the great room and a floor plan that is open front to back.
  • French doors by the breakfast area take you to the 10'-deep covered deck, perfect for al fresco entertaining.
  • The master bedroom has direct access to a 3-season room which has access to the 21' by 15' front porch. Across the home, Bed 2 has access to a half bath. The third bedroom is in the lower level which also has a large flex space with wet bar and a storage area.
  • Related Plan: Get an alternate version with house plan 68817VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction

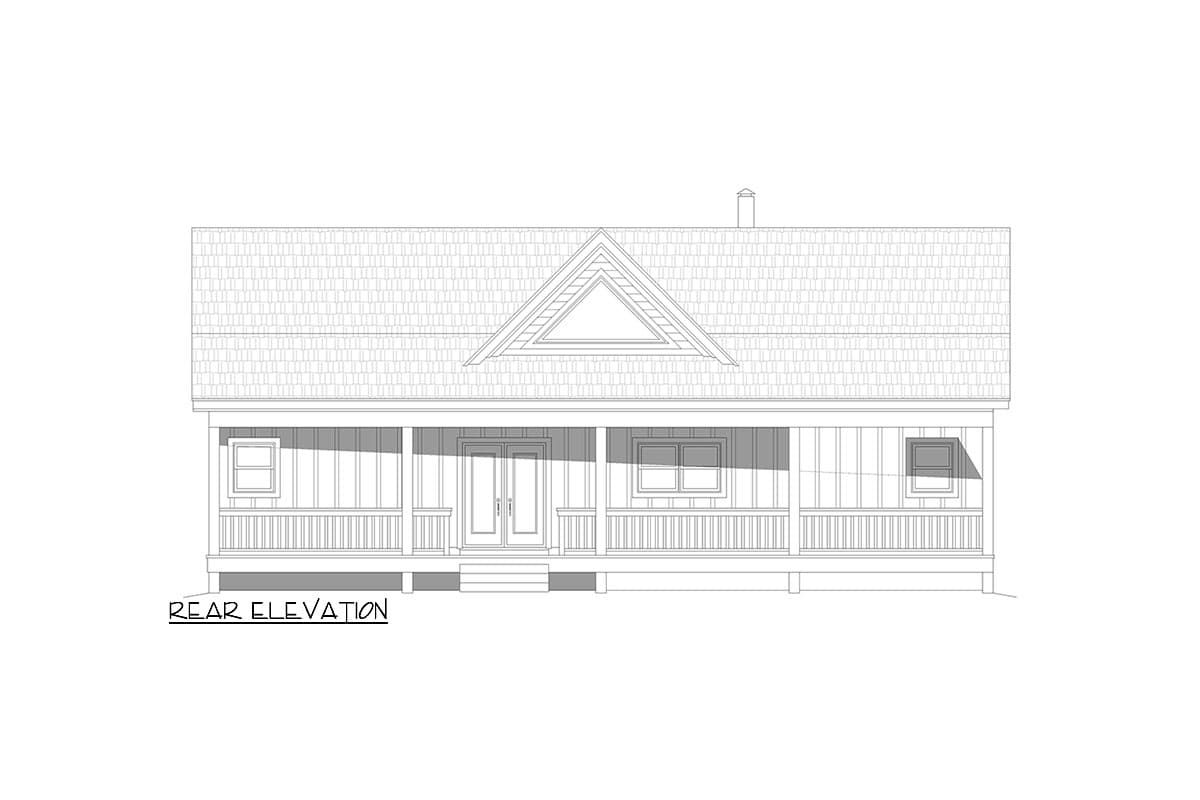

  • Roof Plan: Drawings indicating roof slopes and unique conditions

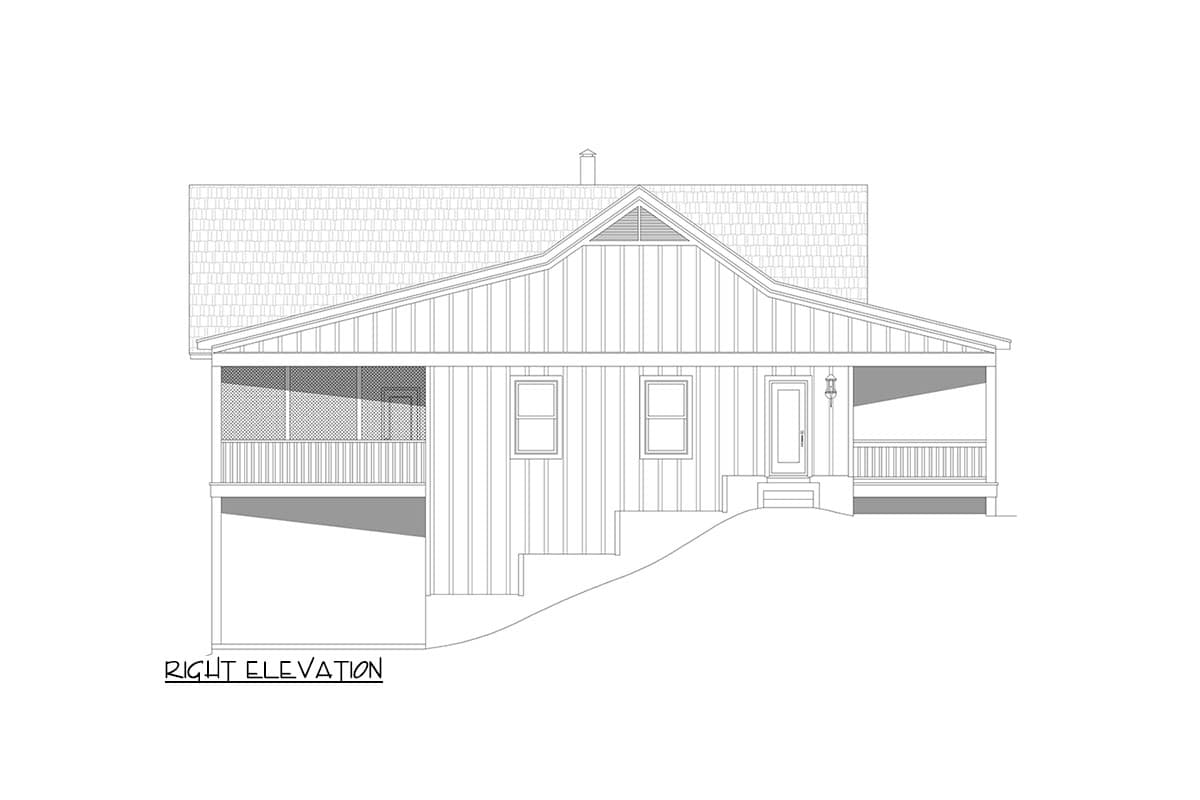

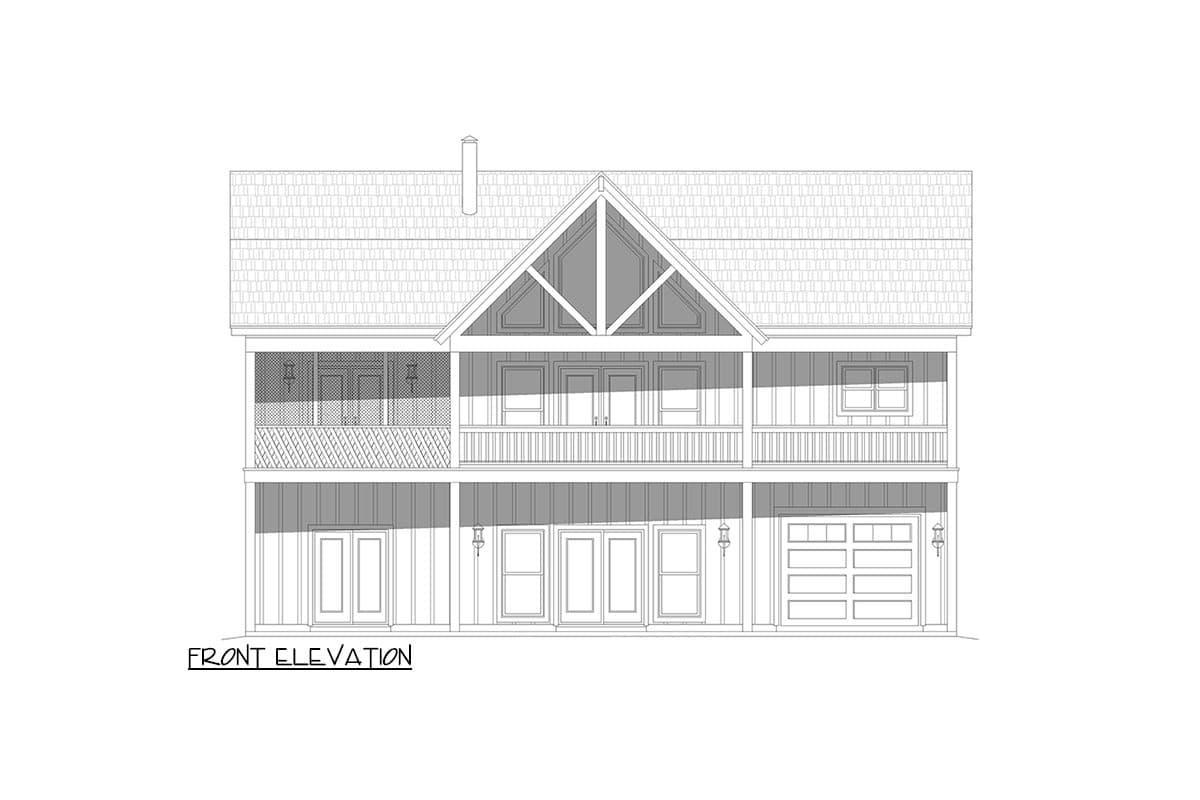

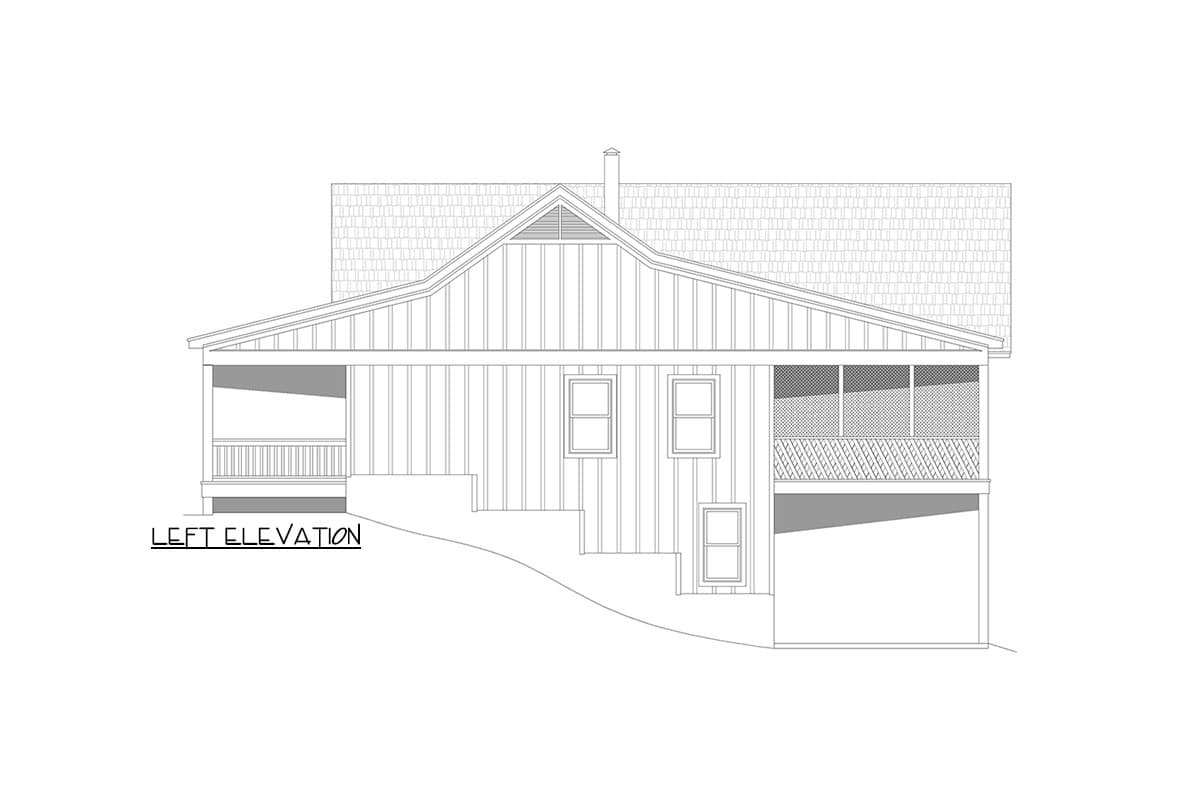

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Mountain House Plan with 1-Car Drive-Under Garage - 2569 Sq Ft

  • 2,569

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 1

    Car garage

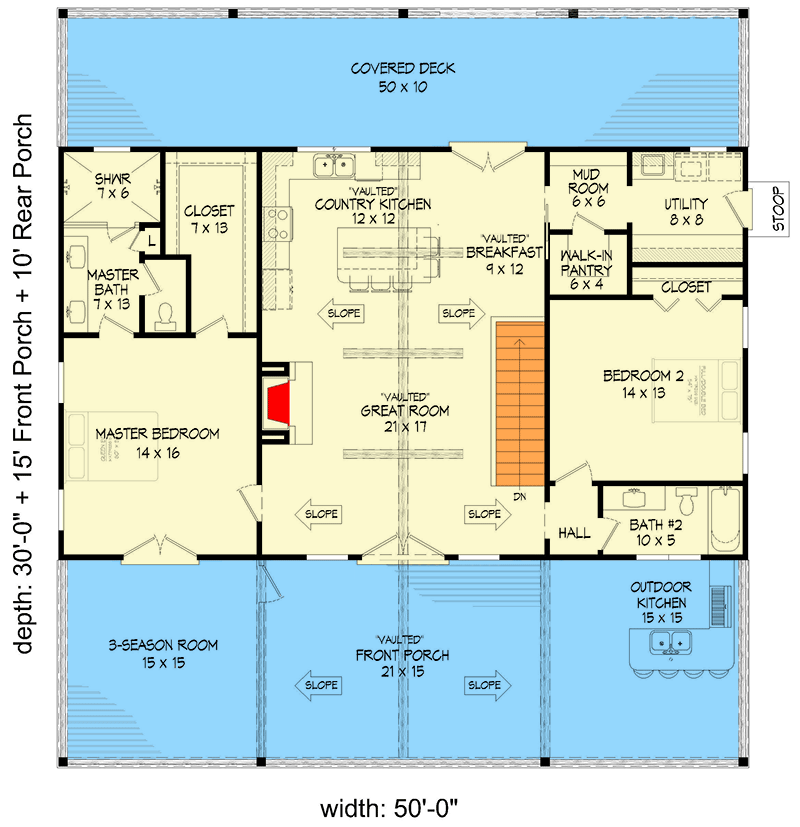

Floor Plan

  • Main Level

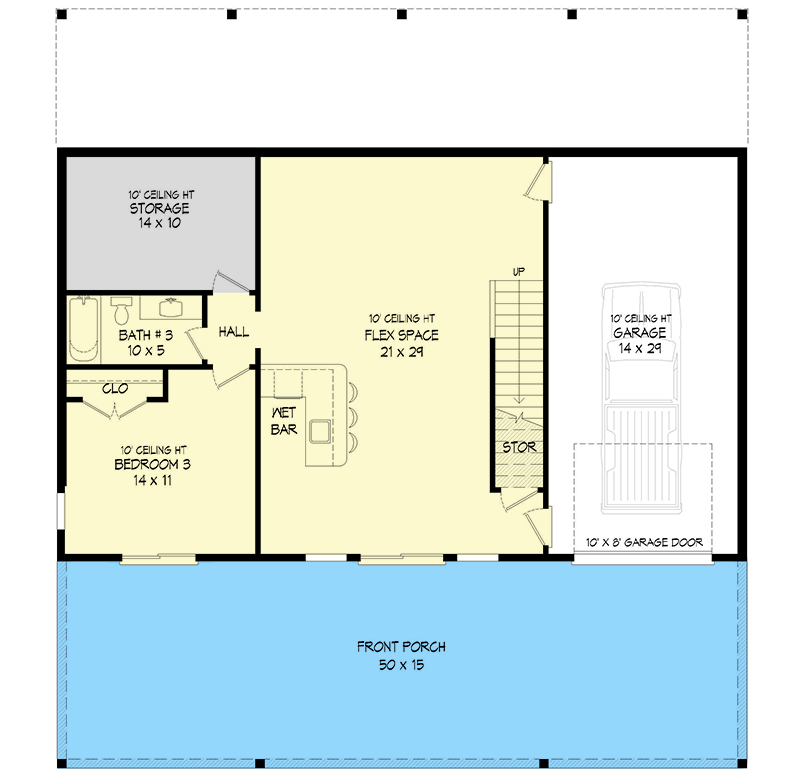

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,569 sq. ft.
  • Lower Level: 1,069 sq. ft.
  • 1st Floor: 1,500 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 55' 0"
  • Max ridge height: 20' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Drive Under, Attached
  • Area: 431 sq. ft.
  • Count: 1 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 9 on 10
  • Framing Type: Stick
