3-Bed Mountain House Plan with Sweeping Rearward Views

Plan 280086JWD

  • 2,926

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The rear elevation of this 3-bedroom, mountain house plan is almost completely comprised of glass in order to offer the best views of the surrounding landscape.
  • The 3-car garage protrudes from the front of the home, and opens into a mudroom with a coat closet, nearby powder bath, and neighboring laundry room.
  • The spacious kitchen features a large island and overlooks the dining area. Retreat to the back porch for outdoor enjoyment when entertaining, or cozy up next to the fireplace in the great room.
  • The hallway off the entry leads to a quiet den, and eventually, the secluded master bedroom. The homeowner is sure to appreciate the 5-fixture bath, complete with a toilet room and walk-in closet.
  • Two additional bedrooms can be found upstairs, along with a shared, 4-fixture bath.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

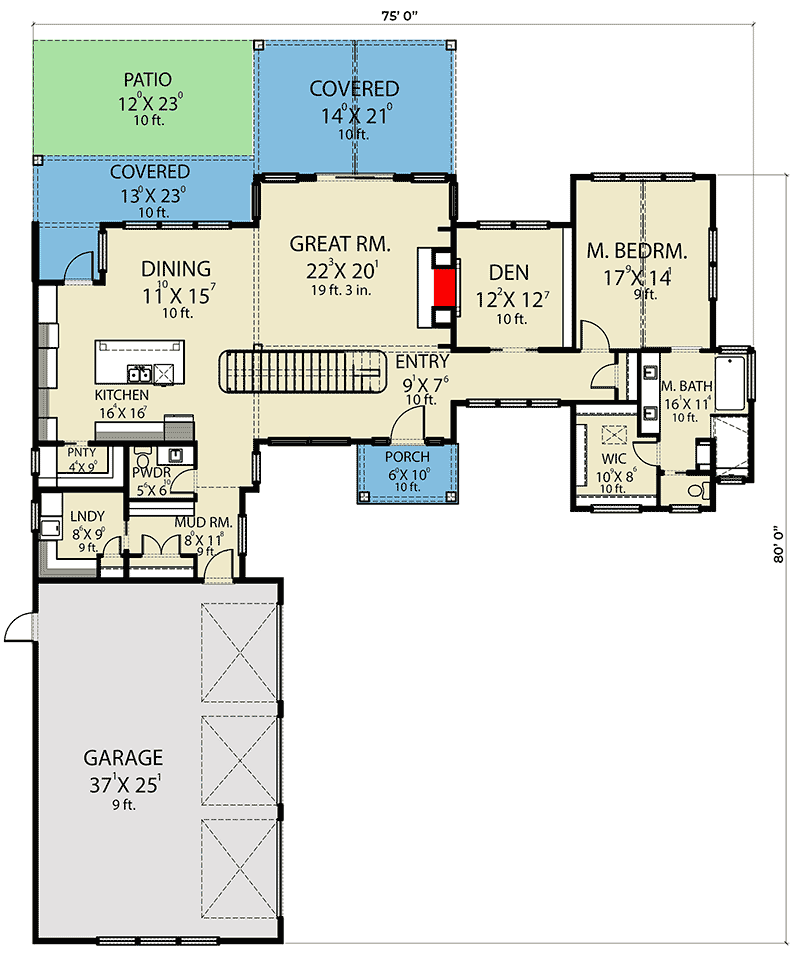

3-Bed Mountain House Plan with Sweeping Rearward Views - 280086JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Mountain House Plan with Sweeping Rearward Views - 280086JWD floor plan - 2nd Floor

3-Bed Mountain House Plan with Sweeping Rearward Views

  • 2,926

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,926 sq. ft.
  • 1st Floor: 2,199 sq. ft.
  • 2nd Floor: 727 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 75' 0"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 988 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
