Plan 521010TTL 3-Bed Narrow Cottage House Plan Under 30' Wide

1,609 3 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Narrow Cottage House Plan Under 30' Wide

Plan 521010TTL

  • 1,609

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

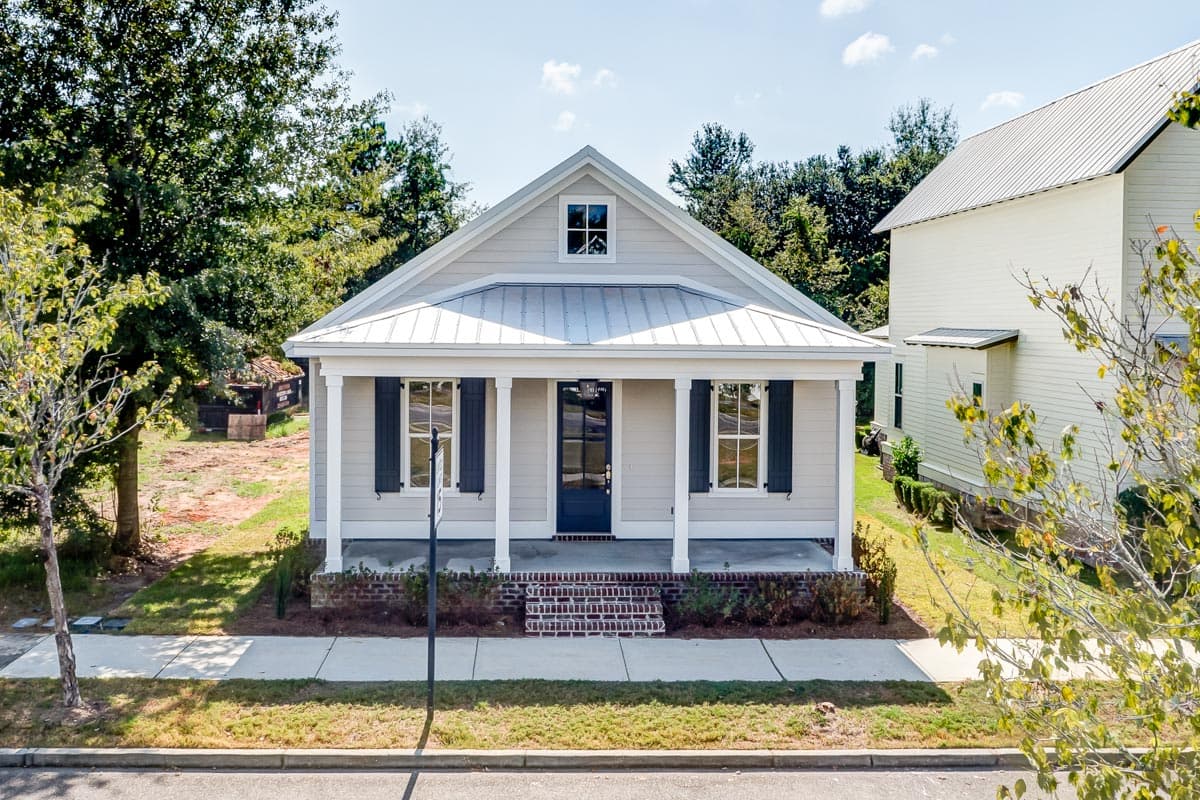

  • Just under 30' wide, this 3-bed narrow house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.

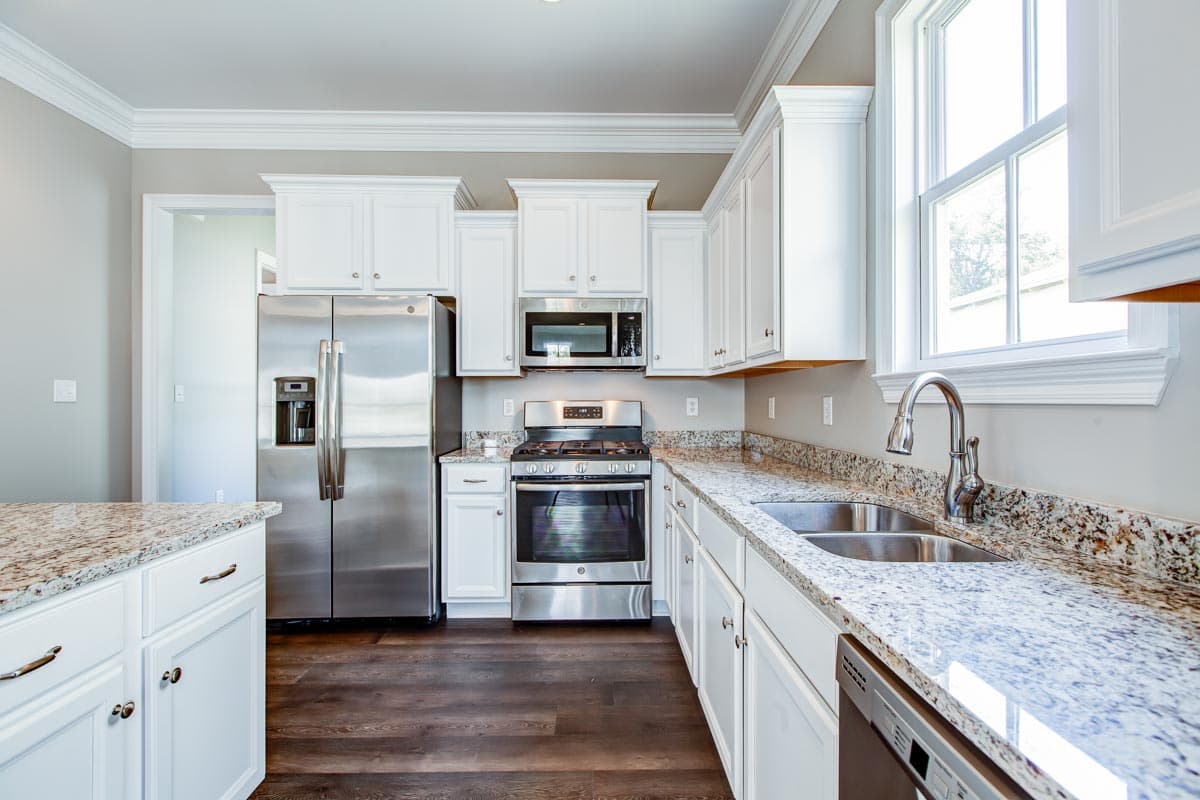

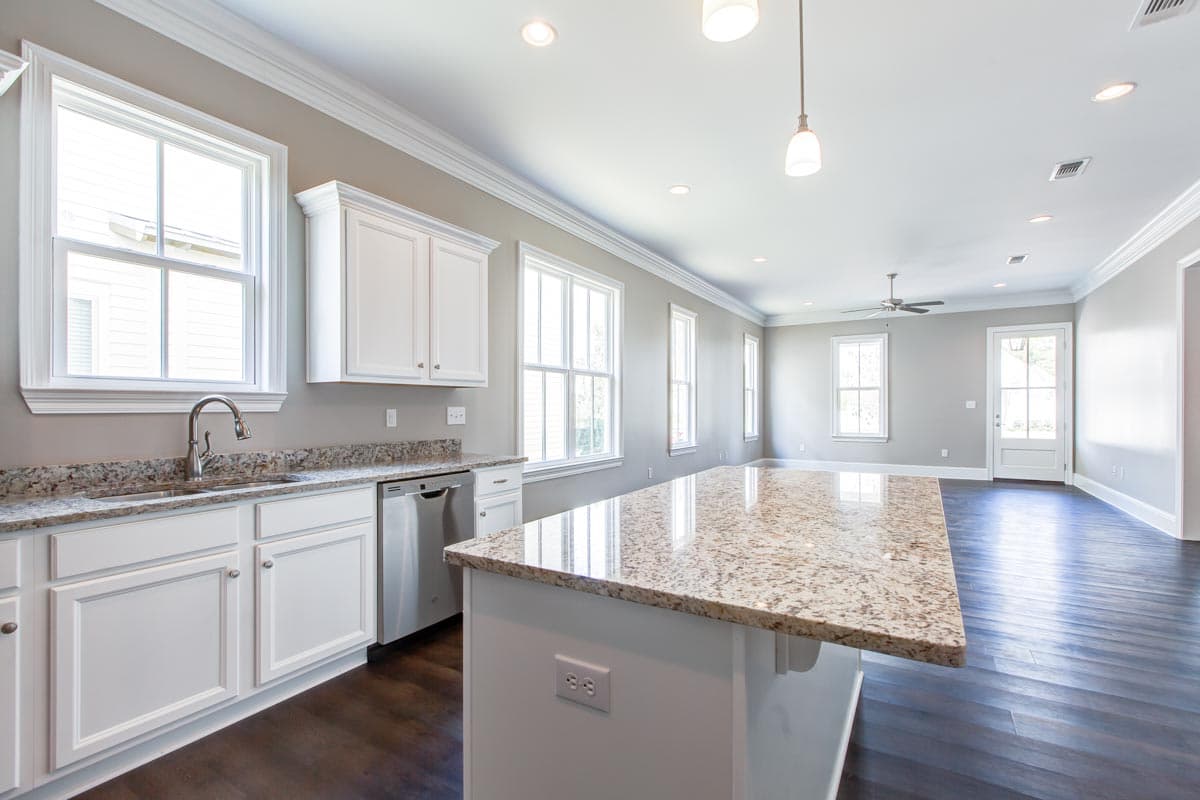

  • The right side of the home is open from the living area through the dining area to the kitchen. The kitchen has an island with work space and counter seating.

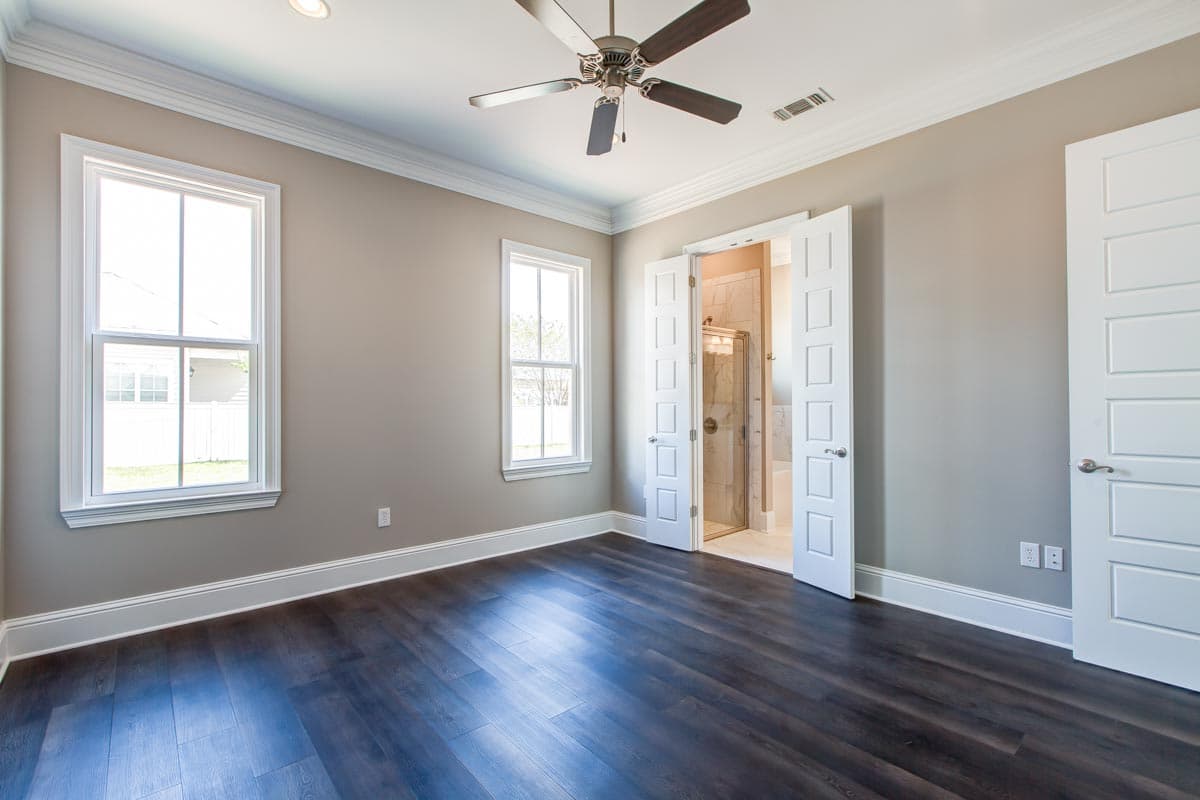

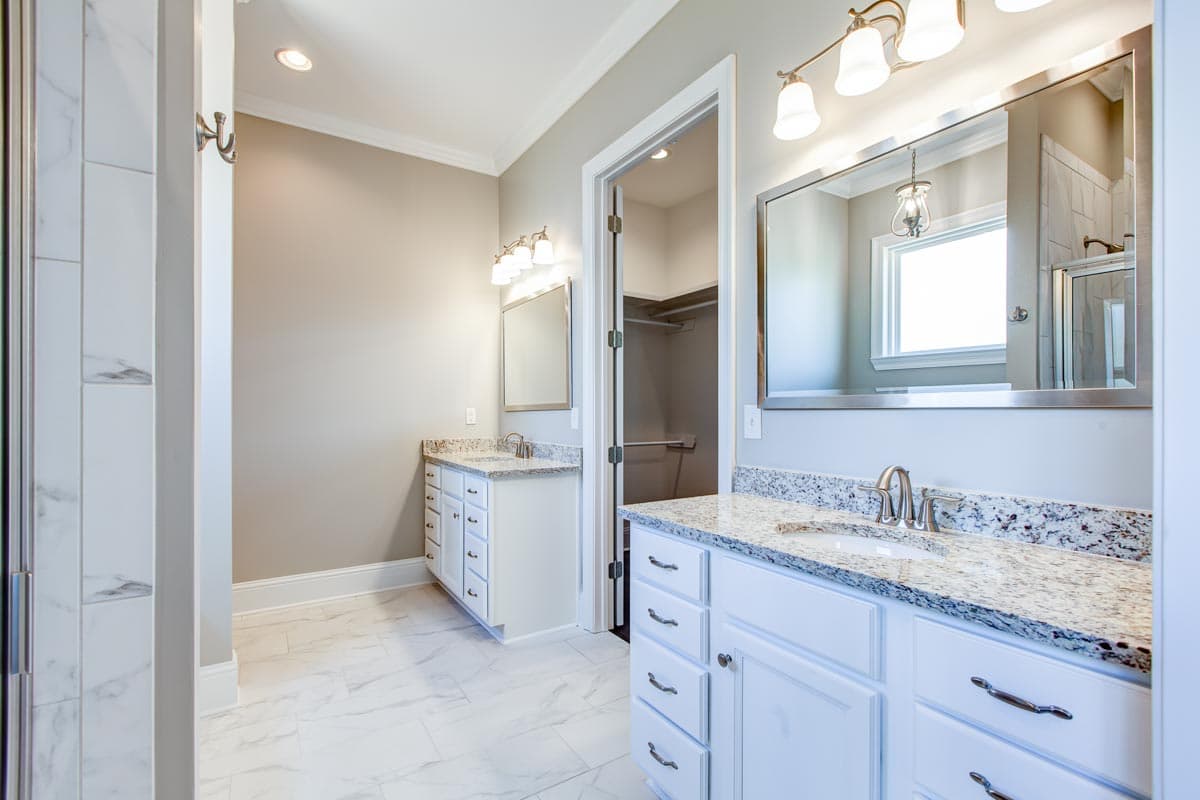

  • All three bedrooms are lined up on the left side of the home, including the master suite with a walk-in closet and a 5-fixture bath.

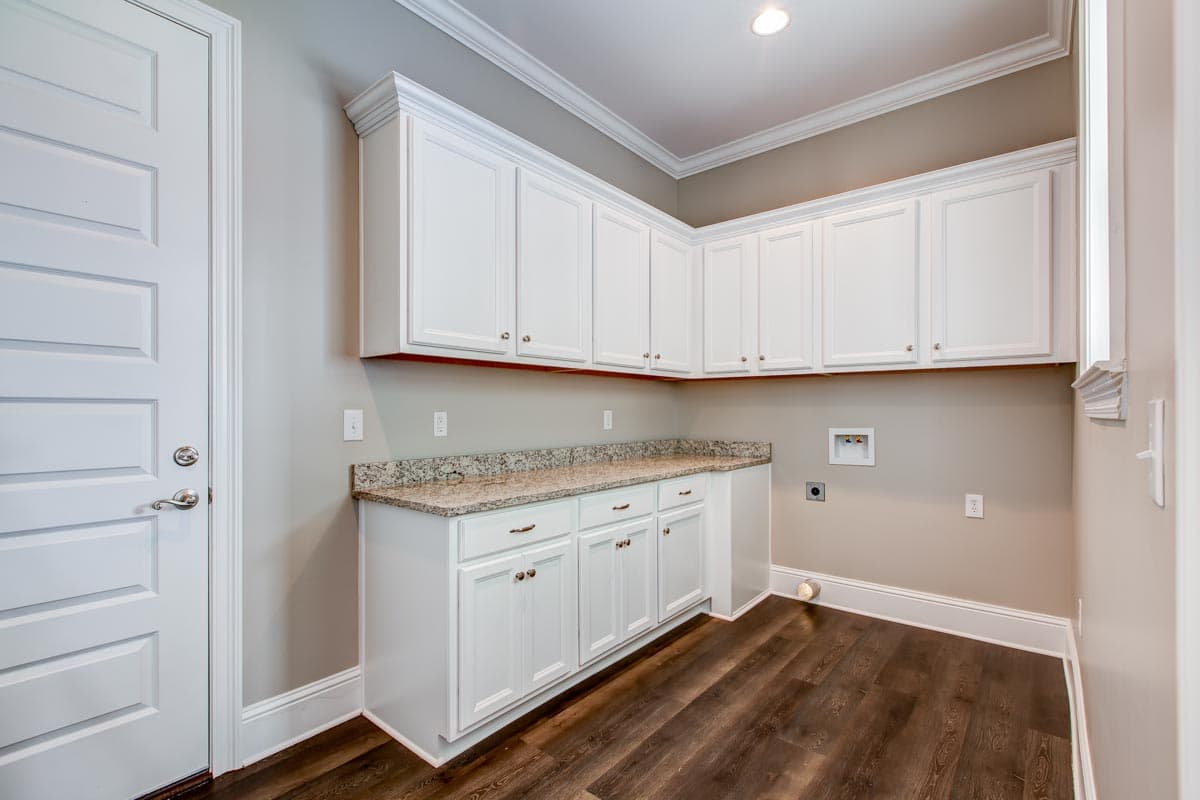

  • A side porch is located between the kitchen and the mudroom off the rear-access garage.

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

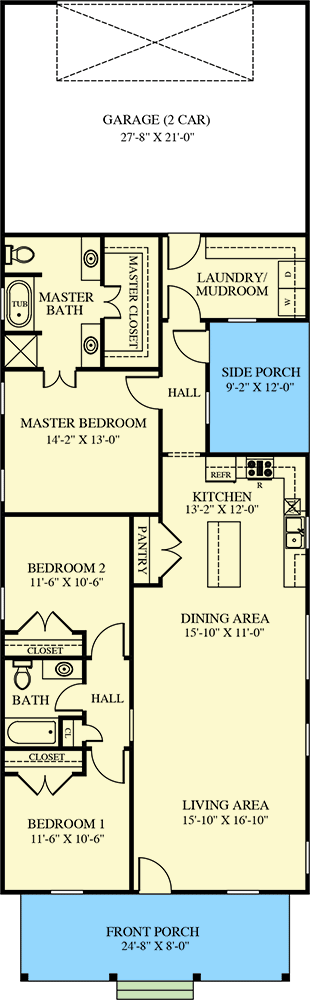

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Narrow Cottage House Plan Under 30' Wide - 521010TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,609 sq. ft.
  • 1st Floor: 1,609 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 29' 2"
  • Depth: 90' 10"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

3-Bed Narrow Cottage House Plan Under 30' Wide

  • 1,609

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD + PDF - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • Just under 30' wide, this 3-bed narrow house plan is ideally suited for your narrow or in-fill lot. Being narrow doesn't mean you have to sacrifice a garage. There is a 2-car garage in back, perfect for alley access.
  • The right side of the home is open from the living area through the dining area to the kitchen. The kitchen has an island with work space and counter seating.
  • All three bedrooms are lined up on the left side of the home, including the master suite with a walk-in closet and a 5-fixture bath.
  • A side porch is located between the kitchen and the mudroom off the rear-access garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,609 sq. ft.
  • 1st Floor: 1,609 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 29' 2"
  • Depth: 90' 10"
  • Max ridge height: 22' 1"

Garage

  • Type: Attached
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
