Plan 280104JWD
3-Bed New American Cottage House Plan with Side Covered Patio - 2444 Sq Ft
Heated S.F.
2,444
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Horizontal and vertical siding beautifully coexists on the exterior of this 3-bedroom, New American cottage house plan, complete with a front and side patio.

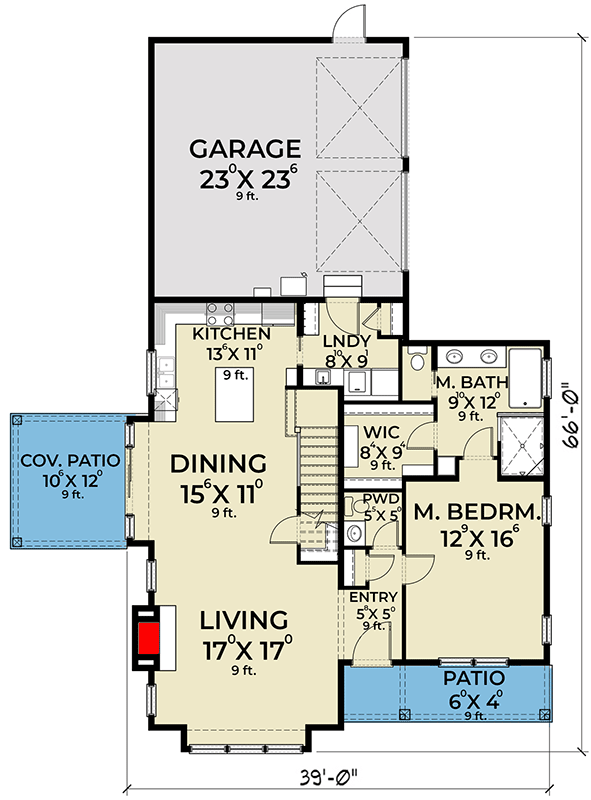

  • Step inside to find a coat closet and powder bath directly in front of the entryway. To the left, windows wrap around the living room, warmed by a fireplace, and open to the dining area and kitchen.
  • The sizable island in the kitchen is destined to serve as the conversation hub, while offering ample space for meal prep. A pocket door nearby reveals the combined laundry / mudroom, which leads to the double garage.
  • Enjoy the convenience of a main-level master bedroom, just off the entry, and joined by a 5-fixture ensuite and a walk-in closet.

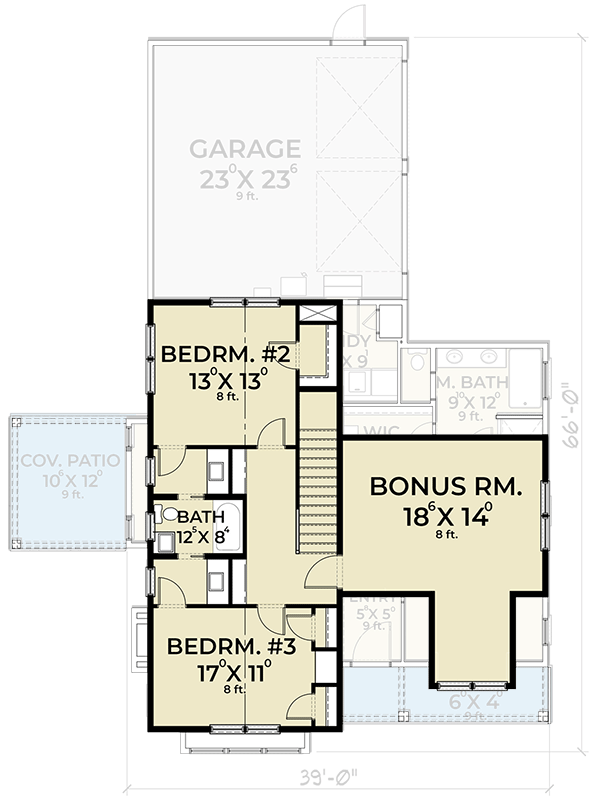

  • Upstairs, two family bedrooms share a Jack-and-Jill bath, and a generous bonus room provides a fun space for all to enjoy.
  • Related Plan: Remove the bonus room with house plan 280087JWD.
What's Included

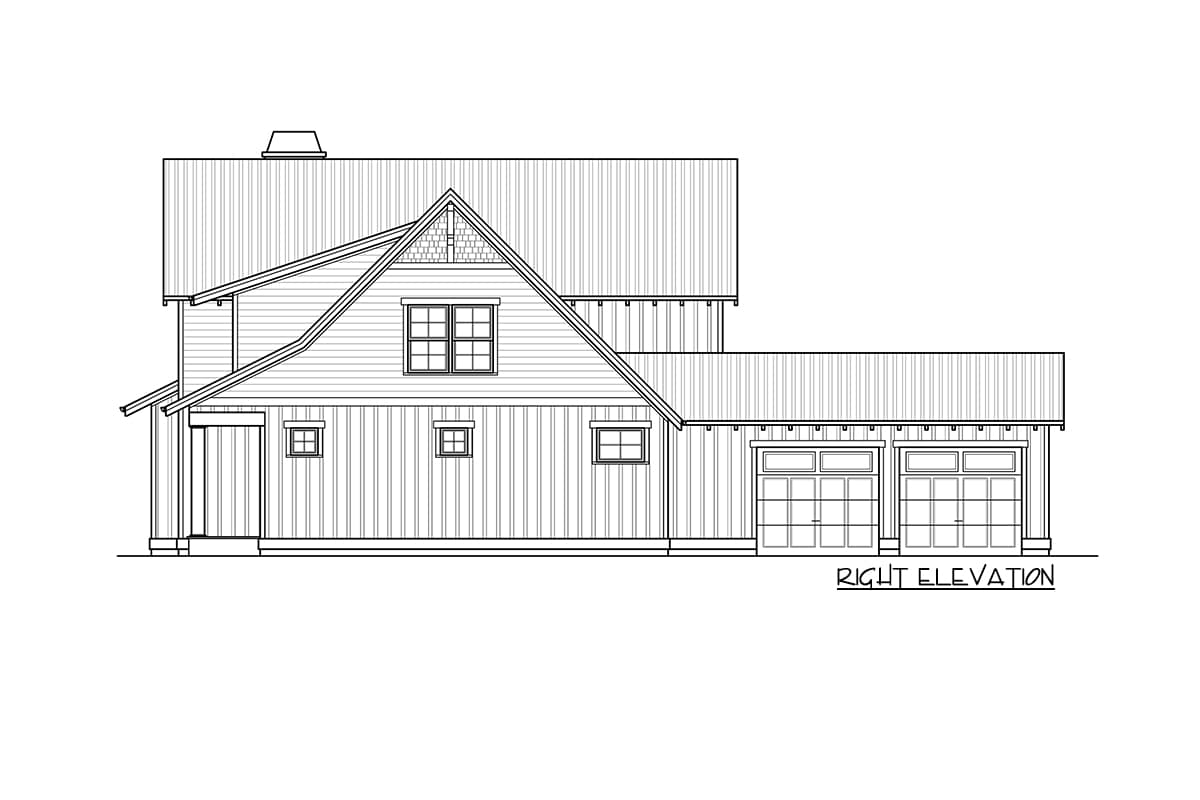

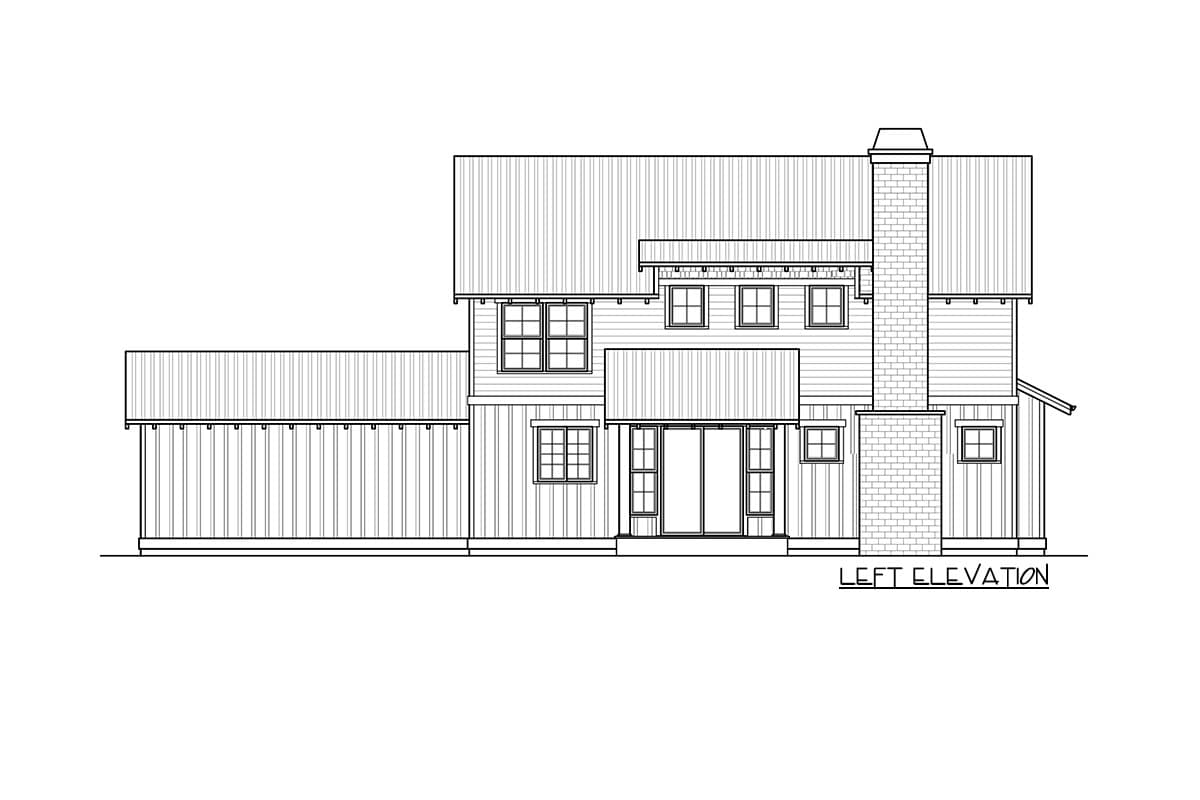

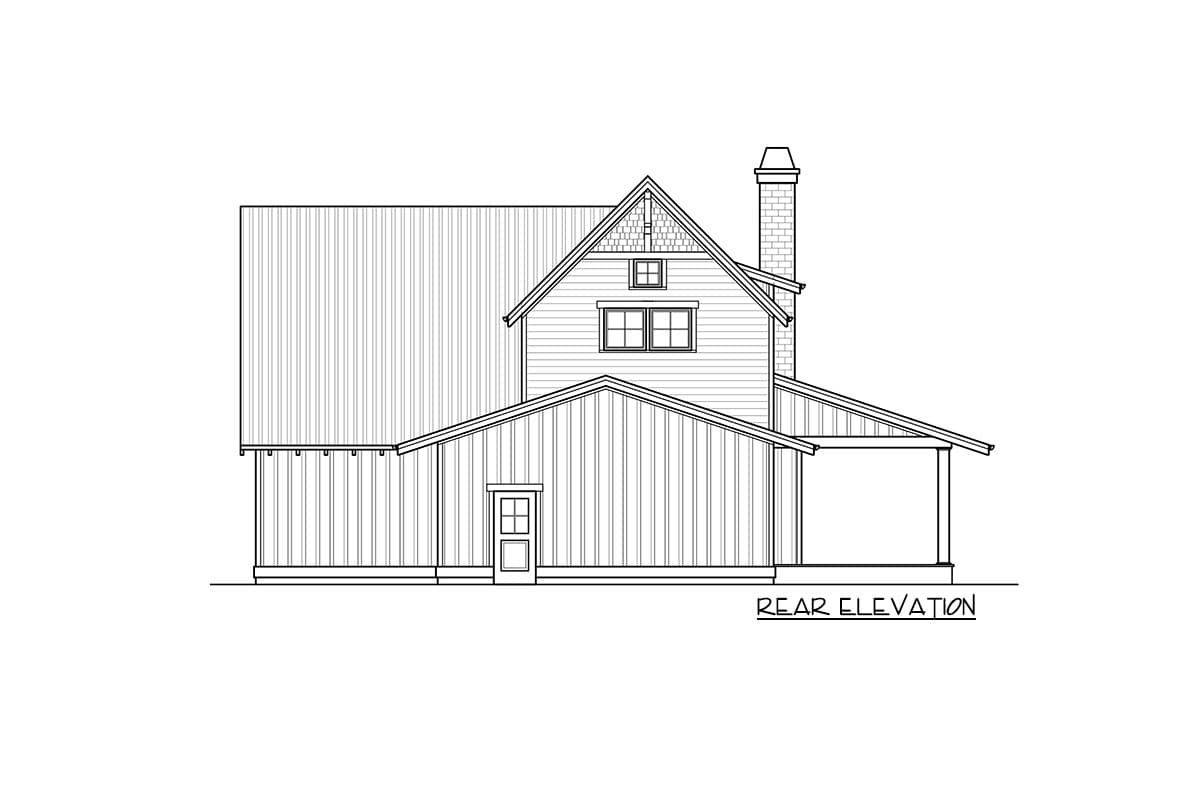

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed New American Cottage House Plan with Side Covered Patio - 2444 Sq Ft

  • 2,444

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,444 sq. ft.
  • 1st Floor: 1,371 sq. ft.
  • 2nd Floor: 720 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 66' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
