Plan 280104JWD 3-Bed New American Cottage House Plan with Side Covered Patio

3-Bed New American Cottage House Plan with Side Covered Patio

Plan 280104JWD

  • 2,444

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Horizontal and vertical siding beautifully coexists on the exterior of this 3-bedroom, New American cottage house plan, complete with a front and side patio.
  • Step inside to find a coat closet and powder bath directly in front of the entryway. To the left, windows wrap around the living room, warmed by a fireplace, and open to the dining area and kitchen.
  • The sizable island in the kitchen is destined to serve as the conversation hub, while offering ample space for meal prep. A pocket door nearby reveals the combined laundry / mudroom, which leads to the double garage.
  • Enjoy the convenience of a main-level master bedroom, just off the entry, and joined by a 5-fixture ensuite and a walk-in closet.
  • Upstairs, two family bedrooms share a Jack-and-Jill bath, and a generous bonus room provides a fun space for all to enjoy.
  • Related Plan: Remove the bonus room with house plan 280087JWD.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

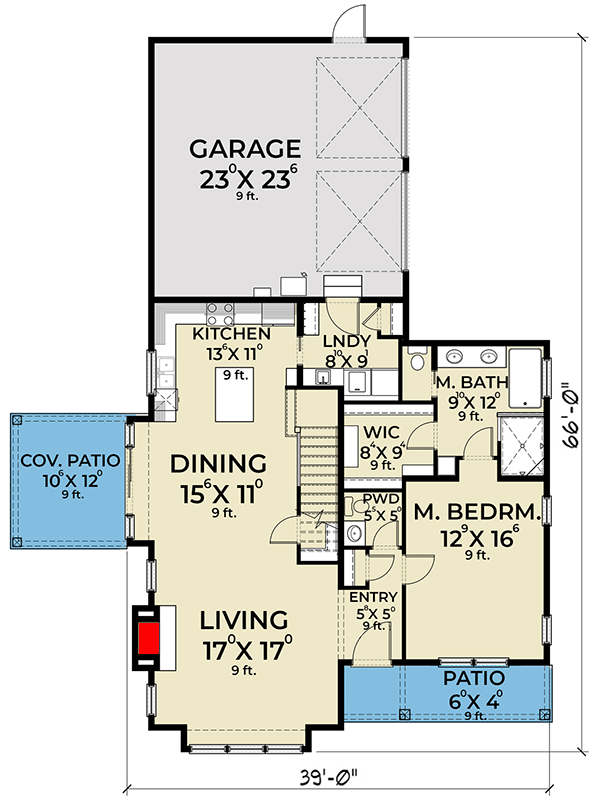

3-Bed New American Cottage House Plan with Side Covered Patio  - 280104JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

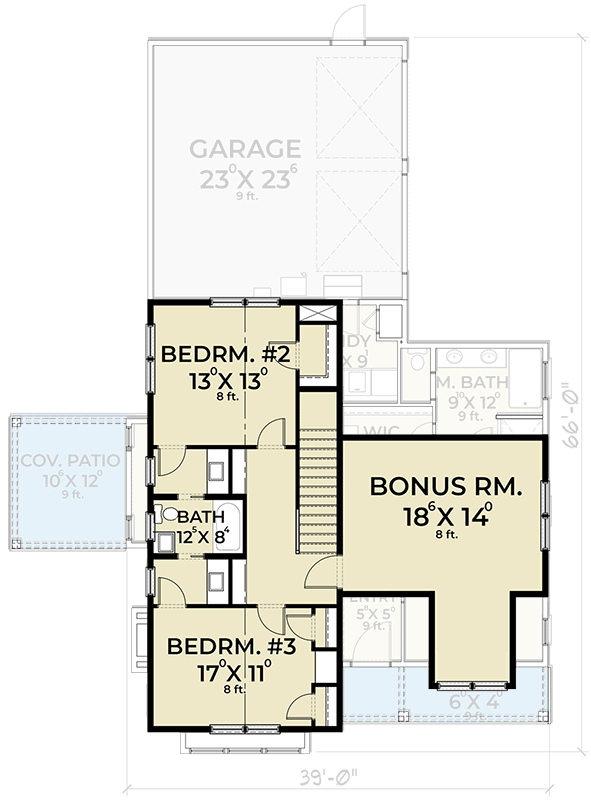

3-Bed New American Cottage House Plan with Side Covered Patio  - 280104JWD floor plan - 2nd Floor

Plan details



3-Bed New American Cottage House Plan with Side Covered Patio

  • 2,444

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $1,900
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • Horizontal and vertical siding beautifully coexists on the exterior of this 3-bedroom, New American cottage house plan, complete with a front and side patio.
  • Step inside to find a coat closet and powder bath directly in front of the entryway. To the left, windows wrap around the living room, warmed by a fireplace, and open to the dining area and kitchen.
  • The sizable island in the kitchen is destined to serve as the conversation hub, while offering ample space for meal prep. A pocket door nearby reveals the combined laundry / mudroom, which leads to the double garage.
  • Enjoy the convenience of a main-level master bedroom, just off the entry, and joined by a 5-fixture ensuite and a walk-in closet.
  • Upstairs, two family bedrooms share a Jack-and-Jill bath, and a generous bonus room provides a fun space for all to enjoy.
  • Related Plan: Remove the bonus room with house plan 280087JWD.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,444 sq. ft.
  • 1st Floor: 1,371 sq. ft.
  • 2nd Floor: 720 sq. ft.
  • Bonus: 353 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 66' 0"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
