3-Bed New American Farmhouse Plan Under 1,500 Square Feet

Heated S.F.
1,493
Beds
3
Baths
2
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 51862HZ

Main Level
Main Level
Main Level - Basement Stairs Location
Main Level - Basement Stairs Location

Plan 51862HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

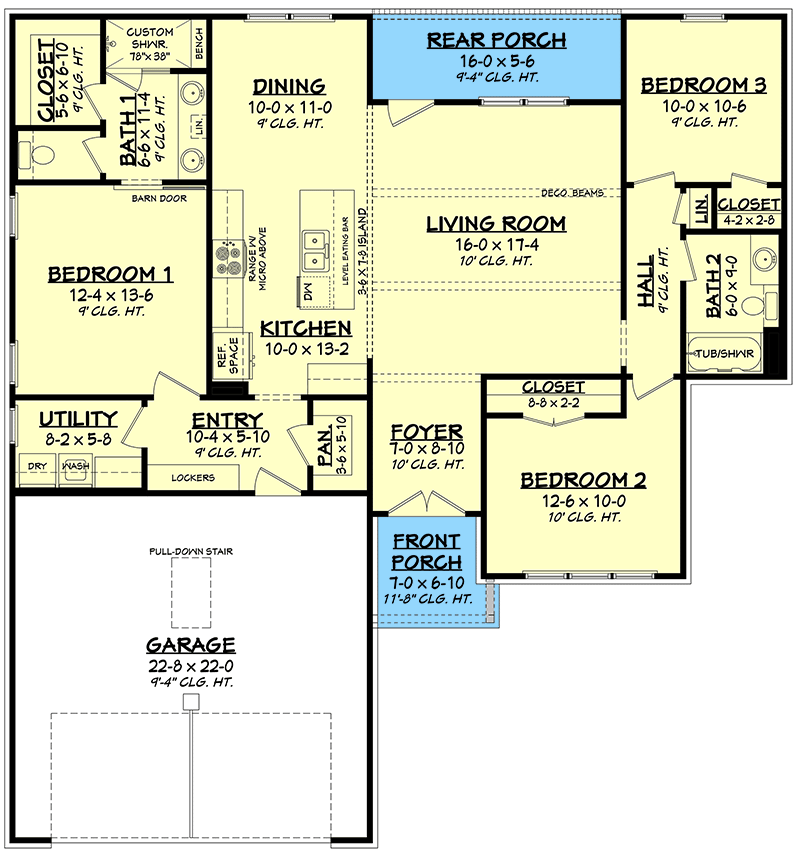

Plan 51862HZ: 3-Bed New American Farmhouse Plan Under 1,500 Square Feet - Floor Plan - Main Level - Cottage, Country, Craftsman, Modern Farmhouse, New American, Traditional

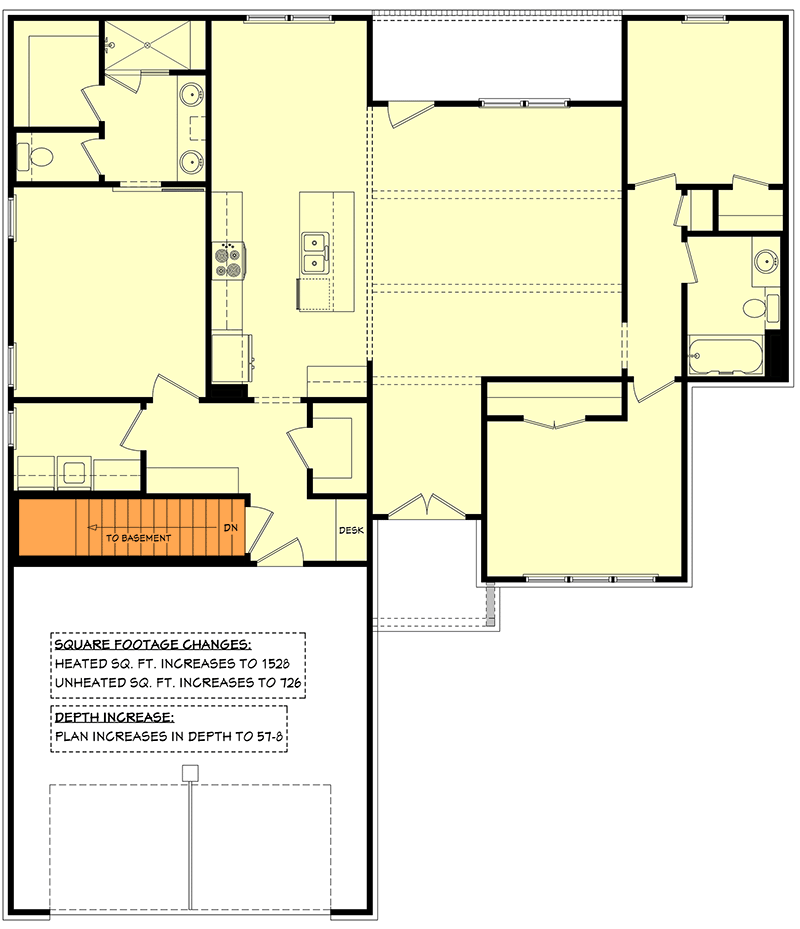

Main Level - Basement Stairs Location

Plan 51862HZ: 3-Bed New American Farmhouse Plan Under 1,500 Square Feet - Floor Plan - Main Level - Basement Stairs Location - Cottage, Country, Craftsman, Modern Farmhouse, New American, Traditional

Plan Details

  • The goal was to create a 3-bed New American farmhouse plan and keep it under 1,500 square feet. Mission accomplished! Board and batten siding and a decorative shed dormer above the French door entry give the home great curb appeal.
  • You'll like the look and feel of the 10' ceilings with decorative beams in the family room which is open to the kitchen. Windows on the back wall look out across the back porch and a door takes you outside.
  • The master bedroom has two vanities, a walk-in closet, a private toilet and a custom shower with a bench. Across the home, two bedrooms share a bathroom with a tub/shower combo.
  • Lockers and pantry storage off the garage entrance is a nice touch. A door hides the laundry room from view until you need to use that space.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

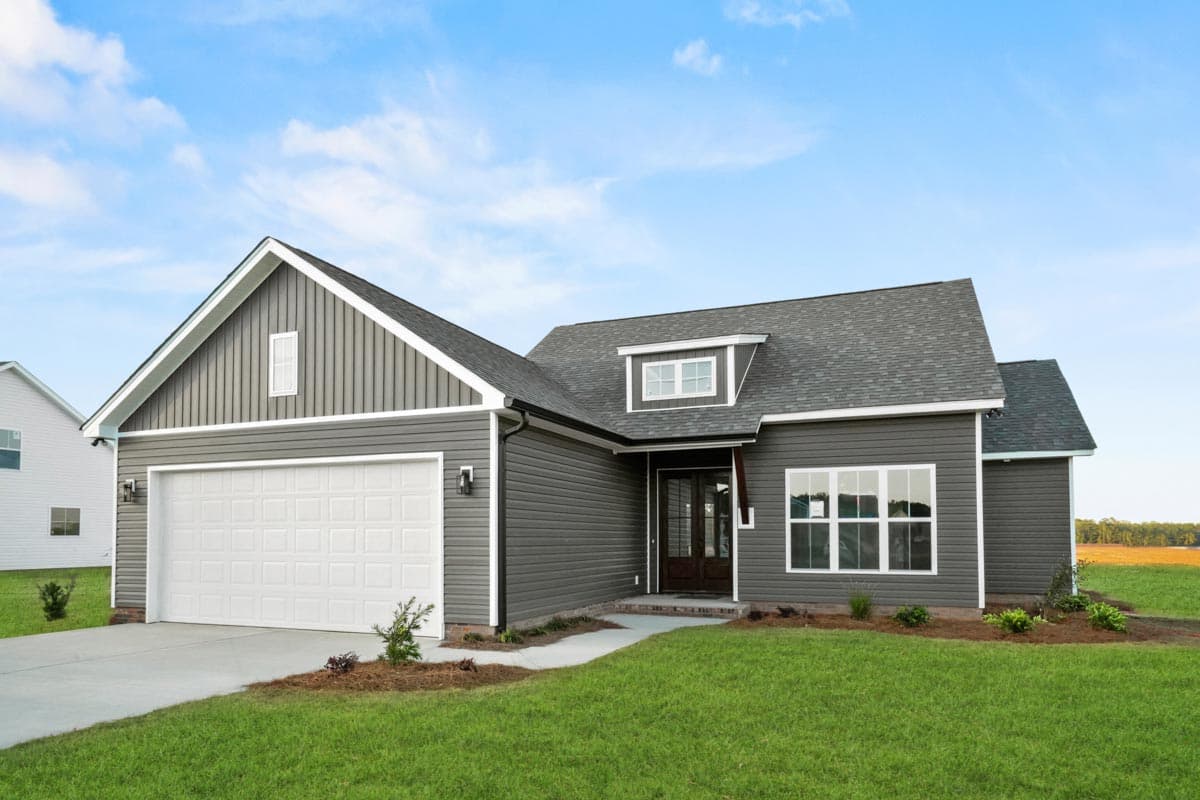

build gallery item - New American House Plan 51862HZ Comes to Life in North Carolina

New American House Plan 51862HZ Comes to Life in North Carolina

39

Photos

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
