3-Bed New American House Plan with Vaulted Great Room - 1878 Sq Ft

Name: Plan 69715AM: 3-Bed New American House Plan with Vaulted Great Room - 1878 Sq Ft
Brand: Architectural Designs
SKU: 69715AM
Price: 1360.00 USD
Availability: InStock

Heated S.F.

1,878

Beds

Baths

Stories

Cars

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

House Plan 69715AM Comes to Life in Texas (again!)

Photos

House Plan 69715AM comes to life in Oklahoma

Photos

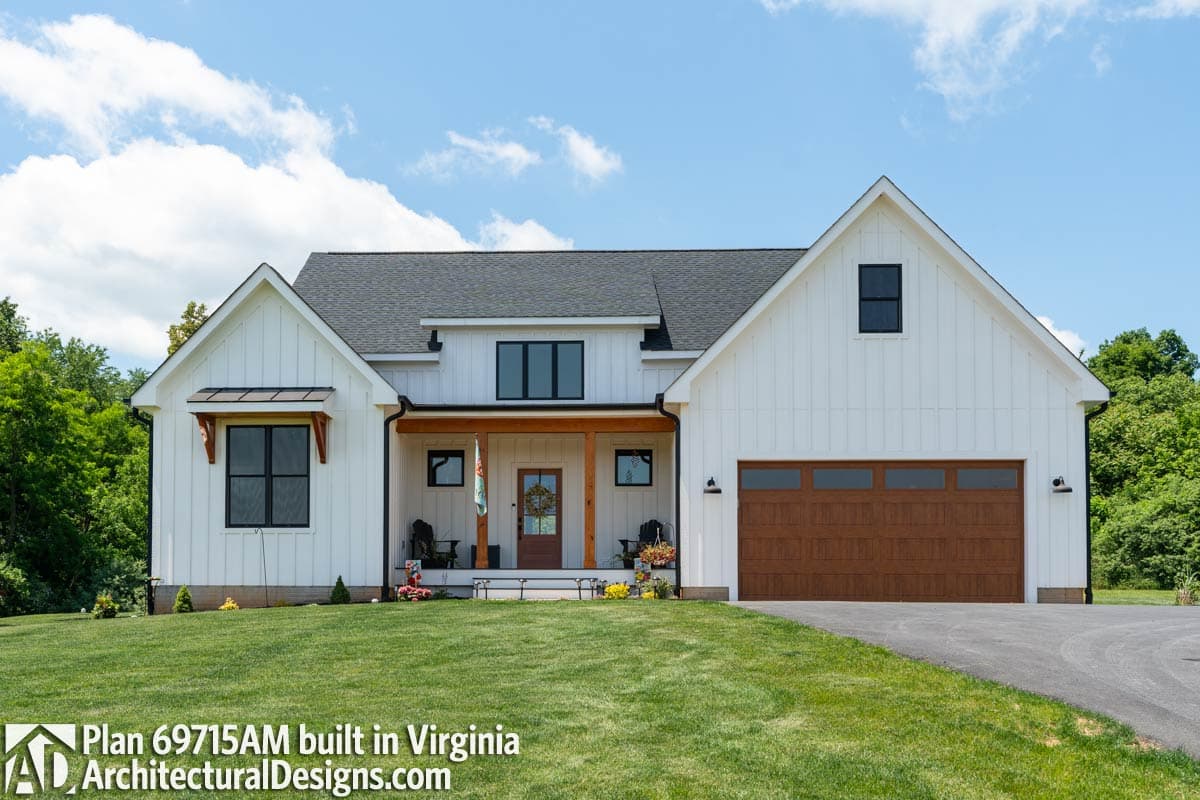

Modern Farmhouse Plan 69715AM Comes to Life in Virginia

Photos

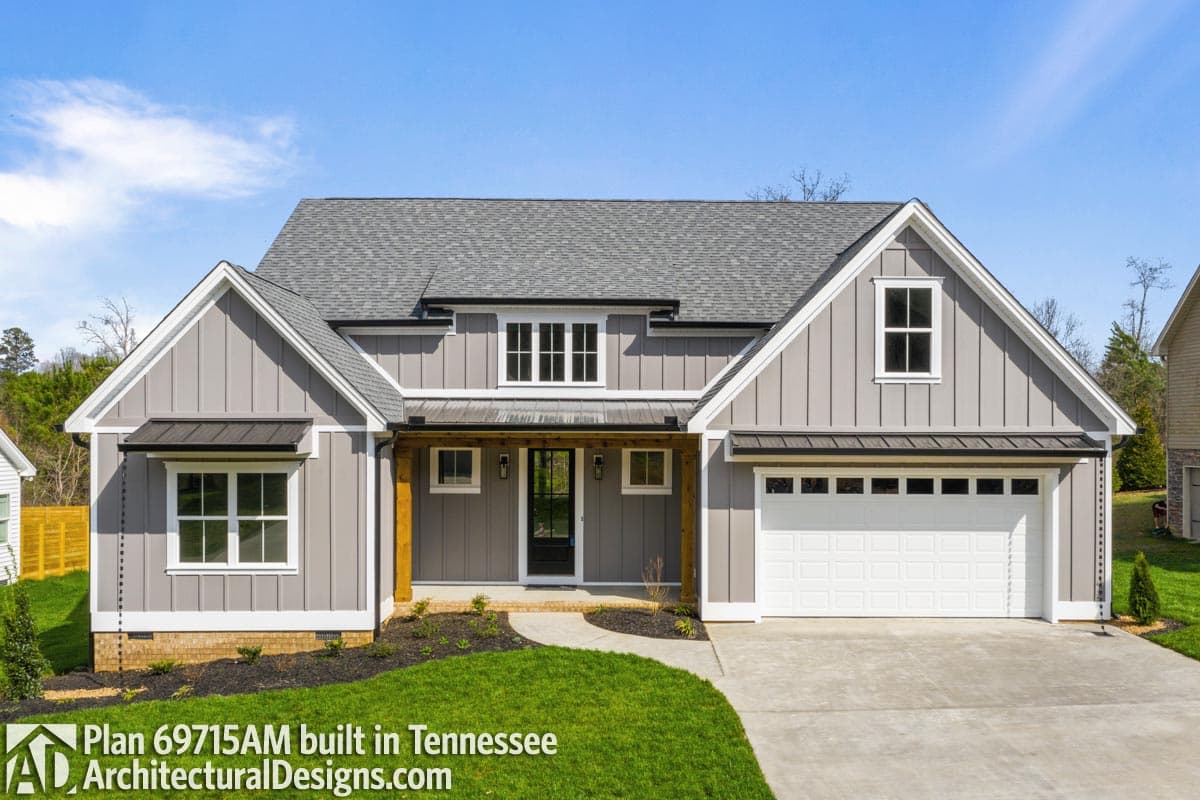

House Plan 69715AM Comes to Life in Tennessee

Photos

House Plan 69715AM Comes to Life in Tennessee

Photos

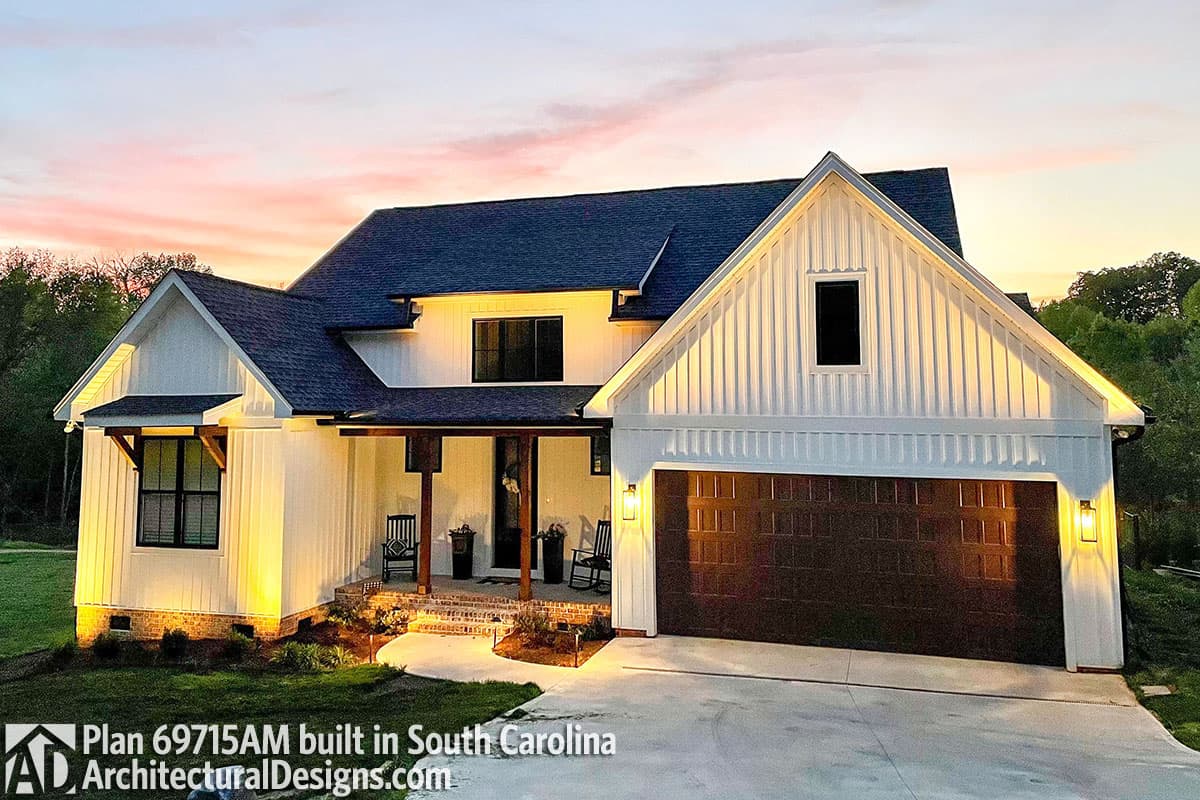

House Plan 69715AM Comes to Life in South Carolina

Photos

TourClient Photos

Floor Plan

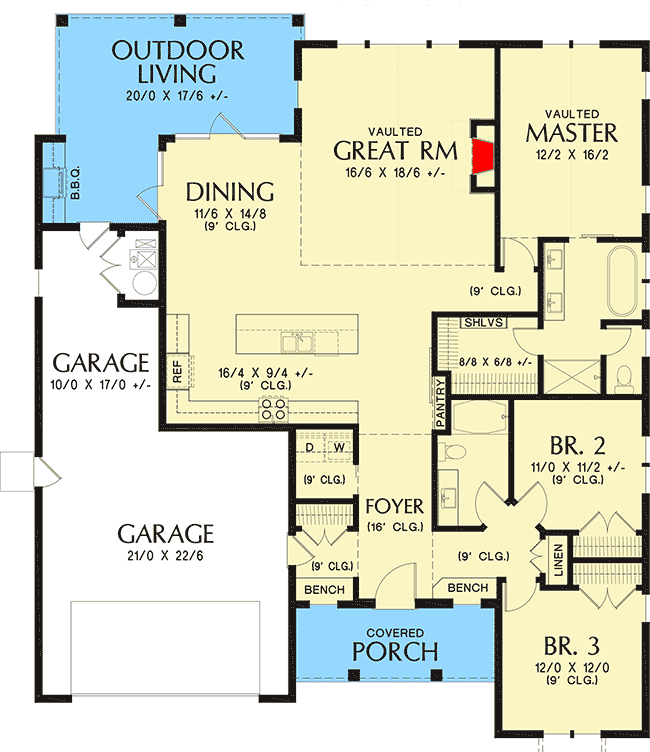

Main Level

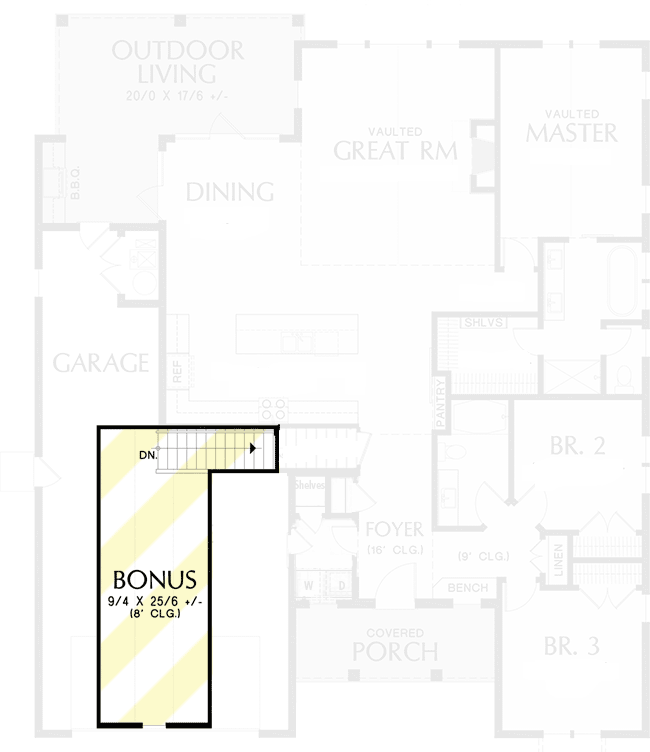

Bonus Room Option

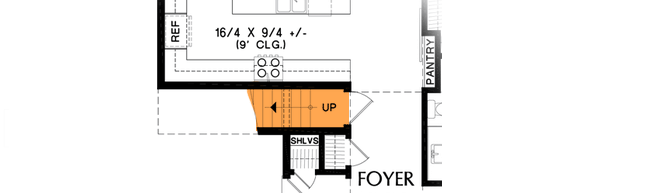

Bonus Room Option Stair Location

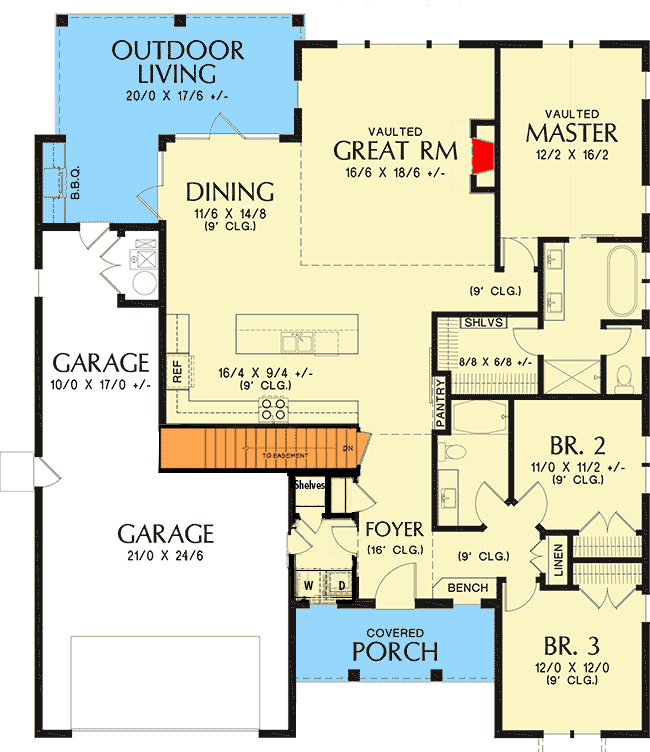

Basement Option Stair Location

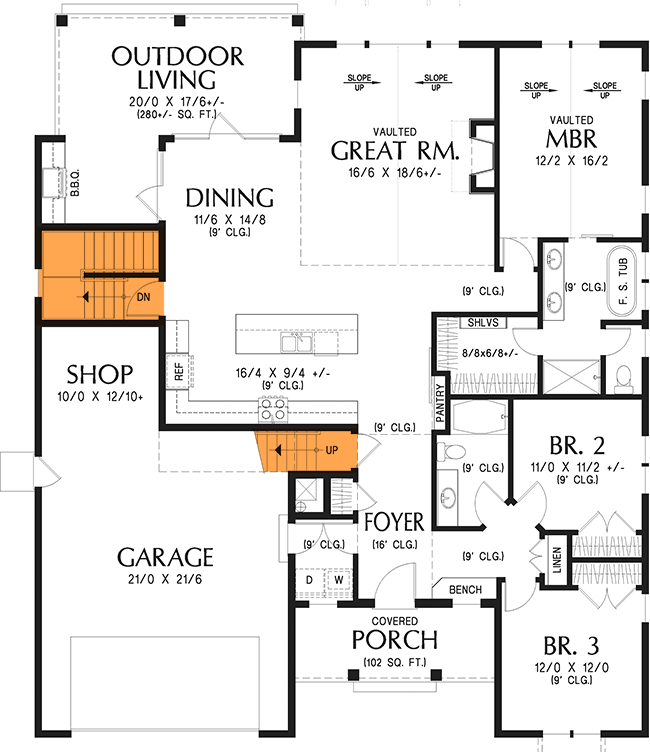

Bonus Room and Basement Option Stair Location

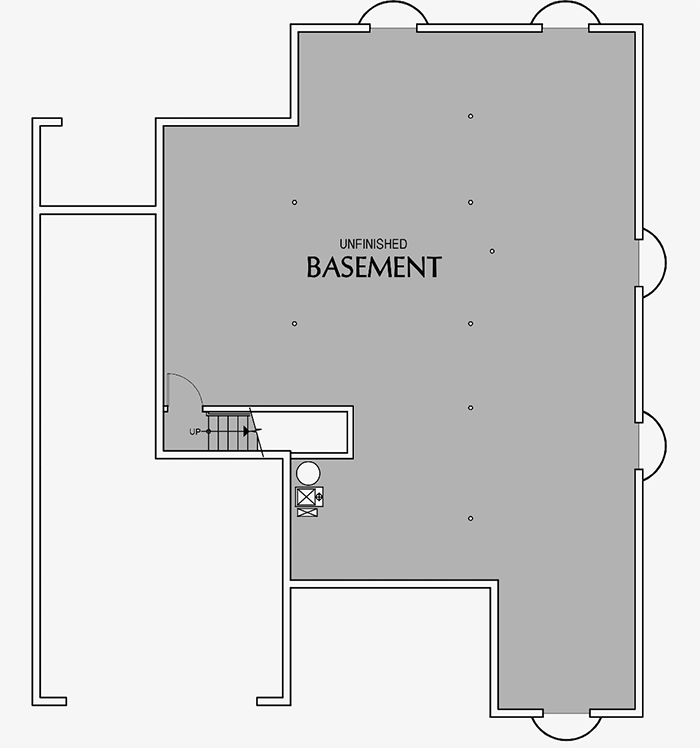

Unfinished Basement

Plan Details

This New American house plan boasts gable roofs, board and batten siding, and a modern, metal roof. The natural wood tones combine beautifully with the white siding and dark window sashes.
Inside, a spacious, open layout provides a comfortable space for family and friends to gather. The vaulted ceiling in the great room offers a feeling of grandeur and the fireplace lends warmth and character.
A large island includes the kitchen sink and dishwasher, and a BBQ station on the covered porch encourages outdoor living.
The master suite also includes a vaulted ceiling, as well as a large bathroom with a separate tub and shower, dual sinks, a toilet room, and a walk-in closet.
Two nearly identical bedrooms sit towards the front of the home and share a full bathroom. A workshop or storage area is attached to the 2-car garage for added convenience.
A 2-car front-facing garage with a 16' by 8' overhead door has extra storage behind the left bay.
Related Plans: Add a third garage bay with house plan 69226AM. Get alternate versions with house plans 69194AM, 6934AM and 69018AM.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
