Plan 710221BTZ
3-Bed New Urbanism House Plan
Heated S.F.
2,171
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

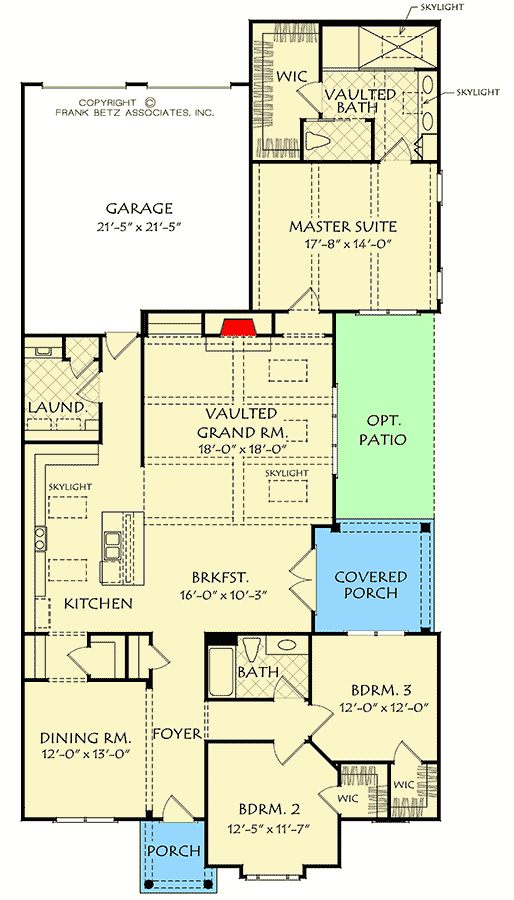

Main Level
Reverse Floor Plan
3-Bed New Urbanism House Plan - 710221BTZ floor plan - Main Level

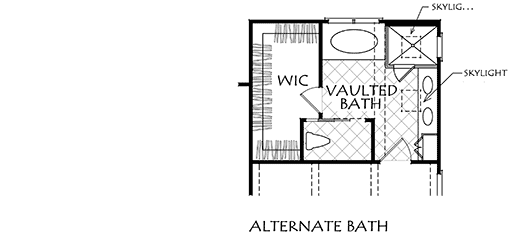

Master Bath Option
Reverse Floor Plan
3-Bed New Urbanism House Plan - 710221BTZ floor plan - Master Bath Option
Plan Details
  • This house plan was designed as part of the New Urbanism movement. Building sites and developments such as urban infill or rear loaded alleys require this type of design. Stately brick and board-and-batten siding are the materials of choice which blend perfectly on this stylish cottage. The copper topped bay window, operable shutters and arched entry door add all the right details.
  • The main level centers on the covered porch and private patio. The vaulted grand room with beams and skylights, kitchen and breakfast nook all look open up onto the patio.
  • The master suite has a beamed ceiling and also takes advantage of views onto the private patio. The master bath has a large walk-in shower and walk-in-closet and comes with a an optional layout. There are two additional bedrooms with walk-in-closets.
  • Related Plans: Get alternate exteriors with house plan 710325BTZ and 710326BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
