Plan 490043NAH 3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage

1,999 3-5 2 - 3 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage

Plan 490043NAH

  • 1,999

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 3

    Cars

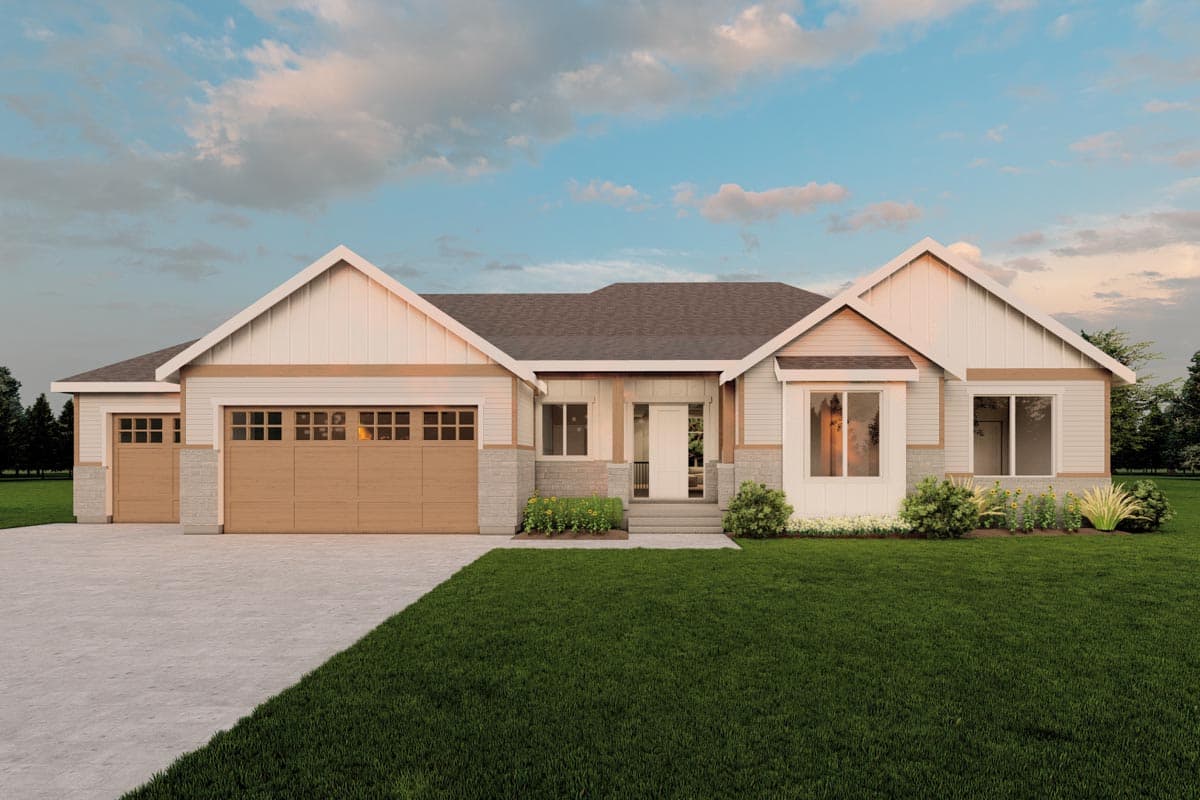

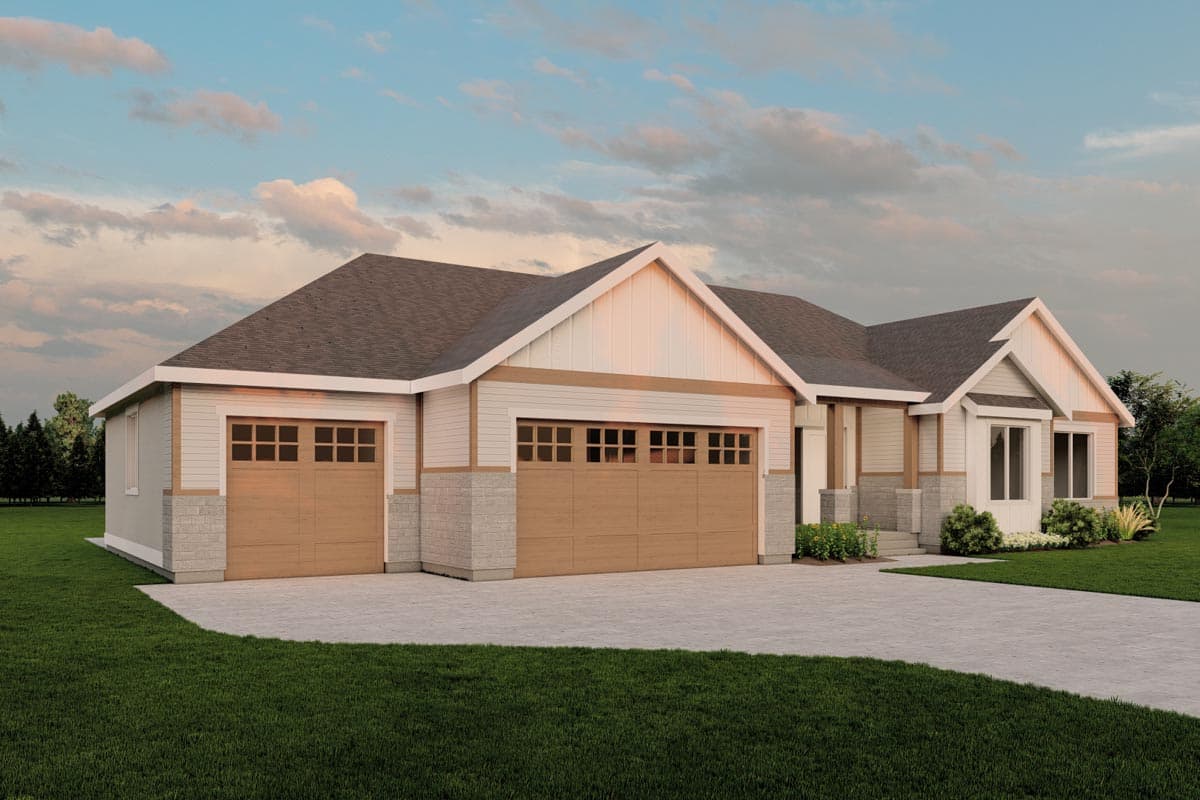

  • This one-story 3-bed traditional home plan offers one-level living and an incredible garage for storing your hobbies and toys.

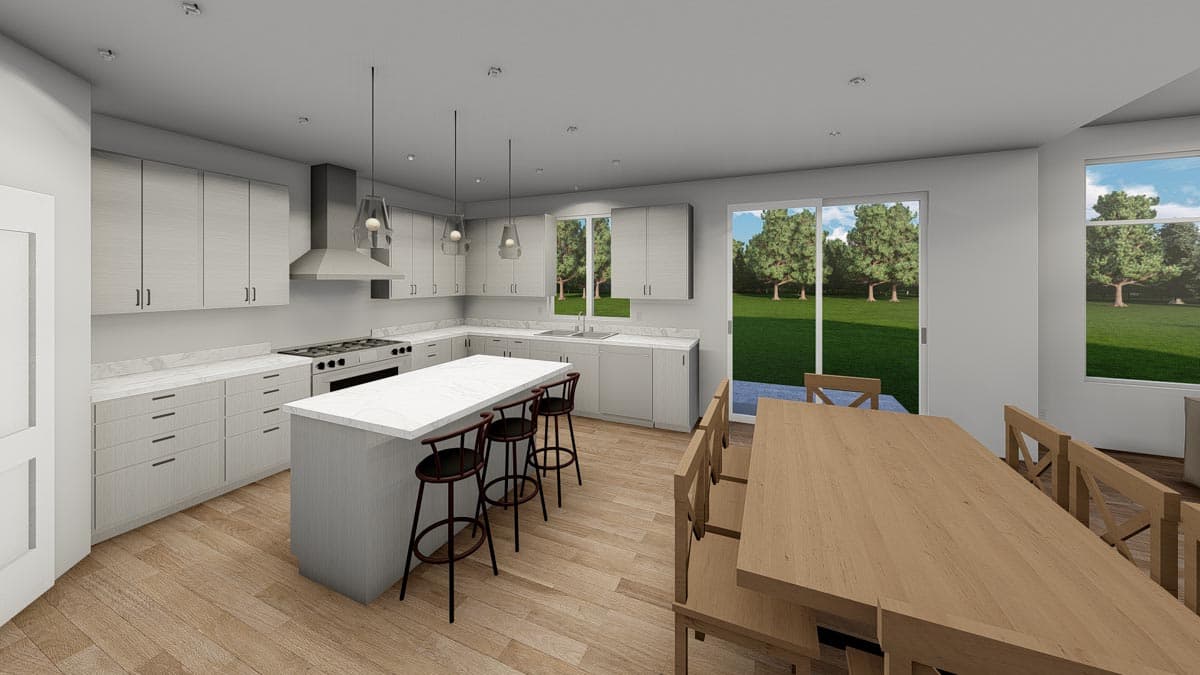

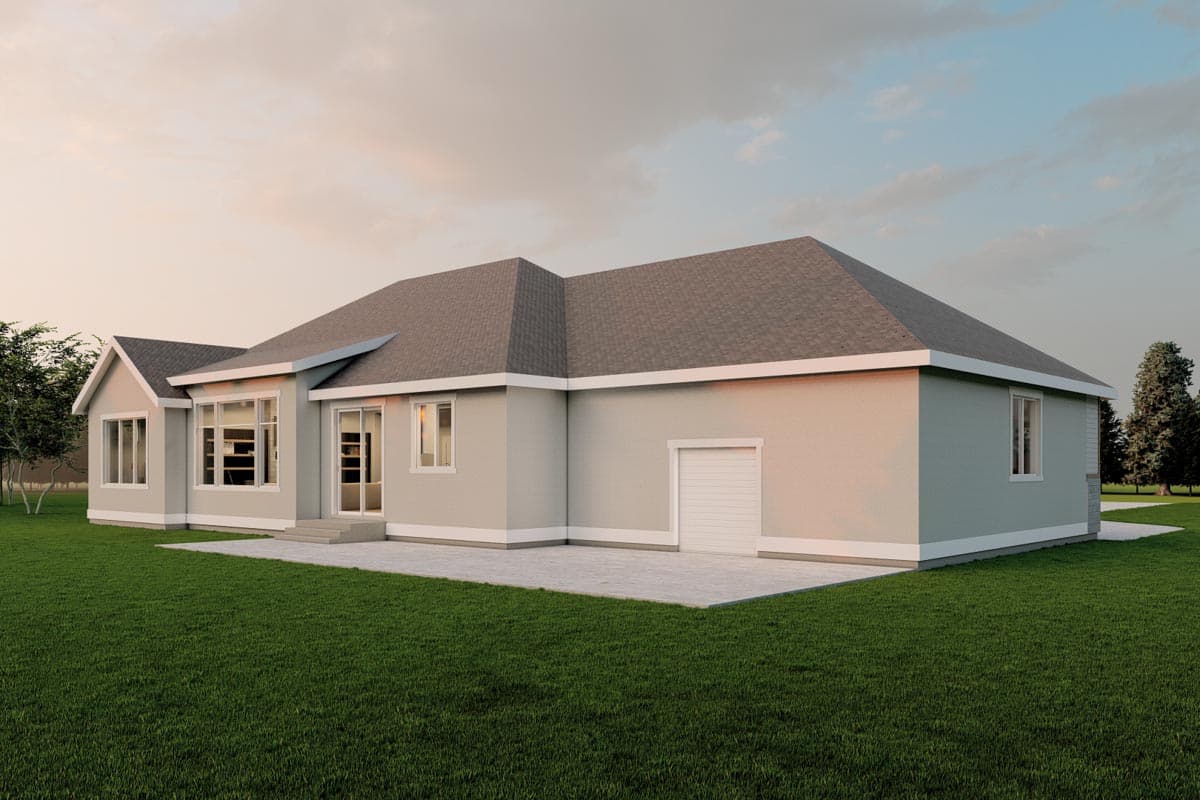

  • With the open concept design, the kitchen, dining and great room become one large space. The kitchen has a large island, a corner pantry, convenient access to the garage for unloading grocery ease and access to the large patio in back.

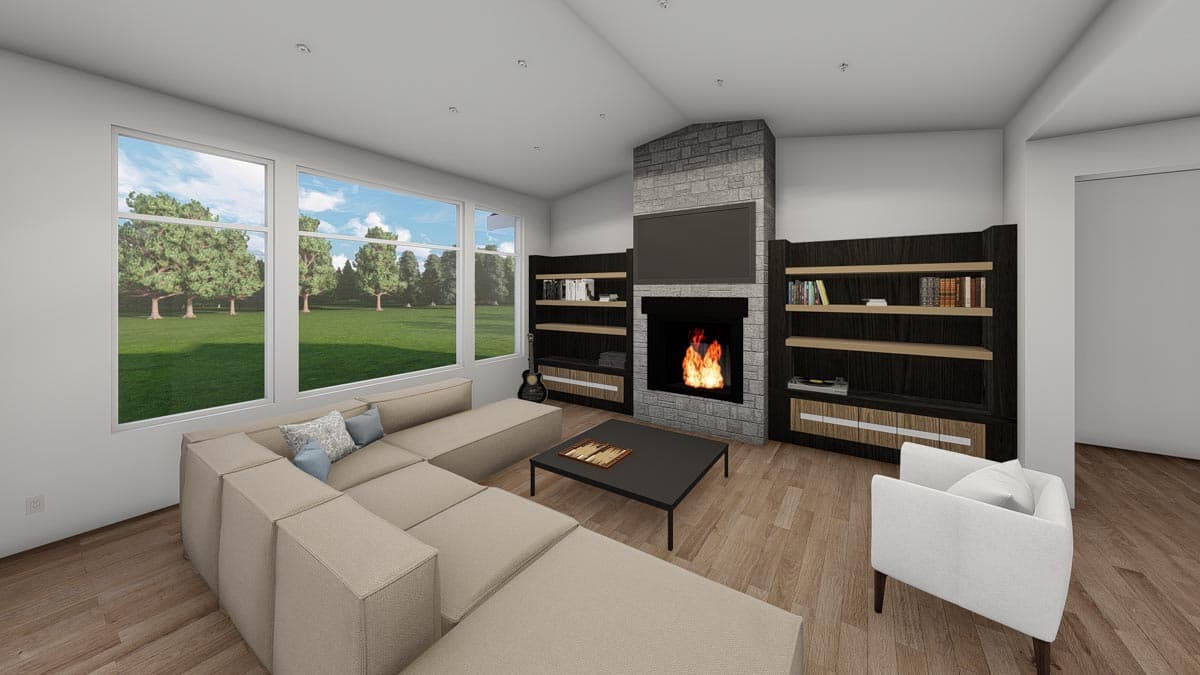

  • Taller ceilings in the great room and large windows that let in natural light make the rooms feel even larger.
  • Bedrooms are all located on the right side of the home, including the master suite with a standing shower, two vanities and a walk-in closet.
  • This home plan offers basement expansion (1,329 square feet when finished as shown) with a living room, kitchenette, additional bedrooms, and plenty of storage.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

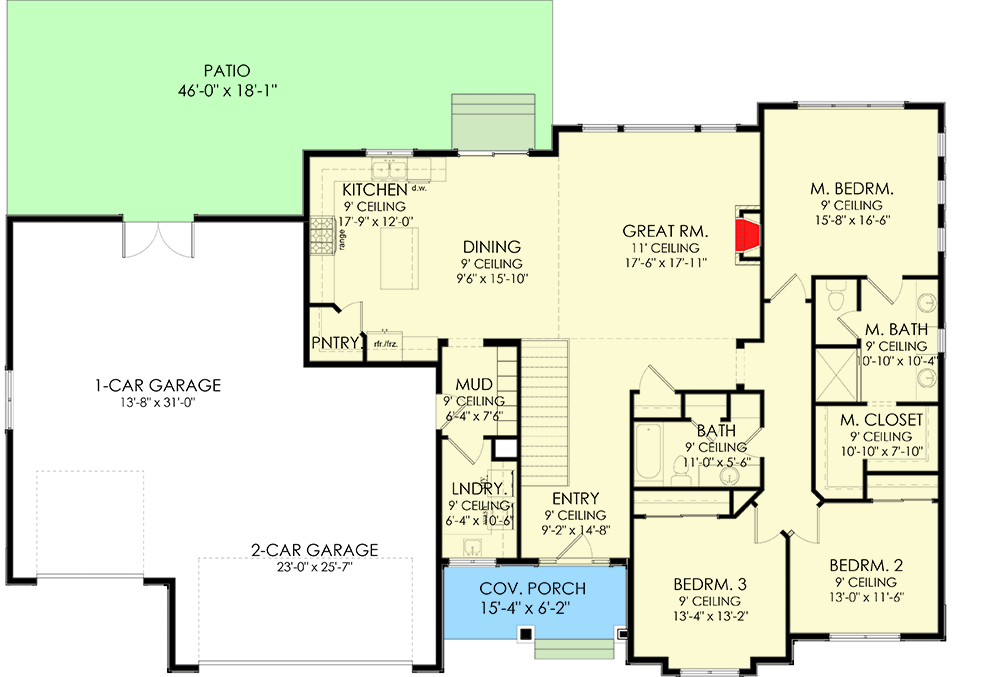

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage - 490043NAH floor plan - Main Level

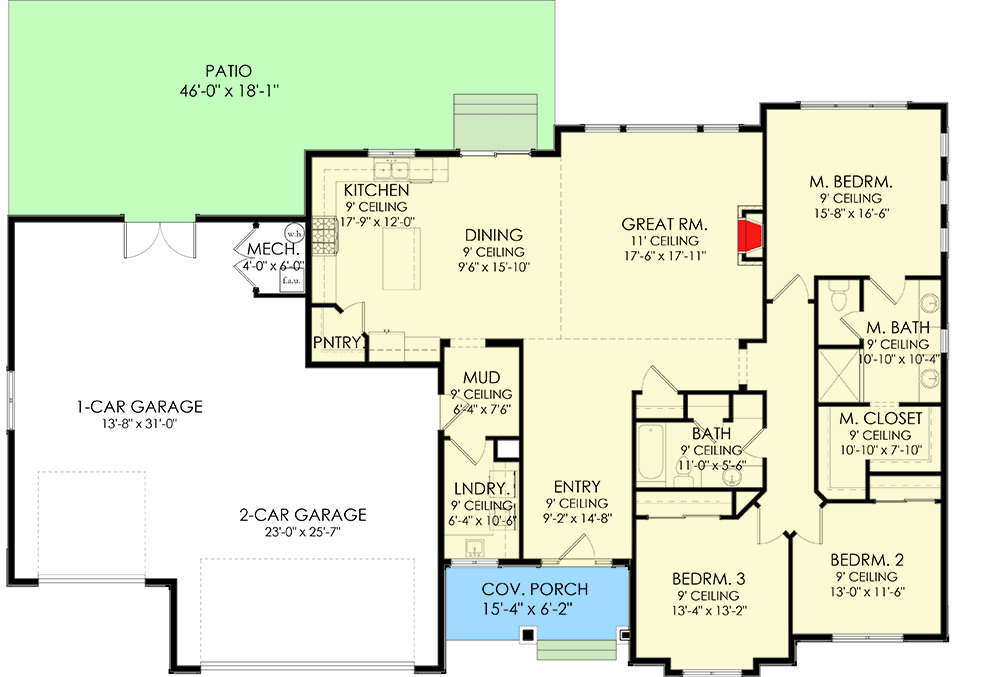

Optional Main Level Slab/Crawl

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage - 490043NAH floor plan - Optional Main Level Slab/Crawl

Optional Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage - 490043NAH floor plan - Optional Basement

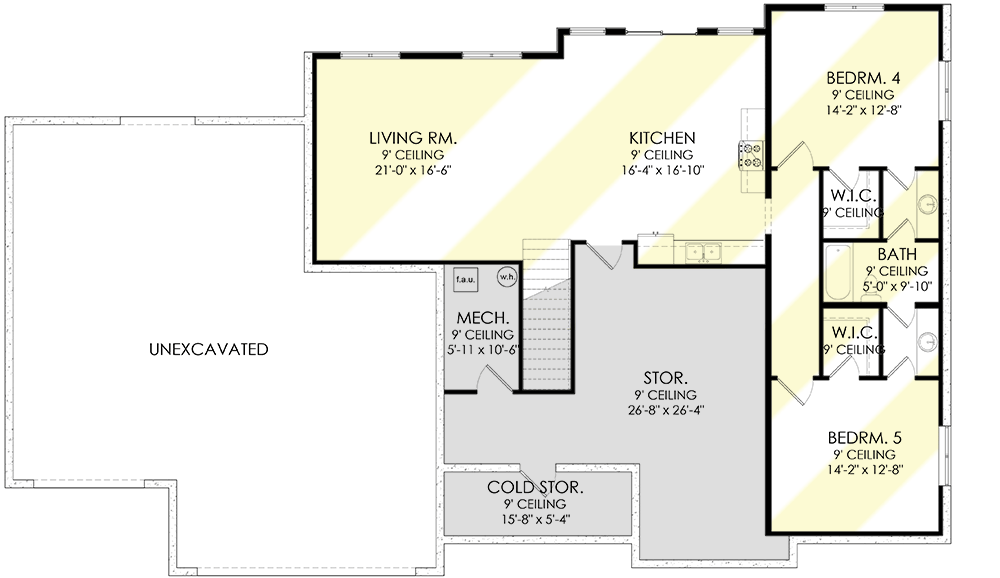

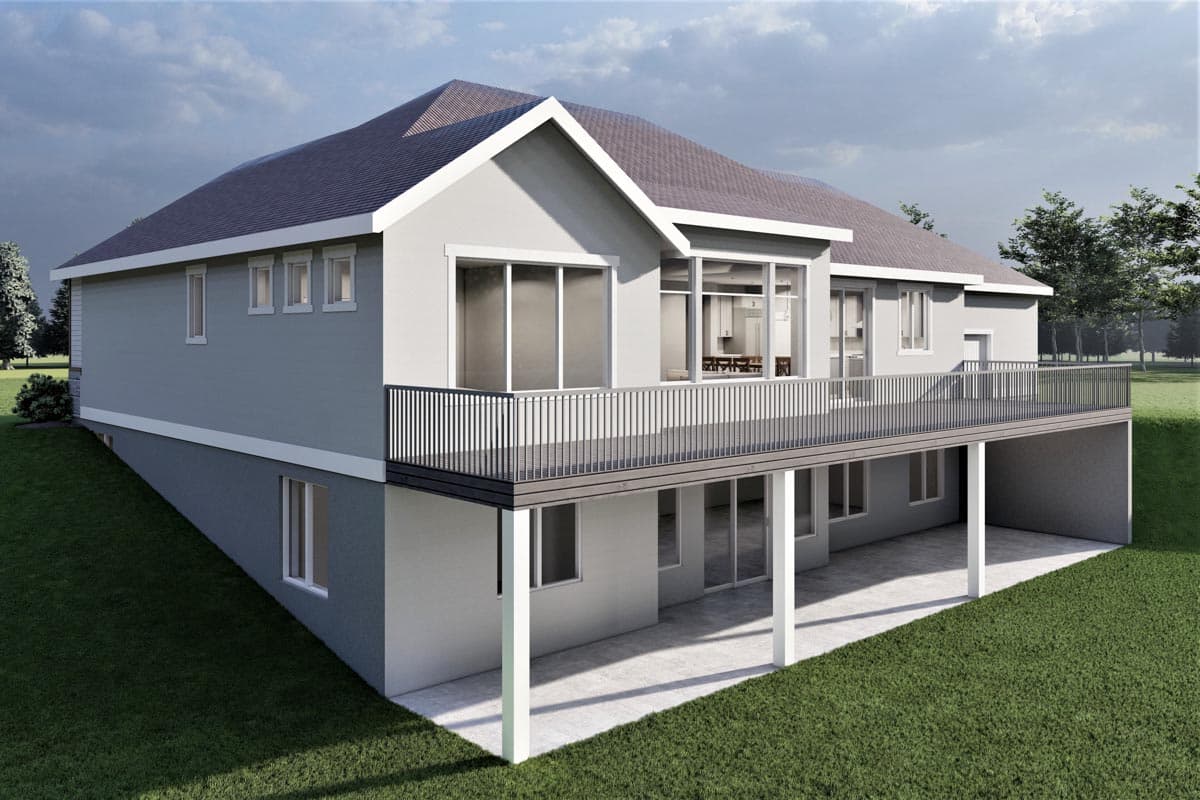

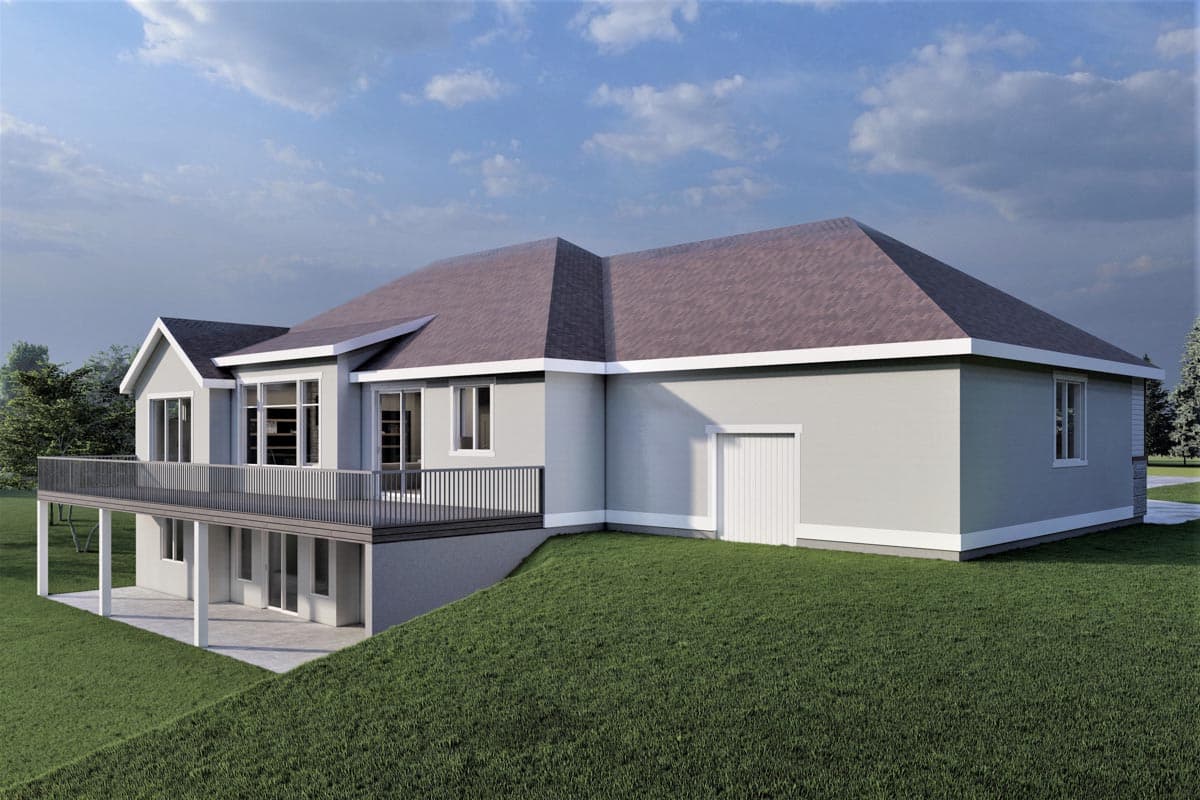

Optional Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage - 490043NAH floor plan - Optional Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,999 sq. ft.
  • 1st Floor: 1,999 sq. ft.
  • Porch, Rear: 92 sq. ft.
  • Optional Lower Level: 1,329 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 47' 10"

Garage

  • Type: Attached
  • Area: 1147 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Kitchen 11' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

3-Bed One-story 1999 Sq Ft Home Plan with Large 3-Car Garage

  • 1,999

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • CAD + PDF - Single-Build $2,500
  • View all purchase option online

About This Plan

  • This one-story 3-bed traditional home plan offers one-level living and an incredible garage for storing your hobbies and toys.
  • With the open concept design, the kitchen, dining and great room become one large space. The kitchen has a large island, a corner pantry, convenient access to the garage for unloading grocery ease and access to the large patio in back.
  • Taller ceilings in the great room and large windows that let in natural light make the rooms feel even larger.
  • Bedrooms are all located on the right side of the home, including the master suite with a standing shower, two vanities and a walk-in closet.
  • This home plan offers basement expansion (1,329 square feet when finished as shown) with a living room, kitchenette, additional bedrooms, and plenty of storage.

Floor Plans

  • Main Level

  • Optional Main Level Slab/Crawl

  • Optional Basement

  • Optional Walkout Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,999 sq. ft.
  • 1st Floor: 1,999 sq. ft.
  • Porch, Rear: 92 sq. ft.
  • Optional Lower Level: 1,329 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 47' 10"

Garage

  • Type: Attached
  • Area: 1147 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Framing Type: Truss
Plan 490043NAH
View this and more for this plan by visiting www.architechtecturaldesigns.com/490043NAH
|
