3-Bed One-Story House Plan with Vaulted Great Room

Plan 790015GLV

  • 2,182

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Enjoy one-story living with this 3-bed house plan with a split bed layout.
  • A covered entry porch welcomes you to the foyer which has open views through to the great room, dining room and kitchen.
  • A large island in the kitchen has a double sink and dishwasher on the working side and counter seating on two other sides. Sliding doors open to the back porch and a barn door hides the walk-in pantry.
  • The master suite has a tray ceiling and access to the laundry room through the walk-in closet. Two bedrooms share a bath across the home.
  • There is a bench with cubbies by the family entry off the garage to help organize clutter.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

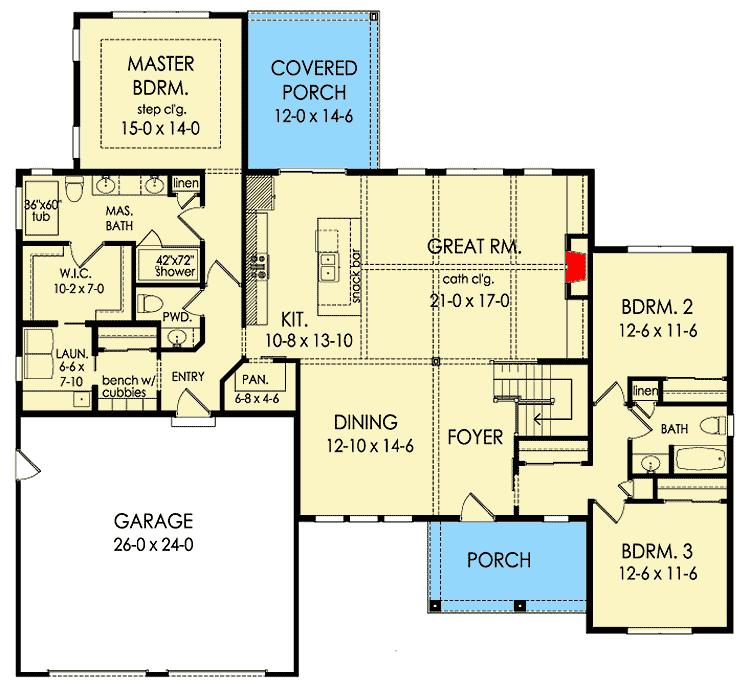

3-Bed One-Story House Plan with Vaulted Great Room  - 790015GLV floor plan - Main Level

3-Bed One-Story House Plan with Vaulted Great Room

  • 2,182

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,182 sq. ft.
  • 1st Floor: 2,182 sq. ft.

Dimensions

  • Width: 66' 2"
  • Depth: 61' 4"
  • Max ridge height: 27' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 620 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
