3-Bed Rustic House Plan with Private Bedroom Suite and Large Side Porch

Plan 777021MTL

  • 1,329

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • The budget-friendly footprint of this 3-bedroom Rustic house plan is rectangular in shape, while the board and batten siding draws your gaze upward to the gabled roofline.
  • A 19' by 7' front porch welcomes you into a breezeway with access to the combined living, dining, and kitchen areas.
  • An angled island in the kitchen hosts an eating counter for casual meals and a walk-in pantry in the nearby hallway sits across from the laundry closet with bi-fold doors.
  • Down the hall, bedrooms 1 and 2 share a full bath, each with a walk-in closet.
  • The third bedroom is privately situated across the breezeway and includes a full bath and walk-in closet.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

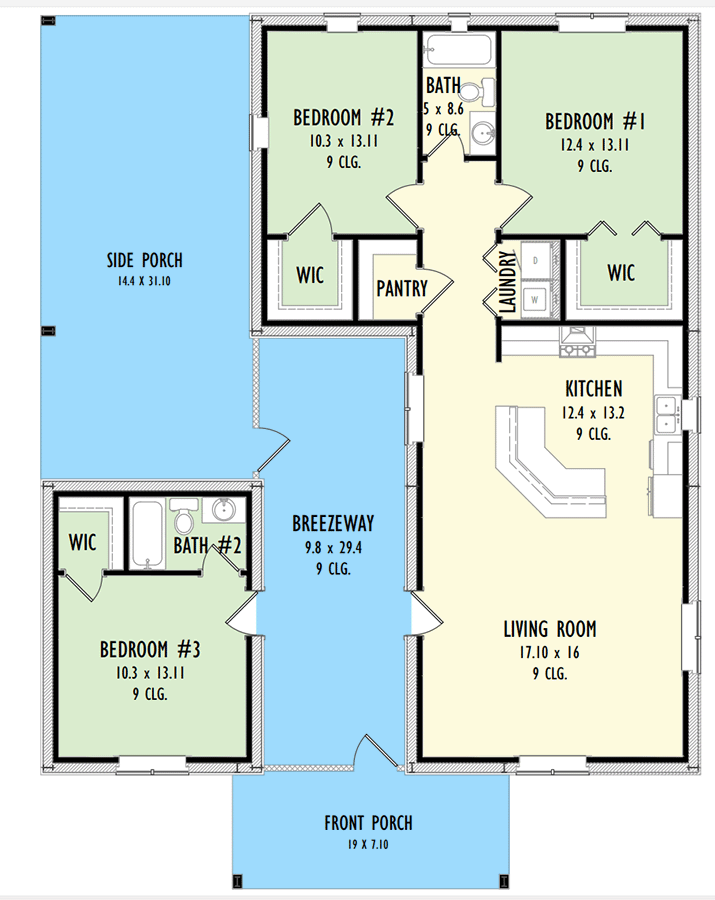

3-Bed Rustic House Plan with Private Bedroom Suite and Large Side Porch - 777021MTL floor plan - Main Level
