3-Bed Southern Cottage with Sunroom and Rear Garage

Plan 521017TTL

  • 1,831

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

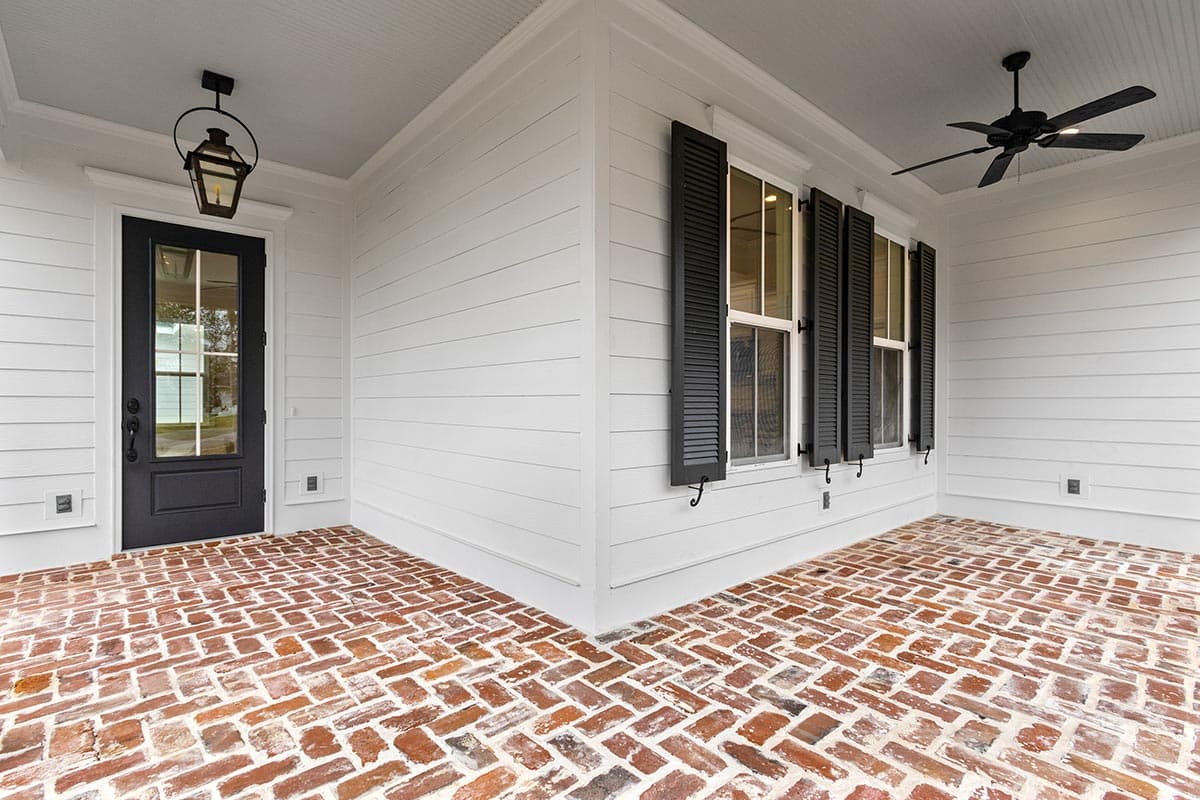

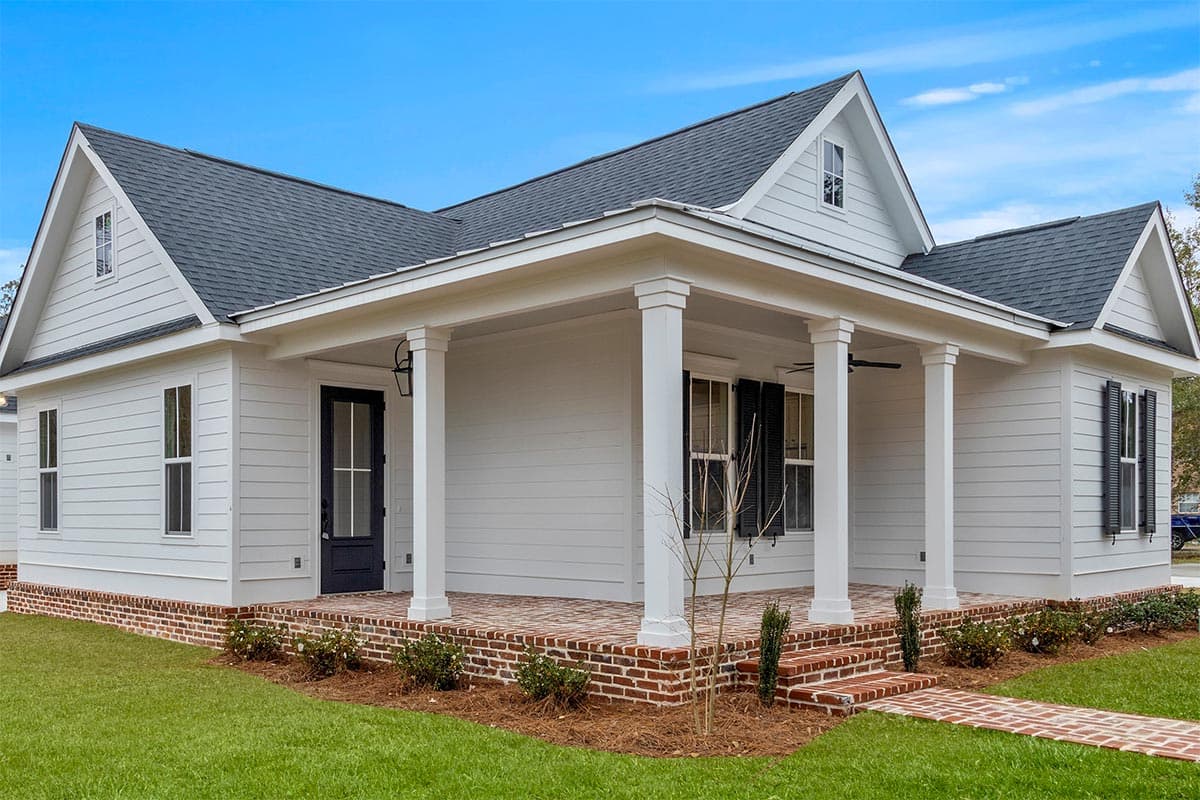

  • The brick-clad base and front porch add to the immense curb appeal offered by this 3-bedroom Southern Cottage home plan, which is exclusive to Architectural Designs.

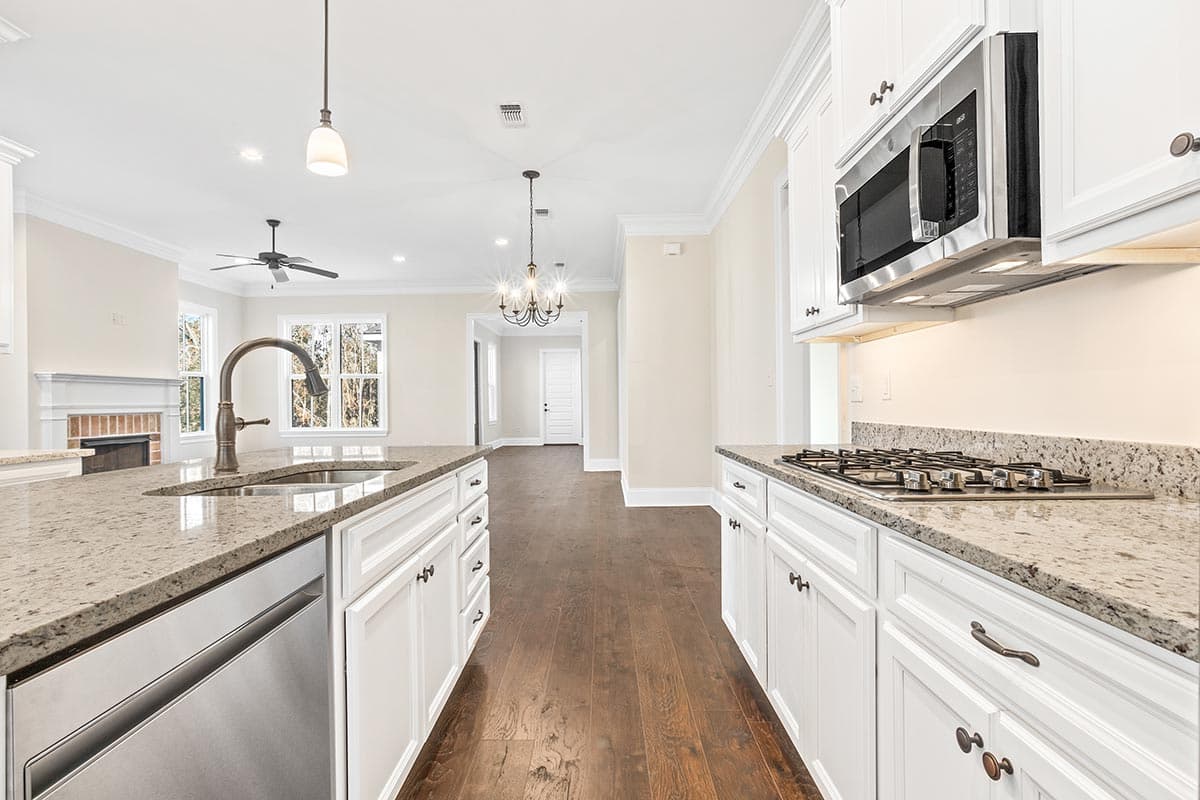

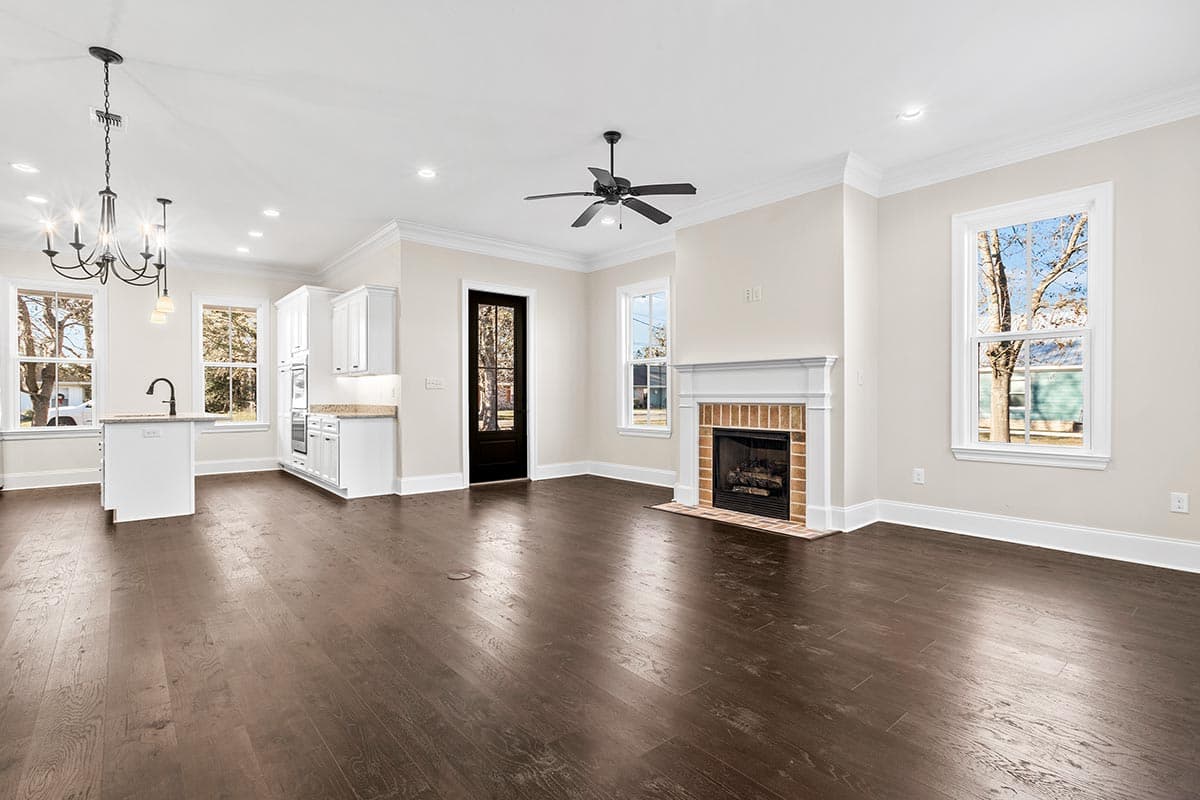

  • The wraparound porch invites you inside where an open living area connects with the dining space and kitchen.
  • A 9'8" by 18'10" sunroom provides a secondary communal space to relax with access to the side yard and double garage.
  • Three bedrooms line the right side of the plan, including the master bedroom that features a 5-fixture bathroom and walk-in closet.

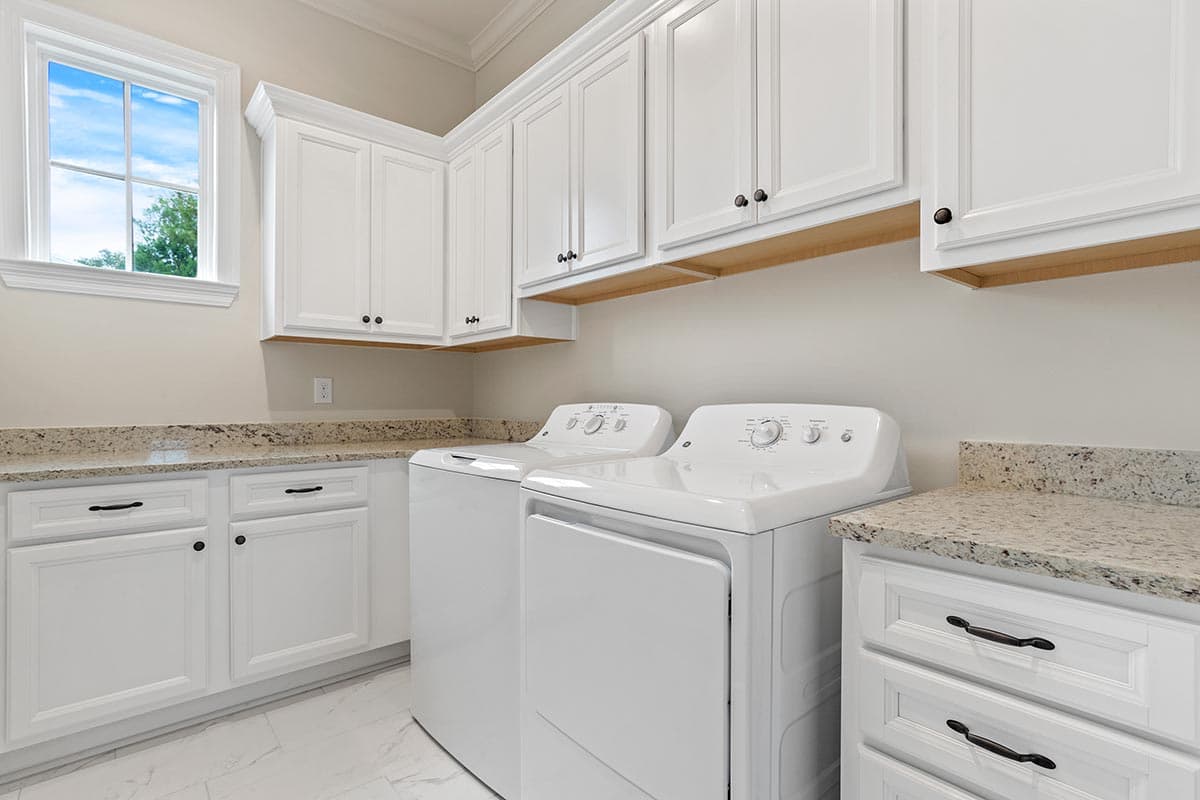

  • The laundry room serves as an additional barrier between the master bedroom and the secondary bedrooms.
  • Note: Please add cross section note at checkout.

  • Cover sheet
  • Foundation plan

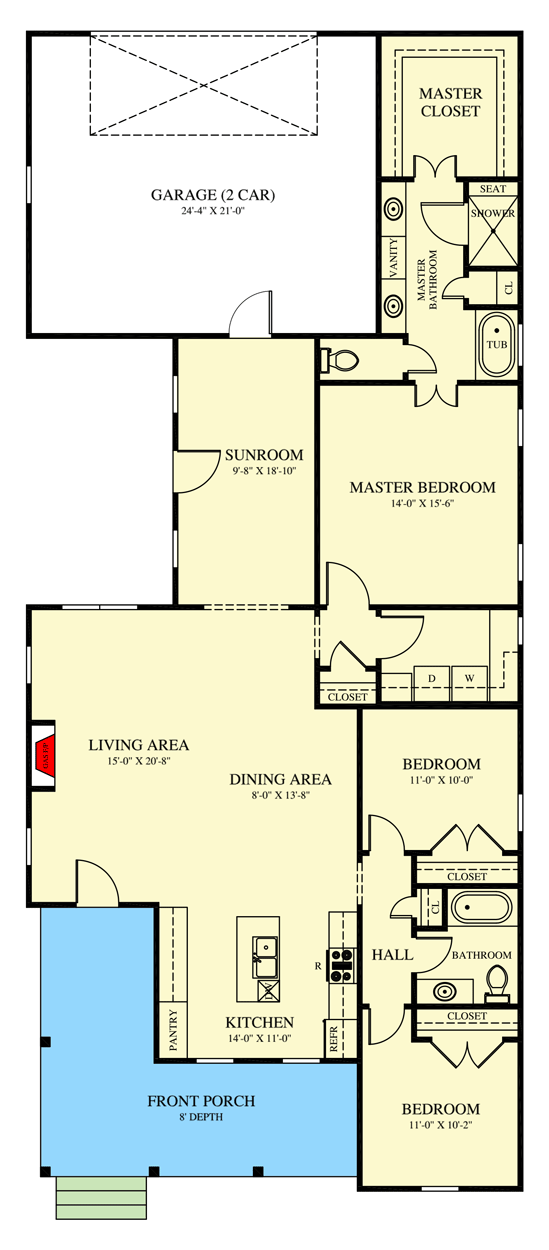

  • Floor plan

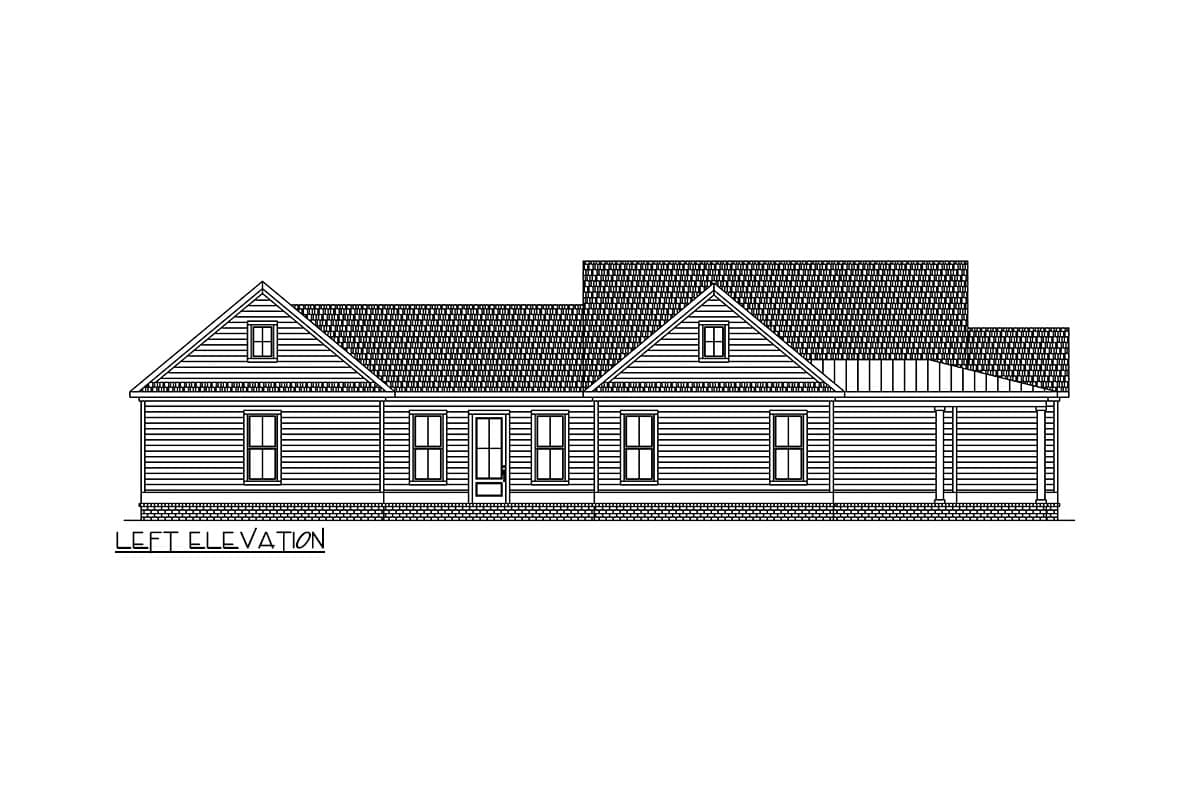

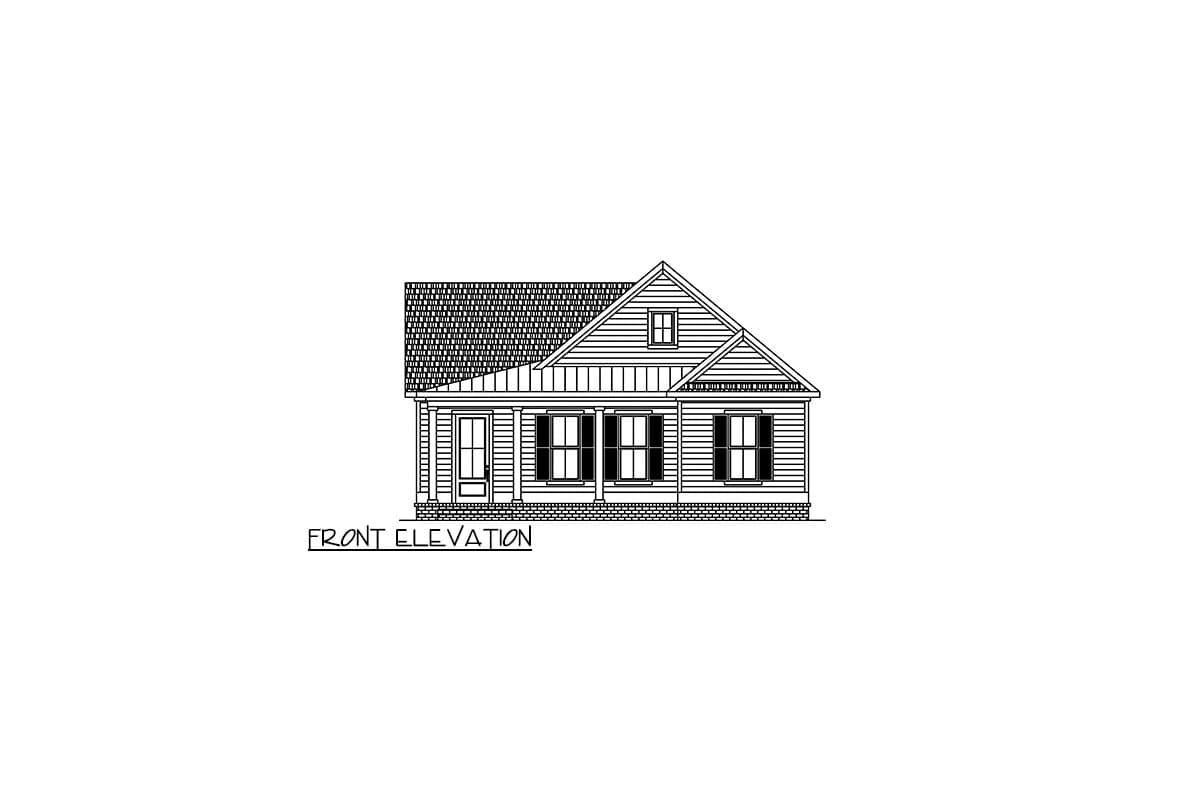

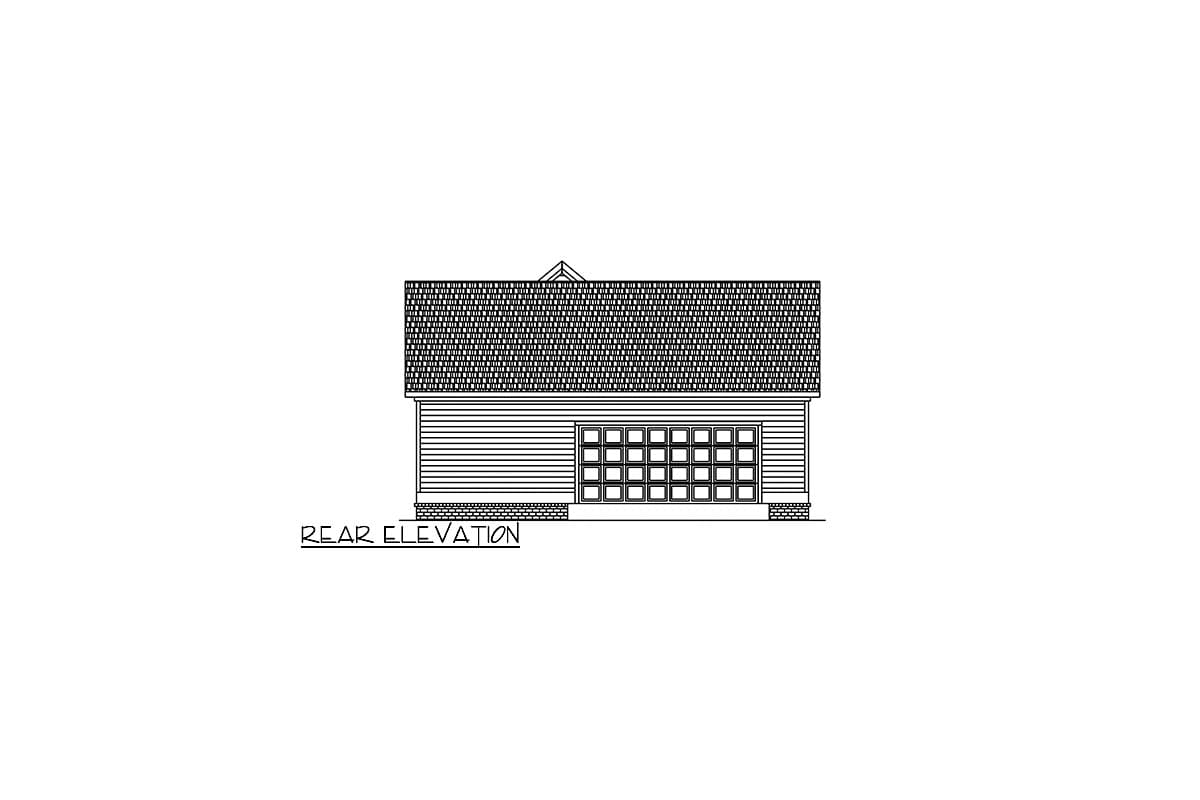

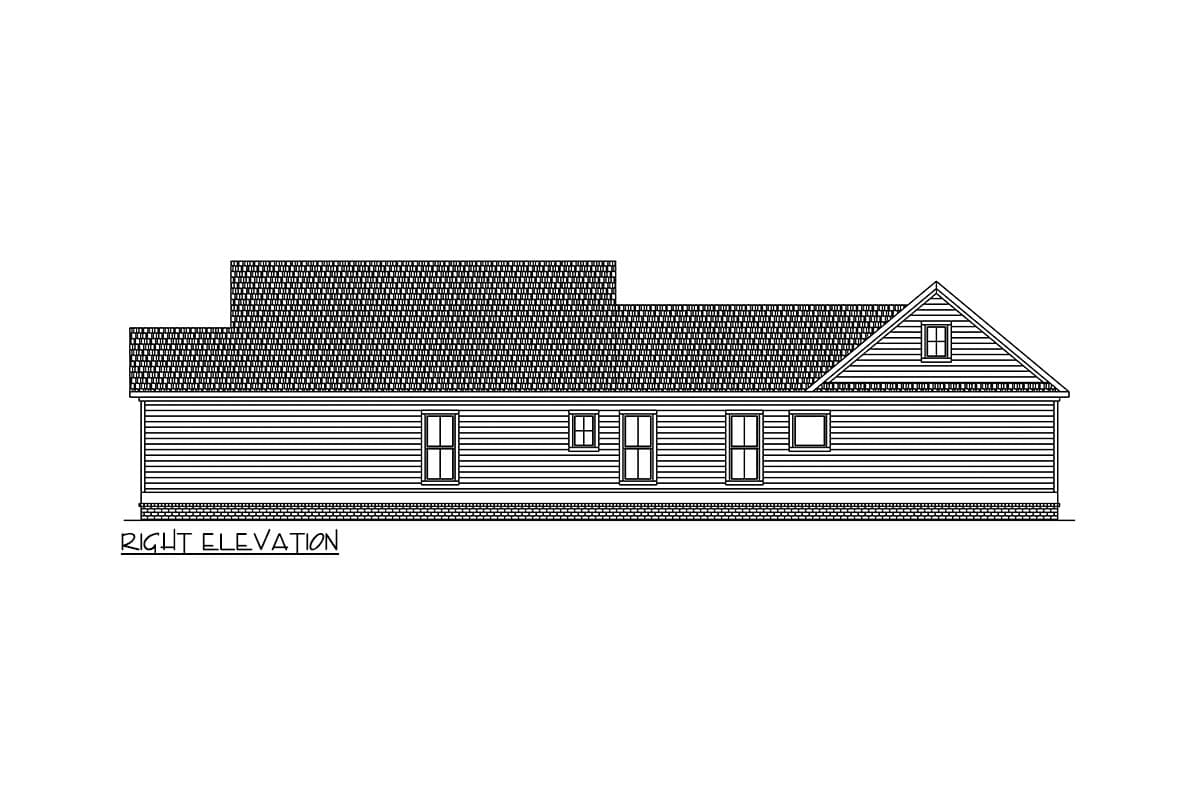

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Southern Cottage with Sunroom and Rear Garage - 521017TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,831 sq. ft.
  • 1st Floor: 1,831 sq. ft.
  • Porch, Front: 266 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 35' 10"
  • Depth: 82' 8"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

3-Bed Southern Cottage with Sunroom and Rear Garage

  • 1,831

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD + PDF - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • The brick-clad base and front porch add to the immense curb appeal offered by this 3-bedroom Southern Cottage home plan, which is exclusive to Architectural Designs.
  • The wraparound porch invites you inside where an open living area connects with the dining space and kitchen.
  • A 9'8" by 18'10" sunroom provides a secondary communal space to relax with access to the side yard and double garage.
  • Three bedrooms line the right side of the plan, including the master bedroom that features a 5-fixture bathroom and walk-in closet.
  • The laundry room serves as an additional barrier between the master bedroom and the secondary bedrooms.
  • Note: Please add cross section note at checkout.
