3-Bed Split Bedroom Transitional House Plan

Plan 51907HZ

  • 1,775

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • The goal was to create a 3-bed transitional house plan under under 1,800 square feet. Mission accomplished! Painted brick, oversized windows - including glass front doors and garage door - and a decorative shed dormer above the entry give the home great curb appeal.
  • You'll like the look and feel of the 10' ceilings with decorative beams in the family room which is open to the kitchen and dining area. Windows on the back wall of the dining area look out across the back porch and the back wall of the living room collapses giving you indoor outdoor living.
  • The master bedroom has two vanities, a walk-in closet, a private toilet and a custom shower. Across the home, two bedrooms share a bathroom with a tub/shower combo.
  • Lockers and pantry storage off the garage entrance is a nice touch. A door hides the laundry room from view until you need to use that space.
  • Related Plan: Get an alternate version with house plan 51862HZ.

This house plan gives you the following details:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

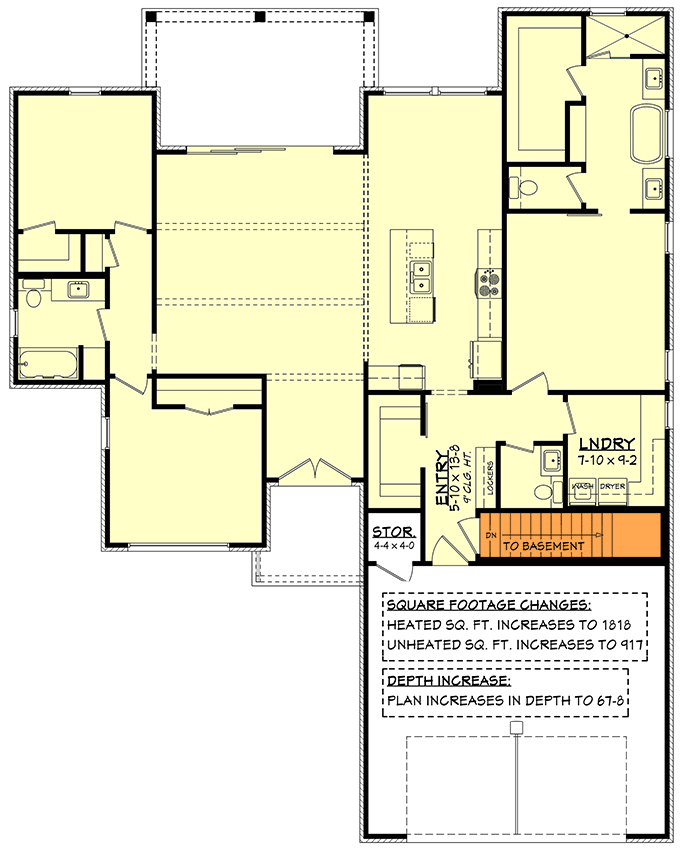

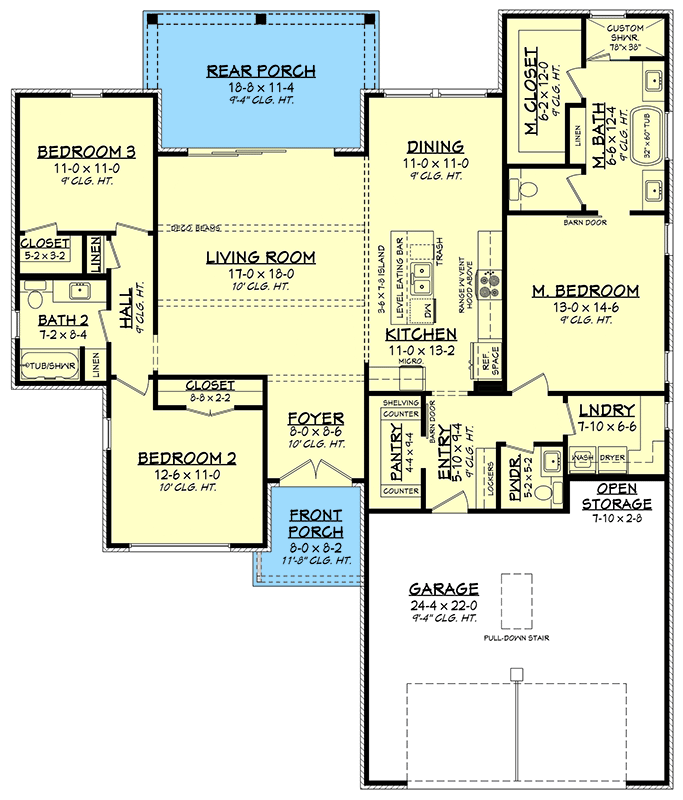

3-Bed Split Bedroom Transitional House Plan - 51907HZ floor plan - Main Level

Basement Floor Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Split Bedroom Transitional House Plan - 51907HZ floor plan - Basement Floor Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,775 sq. ft.
  • 1st Floor: 1,775 sq. ft.
  • Storage: 22 sq. ft.
  • Porch, Combined: 272 sq. ft.
  • Porch, Rear: 204 sq. ft.
  • Porch, Front: 68 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 8"
  • Depth: 63' 4"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 558 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room 10' 0"
Foyer 10' 0"
Bedroom 2 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

3-Bed Split Bedroom Transitional House Plan

  • 1,775

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,245
  • 5 Sets +PDF Single-Build $1,495
  • PDF - Unlimited Build $1,945
  • CAD + PDF - Unlimited Build $2,245
  • View all purchase option online

About This Plan

  • The goal was to create a 3-bed transitional house plan under under 1,800 square feet. Mission accomplished! Painted brick, oversized windows - including glass front doors and garage door - and a decorative shed dormer above the entry give the home great curb appeal.
  • You'll like the look and feel of the 10' ceilings with decorative beams in the family room which is open to the kitchen and dining area. Windows on the back wall of the dining area look out across the back porch and the back wall of the living room collapses giving you indoor outdoor living.
  • The master bedroom has two vanities, a walk-in closet, a private toilet and a custom shower. Across the home, two bedrooms share a bathroom with a tub/shower combo.
  • Lockers and pantry storage off the garage entrance is a nice touch. A door hides the laundry room from view until you need to use that space.
  • Related Plan: Get an alternate version with house plan 51862HZ.
