Plan 25847GE

3-Bed Symmetrical Multi-Family House Plan with Wrap-Around Porch - 1280 Sq Ft Per Unit

Heated S.F.
2,560
Units
2
Width
Depth
Tour

Floor Plan

Plan 25847GE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 25847GE

M-F 9am-5pm EST |

1-203-761-8500

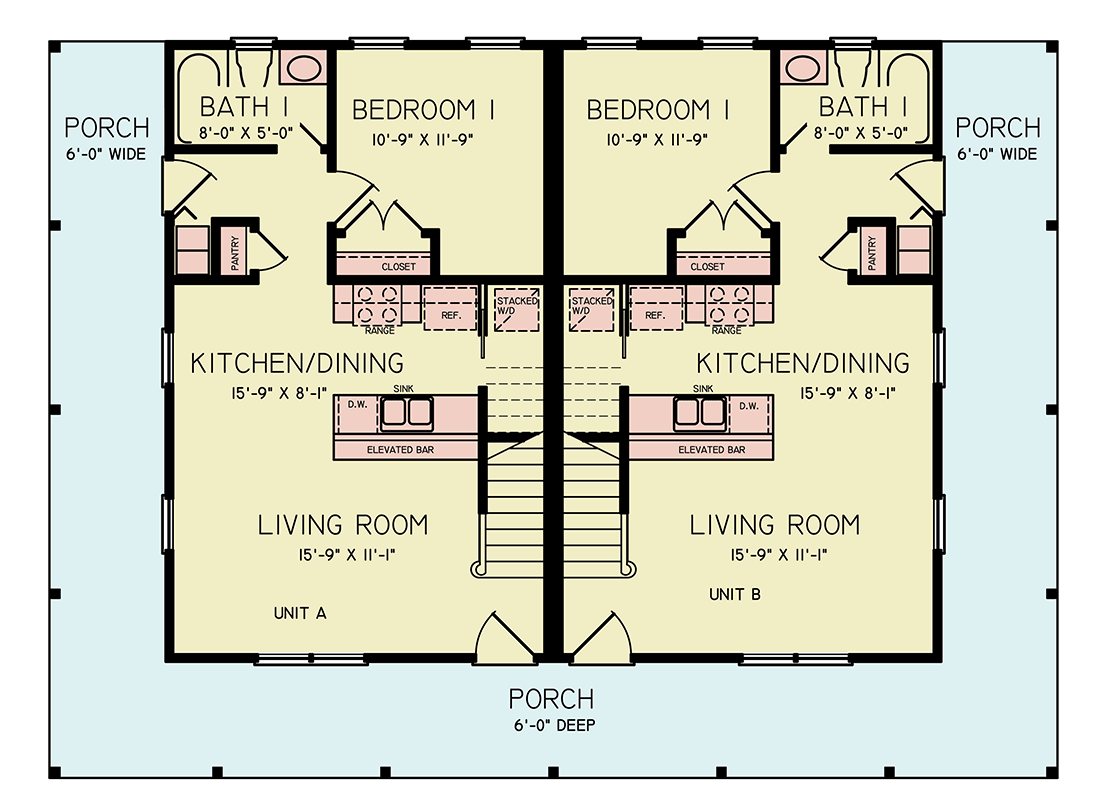

Main Level

Plan 25847GE: 3-Bed Symmetrical Multi-Family House Plan with Wrap-Around Porch - 1280 Sq Ft Per Unit - Floor Plan - Main Level - Country, Rustic

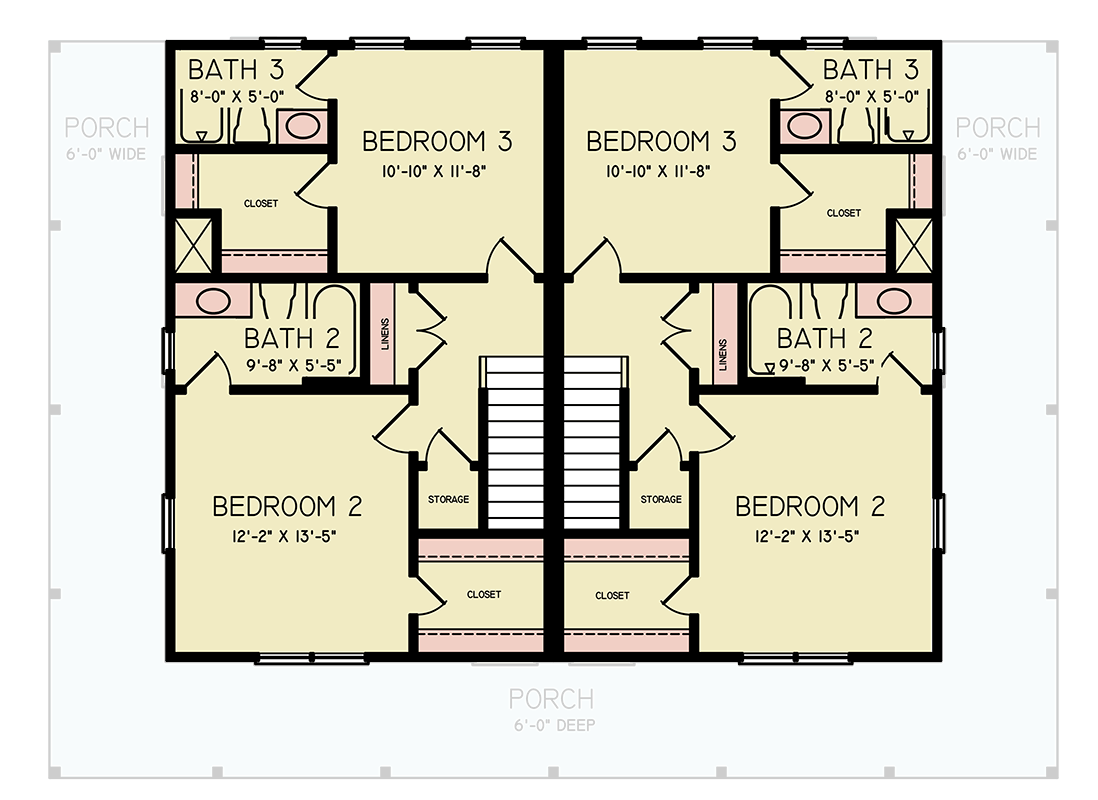

2nd Floor

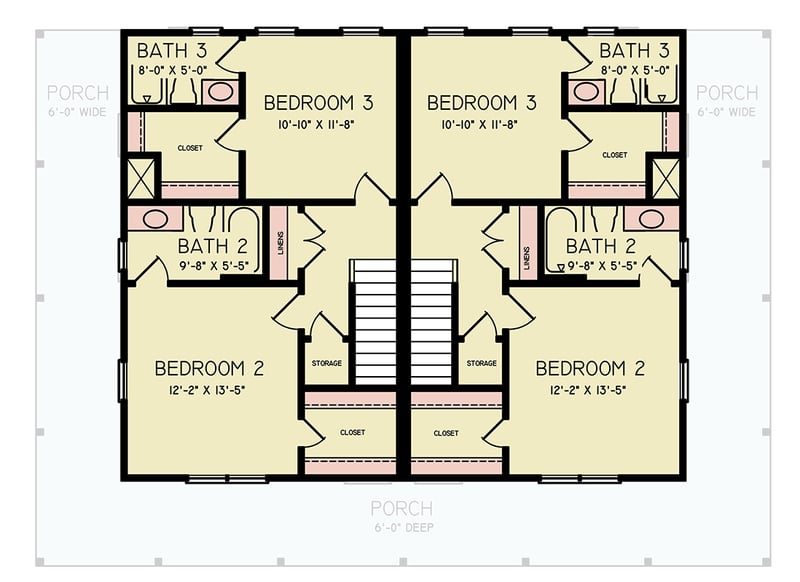

Plan 25847GE: 3-Bed Symmetrical Multi-Family House Plan with Wrap-Around Porch - 1280 Sq Ft Per Unit - Floor Plan - 2nd Floor - Country, Rustic

Plan Details

  • This multi-family house plan gives you 2 units each with 1,280 square feet of heated living space (640 sq. ft. on the first floor, 640 sq. ft. on the second floor), 3 beds and 3 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar plan without a walk-around porch with house plan 25846GE (1,280 sq ft. per unit).
Unit A
Heated Area
1,280Sq. Ft.
640 Sq. Ft. 1st
640 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Dimensions
26'width
38'depth
Unit B
Heated Area
1,280Sq. Ft.
1280 Sq. Ft. 1st
1280 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Dimensions
26'width
38'depth

What's Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.
