Plan 59499ND

3-Bed Traditional House Plan Under 1600 Square Foot with Drive-Under Garage

Heated S.F.
1,645
Beds
3
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 59499ND

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 59499ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59499ND: 3-Bed Traditional House Plan Under 1600 Square Foot with Drive-Under Garage - Floor Plan - Main Level - Traditional

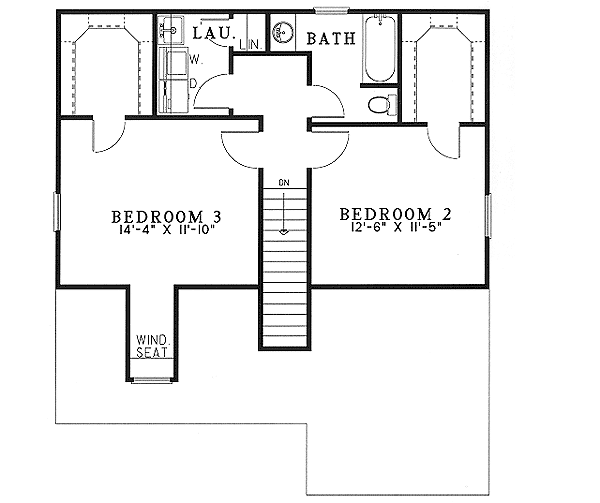

2nd Floor

Plan 59499ND: 3-Bed Traditional House Plan Under 1600 Square Foot with Drive-Under Garage - Floor Plan - 2nd Floor - Traditional

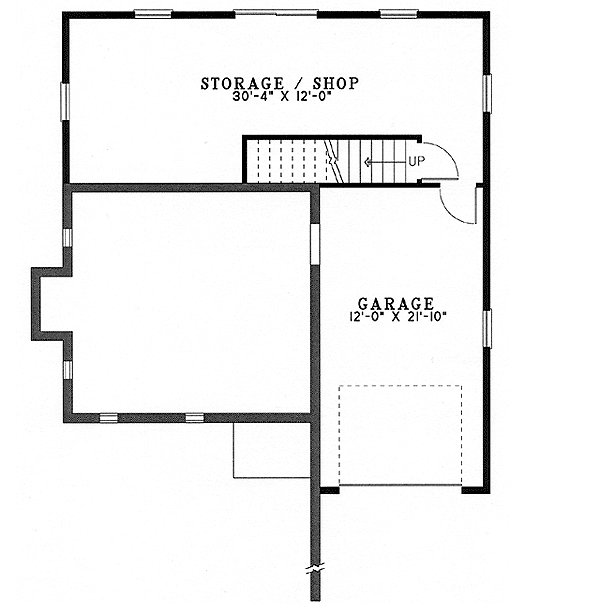

Lower Level

Plan 59499ND: 3-Bed Traditional House Plan Under 1600 Square Foot with Drive-Under Garage - Floor Plan - Lower Level - Traditional

Plan Details

  • This 3-bed house plan gives you 3 beds, 2.5 baths and 1,645 square feet of heated living space spread across two floors and a lower level with a 1-car garage and a large shop.
  • Walk up the stairs to the front door - or enter through the garage - and discover a great room with fireplace open to the kitchen and dining room.
  • The master suite is the only bedroom on the main floor. Upstairs, two beds share a bath.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

1,008 sq. ft.

2nd Floor

637 sq. ft.

Bonus

391 sq. ft.

Porch, Combined

29 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 8"

Depth

35' 2"

Max Ridge Height

26' 0"

Garage

Type

Drive Under, Attached

Area

262 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,645 sq. ft.

1st Floor

1,008 sq. ft.

2nd Floor

637 sq. ft.

Bonus

391 sq. ft.

Porch, Combined

29 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 8"

Depth

35' 2"

Max Ridge Height

26' 0"

Garage

Type

Drive Under, Attached

Area

262 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Sloping Lot
