Plan 623478DJ

3-Bed Traditional House Plan with Open-Concept Living Space - 1892 Sq Ft

Heated S.F.
1,892
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 623478DJ

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level Layout Option ($ Paid Option)
Lower Level Layout Option ($ Paid Option)

Plan 623478DJ

M-F 9am-5pm EST |

1-203-761-8500

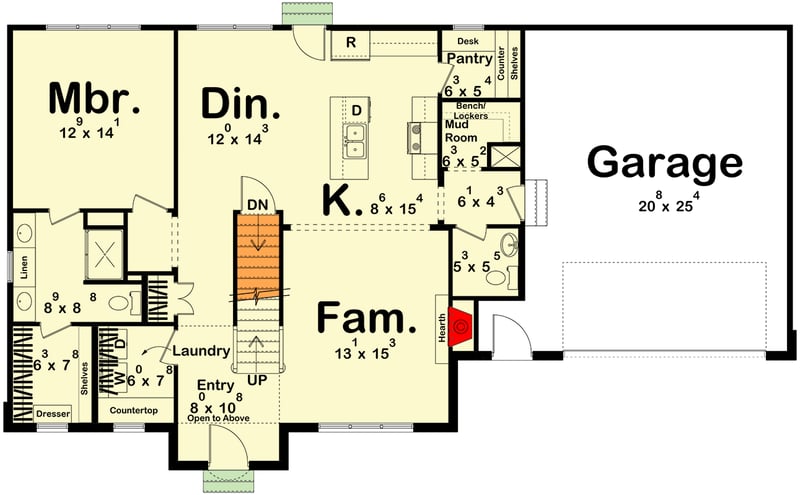

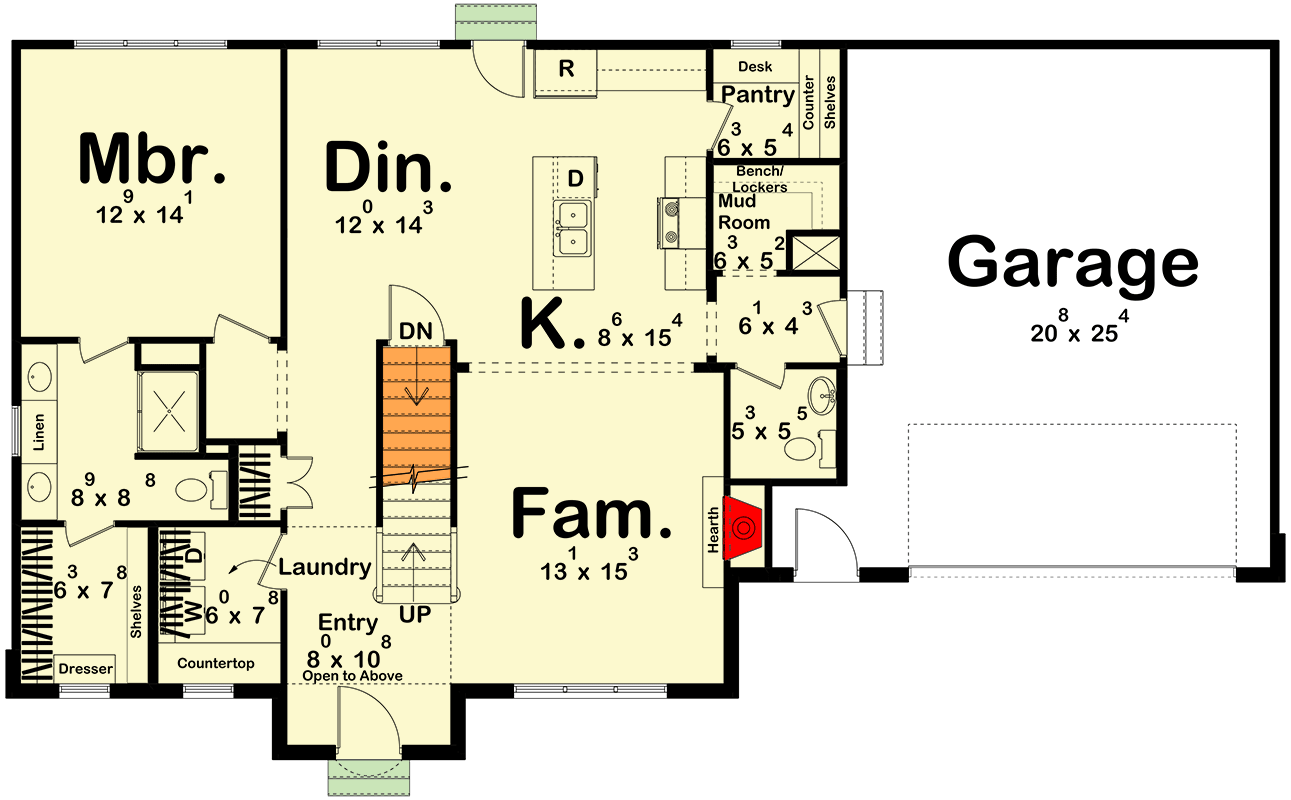

Main Level

Plan 623478DJ: 3-Bed Traditional House Plan with Open-Concept Living Space - 1892 Sq Ft - Floor Plan - Main Level - Cottage, Southern, Traditional

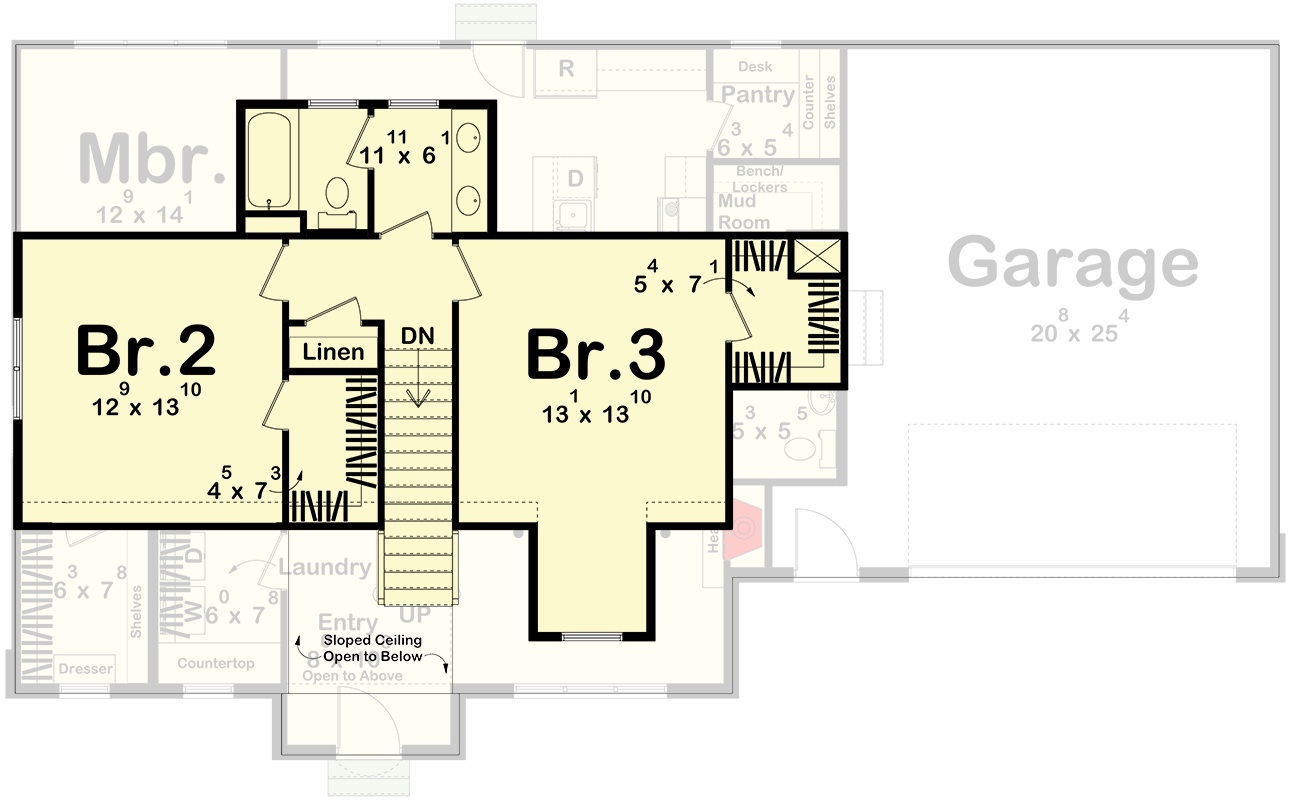

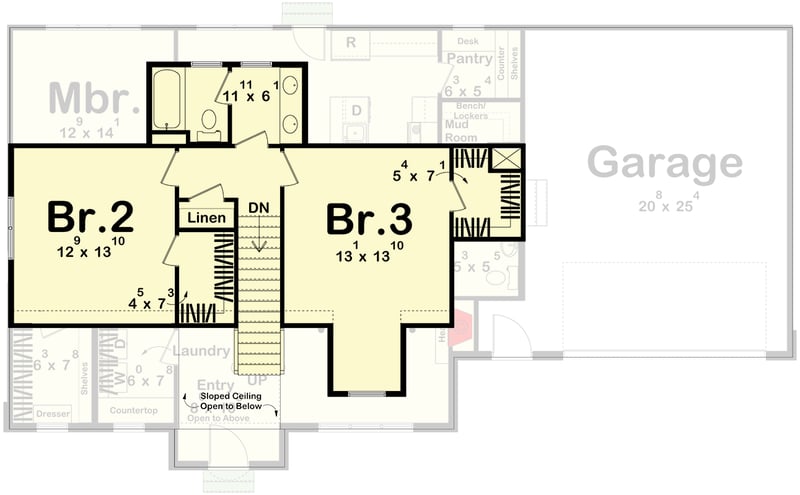

2nd Floor

Plan 623478DJ: 3-Bed Traditional House Plan with Open-Concept Living Space - 1892 Sq Ft - Floor Plan - 2nd Floor - Cottage, Southern, Traditional

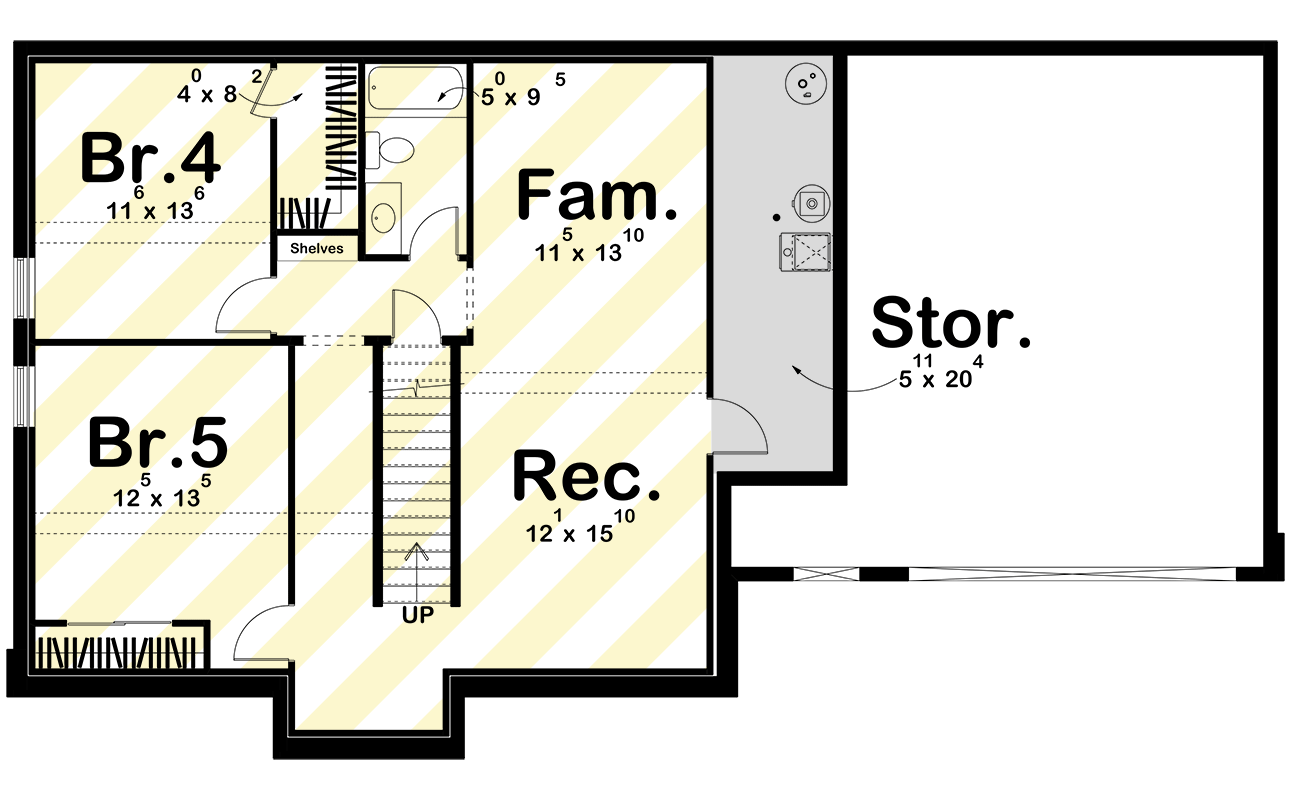

Lower Level Layout Option ($ Paid Option)

Plan 623478DJ: 3-Bed Traditional House Plan with Open-Concept Living Space - 1892 Sq Ft - Floor Plan - Lower Level Layout Option ($ Paid Option) - Cottage, Southern, Traditional

Plan Details

  • This is a two-story traditional house plan with 3 bedrooms, 2.5 baths, and a 2-car garage.
  • It includes a convenient laundry room, mudroom, and walk-in pantry, plus an optional finished basement for extra space.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a similar version that has a 1-car garage with house plan 62803DJ (1,921 sq. ft.).

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,892 sq. ft.

1st Floor

1,258 sq. ft.

2nd Floor

634 sq. ft.

Optional Lower Level

1,030 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 8"

Depth

34' 8"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,892 sq. ft.

1st Floor

1,258 sq. ft.

2nd Floor

634 sq. ft.

Optional Lower Level

1,030 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 8"

Depth

34' 8"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
