3-Bed Traditional House Plan with Split-Bedroom Layout - 1690 sq Ft

Heated S.F.
1,690
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 623508DJ

Main Level
Main Level
Main Level - Crawl/Slab Option
Main Level - Crawl/Slab Option
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623508DJ

M-F 9am-5pm EST |

1-203-761-8500

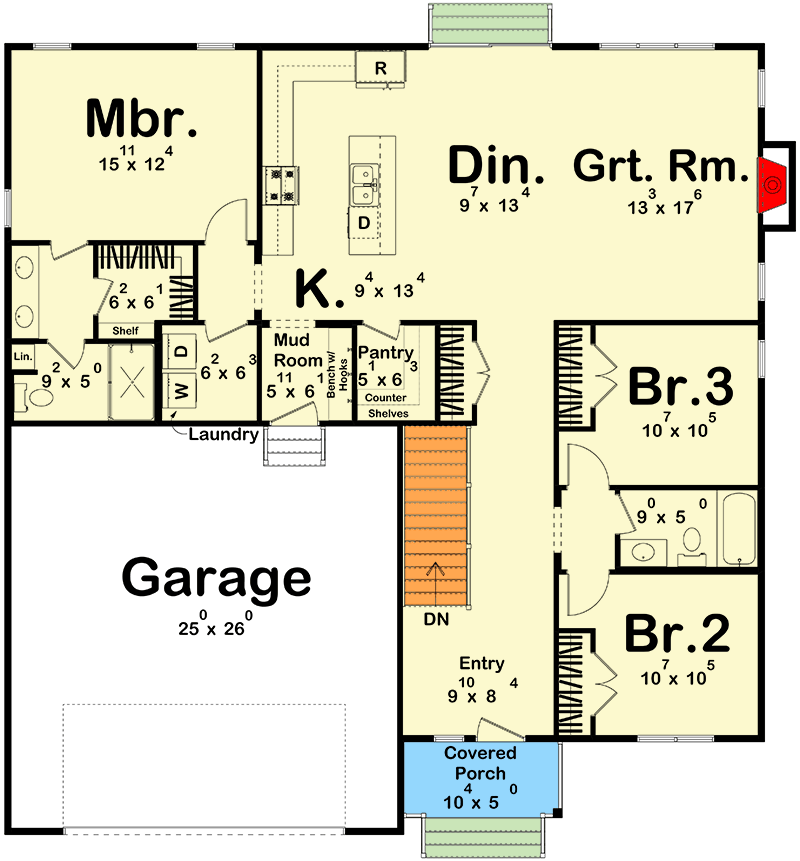

Main Level

Plan 623508DJ: 3-Bed Traditional House Plan with Split-Bedroom Layout - 1690 sq Ft - Floor Plan - Main Level - Cottage, Farmhouse, Traditional

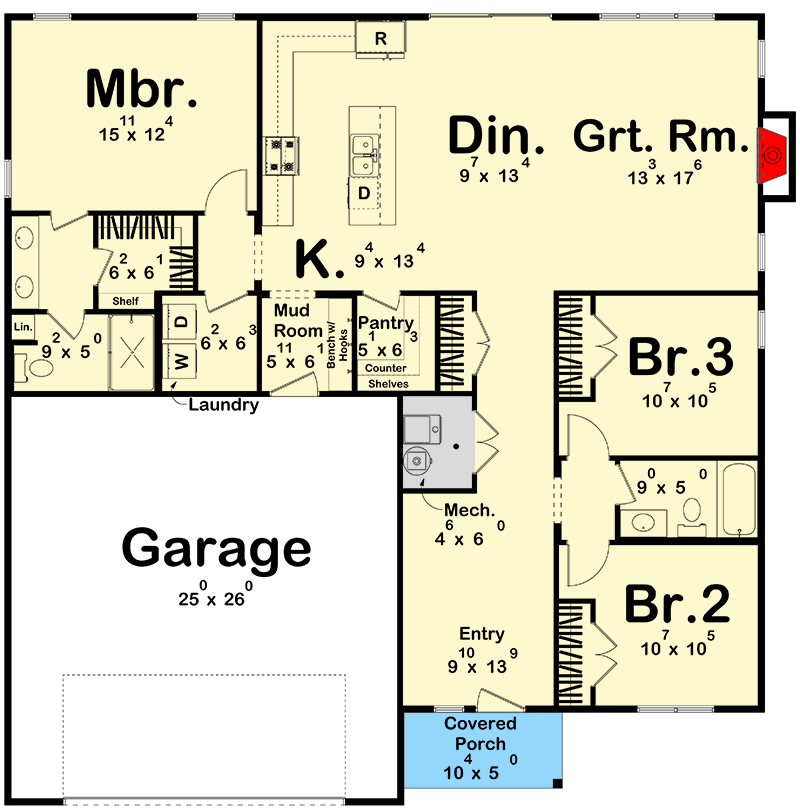

Main Level - Crawl/Slab Option

Plan 623508DJ: 3-Bed Traditional House Plan with Split-Bedroom Layout - 1690 sq Ft - Floor Plan - Main Level - Crawl/Slab Option - Cottage, Farmhouse, Traditional

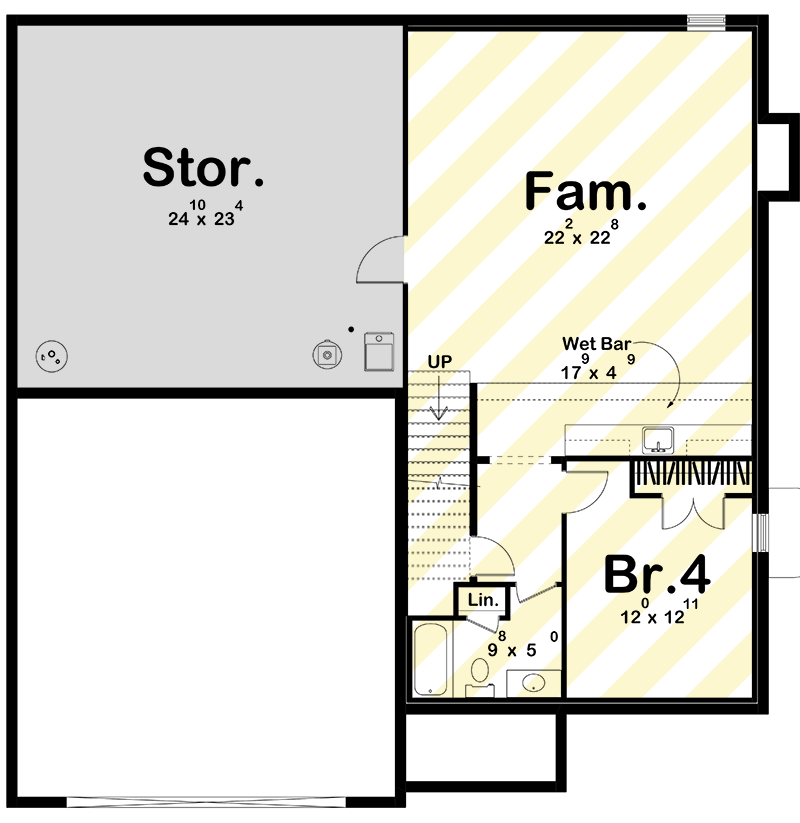

Optional Lower Level Layout ($ Paid Option)

Plan 623508DJ: 3-Bed Traditional House Plan with Split-Bedroom Layout - 1690 sq Ft - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Cottage, Farmhouse, Traditional

Plan Details

  • This traditional house with 3 bedrooms and 2 bathrooms, designed for comfort and function.
  • It features a fireplace in the great room, a walk-in pantry in the kitchen, and a mudroom for added organization.
  • An optional finished basement provides an extra bedroom and bathroom for added space.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,690 sq. ft.

1st Floor

1,690 sq. ft.

Optional Lower Level

944 sq. ft.

Porch, Front

52 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 0"

Depth

51' 0"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

669 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,690 sq. ft.

1st Floor

1,690 sq. ft.

Optional Lower Level

944 sq. ft.

Porch, Front

52 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 0"

Depth

51' 0"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

669 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
