3 Bedroom Arts & Crafts Bungalow House Plan

Plan 50101PH

  • 1,522

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

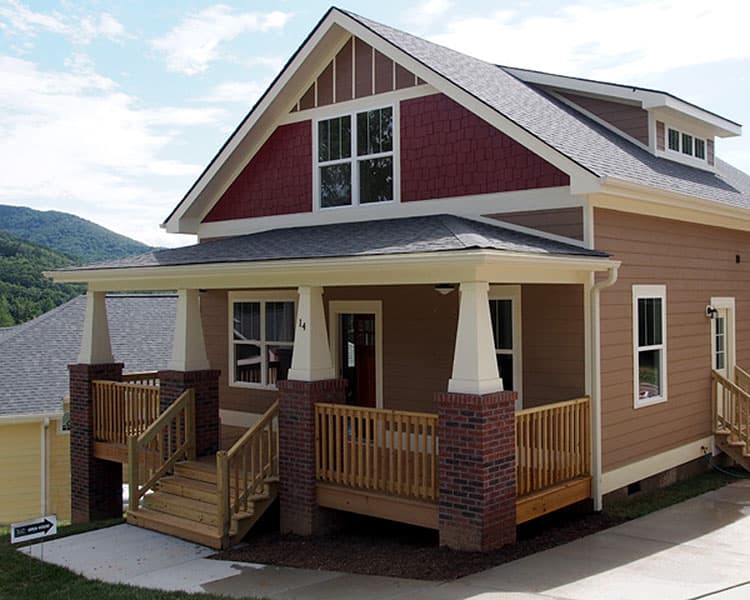

  • Influenced by some of the Low Country homes in North Carolina, this stylish Arts & Crafts home will appeal to those who love charming Bungalows.

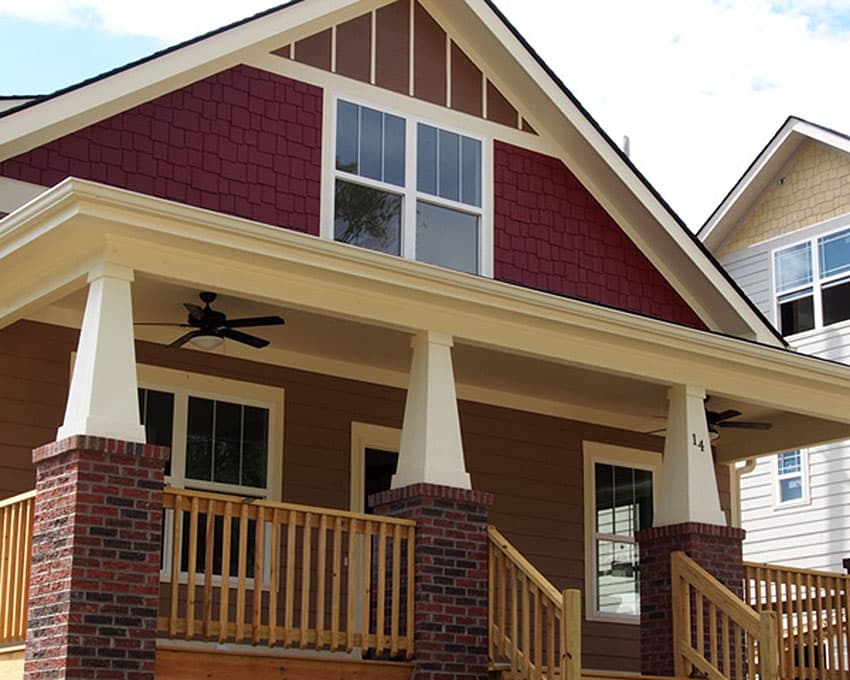

  • The wide front porch opens to a formal living and dining room.
  • This plan is designed with room for an entertainment center in the recessed area of the living room.

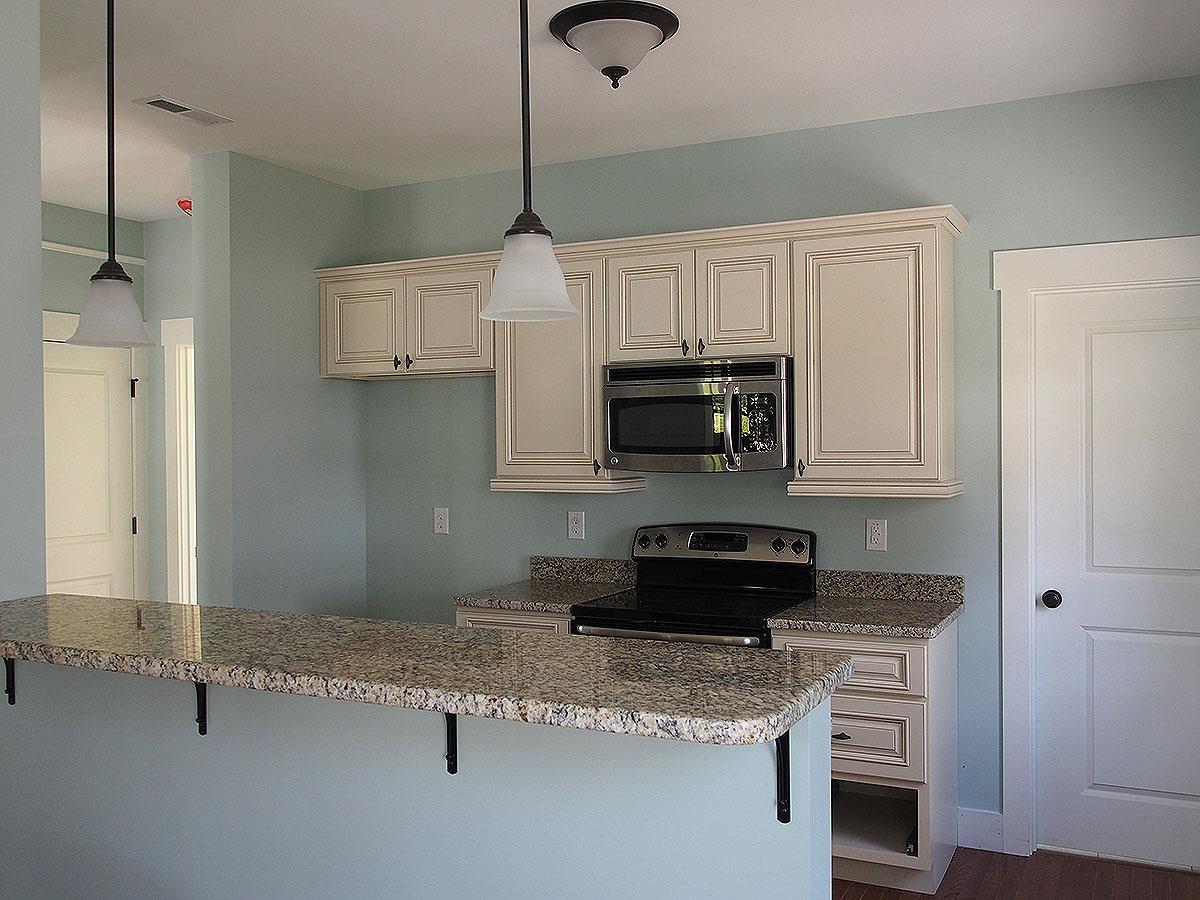

  • A pass-through window in the kitchen is a big help in serving.
  • The side entry has a convenient washer/dryer closet.
  • Homeowners get the big first floor master suite with its private bathroom and walk-in closet.
  • Two additional bedrooms are up on the second floor along with a cozy den area that has a triple window.

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

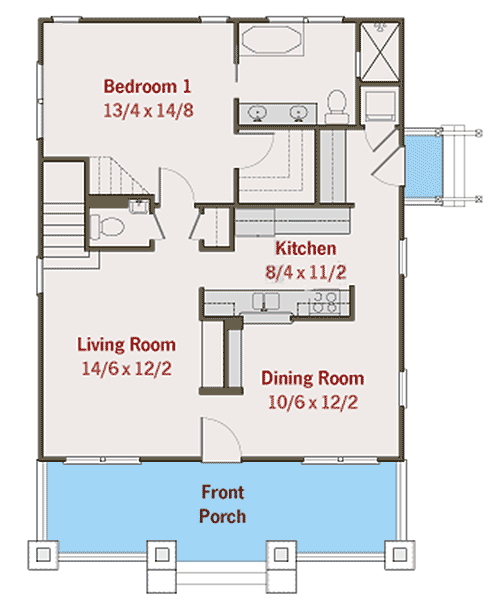

3 Bedroom Arts & Crafts Bungalow House Plan - 50101PH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

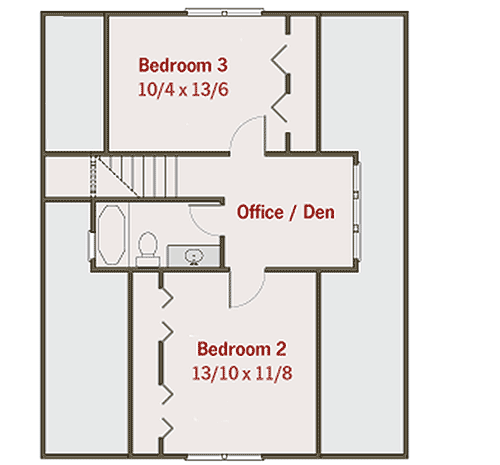

3 Bedroom Arts & Crafts Bungalow House Plan - 50101PH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,522 sq. ft.
  • 1st Floor: 952 sq. ft.
  • 2nd Floor: 570 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab
  • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 28' 0"
  • Depth: 42' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Plan Collections



3 Bedroom Arts & Crafts Bungalow House Plan

  • 1,522

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,095
  • 6 Sets $1,135
  • CAD - Single-Build $1,990
  • View all purchase option online

About This Plan

  • Influenced by some of the Low Country homes in North Carolina, this stylish Arts & Crafts home will appeal to those who love charming Bungalows.
  • The wide front porch opens to a formal living and dining room.
  • This plan is designed with room for an entertainment center in the recessed area of the living room.
  • A pass-through window in the kitchen is a big help in serving.
  • The side entry has a convenient washer/dryer closet.
  • Homeowners get the big first floor master suite with its private bathroom and walk-in closet.
  • Two additional bedrooms are up on the second floor along with a cozy den area that has a triple window.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,522 sq. ft.
  • 1st Floor: 952 sq. ft.
  • 2nd Floor: 570 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 28' 0"
  • Depth: 42' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12

Plan 50101PH
View this and more for this plan by visiting www.architechtecturaldesigns.com/50101PH
|
