Plan 405128FDC

3-Bedroom Barndominium House Plan with Split Layout

Heated S.F.
1,161
Beds
3
Baths
2
Stories
1

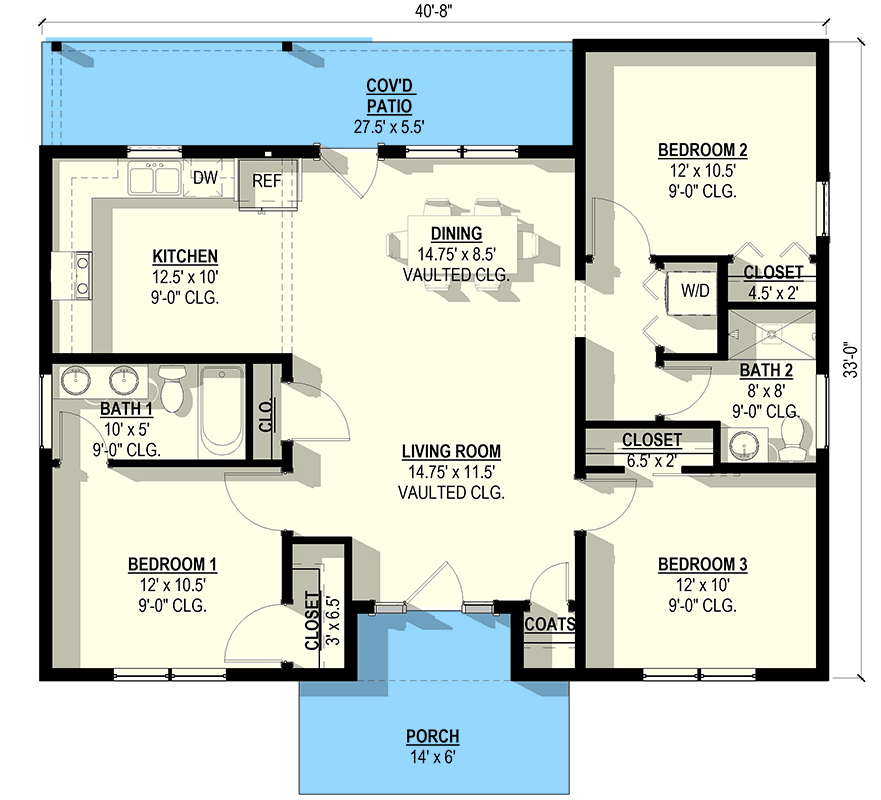

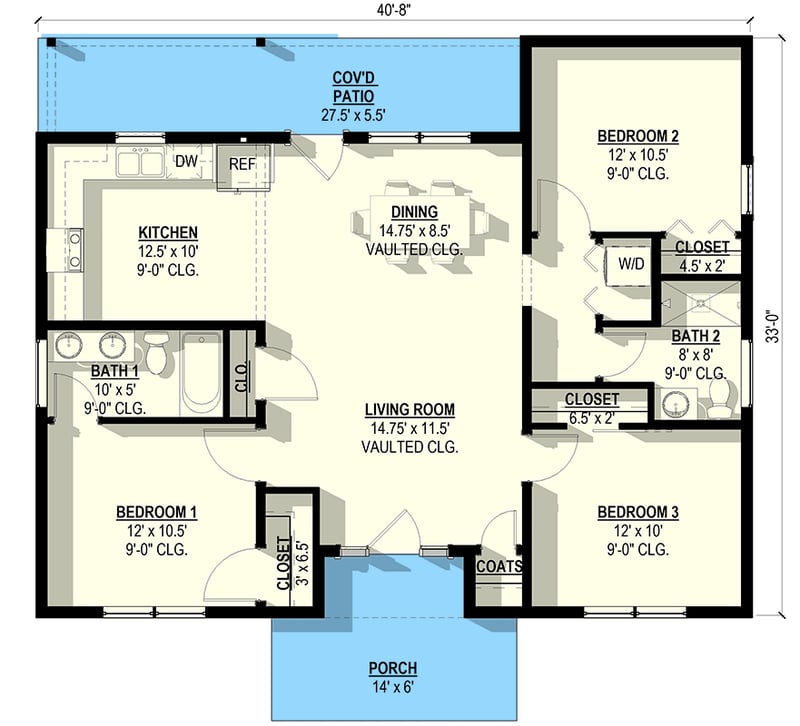

Floor Plan

Plan 405128FDC

Floor Plan 1

Plan 405128FDC

M-F 9am-5pm EST |

1-203-761-8500

Plan 405128FDC: 3-Bedroom Barndominium House Plan with Split Layout - Floor Plan - - Barndominium

Plan Details

  • This charming 1,161 sq ft Barndominium House Plan offers 3 bedrooms and 2 full baths, showcasing a classic farmhouse aesthetic with white siding and a dark metal roof.
  • A welcoming 113 sq ft front porch invites you into a thoughtfully designed single-level layout, featuring a convenient main-level laundry area.
  • The heart of the home is the open-concept living area, where the Great Room boasts a vaulted ceiling, creating an airy and spacious feel perfect for everyday living.
  • The private primary suite, located on the first floor, enjoys a split bedroom arrangement, offering a peaceful retreat separated from two secondary bedrooms.
  • Enjoy outdoor living with a spacious front porch and a generous 152 sq ft covered patio, ideal for relaxing or entertaining.
  • Related Plan: Get a similar version with house plan 405129FDC (1,313 sq. ft.).

What's Included

  • Cover Sheet - General Notes
  • Foundation
  • Floor Plan (s)
  • Electrical
  • Roof

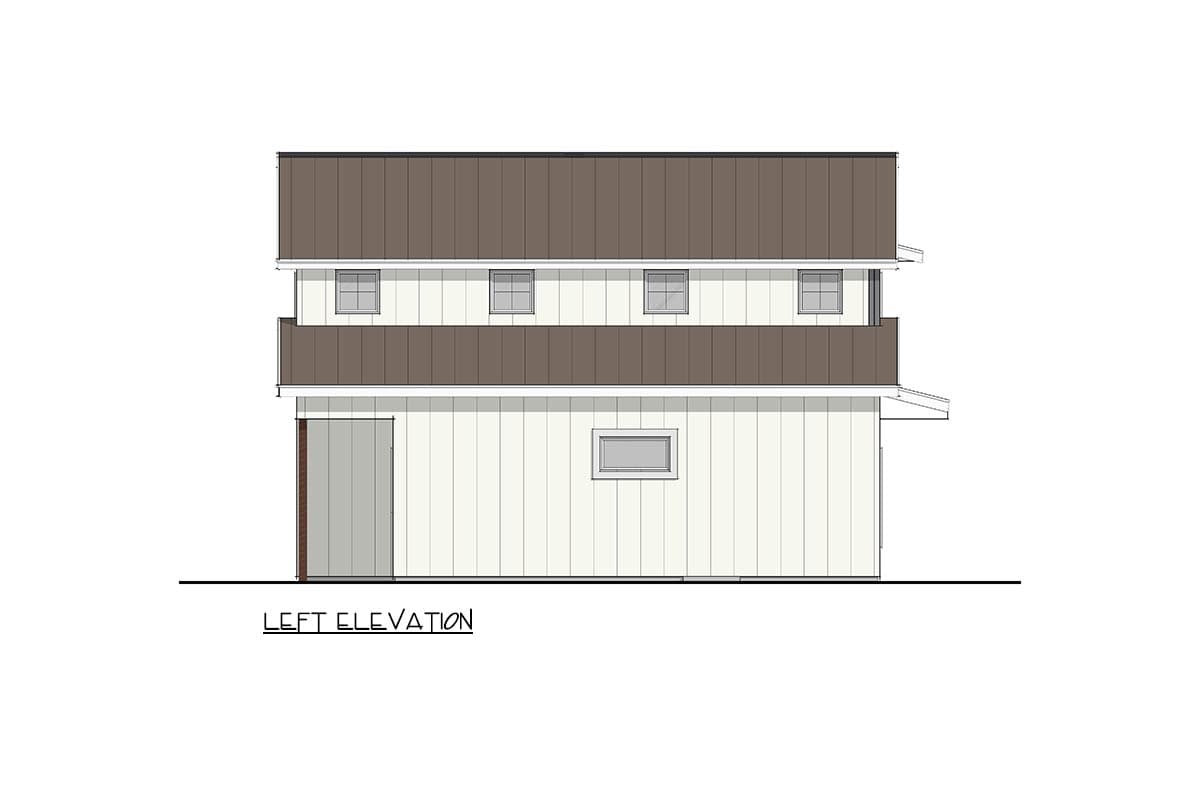

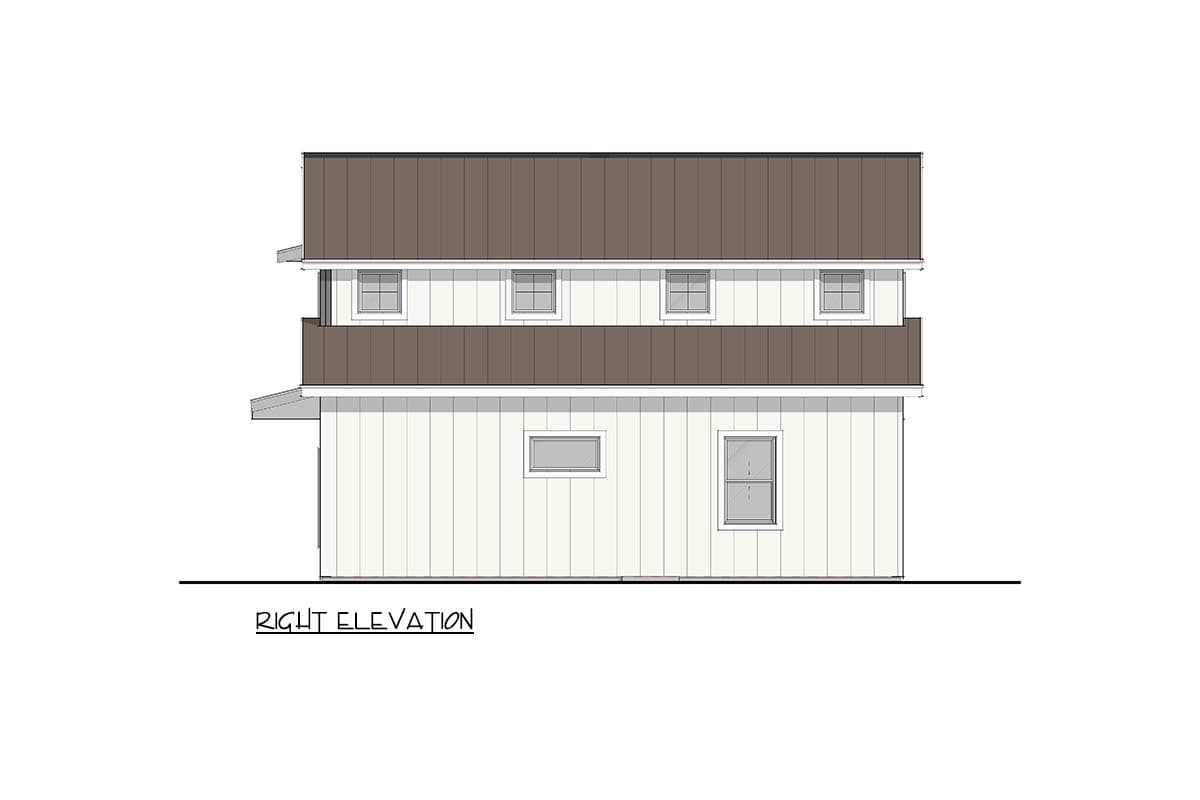

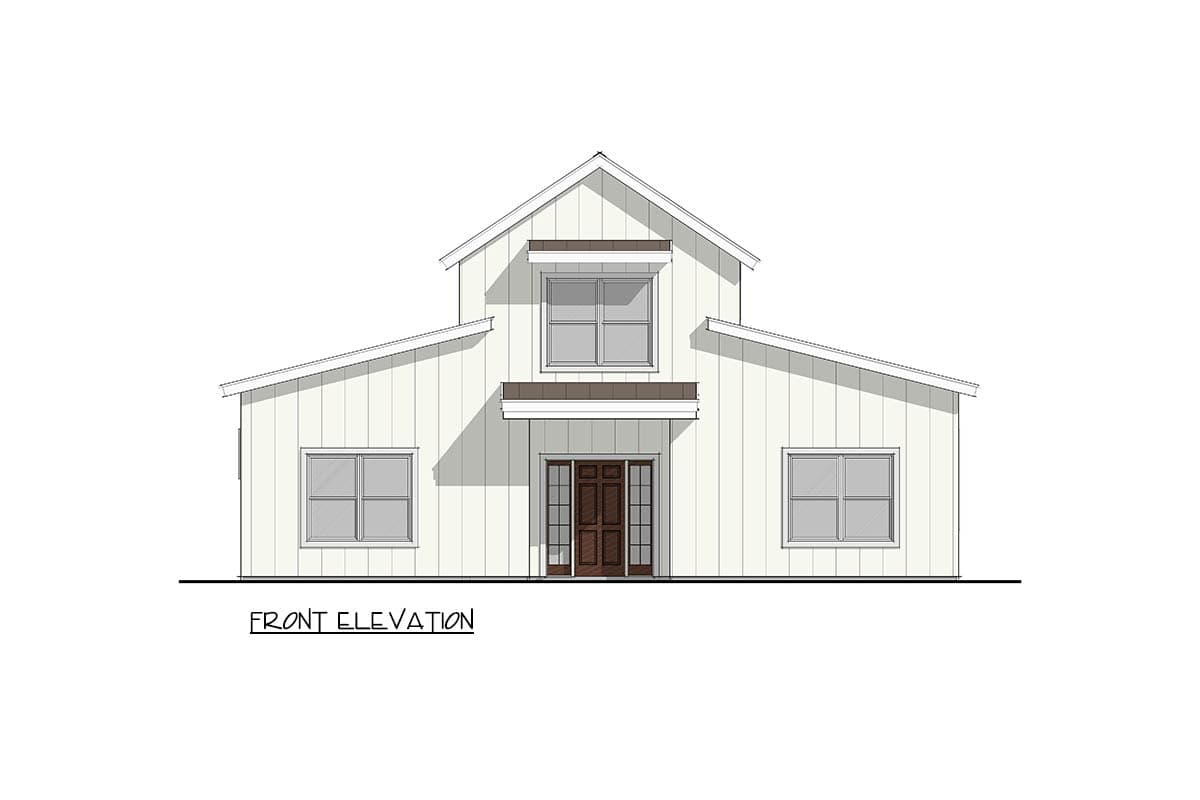

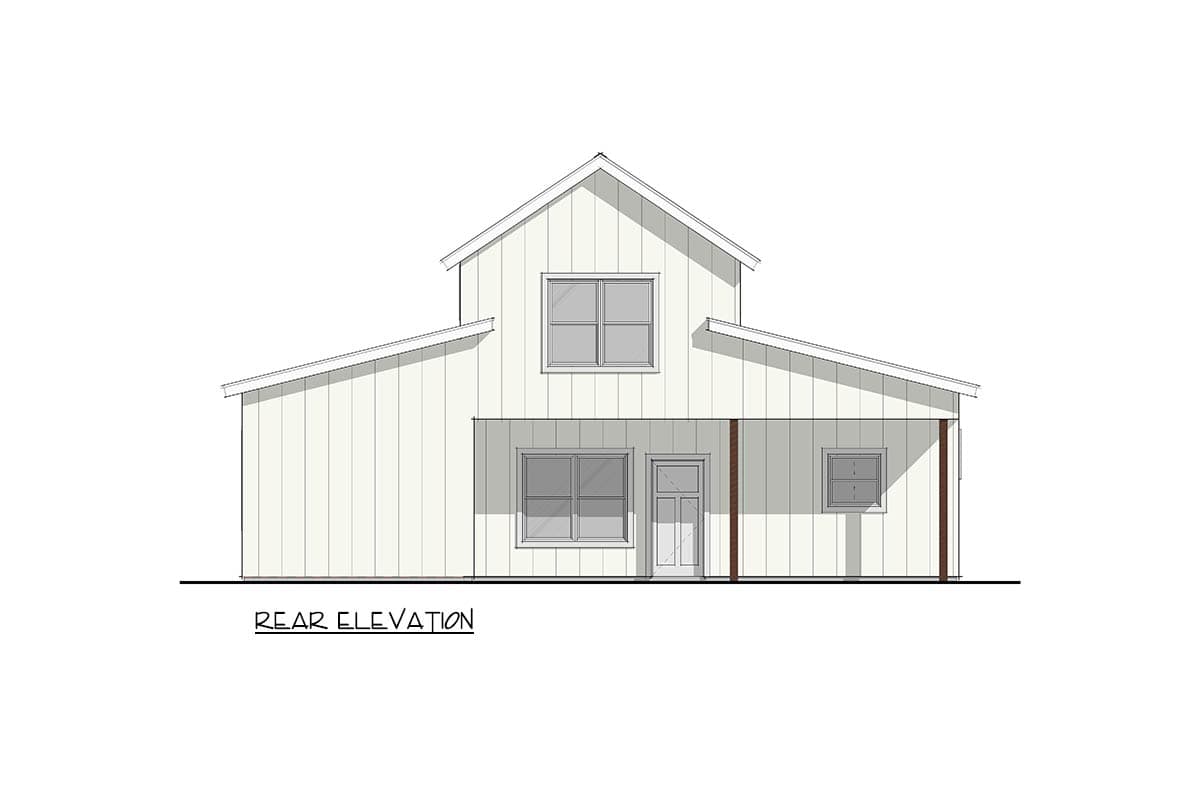

  • Exterior Elevation
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,161 sq. ft.

1st Floor

1,161 sq. ft.

Porch, Front

113 sq. ft.

Covered Patio

152 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Post/Beam, Post Frame, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 8"

Depth

33' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick Or Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,161 sq. ft.

1st Floor

1,161 sq. ft.

Porch, Front

113 sq. ft.

Covered Patio

152 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Post/Beam, Post Frame, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 8"

Depth

33' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick Or Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
