3 Bedroom Craftsman Clad in Shingles

1,770 3 3 2 2
Pageloader

3 Bedroom Craftsman Clad in Shingles

Plan 72712DA

  • 1,770

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • A smooth and tapered porch column and the shingle-textured siding and stone veneer cover combine for great curb apppeal in this Craftsman style home plan.
  • The entry leads into a spacious great room with a 9' ceiling. Light spills in through a sidelight, small panes of glass near the top of the door, and a wide threesome of Craftsman windows facing the street. A gas fireplace along one wall serves as a comforting focal point when needed.
  • A raised conversation bar at the rear of the great room provides partial separation from the kitchen.
  • Another bar, this one flush and designed for eating, fronts the cook top and bounds the dining room, which is open to the great room. Sliding glass door access in the dining room offers direct access to a covered patio, which could easily be screened.
  • Just inside the entry, a short hallway leads to the right. It passes a mini-bathroom linked to a utility room, before arriving at double doors that open into the vaulted owners' suite. A high display shelf overarches doors into the walk-in closet and a private bathroom, which boasts a double vanity, shower, and deep tub.
  • Two more bedrooms are upstairs in the Cloverport, along with a full bathroom and two storage closets. Access to a deep bonus room over the garage is also on this level.
  • The roof has a 7:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

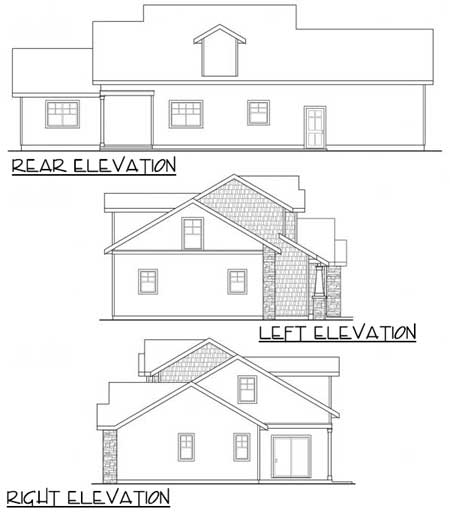

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



3 Bedroom Craftsman Clad in Shingles

  • 1,770

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • A smooth and tapered porch column and the shingle-textured siding and stone veneer cover combine for great curb apppeal in this Craftsman style home plan.
  • The entry leads into a spacious great room with a 9' ceiling. Light spills in through a sidelight, small panes of glass near the top of the door, and a wide threesome of Craftsman windows facing the street. A gas fireplace along one wall serves as a comforting focal point when needed.
  • A raised conversation bar at the rear of the great room provides partial separation from the kitchen.
  • Another bar, this one flush and designed for eating, fronts the cook top and bounds the dining room, which is open to the great room. Sliding glass door access in the dining room offers direct access to a covered patio, which could easily be screened.
  • Just inside the entry, a short hallway leads to the right. It passes a mini-bathroom linked to a utility room, before arriving at double doors that open into the vaulted owners' suite. A high display shelf overarches doors into the walk-in closet and a private bathroom, which boasts a double vanity, shower, and deep tub.
  • Two more bedrooms are upstairs in the Cloverport, along with a full bathroom and two storage closets. Access to a deep bonus room over the garage is also on this level.
  • The roof has a 7:12 pitch.

Floor Plans

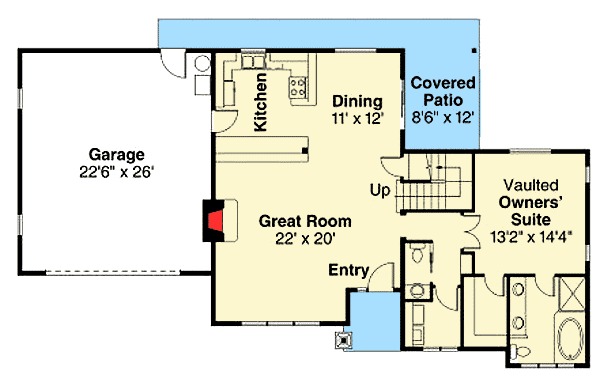

  • Main Level
