3-Bedroom Craftsman Cottage House Plan for Side Sloping Lot

Plan 680069VR

  • 1,854

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around deck to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage are also located on this floor.
  • A 2-car front-facing garage with a single 18' wide and 8' high overhead door completes the plan.
  • Related Plans: Get an alternate version with house plan 680032VR, and get a larger version with house plan 68925VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

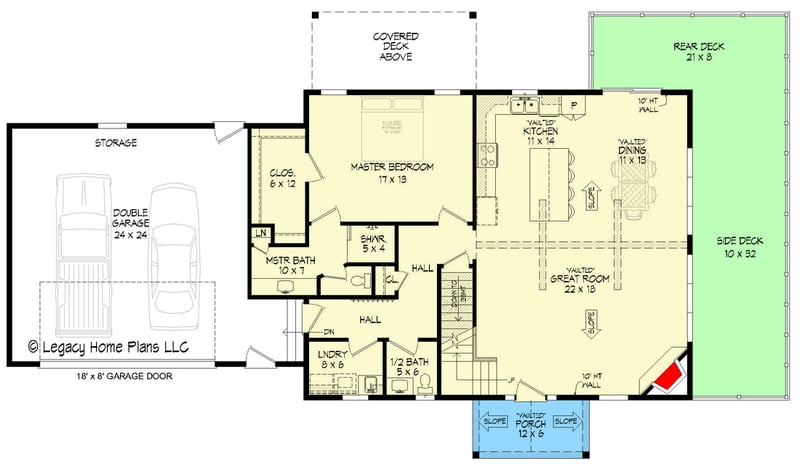

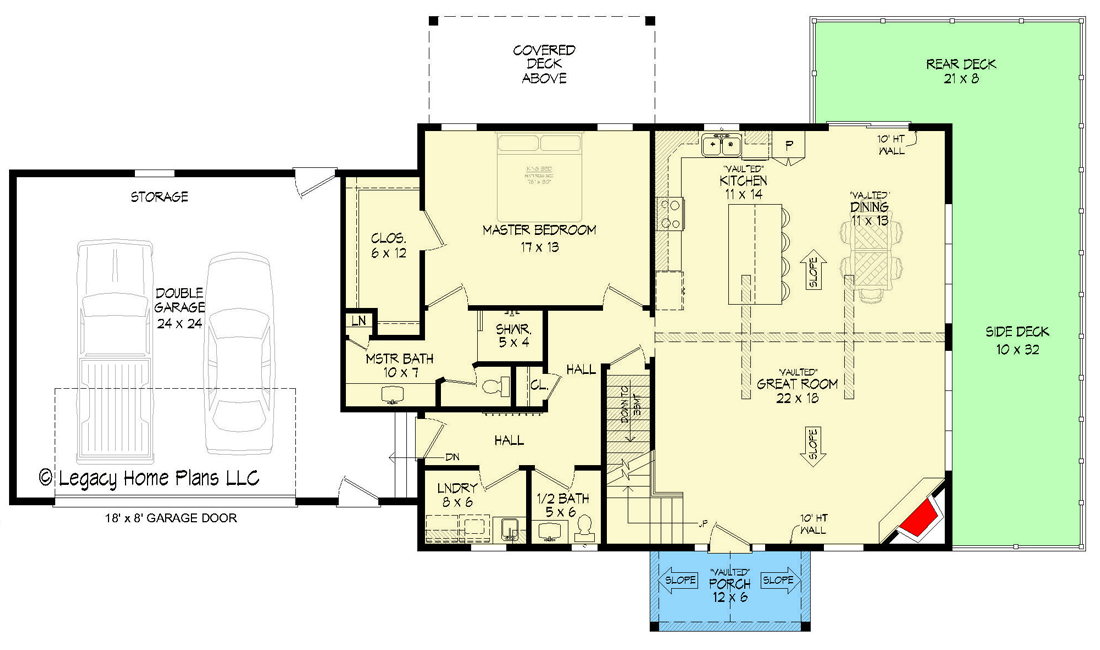

3-Bedroom Craftsman Cottage House Plan for Side Sloping Lot - 680069VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

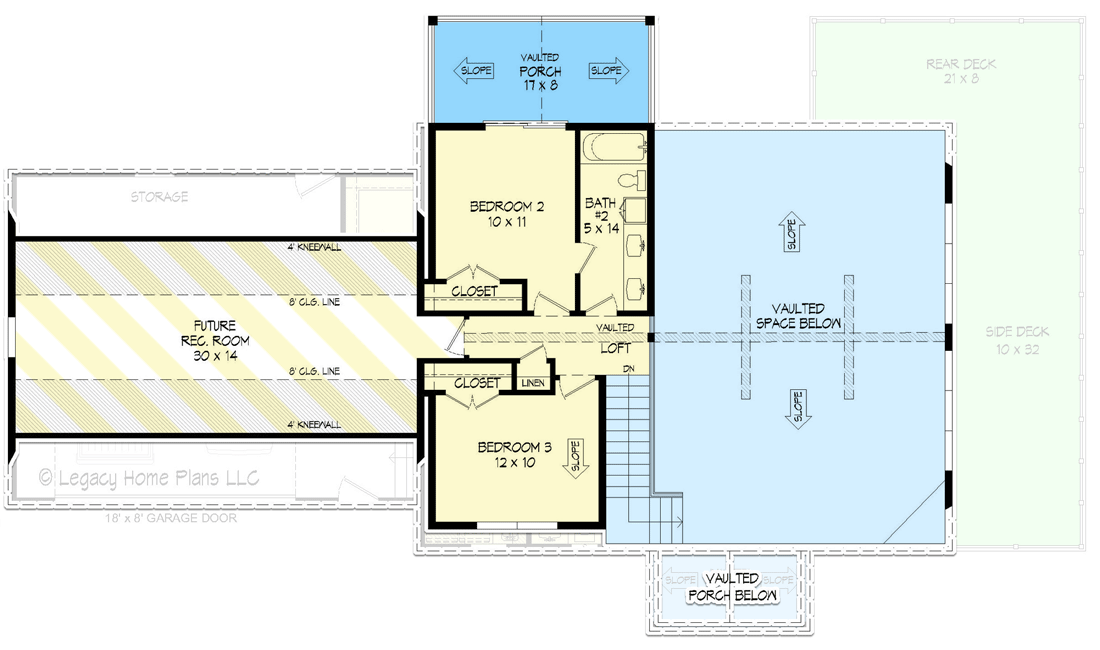

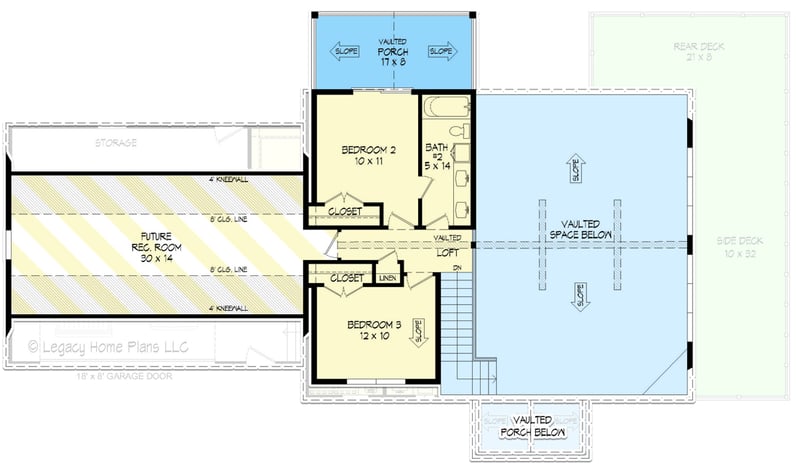

3-Bedroom Craftsman Cottage House Plan for Side Sloping Lot - 680069VR floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

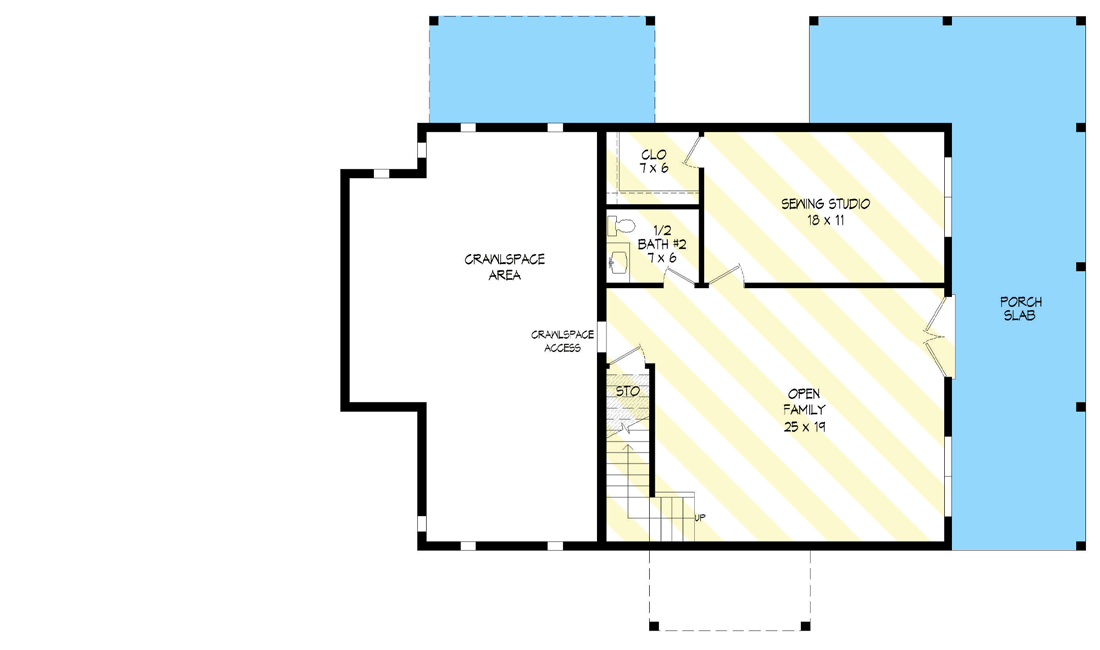

3-Bedroom Craftsman Cottage House Plan for Side Sloping Lot - 680069VR floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,854 sq. ft.
  • 1st Floor: 1,384 sq. ft.
  • 2nd Floor: 470 sq. ft.
  • Porch, Combined: 692 sq. ft.
  • Bonus: 469 sq. ft.
  • Optional Lower Level: 850 sq. ft.
  • Basement Unfinished: 168 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 7"
  • Depth: 46' 0"
  • Max ridge height: 26' 10"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room 22' 0" 18' 0" 9' 0" to 15' 6"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

3-Bedroom Craftsman Cottage House Plan for Side Sloping Lot

  • 1,854

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,975
  • 5 Sets $2,060
  • 5 Sets + PDF $2,220
  • CAD + PDF - Single-Build $2,525
  • View all purchase option online

About This Plan

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around deck to enjoy the available views.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath.
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage are also located on this floor.
  • A 2-car front-facing garage with a single 18' wide and 8' high overhead door completes the plan.
  • Related Plans: Get an alternate version with house plan 680032VR, and get a larger version with house plan 68925VR.
