3-Bedroom Craftsman Home Plan with Main-Floor Master Suite

Plan 790044GLV

  • 2,650

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This craftsman house plan beckons with its appealing stone, shake, and clapboard exterior and 3-car garage.
  • Just inside, a great room with an elegant coffered ceiling, fireplace, and ample natural light welcomes you home.
  • A versatile study in the front of the home offers a quiet space for work or relaxation.
  • The wraparound kitchen is designed for convenience and efficiency, featuring a large island with seating for casual meals and walk-in pantry.
  • Gather around the table in the bright and airy morning room, which boasts a cathedral ceiling and sweeping backyard view.
  • Retreat to main-floor master, featuring a step ceiling, 4-piece bath with an oversized walk-in shower, and two generously sized walk-in closets.
  • On the upper level, two bedrooms share a full bath.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

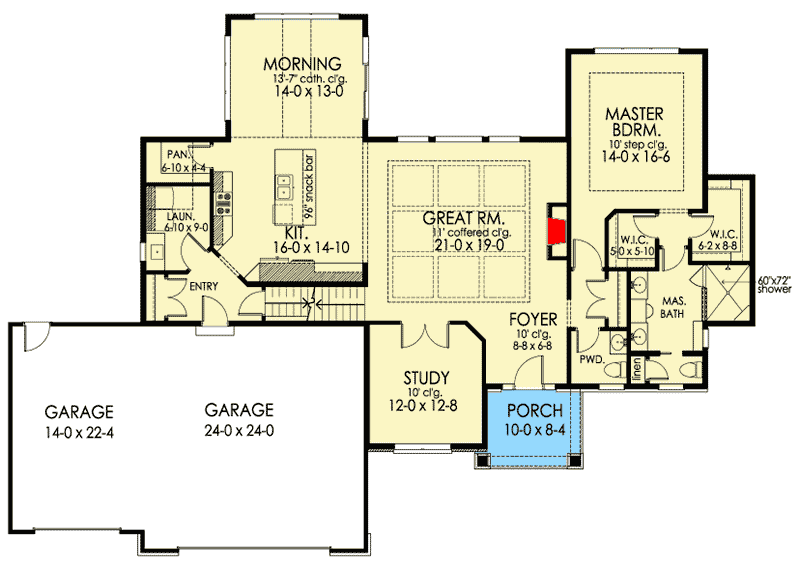

3-Bedroom Craftsman Home Plan with Main-Floor Master Suite - 790044GLV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

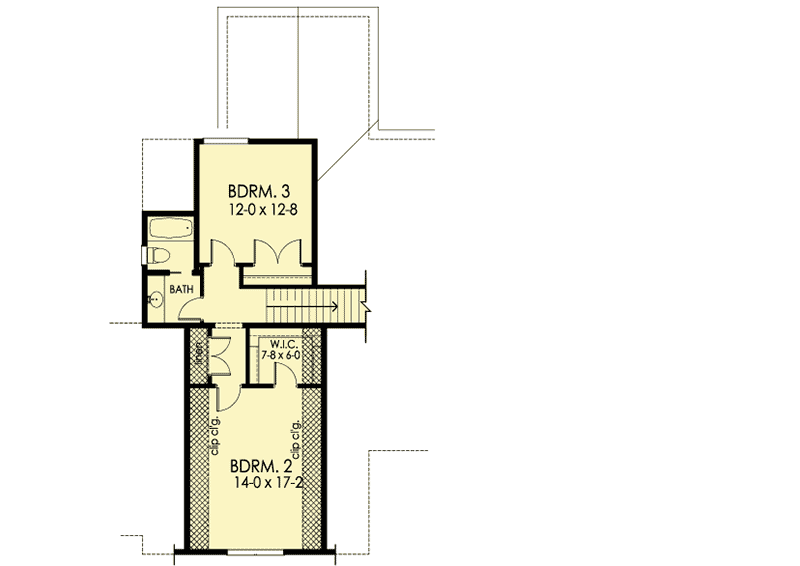

3-Bedroom Craftsman Home Plan with Main-Floor Master Suite - 790044GLV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,650 sq. ft.
  • 1st Floor: 1,939 sq. ft.
  • 2nd Floor: 711 sq. ft.
  • Porch, Front: 82 sq. ft.
  • Optional Lower Level: 1,954 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 57' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

3-Bedroom Craftsman Home Plan with Main-Floor Master Suite

  • 2,650

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,850
  • 5 Sets $1,900
  • 5 Sets + PDF $2,200
  • CAD - Single-Build $3,700
  • CAD - Unlimited Build $4,700
  • View all purchase option online

About This Plan

  • This craftsman house plan beckons with its appealing stone, shake, and clapboard exterior and 3-car garage.
  • Just inside, a great room with an elegant coffered ceiling, fireplace, and ample natural light welcomes you home.
  • A versatile study in the front of the home offers a quiet space for work or relaxation.
  • The wraparound kitchen is designed for convenience and efficiency, featuring a large island with seating for casual meals and walk-in pantry.
  • Gather around the table in the bright and airy morning room, which boasts a cathedral ceiling and sweeping backyard view.
  • Retreat to main-floor master, featuring a step ceiling, 4-piece bath with an oversized walk-in shower, and two generously sized walk-in closets.
  • On the upper level, two bedrooms share a full bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,650 sq. ft.
  • 1st Floor: 1,939 sq. ft.
  • 2nd Floor: 711 sq. ft.
  • Porch, Front: 82 sq. ft.
  • Optional Lower Level: 1,954 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 79' 0"
  • Depth: 57' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss
