Plan 72128DA

3 Bedroom House Plan for a Smaller Lot - 1456 Sq Ft

Name: Plan 72128DA: 3 Bedroom House Plan for a Smaller Lot - 1456 Sq Ft
Brand: Architectural Designs
SKU: 72128DA
Price: 1725.0 USD
Availability: InStock

Heated S.F.

1,456

Beds

Baths

Stories

Cars

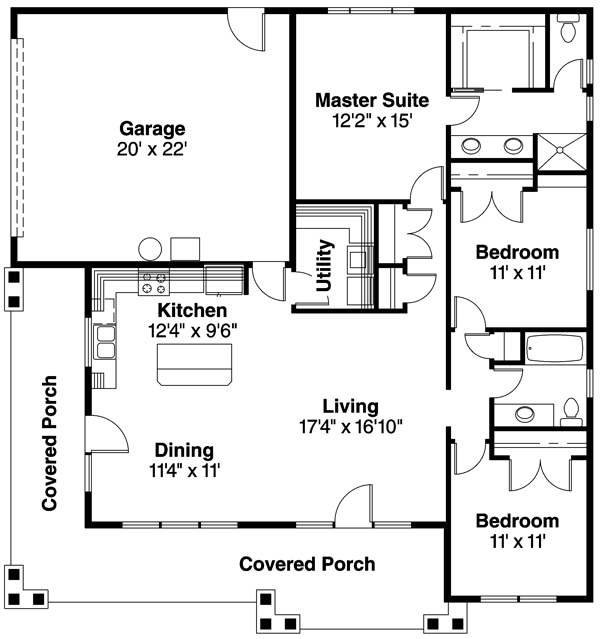

Floor Plan

Main Level

Plan Details

The house plan is a compact home with a surprisingly spacious feel. This plan is designed to fit on a small lot, with room to spare. And its footprint is almost square: 47' by 50'. When it comes to maintenance and energy efficiency, the absence of angles and rambling exterior walls is a definite plus.
A covered porch and an impressive array of sparkling windows grace the front fa'ade. Then the porch goes on to wrap around the side. Inside, the combination living room and dining room is awash in natural light, gently muted by the porch overhang.
The kitchen fills more than a quarter of this large, open gathering space. Nothing more than a work island with a raised eating bar separates the areas.
An atrium or French door in the dining room provides direct access to the covered porch, a delightful spot for outdoor dining. Two doors across the room open into the utility room and the garage. The utility room is exceptionally large for a home this size. It's also well-outfitted with cupboards and an L-shaped counter.
Coat and storage closets line the hallway leading to the master suite. Amenities here include: a large walk-in closet, and master bathroom with dual vanity, shower, and private toilet. The home plan's two front bedrooms share another bathroom.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
