Plan 280076JWD
3-Bedroom House Plan with Main-Level Master Suite
Heated S.F.
1,942
Beds
3
Baths
2.5
Stories
2
Cars
2
Photos
What's Included
Plan Details
  • This functional floor plan provides the shared living spaces on the main level, along with the master suite, which allows the homeowner to age in place.

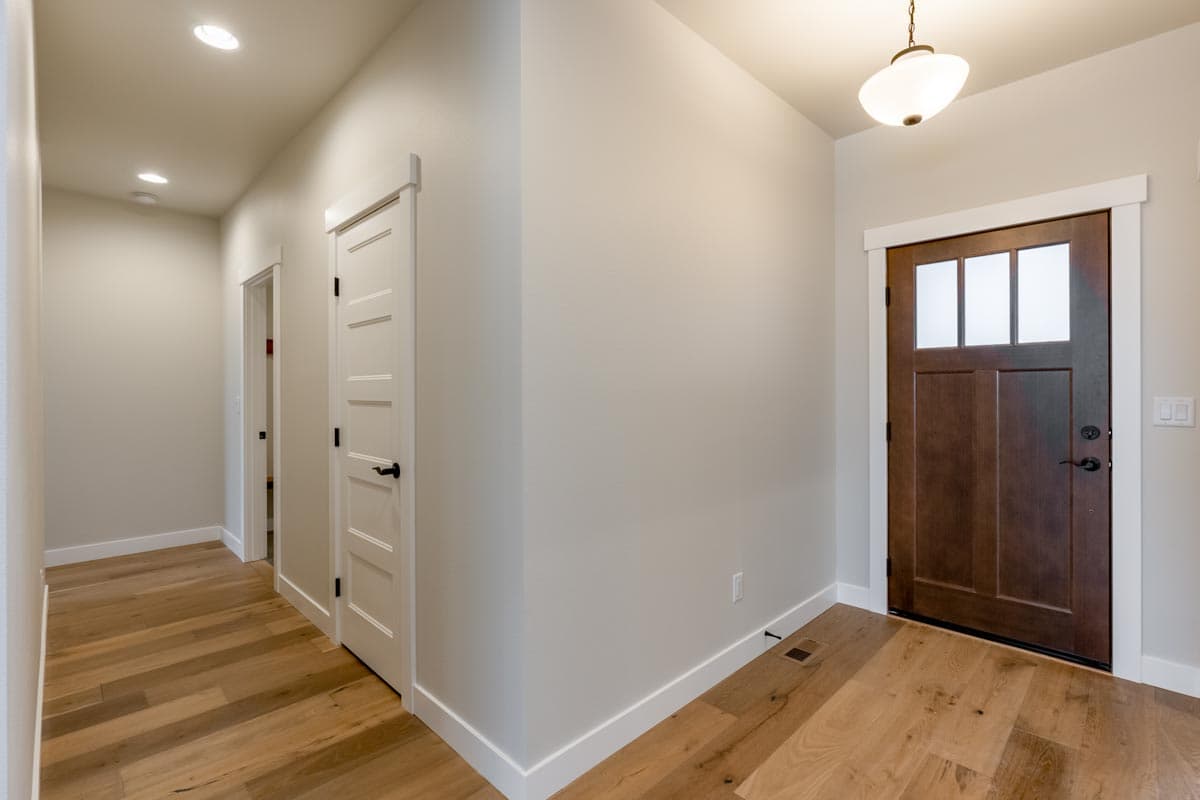

  • The charming front porch lends shelter to those visiting, while adding to the curb appeal. Inside, discover a quiet den on the other side of french doors, next to a coat closet.

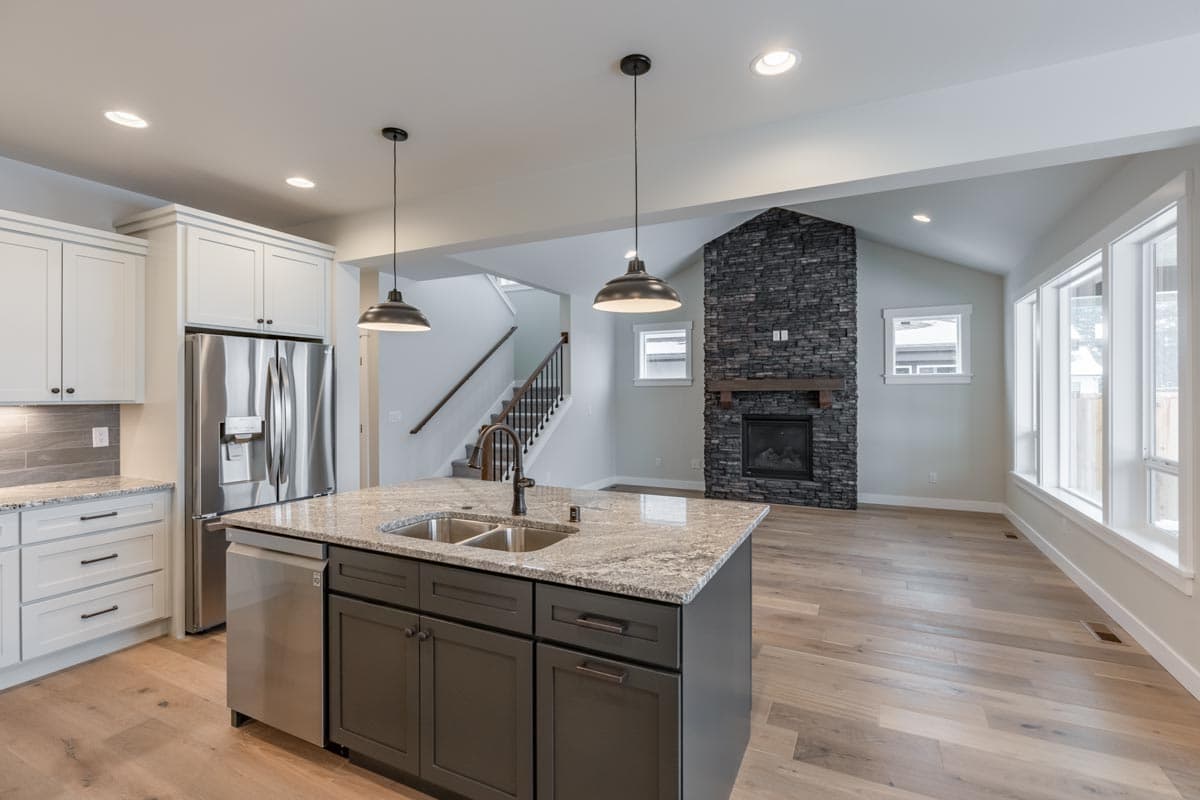

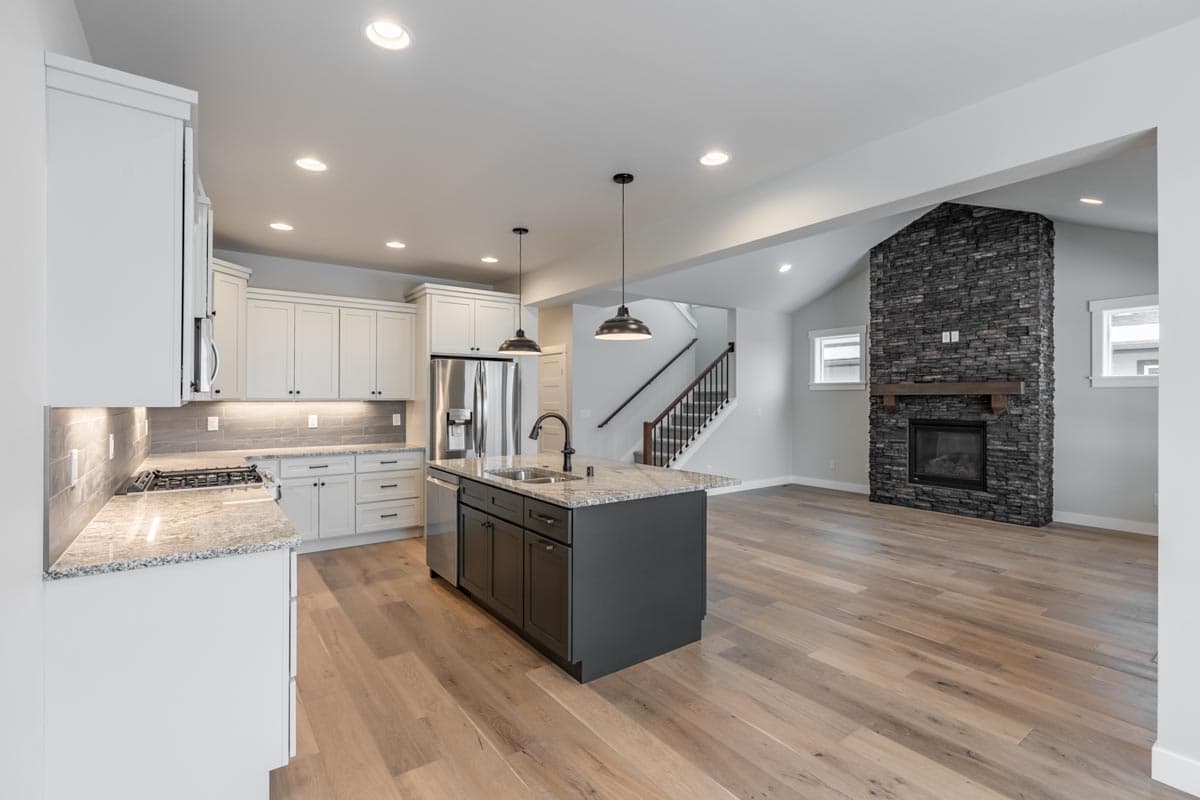

  • Family time remains a priority with the combined great room and eat-in kitchen. Retreat to the back porch to grill or just relax outdoors as the sun fades.

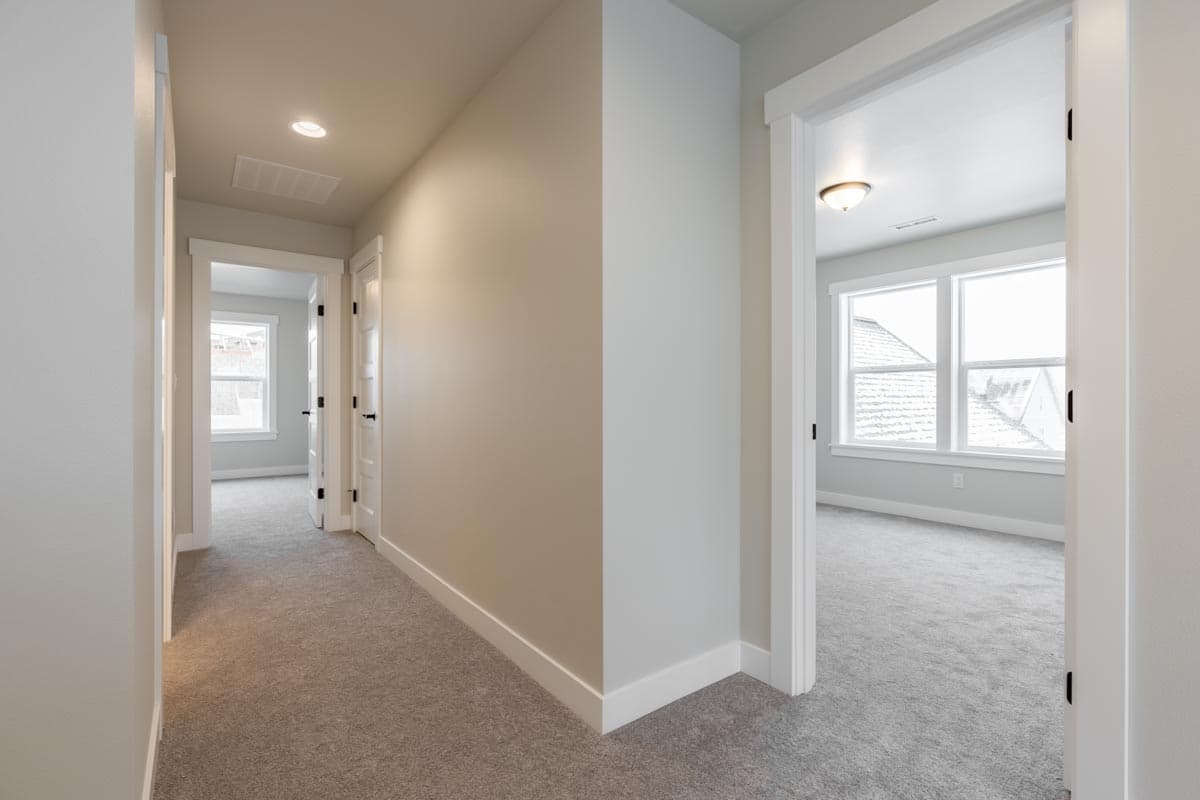

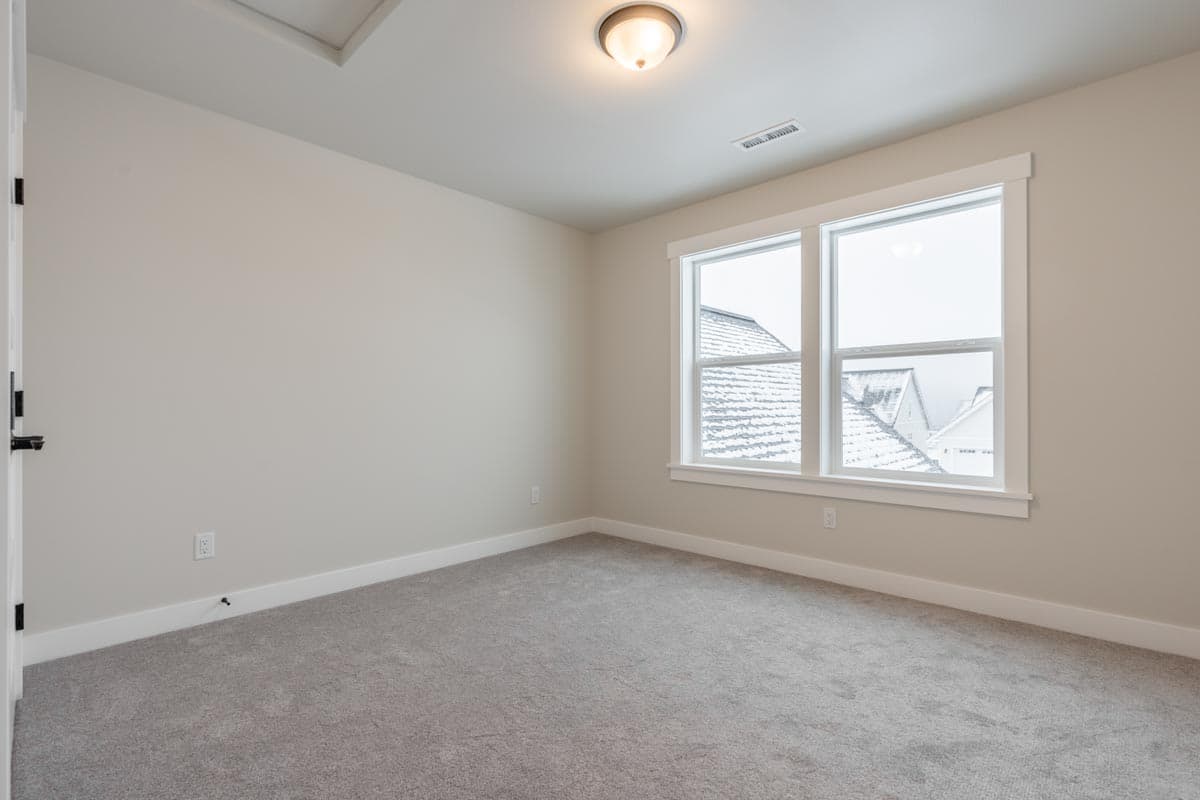

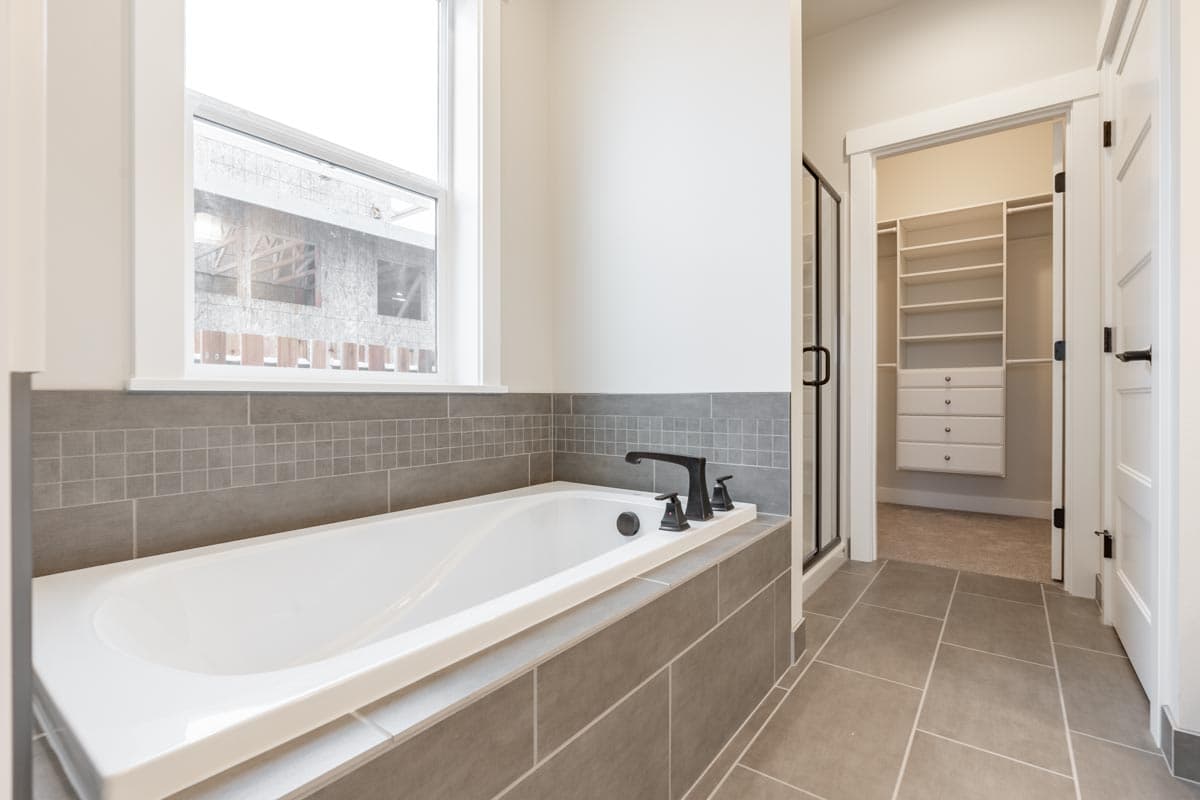

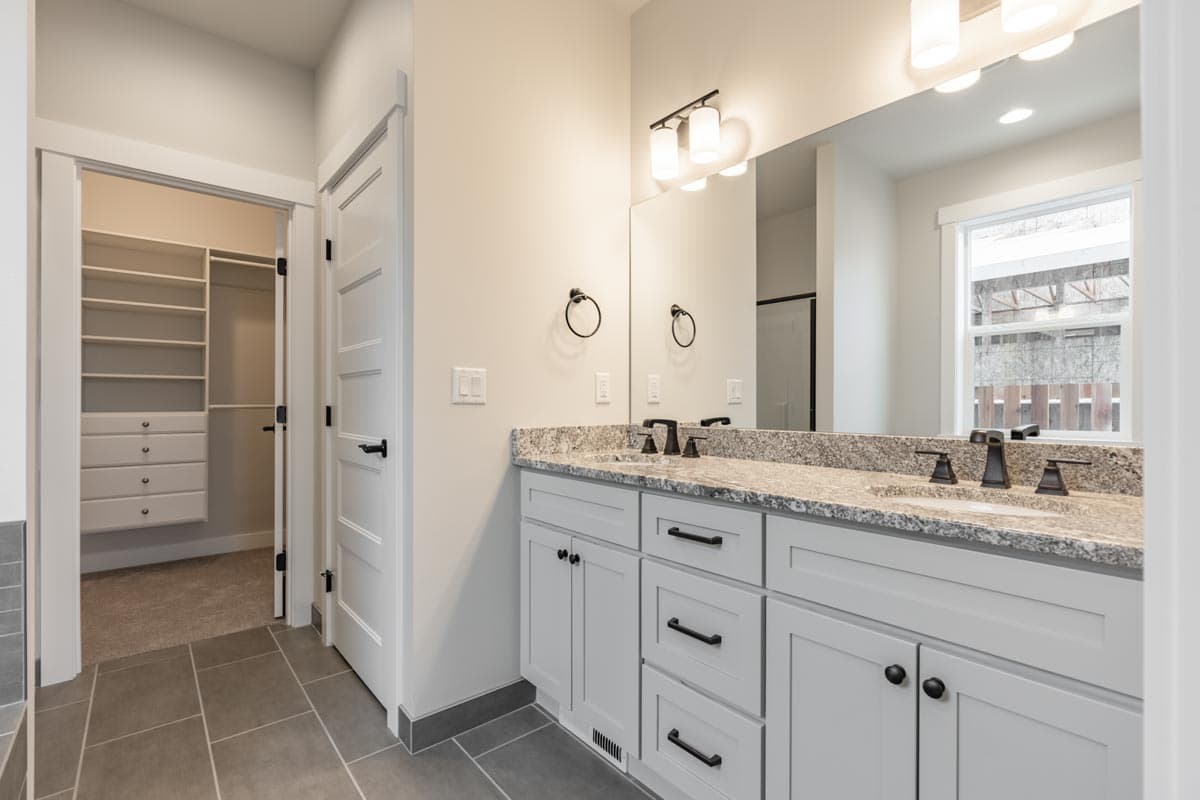

  • The design considers the homeowner's privacy with the location of the master suite, which includes a 5-fixture bath and walk-in closet. The remaining two family bedrooms can be found upstairs, alongside a full bath.
  • A coat closet is located just inside from the garage and awaits your shoes and outdoor gear, across from the laundry room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bedroom House Plan with Main-Level Master Suite

  • 1,942

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

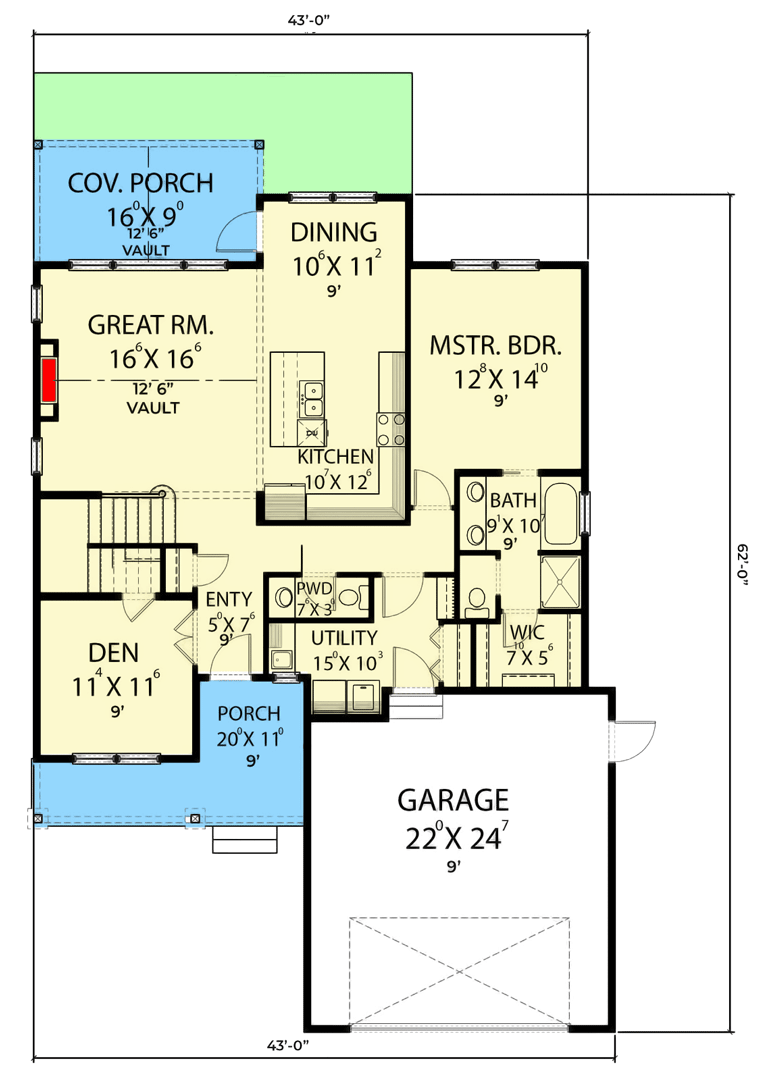

  • Main Level

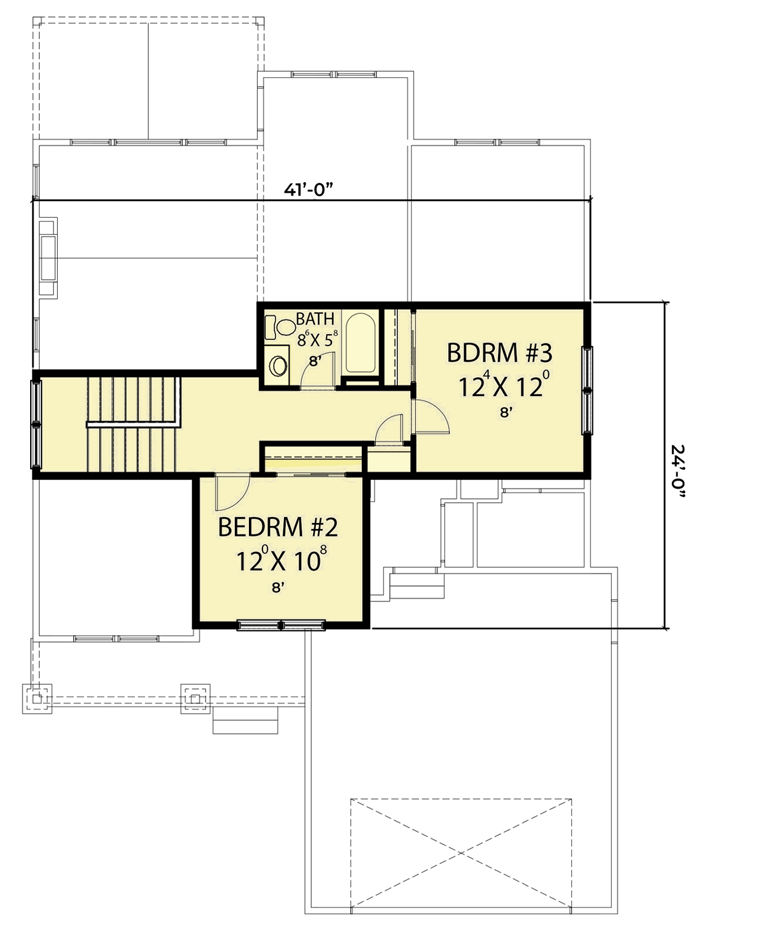

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,942 sq. ft.
  • 1st Floor: 1,434 sq. ft.
  • 2nd Floor: 508 sq. ft.

Dimensions

  • Width: 43' 0"
  • Depth: 62' 0"
  • Max ridge height: 28' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 564 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
