Plan 51919HZ
3-Bedroom Lake House Plan with Large Covered Porches
Heated S.F.
1,605
Beds
3
Baths
2
Stories
1
Flyer
What's Included
Floor Plan
PRINT PLANS

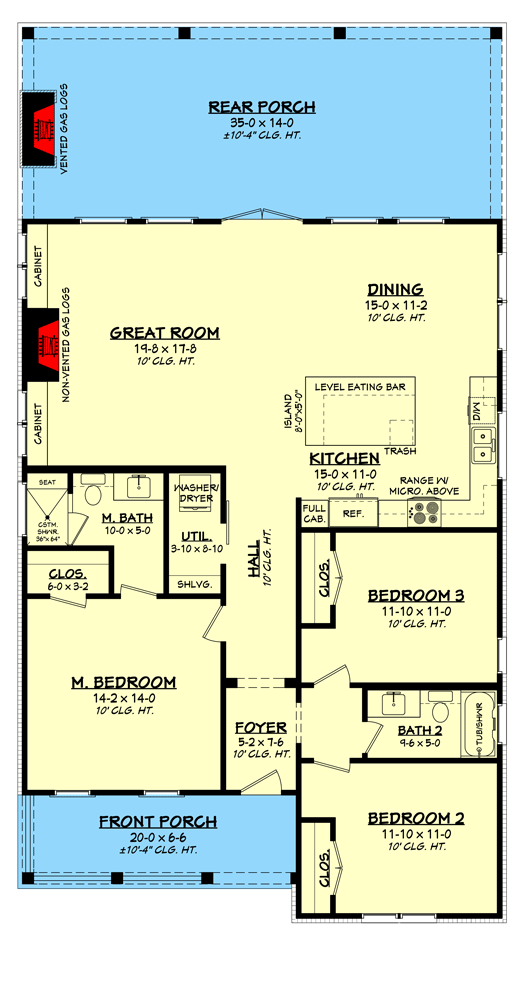

Main Level
Reverse Floor Plan
3-Bedroom Lake House Plan with Large Covered Porches - 51919HZ floor plan - Main Level

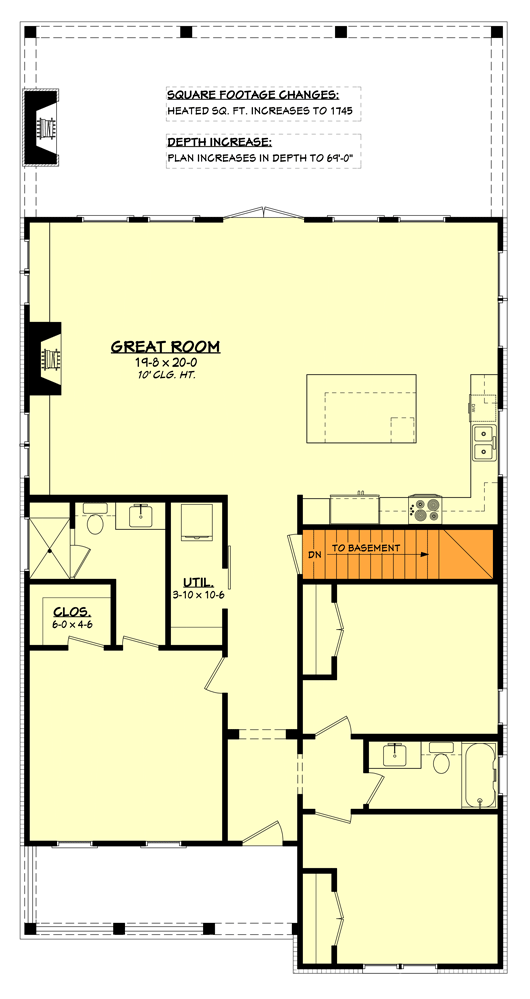

Basement Stairs Location
Reverse Floor Plan
3-Bedroom Lake House Plan with Large Covered Porches - 51919HZ floor plan - Basement Stairs Location
Plan Details
  • This cozy cottage could be the perfect starter home or getaway cabin. It has a hipped roof with exposed rafter tails and a 130 square foot front porch.
  • Inside, it gives you 3 bedrooms and 2 baths oriented to the front, leaving the back of the home open on three sides with views oriented to the back.
  • The large great room is open to the dining and kitchen that's equipped with a large (8' by 5') eat-at island.
  • Adjacent to these areas is the most impressive part of this plan: a 490 square foot 14'-deep rear porch with fireplace.
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and details
Page 3  Detailed floor plan and electrical plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Cross Sections & kitchen cabinet views
Page 6  Roof plan and span charts with additional notes
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bedroom Lake House Plan with Large Covered Porches

  • 1,605

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,605 sq. ft.
  • 1st Floor: 1,605 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 65' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
