Plan 86309HH

3-Bedroom Tudor Cottage Home Plan with Office and Bonus Room

Heated S.F.

2,695

Beds

3

Baths

3

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

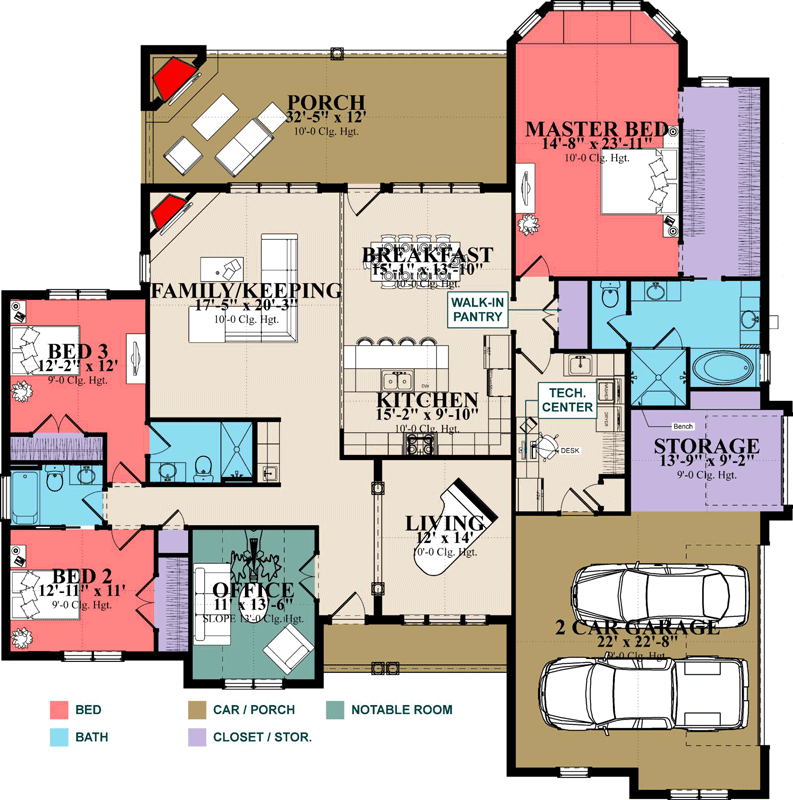

3-Bedroom Tudor Cottage Home Plan with Office and Bonus Room - 86309HH floor plan - Main Level

Plan Details

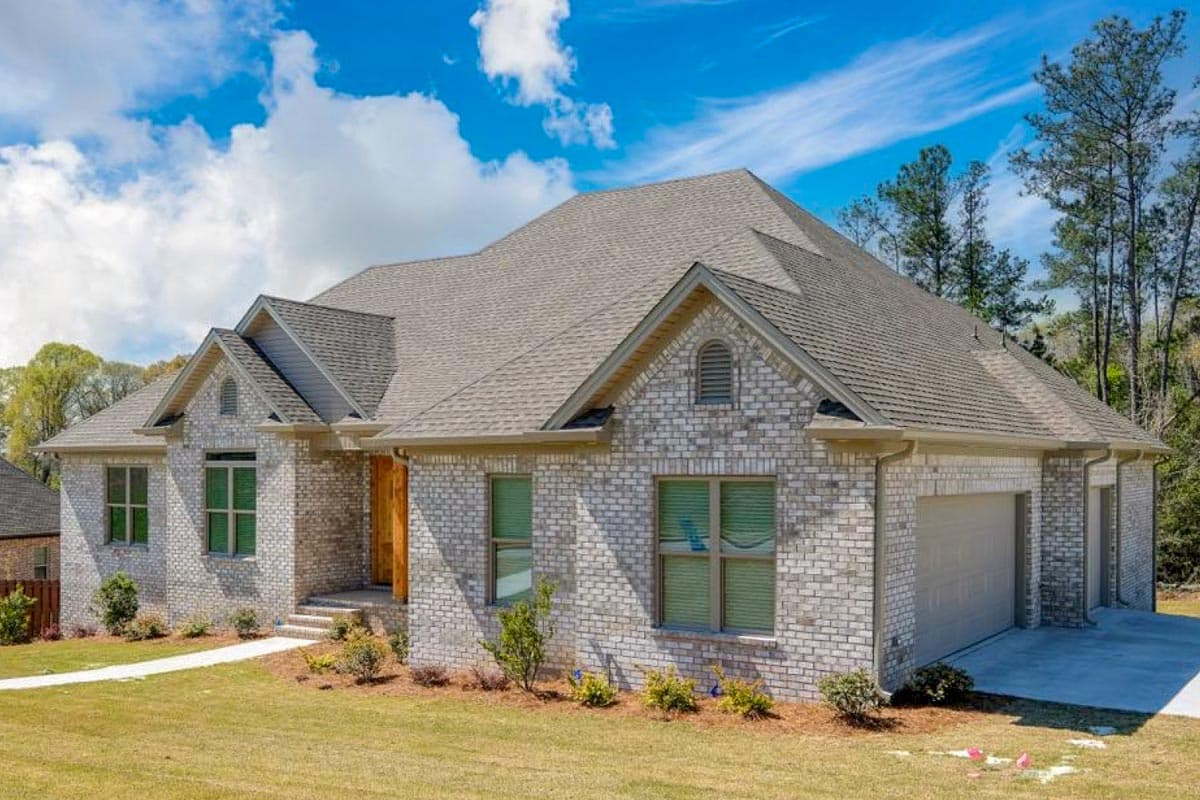

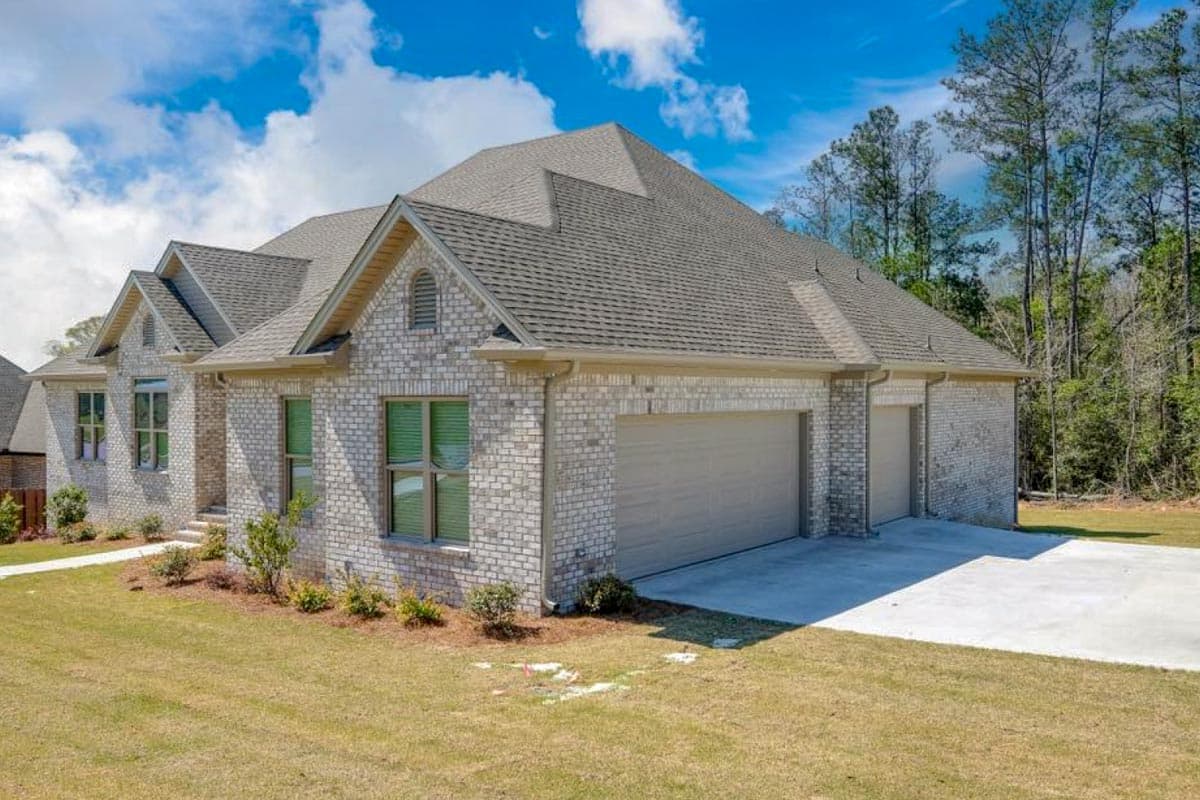

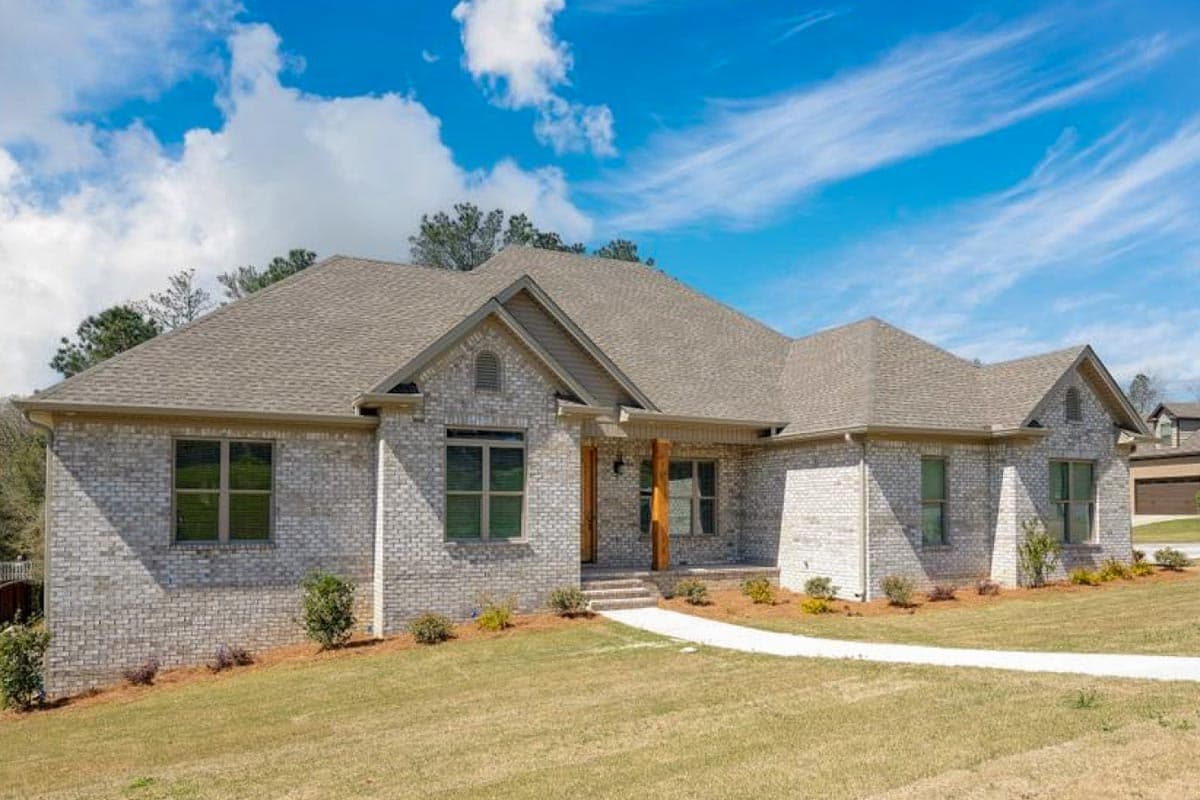

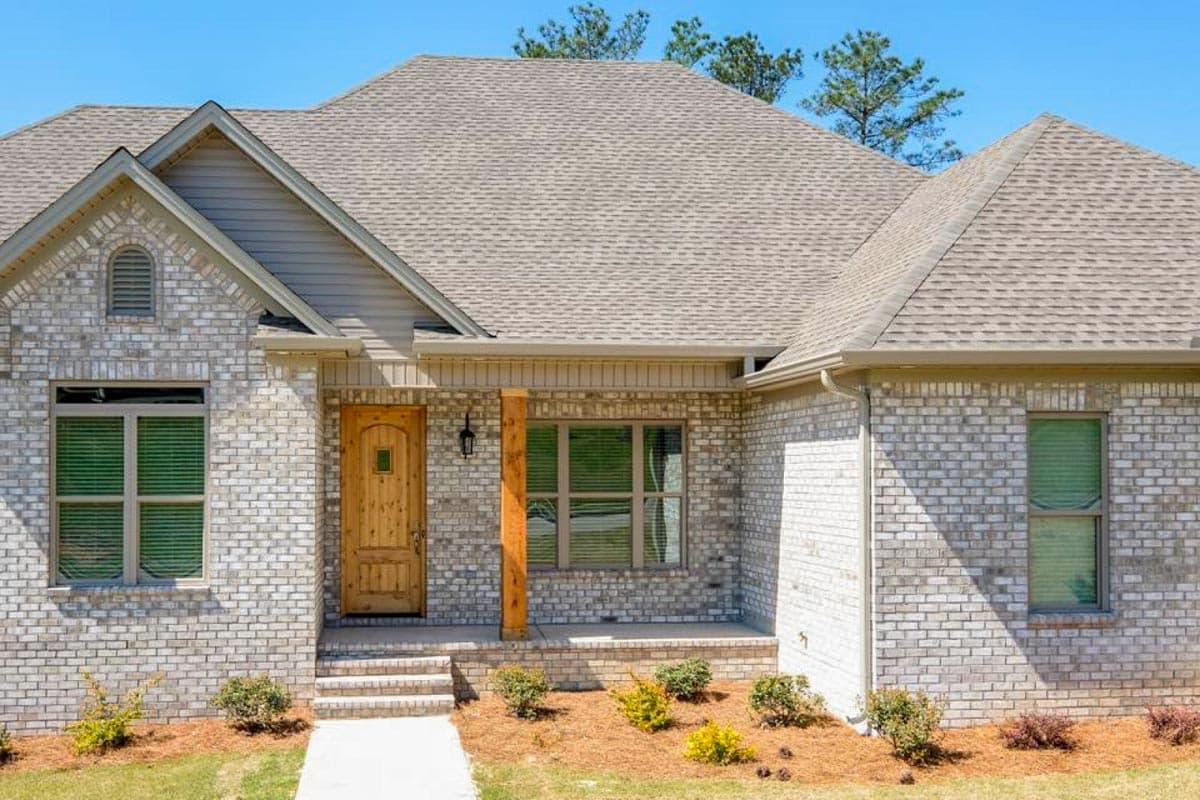

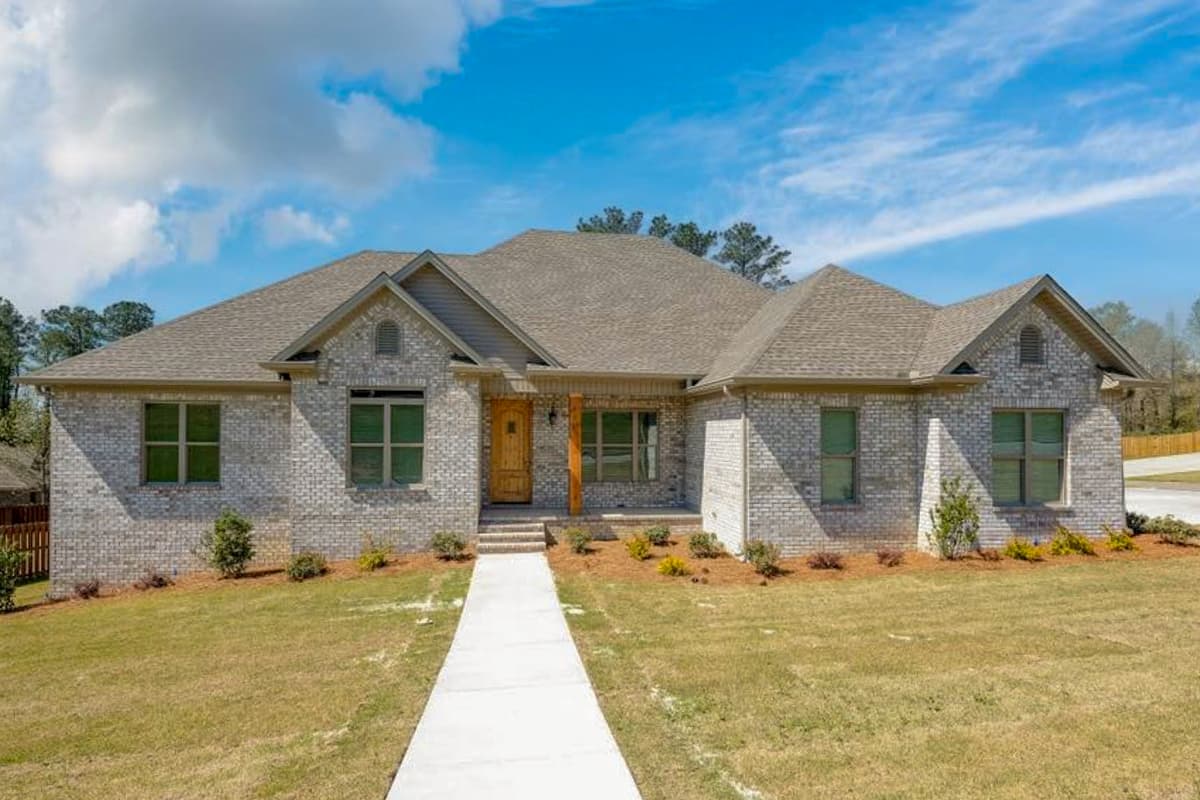

This inviting Tudor cottage home plan features a handsome brick exterior, covered front entry, and 2-car garage.
A bright, airy keeping room at the center of the home opens to a generously sized breakfast nook, creating spaces for gathering and casual meals.

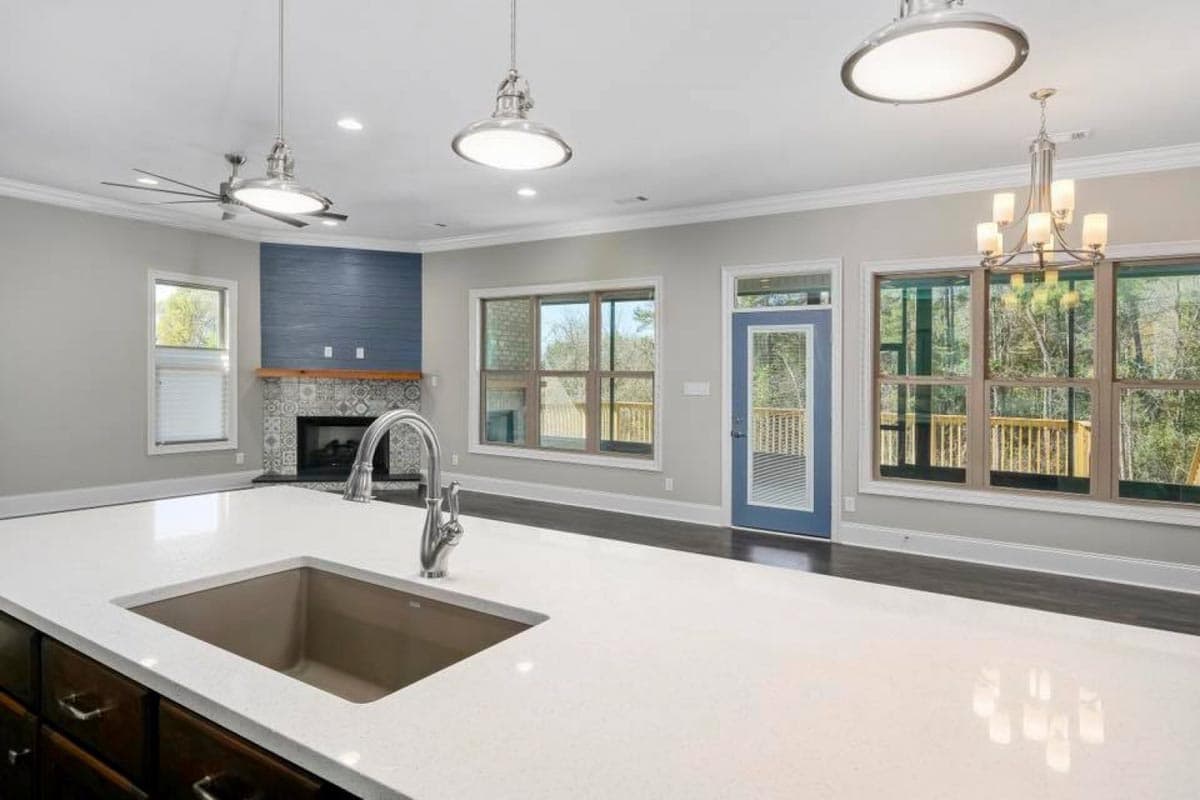

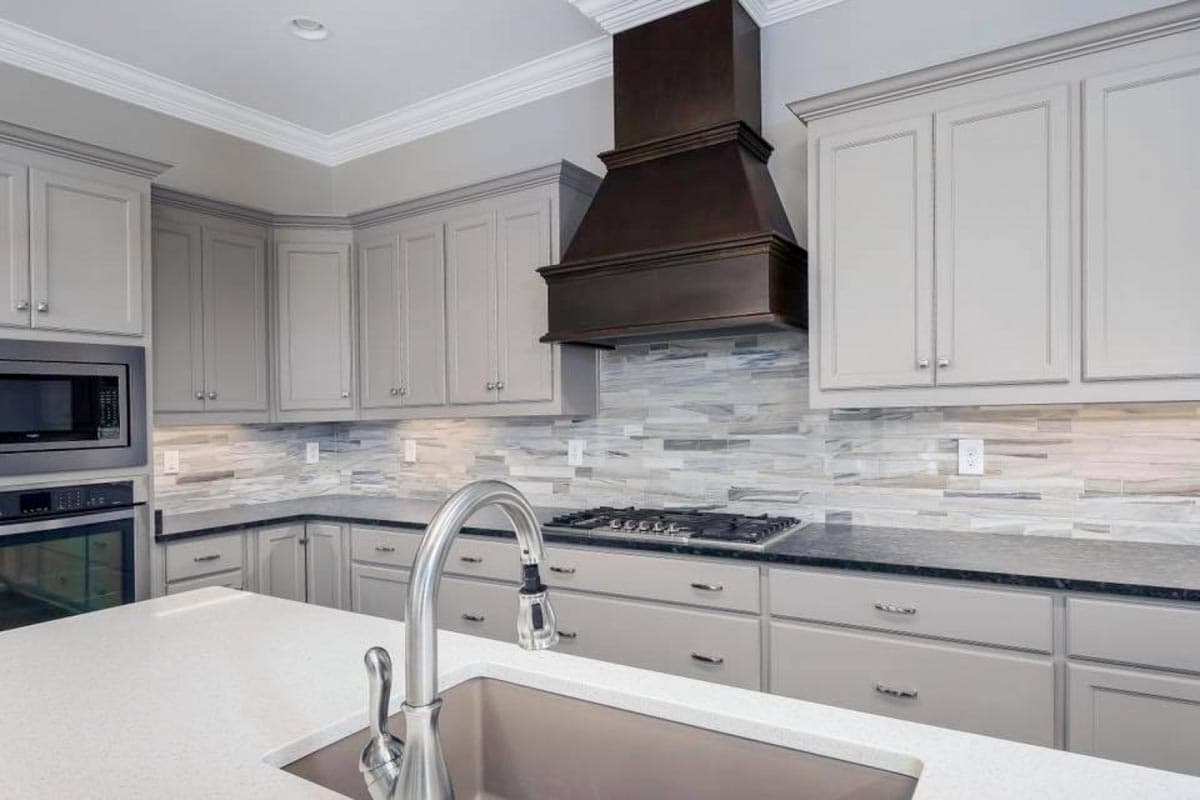

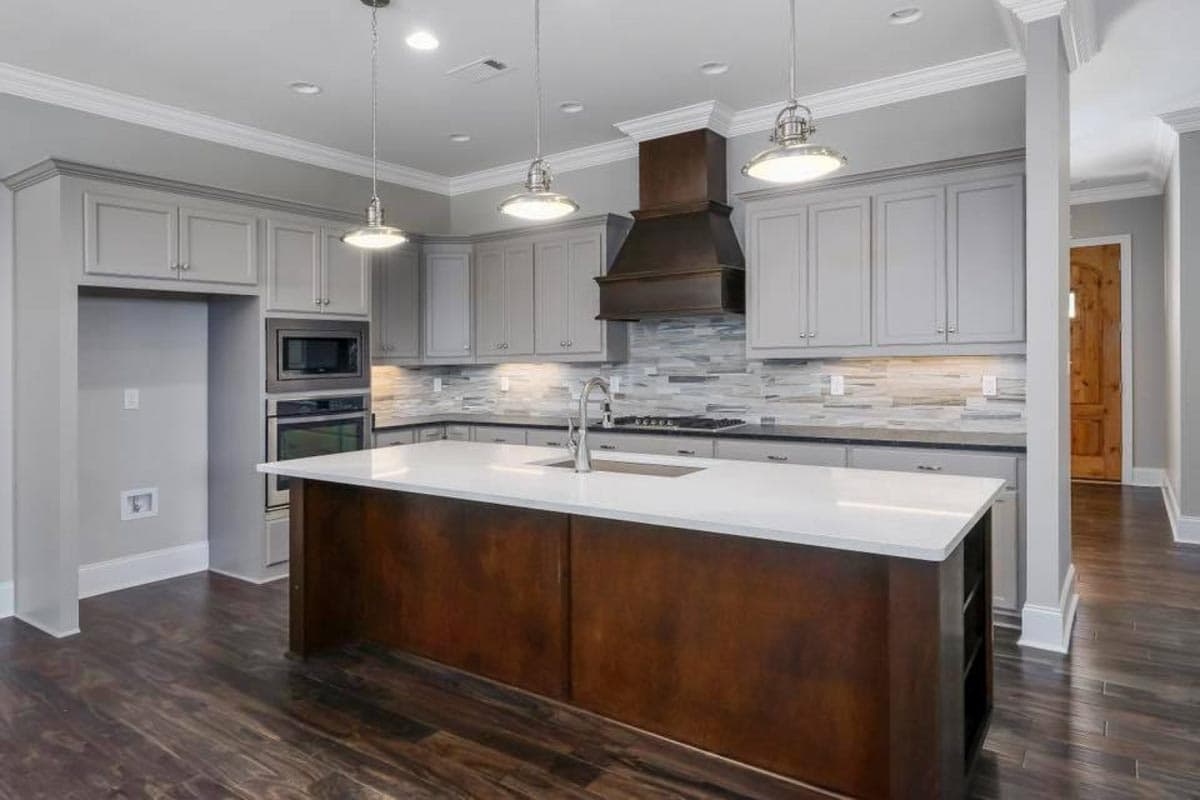

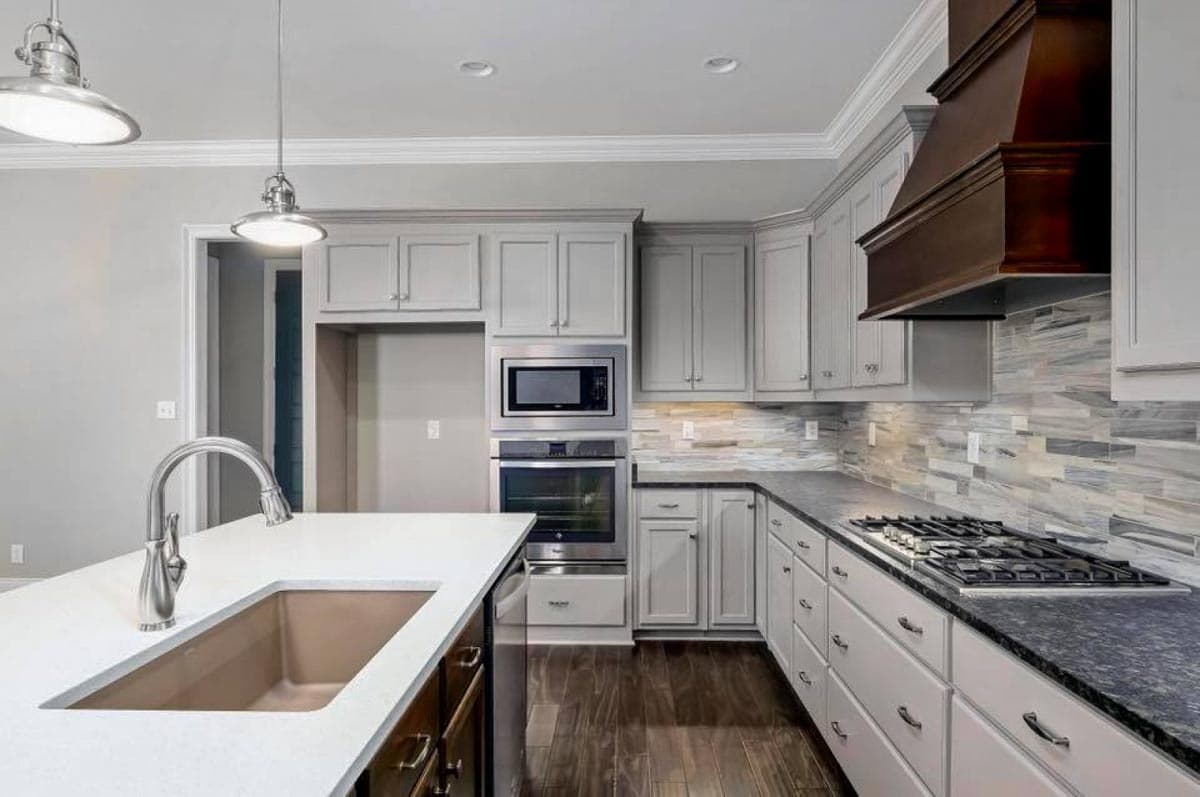

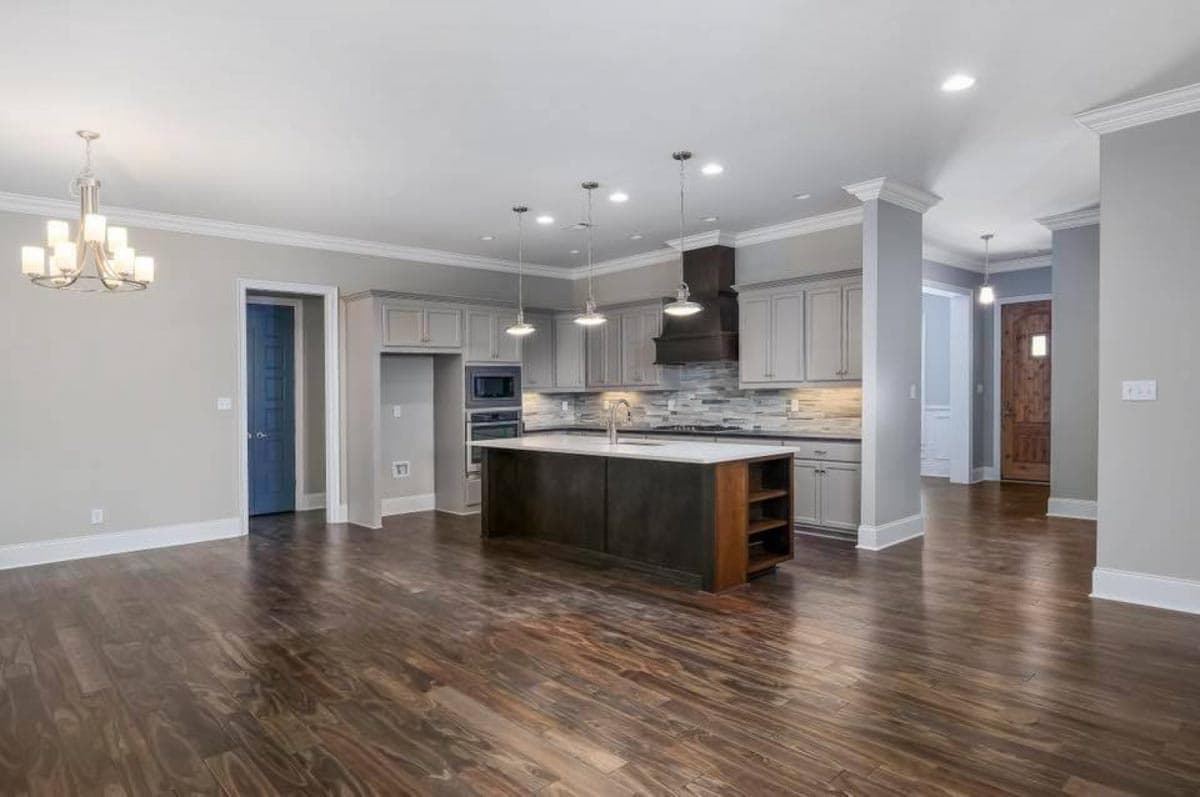

The thoughtfully planned wraparound kitchen boasts a breakfast bar and walk-in pantry.
In the front of the home, a versatile office space offers privacy and convenience.

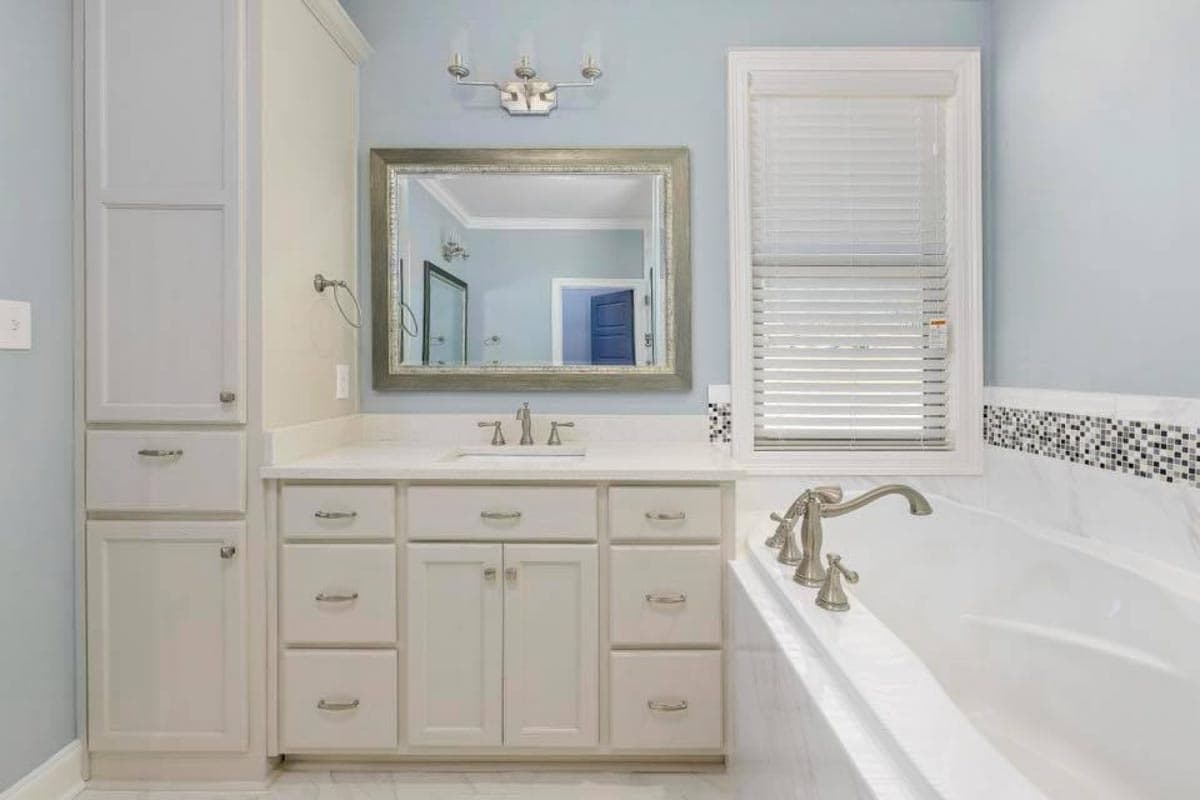

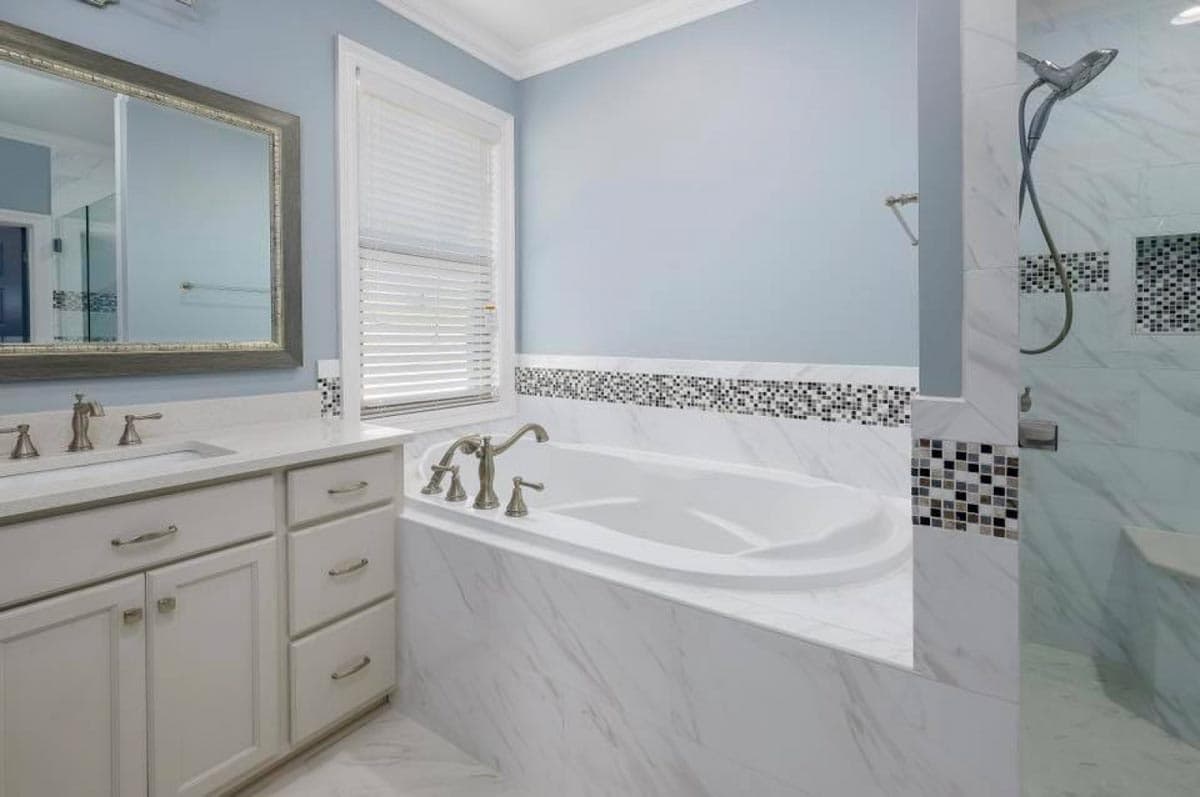

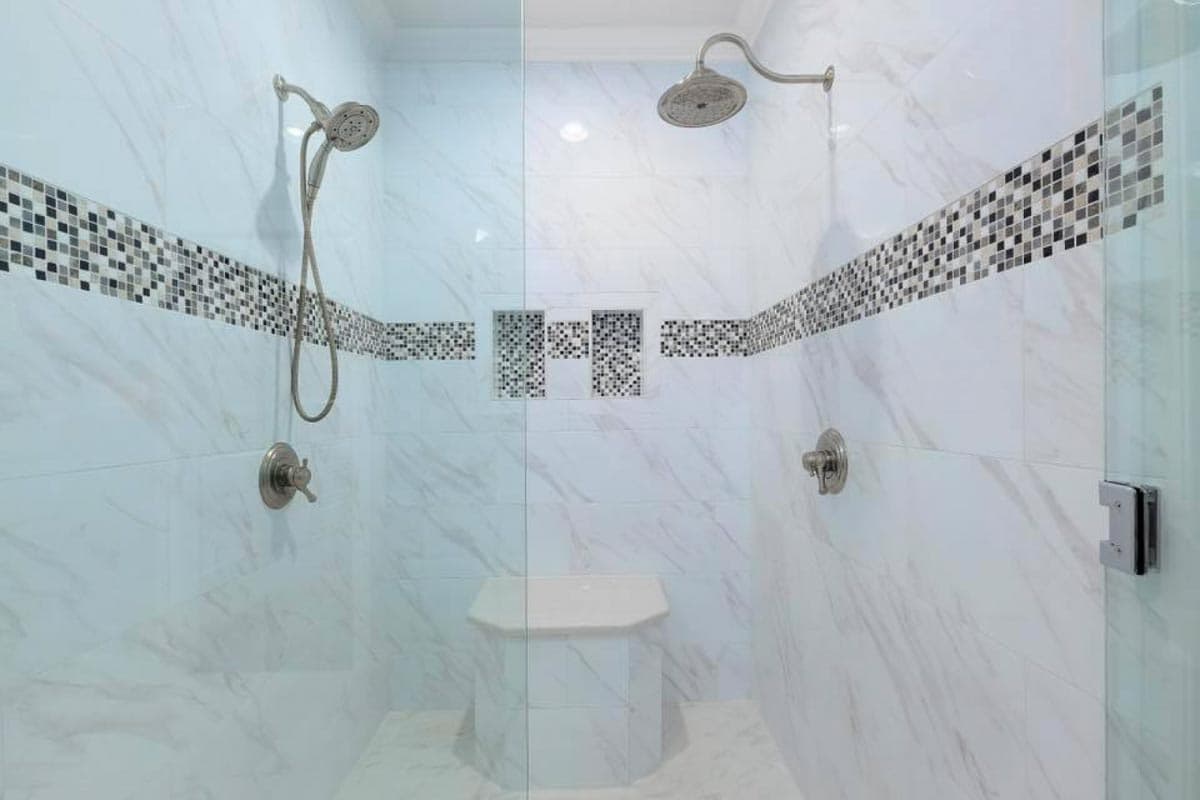

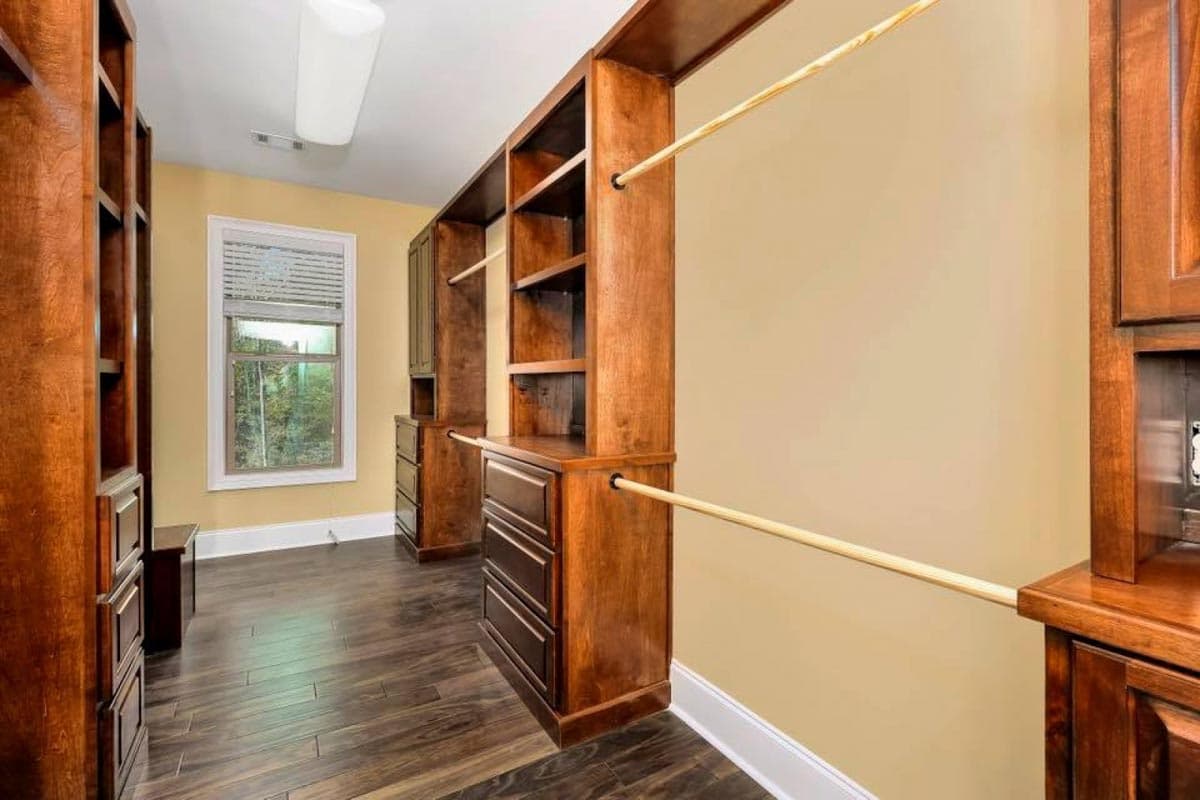

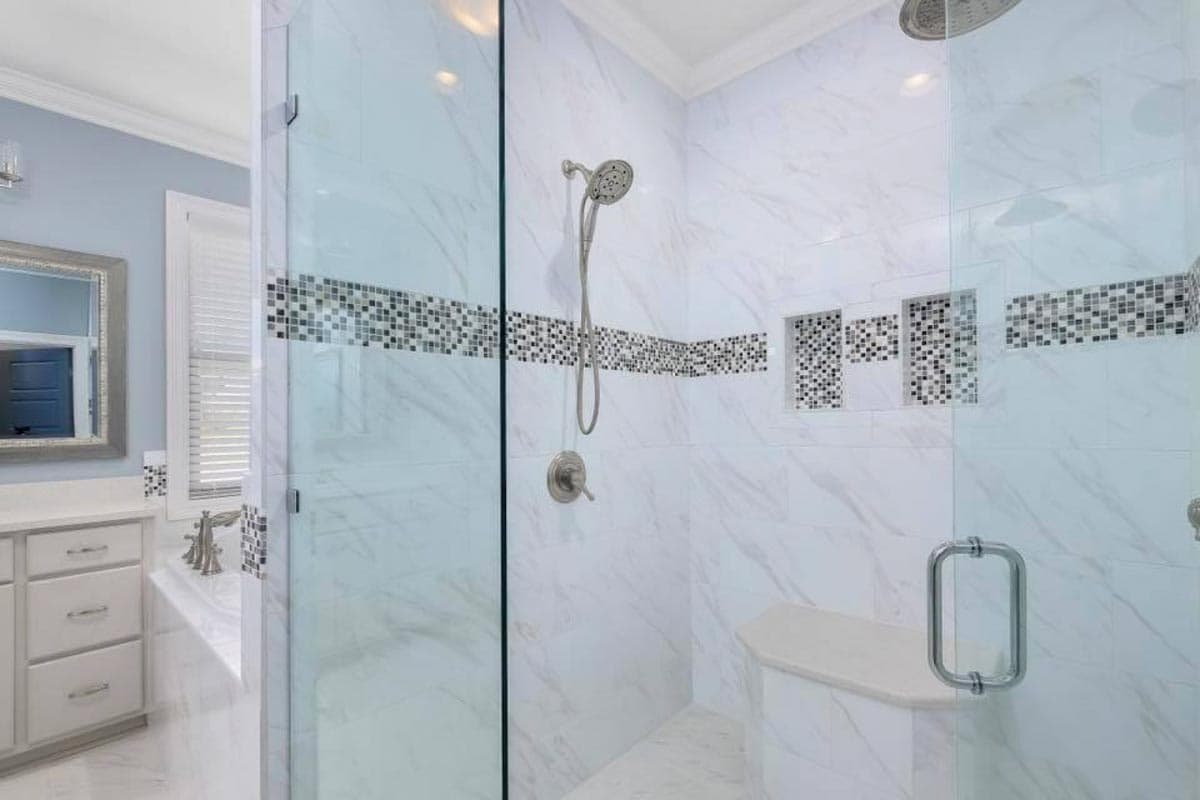

The tucked-away main-floor master suite features a spacious walk-in closet and 5-piece bath with a double shower.

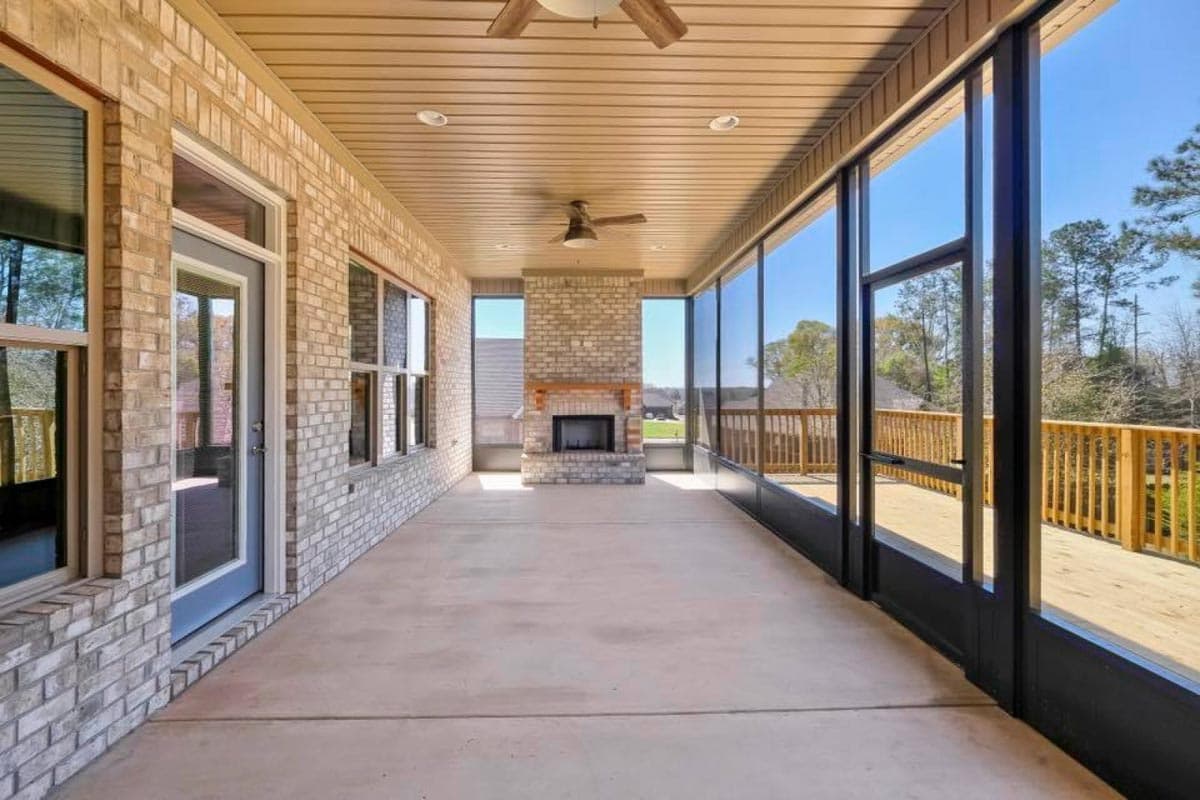

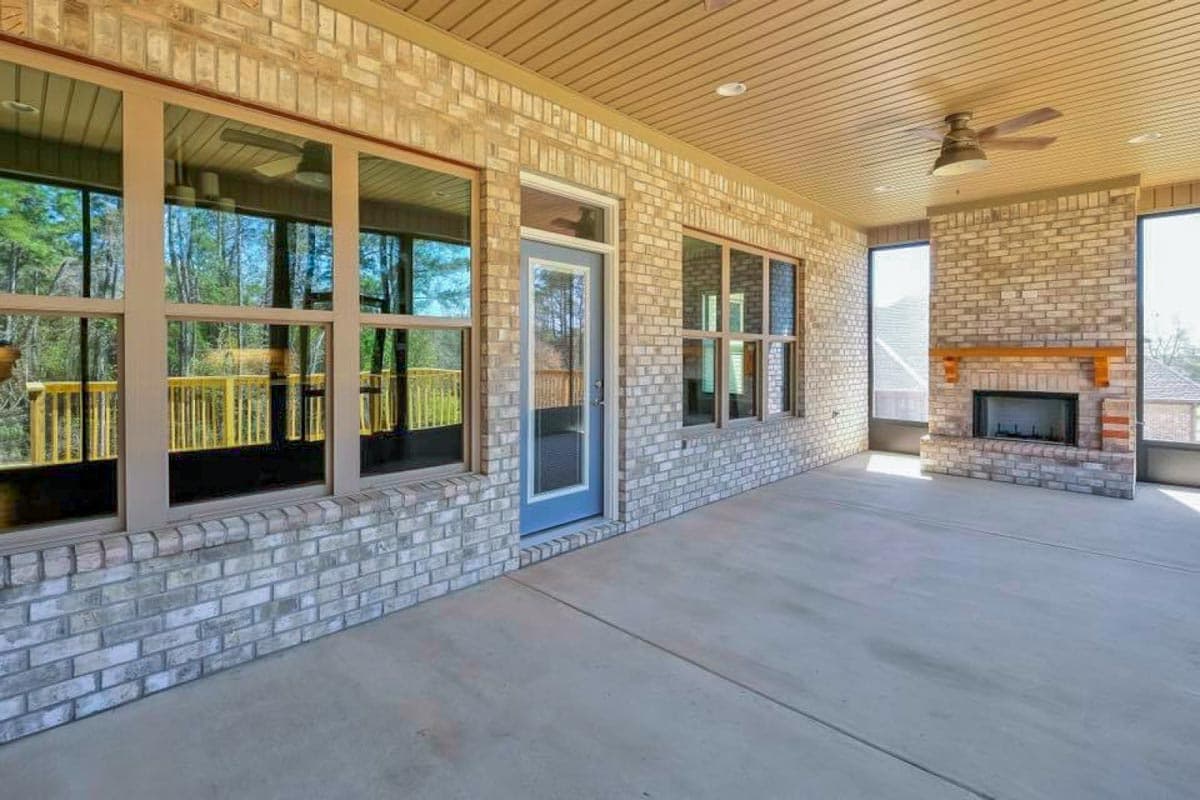

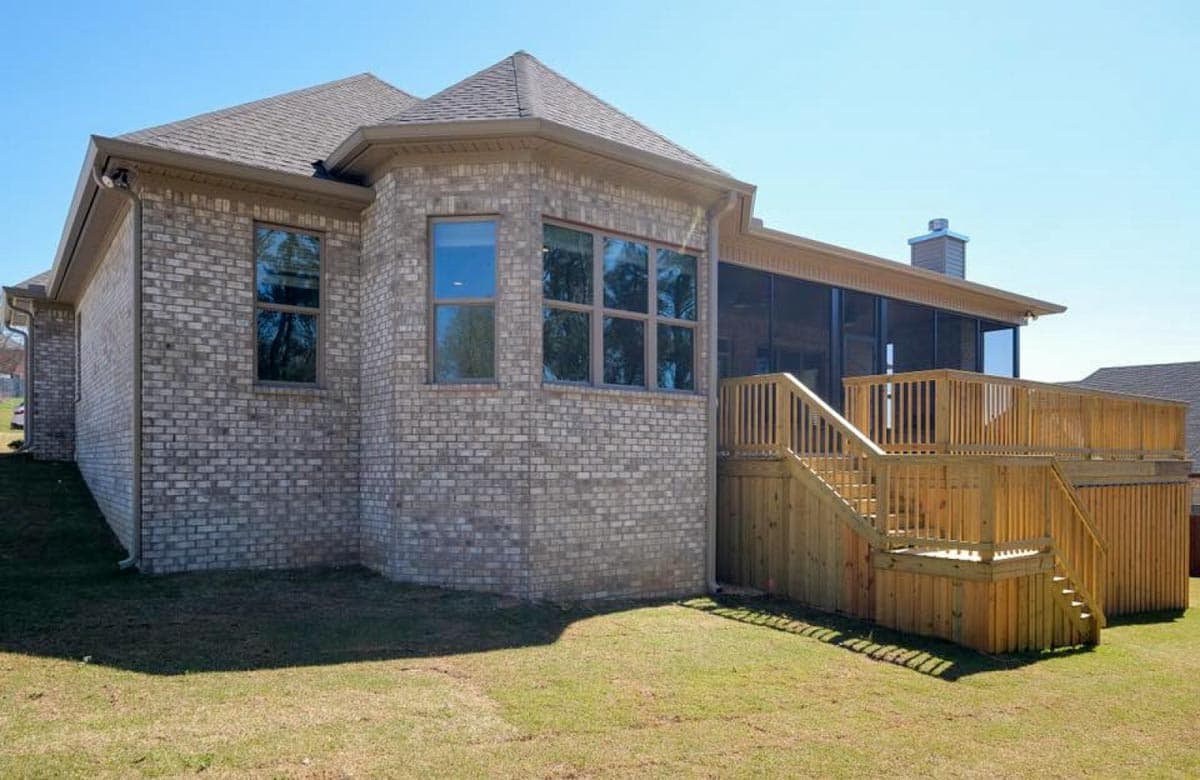

Enjoy warm weather on the large covered back porch with a fireplace.

What's Included

Cover Sheet
Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,695 sq. ft.

1st Floor:

2,695 sq. ft.

Porch, Combined:

461 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

3

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

70' 11"

Depth:

71' 6"

Max Ridge Height:

28' 1"

Garage

Type:

Attached

Area:

721 sq. ft.

Count:

2 Cars

Entry Location:

Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch:

10 on 12

Architectural Style

Special Features

Bedrooms - Clustered

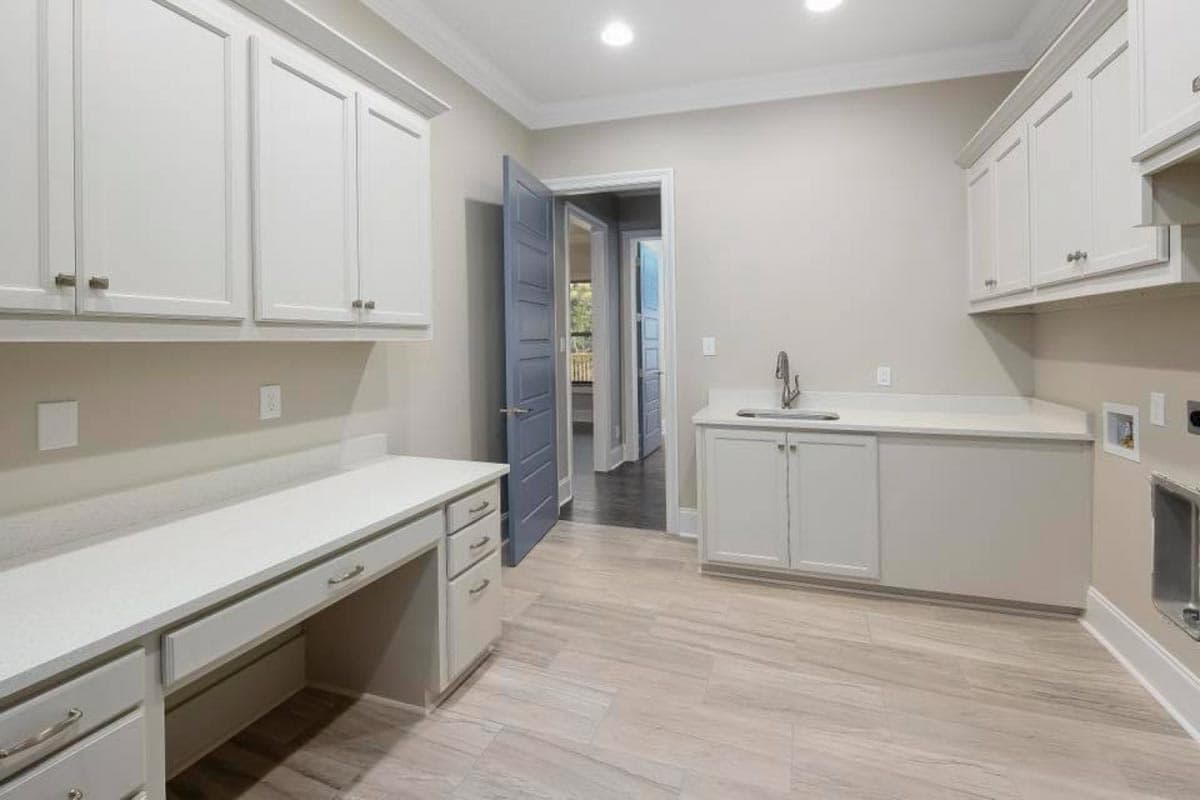

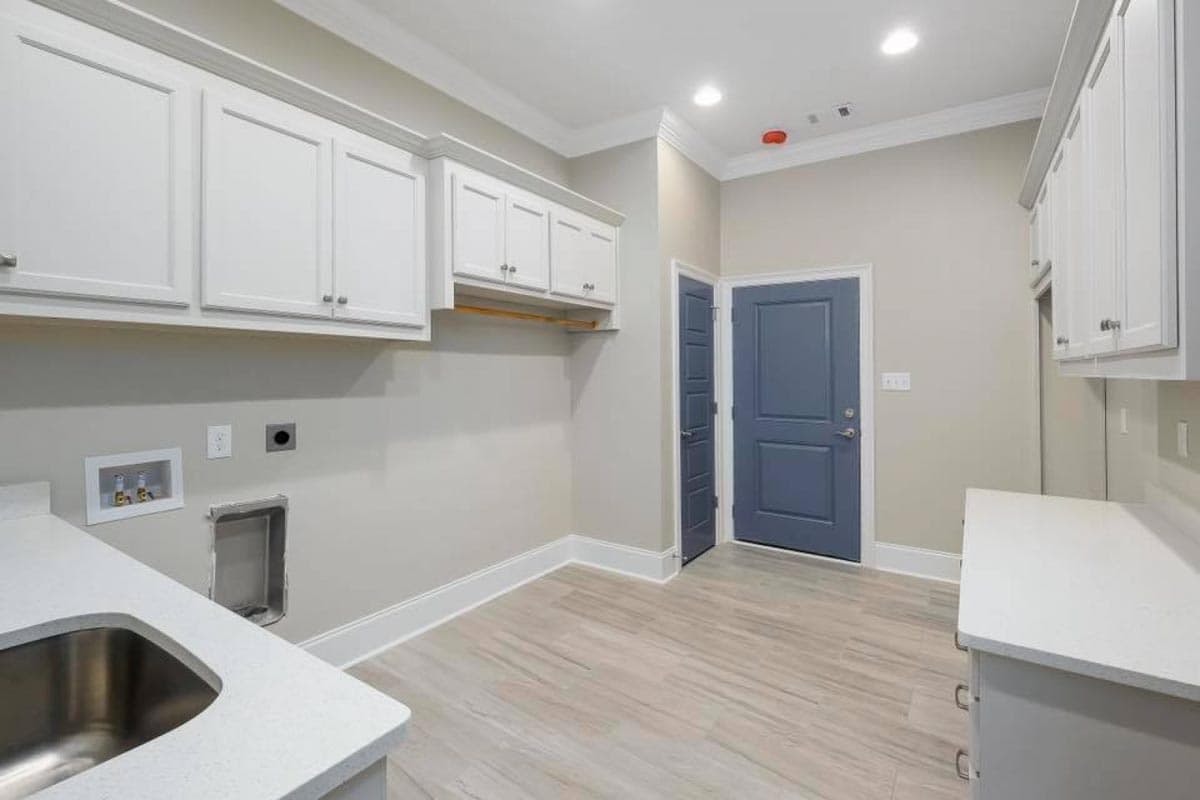

Laundry - Main Level

Master Suite - 1st Floor
