Plan 59249ND 3 Bedrooms With Expansion Possibilities

2,016 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3 Bedrooms With Expansion Possibilities

Plan 59249ND

  • 2,016

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The covered front porch and the courtyard-style garage accent the exterior of this traditional Southern dwelling.
  • Inside, the great room, breakfast bay and kitchen form one large space.
  • The home has a number of nice touches, including a built-in desk off the great room, a raised bar where you can eat breakfast on stools by the kitchen, and a grilling porch.
  • On one side of the house lies the master suite with a huge walk-in closet, whirlpool tub and separate shower.
  • Upstairs, beds 2 and 3 share a great Jack-and-Jill bath. An optional bonus room and TV room - not part of the total living area calculations - give you room for future expansion.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

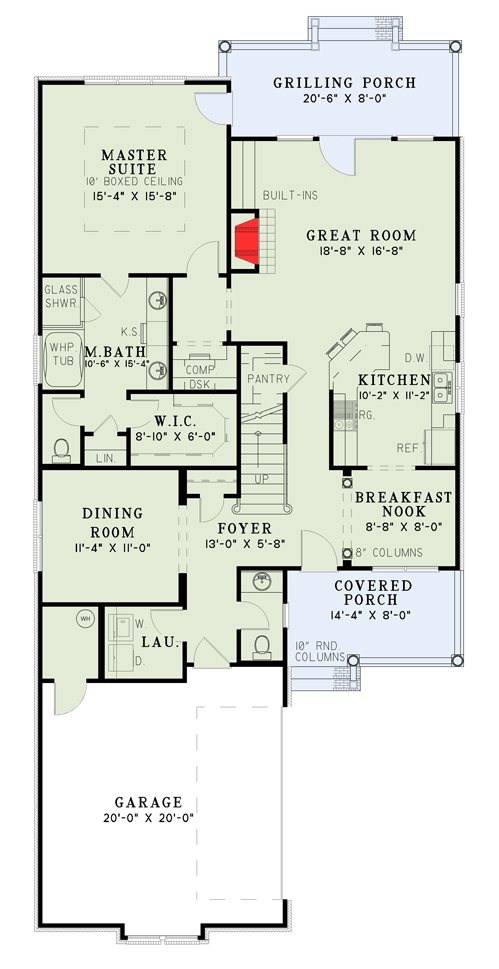

3 Bedrooms With Expansion Possibilities - 59249ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

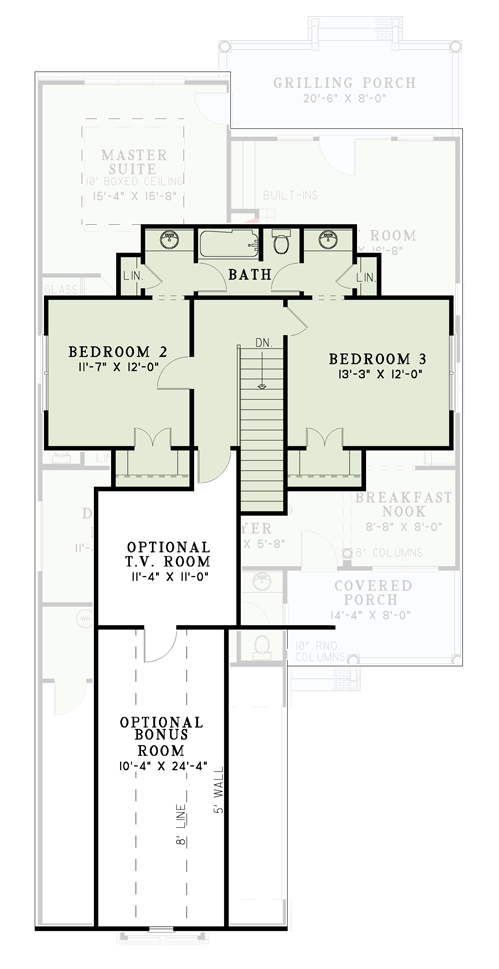

3 Bedrooms With Expansion Possibilities - 59249ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,016 sq. ft.
  • 1st Floor: 1,485 sq. ft.
  • 2nd Floor: 531 sq. ft.
  • Bonus: 426 sq. ft.
  • Porch, Combined: 270 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 35' 6"
  • Depth: 74' 8"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

3 Bedrooms With Expansion Possibilities

  • 2,016

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • The covered front porch and the courtyard-style garage accent the exterior of this traditional Southern dwelling.
  • Inside, the great room, breakfast bay and kitchen form one large space.
  • The home has a number of nice touches, including a built-in desk off the great room, a raised bar where you can eat breakfast on stools by the kitchen, and a grilling porch.
  • On one side of the house lies the master suite with a huge walk-in closet, whirlpool tub and separate shower.
  • Upstairs, beds 2 and 3 share a great Jack-and-Jill bath. An optional bonus room and TV room - not part of the total living area calculations - give you room for future expansion.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,016 sq. ft.
  • 1st Floor: 1,485 sq. ft.
  • 2nd Floor: 531 sq. ft.
  • Bonus: 426 sq. ft.
  • Porch, Combined: 270 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 35' 6"
  • Depth: 74' 8"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 470 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
Plan 59249ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59249ND
|
Need Help? 800-854-7852
|
Plan 59249ND
