3 Beds with Metal Roof and Bonus Room

Plan 72807DA

  • 2,132

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Skylights and vaulted ceilings expand and brighten the family living area at the heart of this 3 bed house plan with bonus room with Craftsman detailing.
  • The entry is vaulted along with the front bedroom and owners' suite. A wide window bay further expands the living room to the right of the entry, where a coffered ceiling adds a touch of elegance.
  • The kitchen is open to the vaulted family room and an eating bar helps tie the areas functionally together. Sliding glass doors in the sky-lit nook offer easy access to the deck. Flames in the gas fireplace can be seen from both the kitchen and the family room.
  • Owners' suite amenities include a roomy walk-in closet and a large bathroom with a spa tub, dual vanity, and separately-enclosed shower and toilet.
  • The bonus room over the garage gives you expansion possibilities. The space get natural light through front and side windows.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

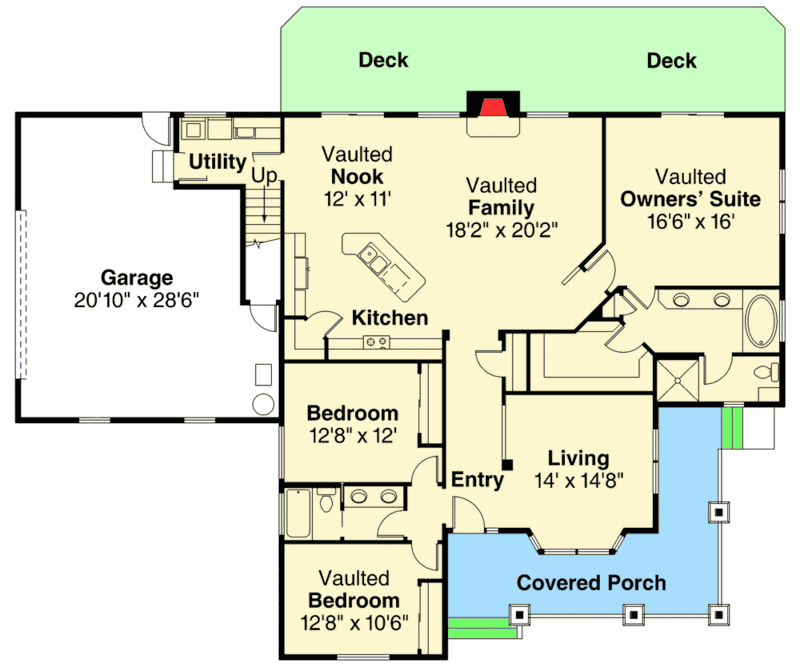

3 Beds with Metal Roof and Bonus Room - 72807DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Beds with Metal Roof and Bonus Room - 72807DA floor plan - Bonus

3 Beds with Metal Roof and Bonus Room

  • 2,132

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,132 sq. ft.
  • 1st Floor: 2,132 sq. ft.

Dimensions

  • Width: 73' 0"
  • Depth: 54' 0"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
