Plan 72355DA

3-Car 1080 Square Foot Garage with 294 Square Foot RV Carport

Heated S.F.

0

Beds

0

Stories

1

Cars

4

What's Included

Floor Plan

Main Level

Reverse Floor Plan

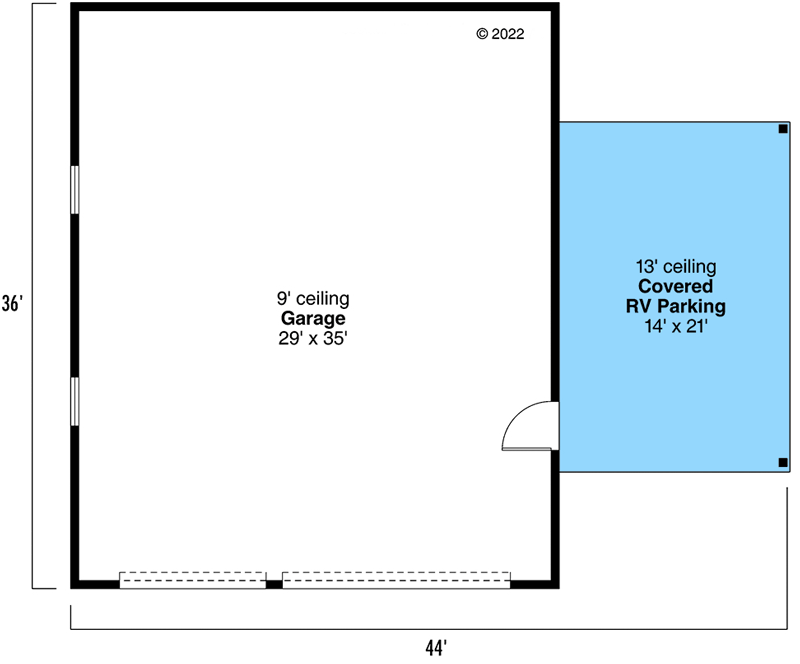

3-Car 1080 Square Foot Garage with 294 Square Foot RV Carport - 72355DA floor plan - Main Level

Plan Details

This traditional garage plan can contain up to three cars inside and an RV in the carport to the right.
The garage portion gives you 1,080 square feet of parking. The garage door on the left is 9' wide and 8' wall and the one on the right is 14' wide and 8' tall.
The covered area to the right offers 294 square feet of RV parking with a 13' high ceiling.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

0 sq. ft.

Carport:

294 sq. ft.

Beds/Baths

Bedrooms:

0

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

44' 0"

Depth:

36' 0"

Max Ridge Height:

20' 1"

Garage

Type:

Carport, RV Garage, Detached

Area:

1080 sq. ft.

Count:

4 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch:

8 on 12

Framing Type:

Truss

Architectural Style
