3-car Detached Barn-like Garage with Shop and Loft

Plan 46425LA

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 2

    Stories

  • 3

    Cars

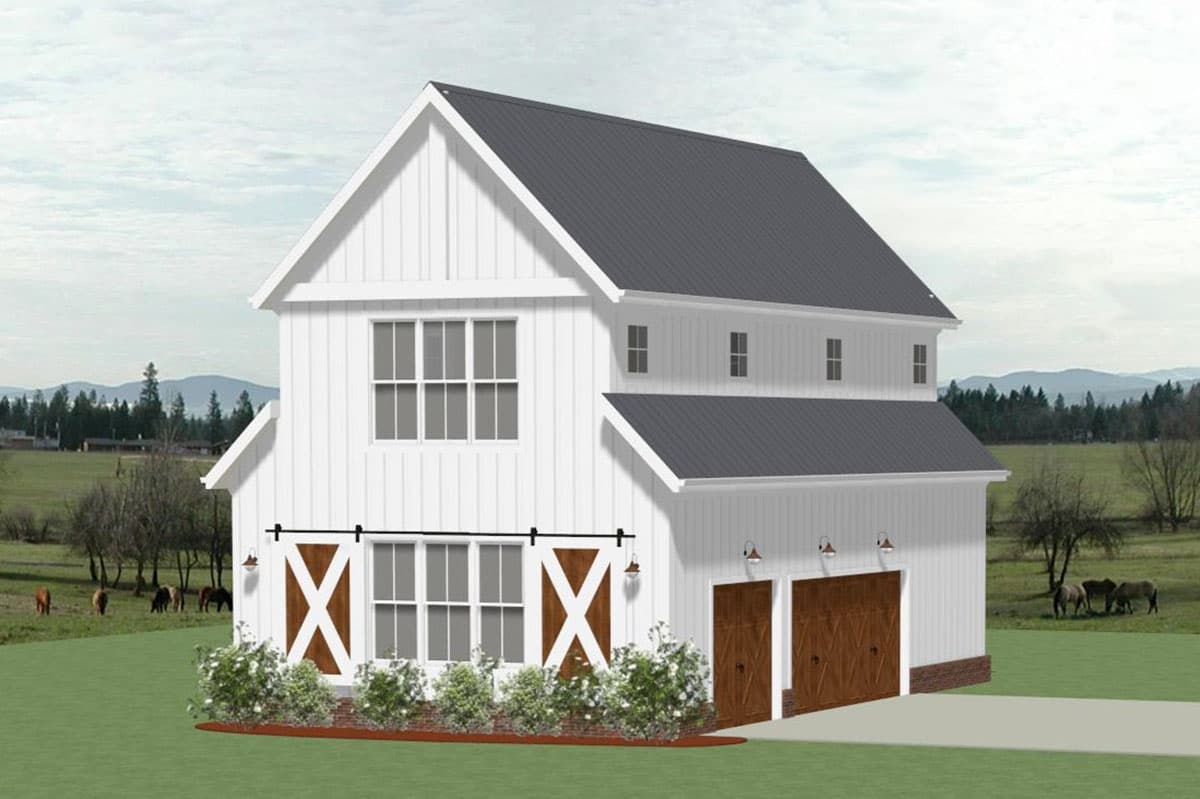

  • This 3-car detached garage has a barn-like appearance and has two bays - a smaller one for a single vehicle and a larger one for two vehicles - with additional space set aside for a ground-level shop. Barn doors can be closed to hide peering eyes from seeing what is inside.
  • Stairs take you to a large loft space with a half bath. This space can be used as a work from home space, a game or play room, a man cave or she shed or used for whatever you have in mind.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan

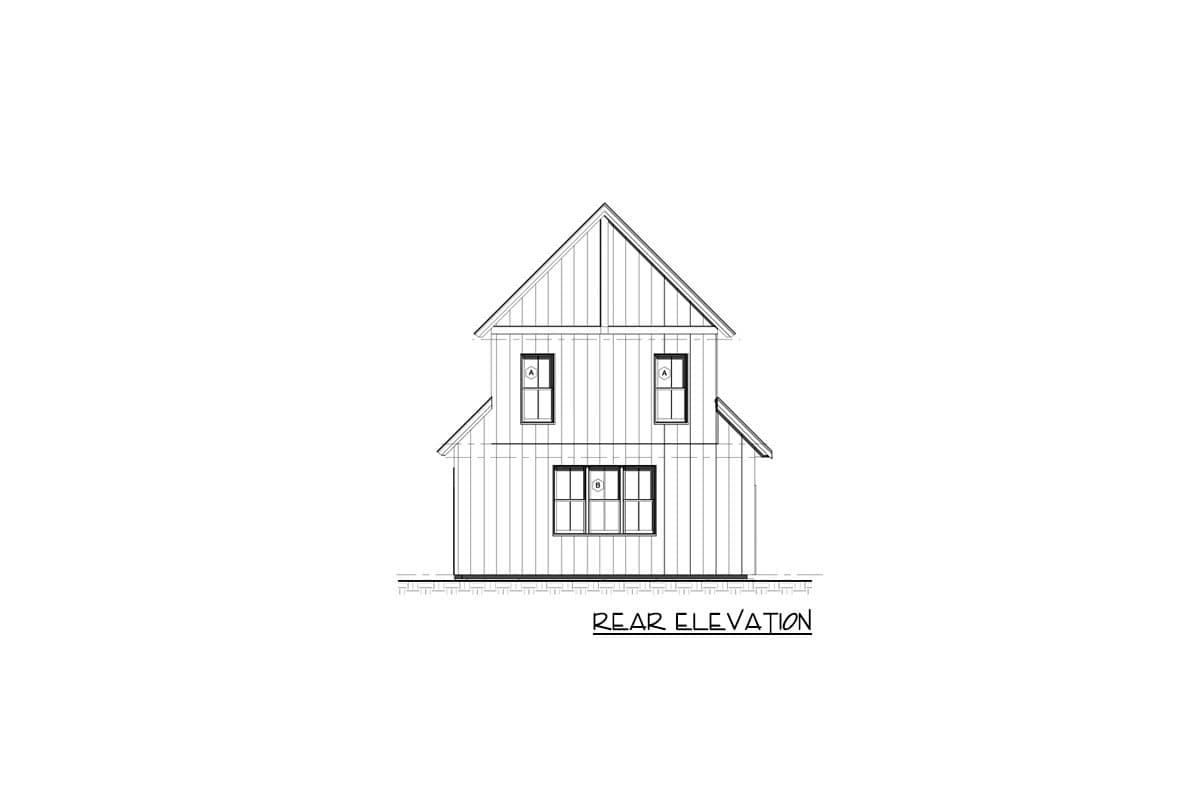

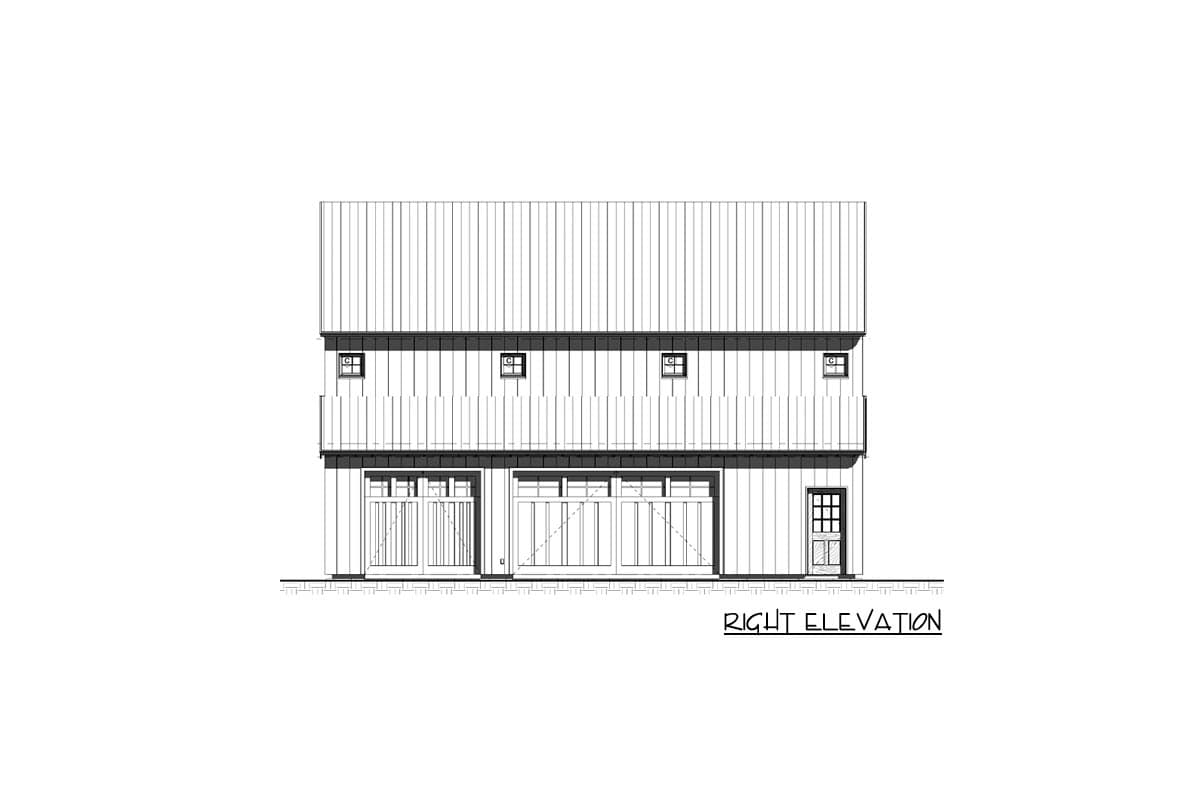

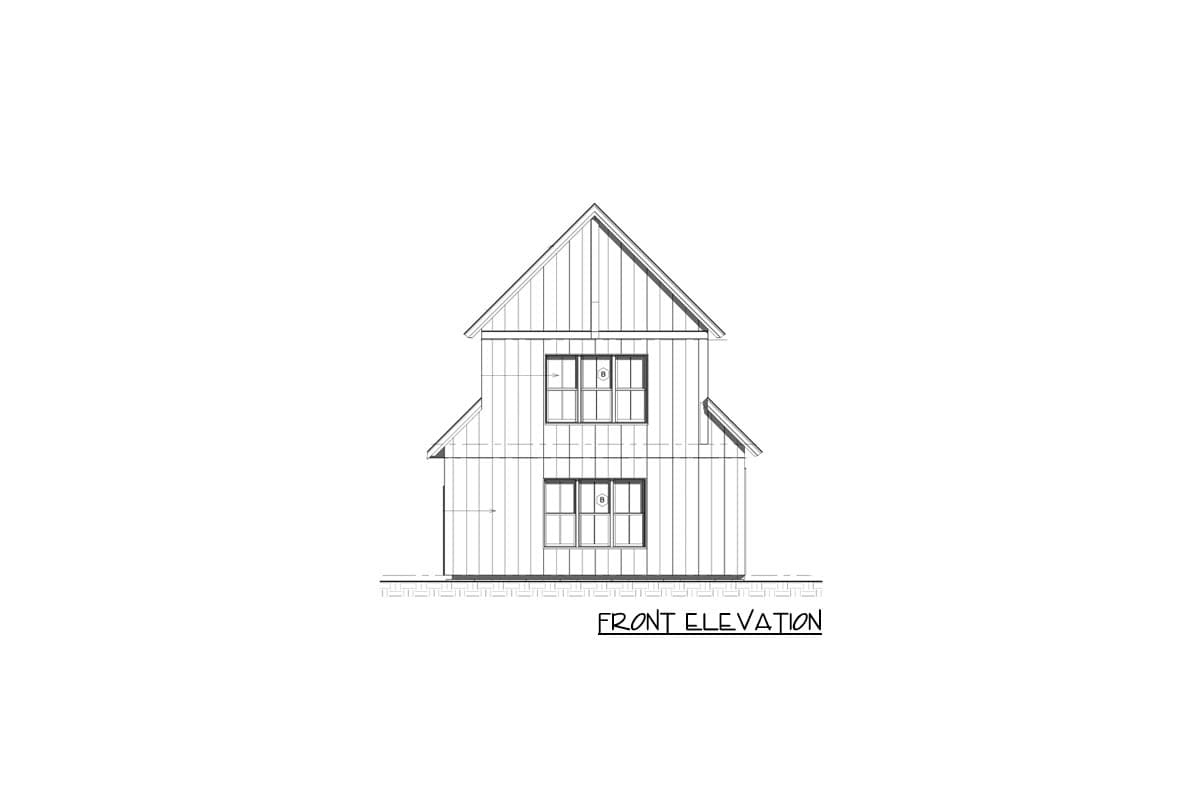

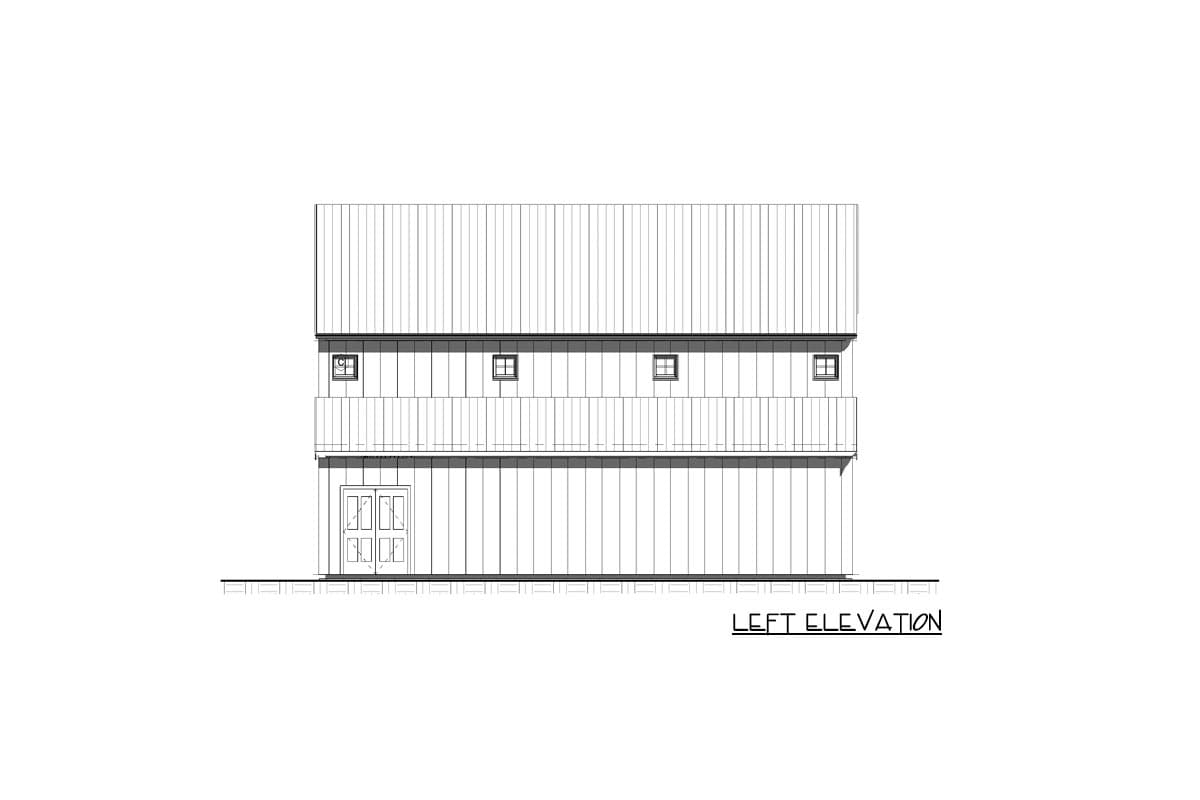

  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

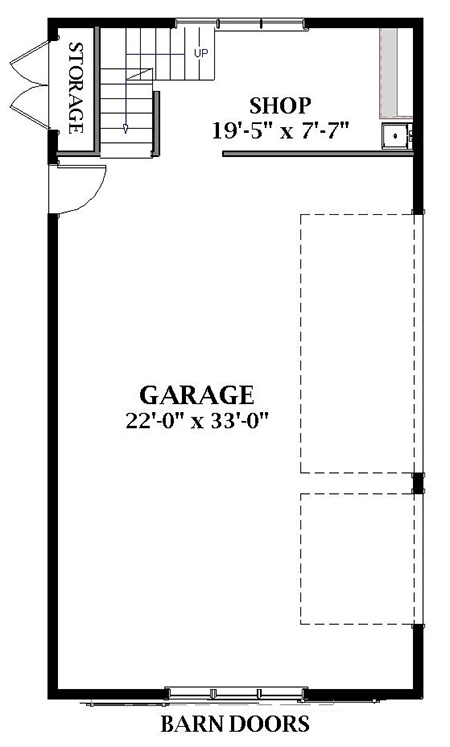

3-car Detached Barn-like Garage with Shop and Loft - 46425LA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

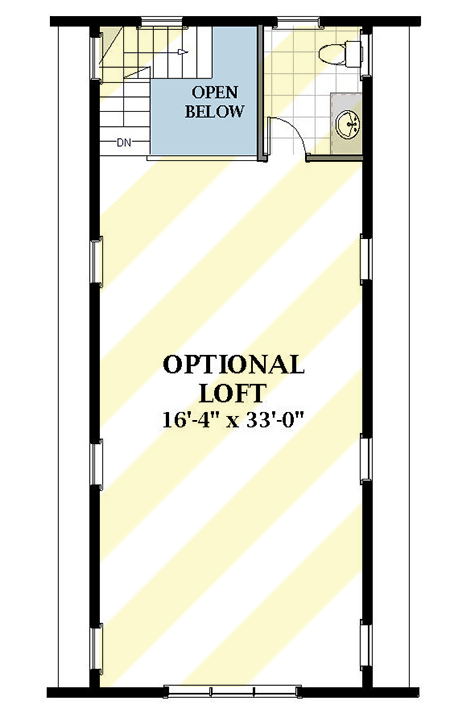

3-car Detached Barn-like Garage with Shop and Loft - 46425LA floor plan - 2nd Floor

Special features

3-car Detached Barn-like Garage with Shop and Loft

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 23' 0"
  • Depth: 42' 0"
  • Max ridge height: 30' 2"

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 944 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
