Plan 25433TF
3-Car Detached Garage with Two Overhead Doors - 1031 Sq Ft
Heated S.F.
0
Stories
1
Cars
3
What's Included
Plan Details
  • This 3-car detached garage gives you 1,031 square feet of heated living set behind a 2-car bay with an 18' by 8' overhead door and a separate 1-car bay with a 9' by 8' overhead door. A man door is on the left giving you access on foot.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in building them.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Car Detached Garage with Two Overhead Doors - 1031 Sq Ft

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

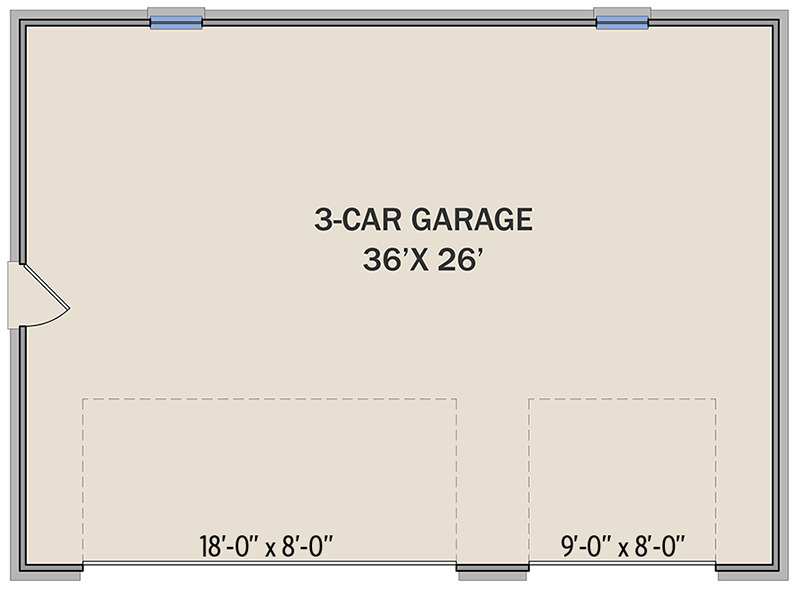

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 37' 6"
  • Depth: 27' 6"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 1031 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick Or Truss
